Характеристики

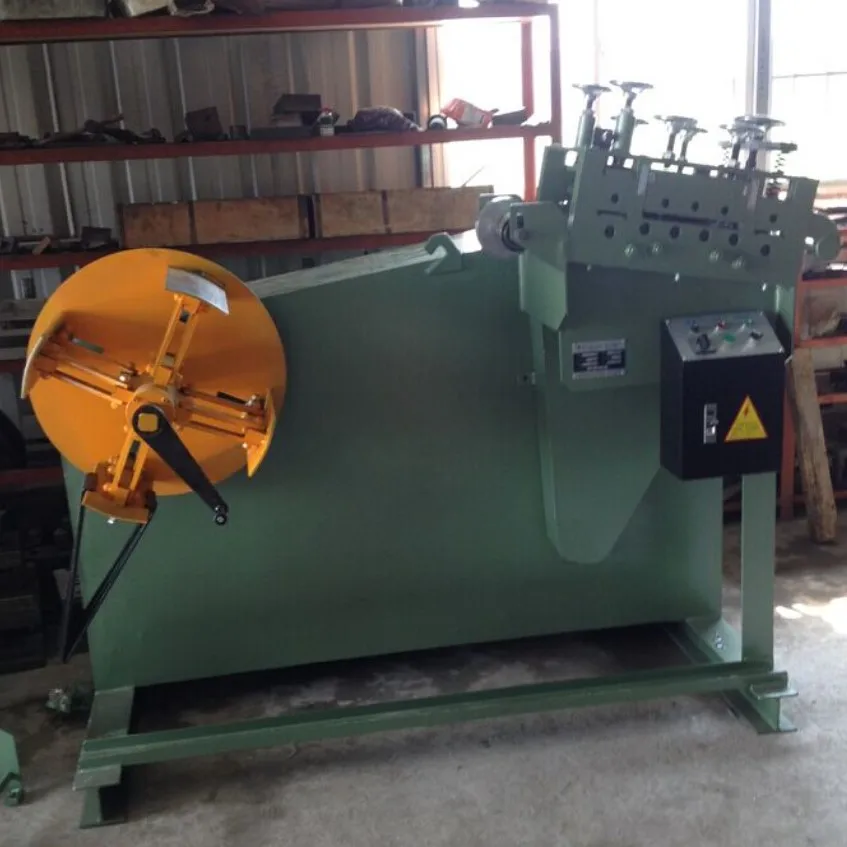

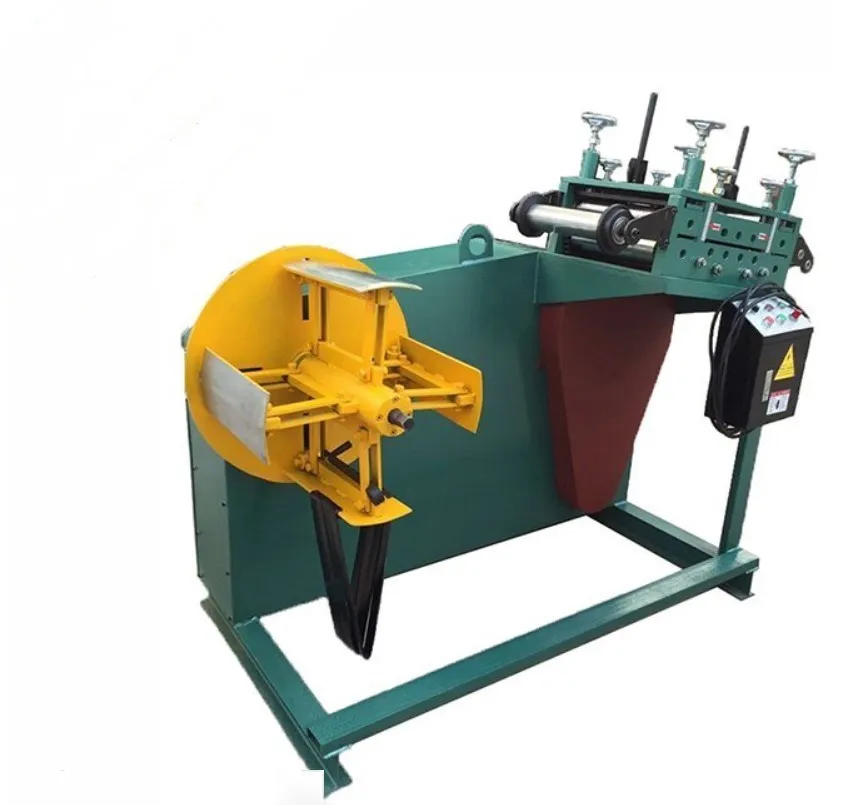

GO-200 Automatic Coil Uncoiler Decoiler Combine Sraightener Leveler Machine
| product name | straightener feeder and uncoiler |
| model | GO-200 |
| material | steel |
| size | 1950*900*1500mm |
| weight | 700kg |
Features:
Go General Uncoiler & Straightener
1. Uncoilder and straightener two in one stype improves factory usable space.
2. Straightening adopts the balance adjusting equipment and suitable for processing higher precision products.
3. Roller adopts the solid bearing steel and hard chrome plating treatment.
Specification Form | |||||
Model | GO-150 | GO-200 | GO-300 | GO-400 | GO-500 |
Material width | 150mm | 200mm | 300mm | 400mm | 500mm |
Material thickness | 0.5-3.0mm | ||||
Coil inner diameter | 450-530mm | ||||
Coil outer diameter | 1200mm | ||||
Coil weight | 500kg | 800kg | 1000kg | 1500kg | 2000kg |
Expansion style | Manual | ||||
Motor | 1/2HP | 1HP | 2HP | 2HP | 3HP |
Straightening Capacity | |||||
Model Material thickness | GO-150 | GO-200 | GO-300 | GO-400 | GO-500 |
1.5 | 150 | 200 | 300 | 400 | 500 |
2.0 | 150 | 200 | 300 | 400 | 400 |
2.5 | 120 | 160 | 240 | 320 | 250 |
