Характеристики



Products Description

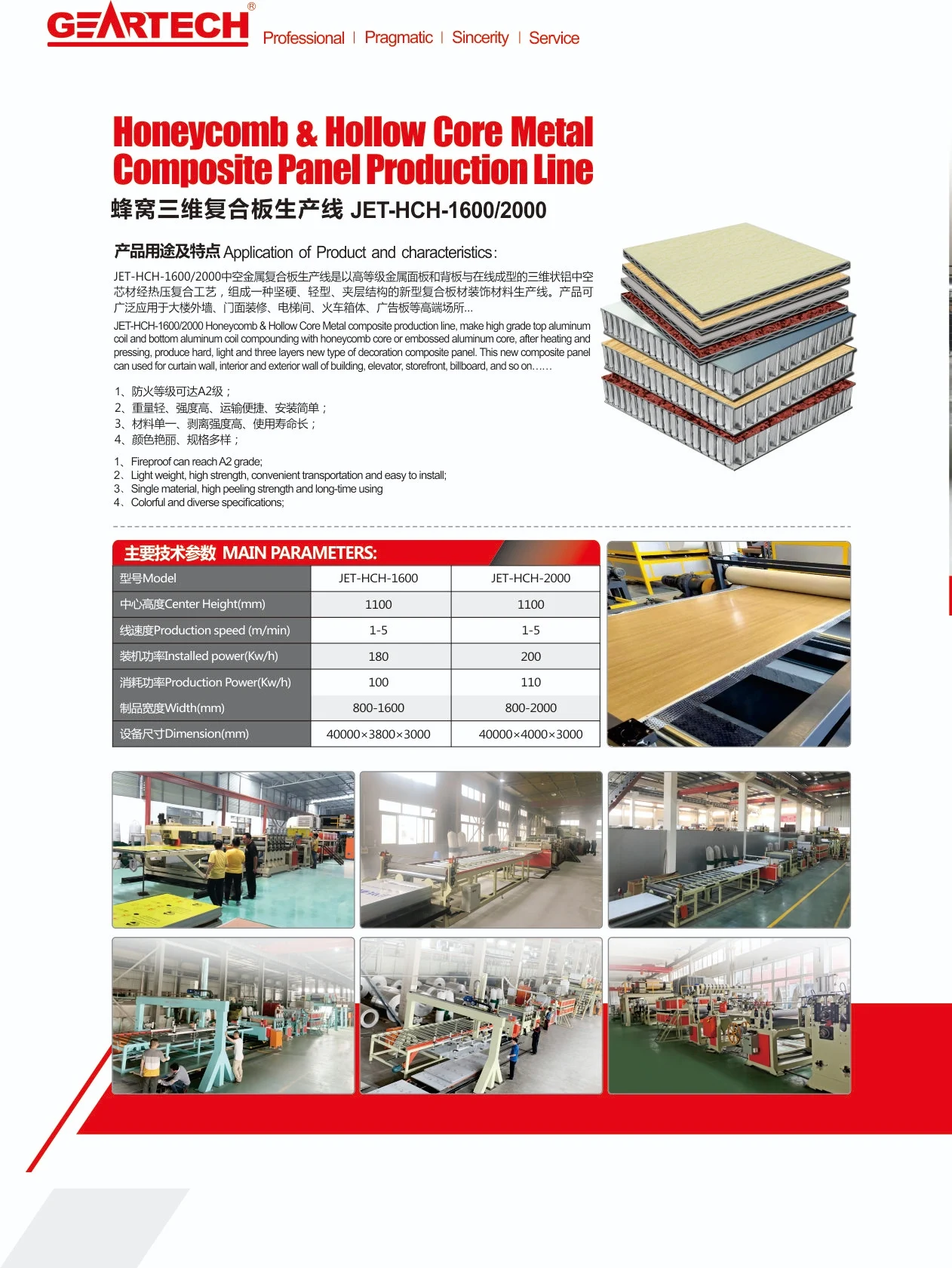

Honeycomb & Hollow Core 3D Metal Composite Panel Production Line

JET-HC-1600 Honeycomb & Hollow Core Metal composite production line, make high grade top aluminum coil and bottom aluminum coil compounding with honeycomb core or embossed aluminum core, after heating and pressing, produce hard, light and three layers new type of decoration composite panel. This new composite panel can used for curtain wall, interior and exterior wall of building, elevator, storefront, billboard, and so on.




Product Paramenters


Product specifications
L=800-1600
Equipment model
JET-SD-1600
Total installed power
160KW (JET-FH-1600)
Design line speed
5 m/s
Supply voltage
380V/3ph/50HZ
Switchboard weight
54000KG(JET-FH-1600)
External dimension
48×7.8×4m (JET-FH-1600)
Temperature tolerance of composite materials
≤220℃
Oil heating temperature
≤220℃
Aluminum core barrel
 φ505---φ405---φ150
Coil diameter
≤φ1300
Membrane core
80
Core material
 oAlu H1100
Thickness of aluminum foil
Core 0.18-0.40 mm, Top 0.3-0.7, Bottom 0.2-0.7
Molecular film thickness
0.03-0.15 mm
Thickness of protective film
0.05-0.08mm
Thickness of product
3-7mm
Width of product
800-1620mm


Manufacturing Technique


Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.


Details Images

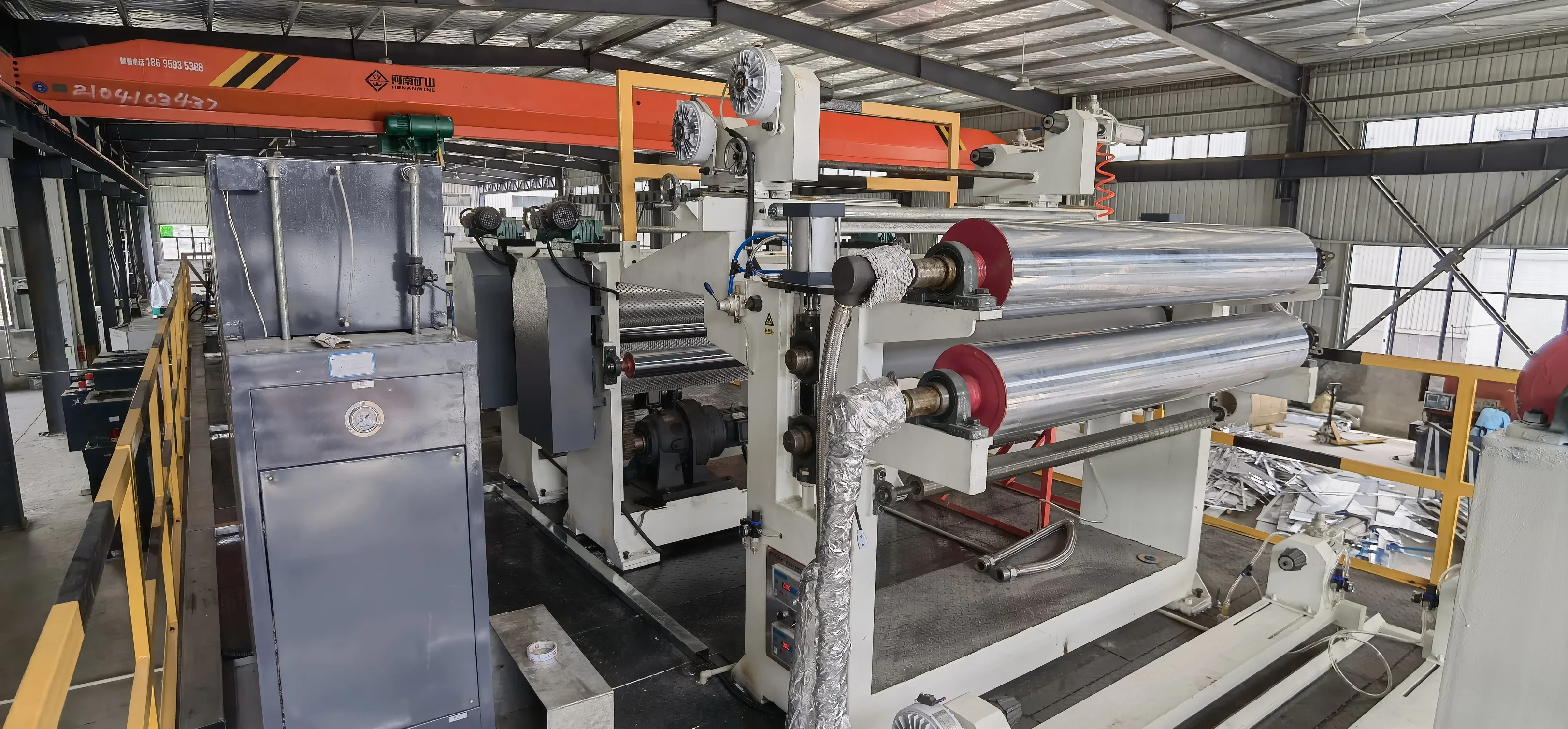

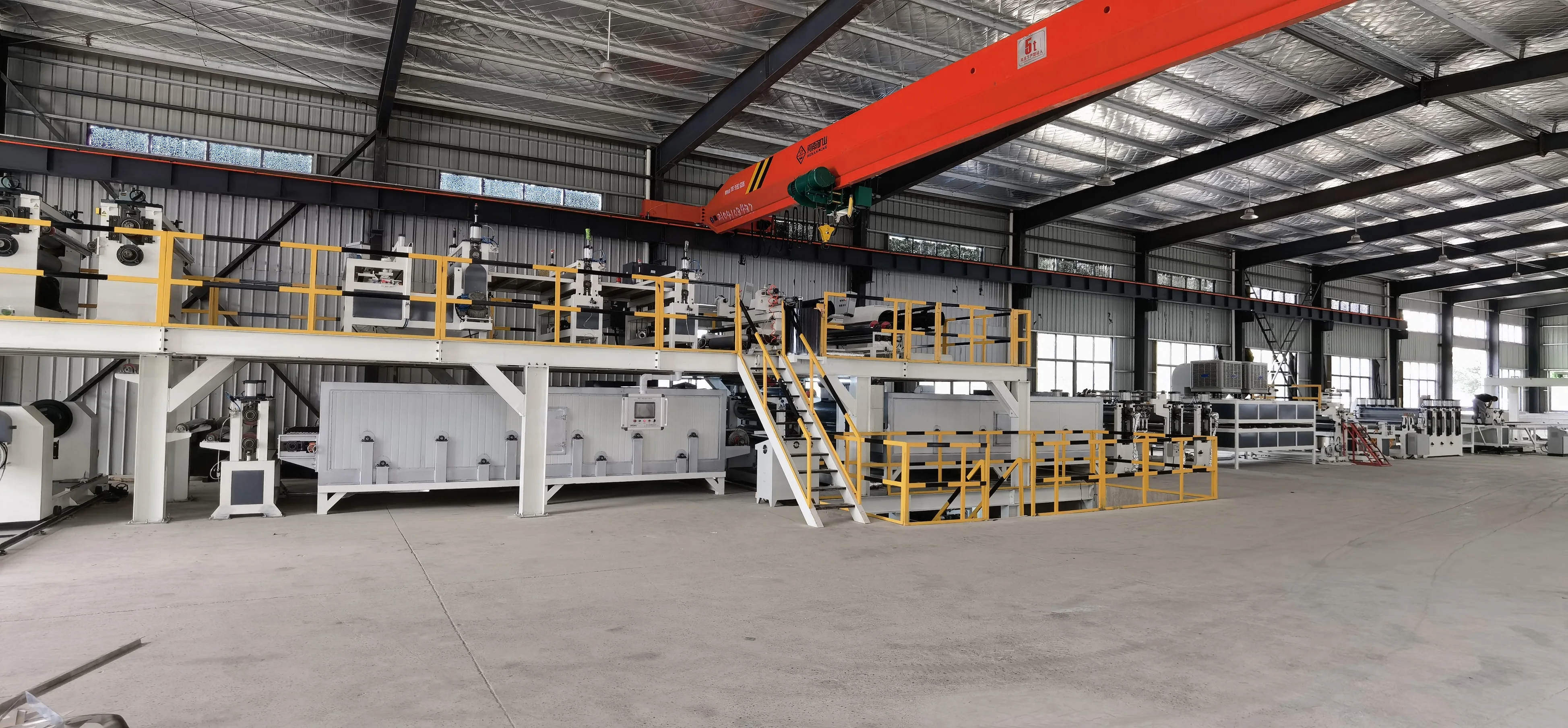

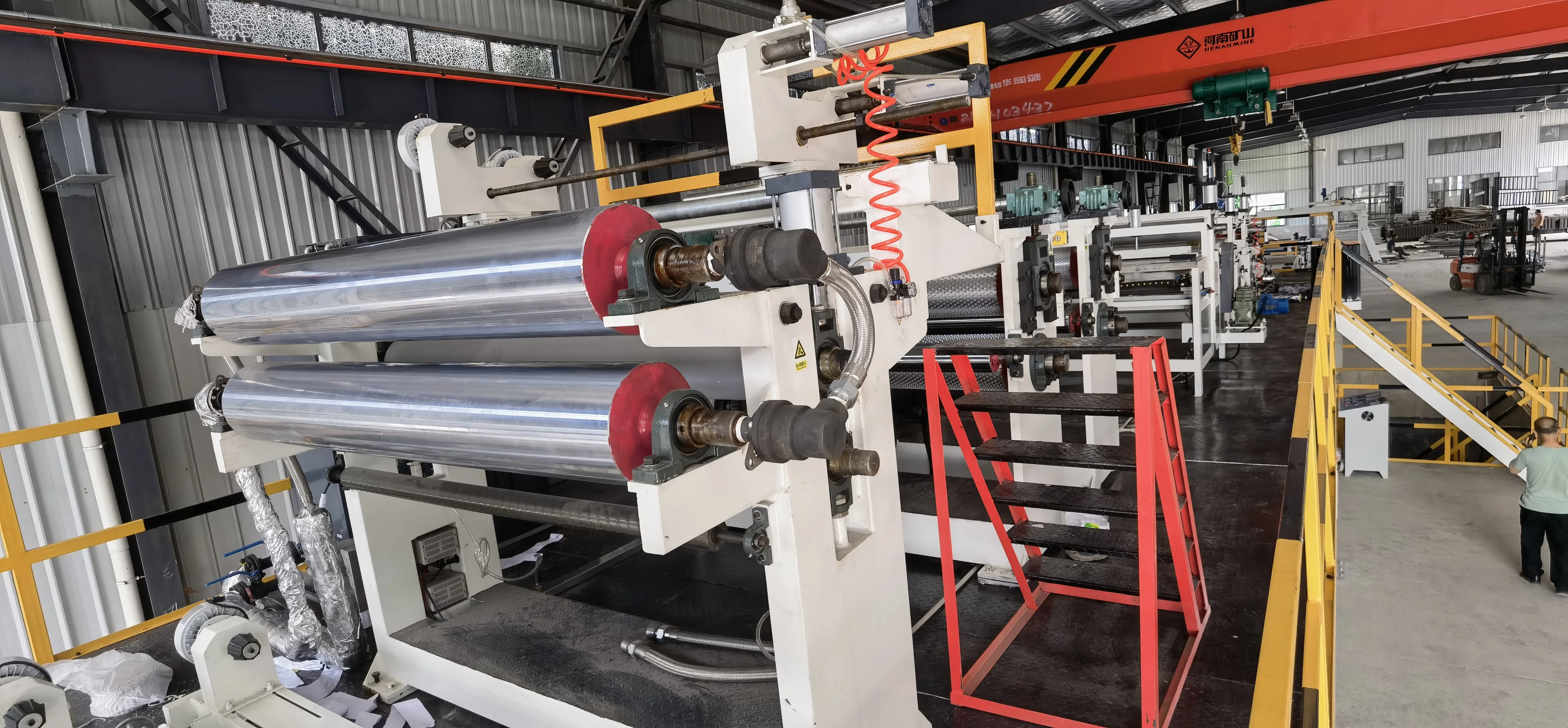

HONEYCOMB & 3D & A2 Multi-function production line
This set of equipment is the latest production line developed by Geartech. It integrates the functions of honeycomb board production, three-dimensional board production and fireproof board production


Aluminum coil splicer
This machine enables the production line to work continuously.


A2 core unwinding, clamping and preheating device



Honeycomb stretcher



Honeycomb stretcher



Single arm unwinder



Sales & Service Network




Successful Project




Cooperation Brand






FAQ


Q: What information do I need to provide Geartech Company to have a set of equipment quoted?

A: Geartech technical department will design and drawing mechanical equipment according to the customer's requirements for the product.The sales department will quote production line and spare parts according to the requirements of the drawings.

Q:If I don’t see the machine I need in the Geartech catalog or on the website, can I inquiry about a totally custom machine?

A: Geartech specializes in custom machine solutions. Our R&D department professionals work with customer’s needs to supply a custom solution for their project.


Q: How does the machine sign-off, shipping and installation work?

A: Geartech has nearly 20 dispatched engineers who are on standby to go to the customer's factory for installation, commissioning and maintenance. It usually takes 30 days to stay there. We will also teach factory workers the correct use of machinery and equipment, simple maintenance and other skills.
