Оптическая угловая кубическая

Категория: Призмы >>>
Поставщик: Shandong,Yanggu,Constant,Crystal,Optic,Inc.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.0 $*	0.47 $*
Aug-15-2025	0.99 $*	0.85 $*
Jul-15-2025	0.40 $*	0.28 $*
Jun-15-2025	0.3 $*	0.44 $*
May-15-2025	0.88 $*	0.95 $*
Apr-15-2025	0.83 $*	0.43 $*
Mar-15-2025	0.77 $*	0.94 $*
Feb-15-2025	0.97 $*	0.29 $*
Jan-15-2025	0.3 $*	0.86 $*

Характеристики

Corner Cube Prism

Features: Achieve a 90° Light Path Bend

Applications: Used in Combination for Image/Beam Displacement,Image and Beam

displacement system

Specifications:

Size range	8 - 100mm
Diameter tolerance	+0/-0.1mm
Height tolerance	±5mm
Angle tolerance	3'
Surface quality	60 / 40
Flatness	λ /4 per inch at 633nm
Chamfer	0.1 - 0.2mm
Material	BK7,fused silica,crystal,etc.

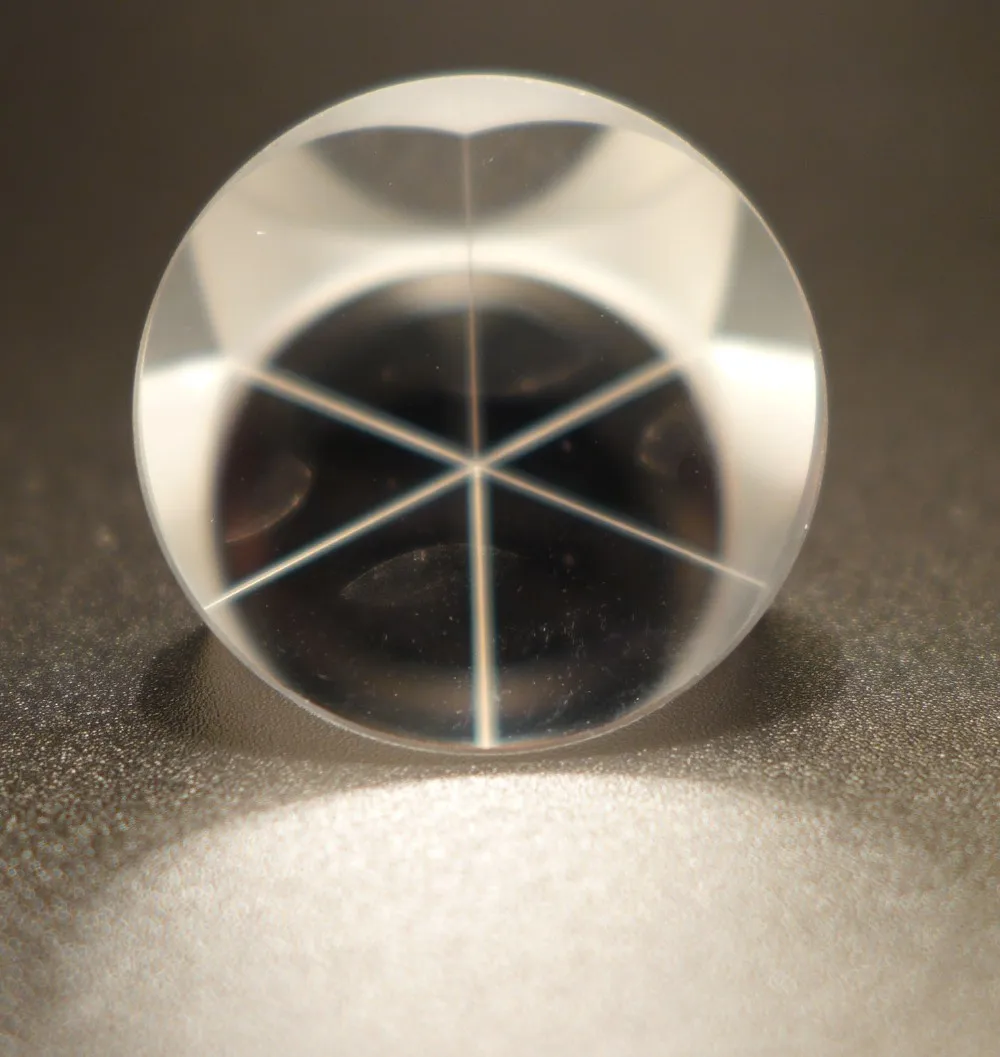

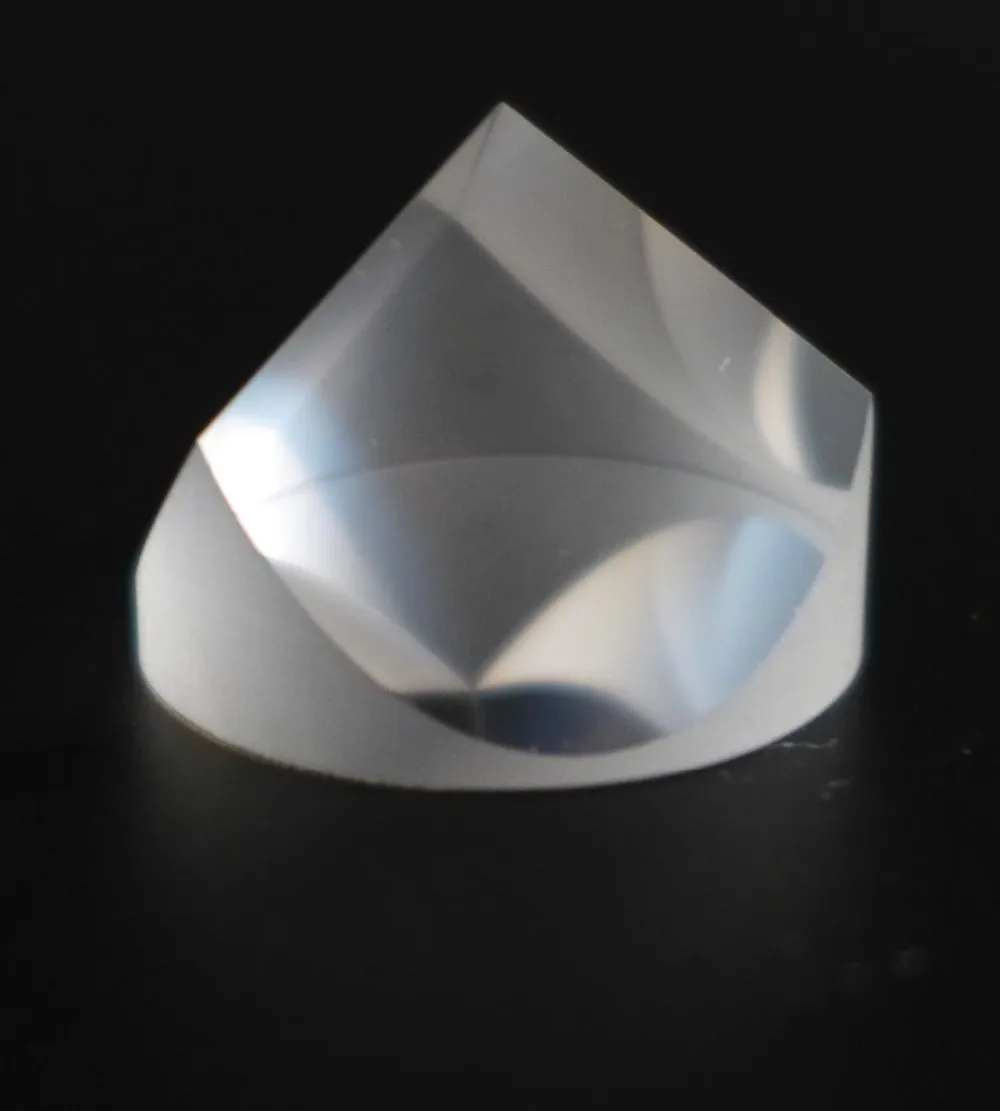

corner cube prisms.jpg corner cube prism.jpg


About us:

Supply corner cube prism:

We are specialized in the production of various specifications of optical components according to the customers' demand, And we are committed our standard more than eight years to offering our customers with excellent products, reasonable prices and high level of service.
