long span Curving roof steel panel  roll foming Machine

LSMBM-II-240(120



Why Do People Choose Arch Roof Steel Buildings?

Fast And Easy DIY Assembly

Durable Construction With Galvalume Steel

High Quality Grade

Affordable, Factory Direct Pricing

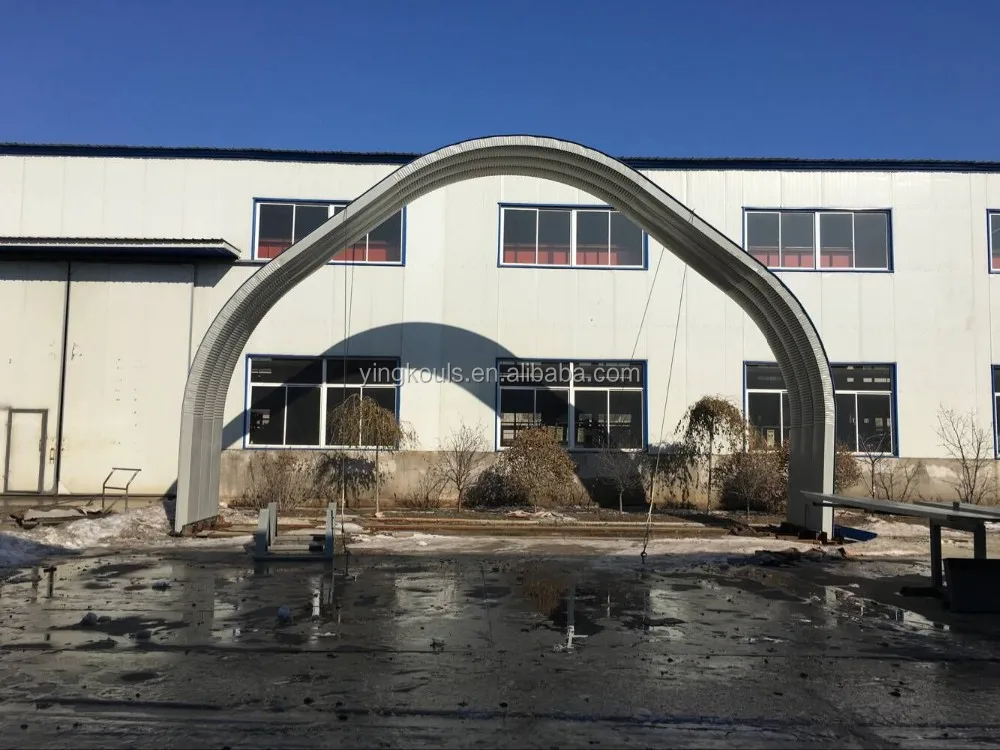

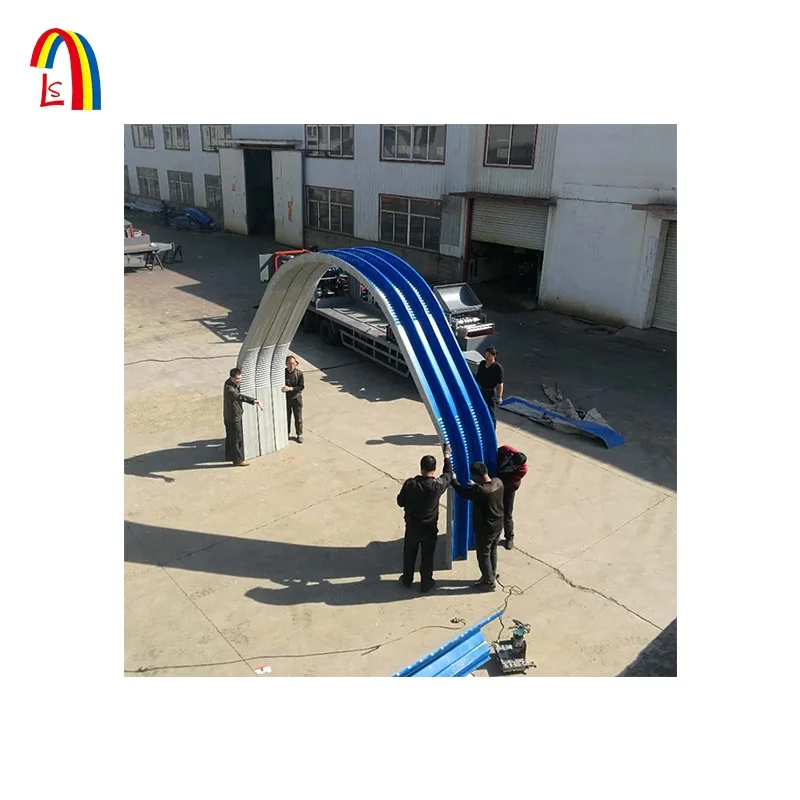

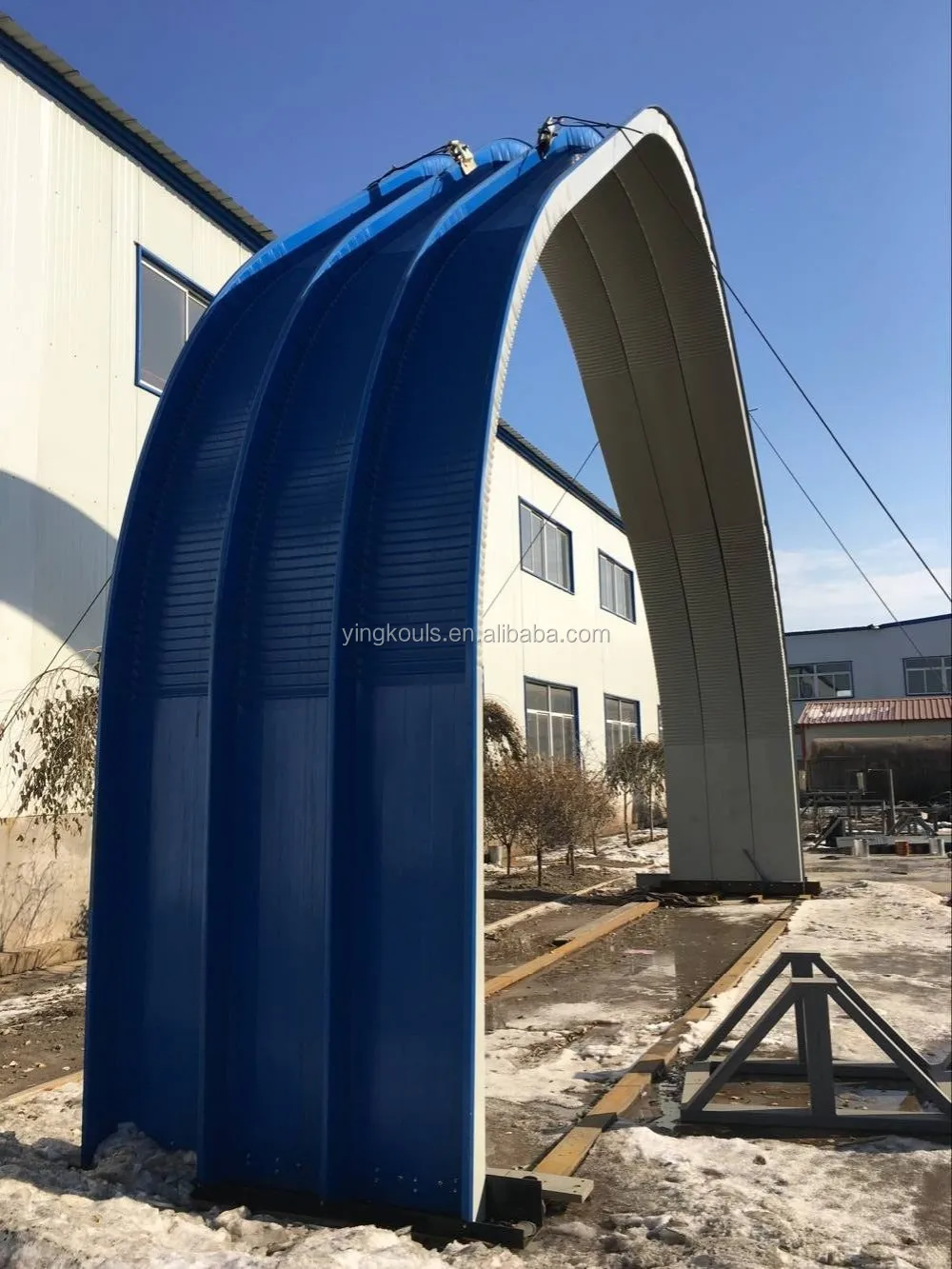

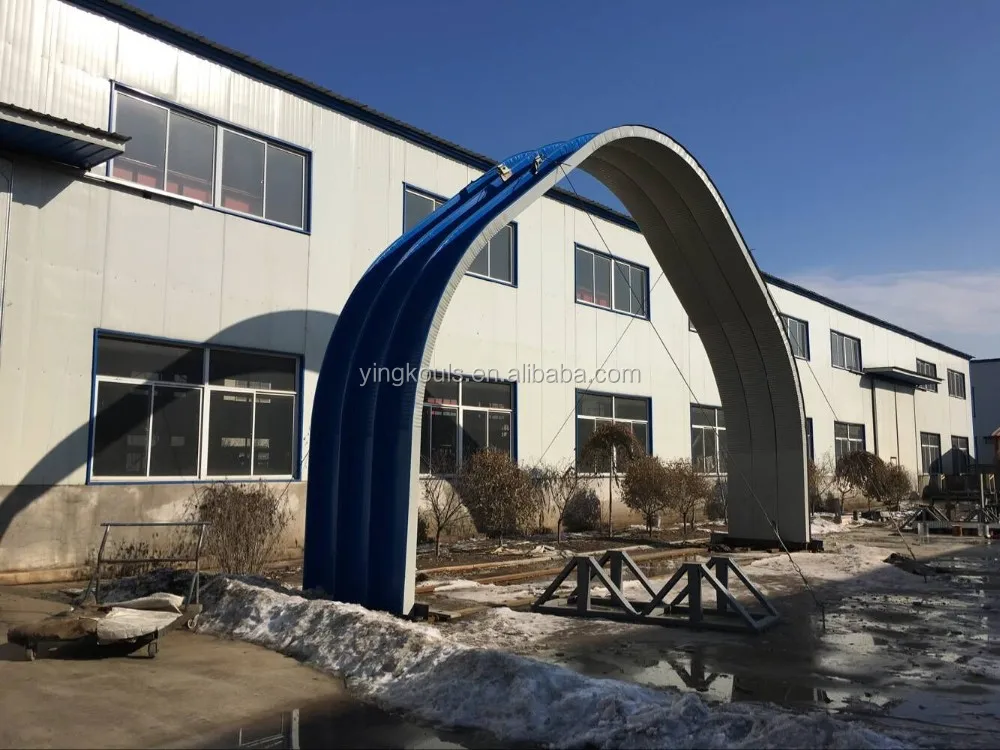

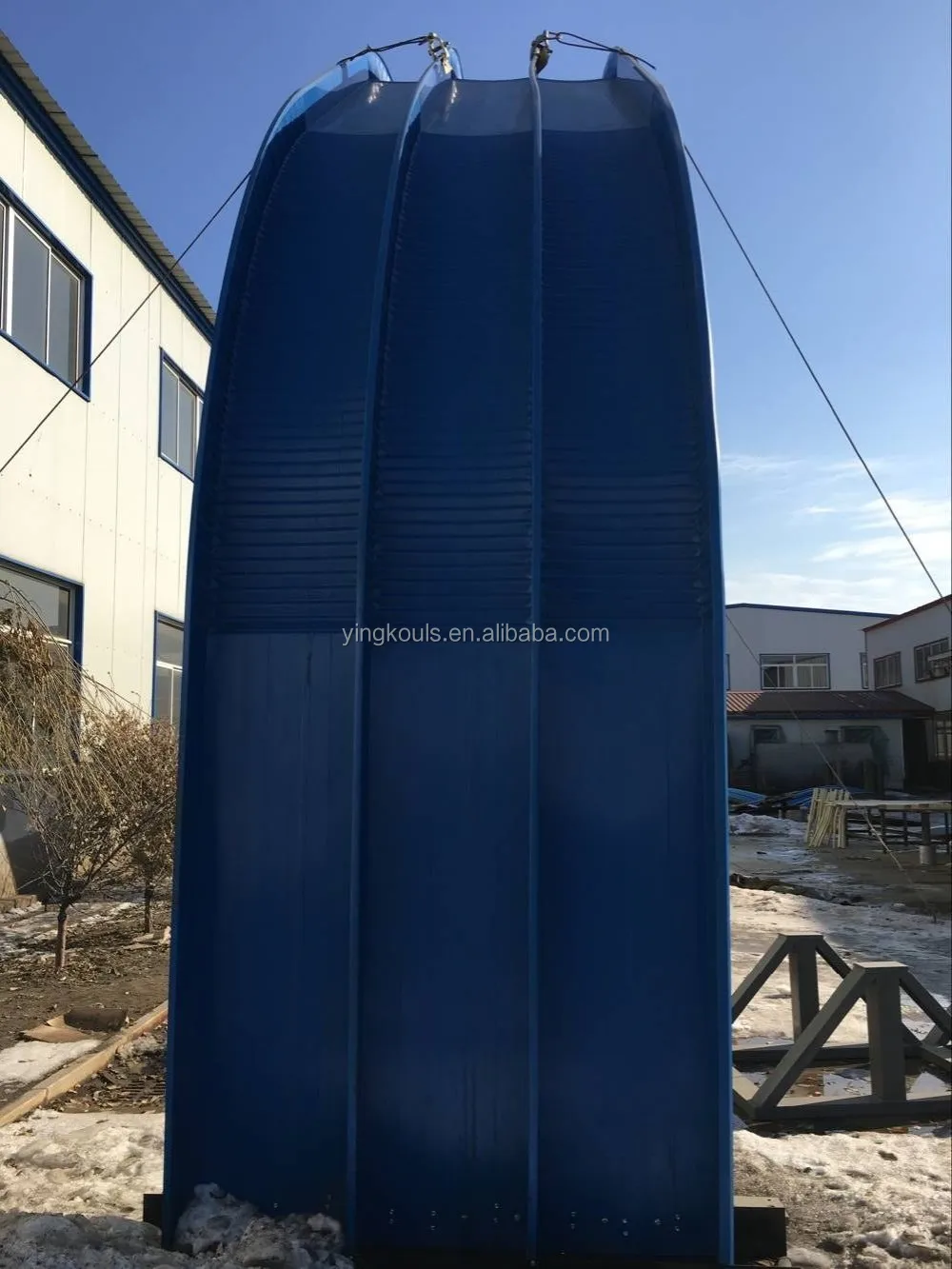

What Is The Arch Roof Building Machine Widely Used For?



1.Conventional Building Appearance

 2.Ideal For Backyard Applications, Including Workshops Garages, And Equipment Storage

 3.Economical And Easy Construct



We provide you all the relevant accessories for free, with which you can begin to do projects immediately.



Our machine is easy to assemble, strong, durable and can offer you dependable services

Working flow:

Decoiler-----feeding-----roll forming----cutting-----curving----output table

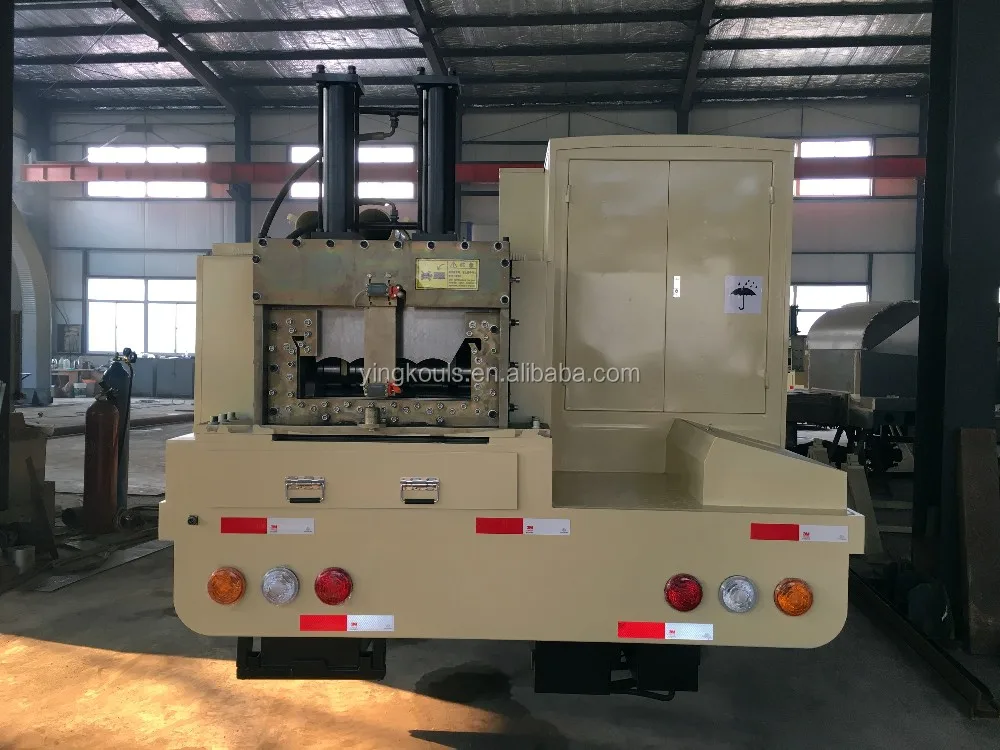

Machine components:

De-coiler

Roll Forming Machine

Hydraulic Cutting Device

PLC Control Box

Output table

Technical description:

Suitable material: galvanized steel, colored steel, etc

Total weight:12tons

Coil thickness: 0.8 –1.5mm

Roller stands:14

Roller diameter:80mm

Main Power:7.5kw

Secondly power 4.0kw* 5

Side power 1.5*2

Hydraulic power:4.0kw

Roller material: 40Cr

Shaft material: high grade No.45 steel after treatment

Cutting Blade material:Cr12 steel after treatment

Machine speed: forming speed 13m/min   Seaming speed:6m/min

Power supply: AC380V±10%, 50Hz, or as per your requirement

Main machine dimension: 11.8m × 2.25m × 2.4m

Packing: seaworthy bare packing

Shipment: one 40 GP container for shipment











Payment Term and condition

* Payment Term: 30 T/T in advance, 70% T/T before delivery

* Delivery Time: Within 30 Days after receipt  the down payment

* Warranty: 1 year and long-life maintenance



*Installation and debugging: We will send professional engineer to make installation and



debugging, buyer provide accommodation, food and the round-trip ticket fee.



* Installation Days: about 5 days

* Transporting: 1x40ft container
