King Pigeon automatic pressure control gsm remote power switch FOR Vending machine security protection

Keyword: remote controller for motor, generator, pump, water well, valve, power,Remote Controller, Wireless Remote Switch, GSM controller, Automation,Remote Controller S130/S140/S150 work as a wireless remote switch or Automation by GSM network.Also called GSM Remote Controller in industry area.







ios APP iKeypad download free on APP STORE!

Android App Available Now!!!



Make Control Easier!



ASK US FOR MORE DETAILS!





1.Wireless remote controller work by GSM Quad-band Network



2.Lighting/Pump/Generator/Motor/Valve Remote switch controller



3.Wireless GSM Switch 2/4/8 NC/NO Dry Contact Inputs & 2 Relay Outputs



>>>>>>SMS Controller Alarm, S130 S140 S150 used for:



>>>GSM Water leak alarm,



>>>GSM Humidity alarm;



>>>GSM Automation System;



>>>Power Station,Transformer,Regulator,Stabilizer monitoring and control;



>>>Vending machine controller;



>>>Pump,Motor,Tank,Generators monitoring and switch control.





>>>>>>GSM SMS Controller & Alarm Features:



Model	Digital Input	Relay out	Analog input	USB	RS 232	SMS Alarm Numbers	Dialing Alarm Numbers	Voice Call in	On-site Alarm	AC Power failure alarm	Batt -ery
S130	2	2	0	1	0	3	5	Yes*	Yes*	SMS	Yes
S140	4	2	0	1	0	3	5	Yes*	Yes*	SMS	Yes
S150	8	2	0	1	0	3	5	Yes*	Yes*	SMS	Yes
RTU5010	4	4	0	0	1	10	Same as SMS	/	Relay to siren	SMS	Yes
RTU5011	8	8	4 (0-20mA)	0	1	10	Same as SMS	Yes*	Relay to siren	SMS	Yes





>>> 1 relay output (240VAC/3A) can be switched ON/OFF by sending a SMS text;



>>> 1 relay output (240VAC/3A) can be switch on 0-120mins if any inputs triggered;



>>> 2/4/8 Alarm logic inputs, NC or NO and EOL is optional;



>>> 3 SMS Alert numbers and 5 auto-dial phone numbers can accept to the alarm message;



>>> Two-way voice communication* by external microphone and speaker;



>>> Supports armed, disarmed, inquiry status, switch ON or OFF relay output by SMS Commands;



>>> Password protection, prevents unauthorized user;







>>> Configuration from PC Programmer software via USB port;



>>> Time stamped alarm messages;



>>> Backup rechargeable battery inside, runtime more than 24hours;

 >>>>>>The GSM SMS Controller & Alarm suitable for:



1.Security Alarm System applications;



2.Supervision and monitoring alarm systems;



3.Automatic monitoring system;



4.Vending Machines security protection;



5.Pumping Stations, Tanks, Oil or Water levels;



6.Buildings and Real Estate;



7.Weather Stations;



8.River Monitoring and Flood Control;



9.Oil and gas pipelines;



10.Corrosion protection



11.Temperatures, water leakage applications;



12.Wellheads, boat, vehicle;



13.Energy saving, street lights control system;



14.Valve controls;



15.Transformer stations;



16.Unmanned machine rooms;



17.Control room application;



18.Automation System, M2M;



19.GSM Access Control System, GSM Gate Opener, etc.

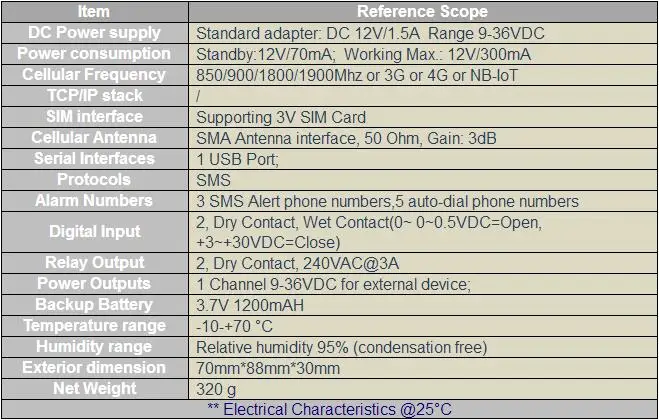

>>>>>>Specifications:



GSM Frequency: Default 900/1800/1900MHz, Optional 850/1900/1800/1900MHz



Power adapter: DC 12V/1.5A



Power Current: Max:500mA   Type :50mA



SIM Card     :    Supporting 3V SIM Card



GSM Antenna : 50 Ω SMA Antenna interface,



Serial       : USB Port



Input Type : UP TO 8, dry contact, NC,NO,EOL

                    S130: 2



Output Type : 2 Relay,dry contact, 240VAC/3A.



Dimension   : LxWxH 153x86x28mm



Backup-Power :     3.7V 1200MAh LI-ION battery



Temperature :    -20°C ~ +60 °C



Humidity     :     Relative humidity 20~95% (condensation free)



Net Weight   : 320g



** Electrical Characteristics /25°C





>>>>>>Standard Package list:



>>GSM SMS Controller * 1



>>AC/DC Power supply adapter * 1 (12V 1.5A),UK/EU/USA/AU type plug are available



>>CD (Pc programmer tool) * 1



>>GSM Antenna * 1



>>Package Size:W190*D140*H60mm



>>Gross Weight: 1.0Kg



15pcs per carton





>>Optional Accessories:



Water Overflow Level Sensor,
Oil Overflow Level Sensor,
Water Leak Sensor,
Temperature Sensor,
Door Sensor,
PIR Motion detector,
Smoke detector,
Gas Leak detector,
Glass Break detector,
Shock detector,
Power failure detector, etc.
