Беспроводной шлюз IoT с дальностью действия 300 м bluetooth-маячок поддержкой ble beacon


Поделиться:


Цена:59,00 $ - 60,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-16-2025 75.23 $* 77.84 $*
Jul-16-2025 61.97 $* 62.5 $*
Jun-16-2025 74.40 $* 75.55 $*
May-16-2025 73.60 $* 74.70 $*
Apr-16-2025 58.19 $* 59.37 $*
Mar-16-2025 72.19 $* 73.95 $*
Feb-16-2025 71.53 $* 72.93 $*
Jan-16-2025 71.2 $* 72.64 $*

Характеристики


-----BLE&WiFi gateway-----


wireless gateway poe 48v support ble beacon receiver G1



Specification

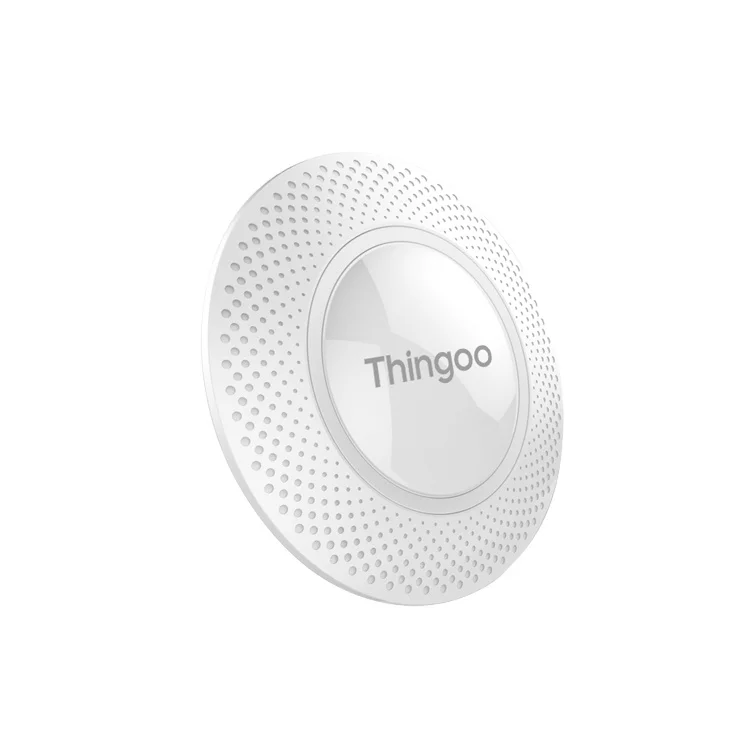

G1 is a Bluetooth low energy (BLE) to Wi-Fi connectivity gateway without the uses of smartphones or apps.

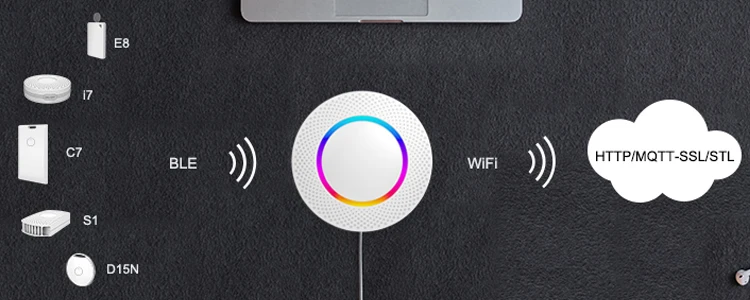

The G1 gateway collects the data from iBeacon, Eddystone, BLE sensor and other BLE devices, and then sends to the local server or remote cloud server by HTTP / MQTT protocol over Wi-Fi / Ethernet.

The subsequent version G1 Gateway will also implement the connection with BLE devices.

This product is a science fiction with a color lamp ring on the top. It can be fixed by sticker or screw thread.

G1_0004







Feature sheet





























Device item G1 ble&wifi gatewaySize150x150x36mm
Ethernet10/100Mbps Ethernet, PoEINMicro-USB, power input (5.0Vdc, 1A)
Wifi IEEE 802.11b/g/n 2.4GHz with external antennaNet Weight260g
BluetoothBLE 5.0 nRF52832 with external antenna Power supply (Vcc)Max. 5.5 Volts, DC

G1_0001





Supports input with DC 5.0V, 1A, micro-USB


Supports 10/100 Ethernet with 802.3af PoE
Supports firmware upgrade Over-the-Air
Supports HTTP(support SSL/TLS)/MQTT(support SSL/TLS)
Operating temperature: -25℃ to 65℃


WIFI:
Wifi module based on the Mediatek's MT7628/MT7688 575MHz 32-bit Application Processor
1T1R/2T2R 2.4 GHz with 150/300 Mbps PHY data rate,802.11b/g/n WiFi
Two USB 2.0 Host Connectors and one TF Card slot
128 Mbyte 16-bit DDR2 RAM
16 Mbyte SPI NOR Flash
RGB LED strip as the status indicator
OpenWrt, Linux distribution for embedded devices.


BLE:
BLE module based on the Nordic's nRF52832 with ARM® Cortex®-M4 64MHz 32-bit processor
BLE module have built-in power amplifier chip,make scanning BLE more sensitive
At least Bluetooth 4.0(Only Bluethooth Low Energy)





Use cases



iBeacon / Eddystone / other BLE tag receiver
BLE sensor reader / receiver
Asset tracking
Access control management
Advertisement promotion
Indoor location and position
Industrial automation


G1_0005


1






Certification


certificate





Packaging & Shipping


For samples: we would send samples via DHL Express within about 2 days after payment, then you would receive them in about 4 to 5 days.

For orders: bulk orders usually take about 2 to 3 weeks after payment received.

























DetailsIndustrial BoxMaster Carton
Quantities1 pcs/box20 pcs/box
Size16.2*23.5*5cm32*23.5*40cm
Gross Weight260g6.5kg

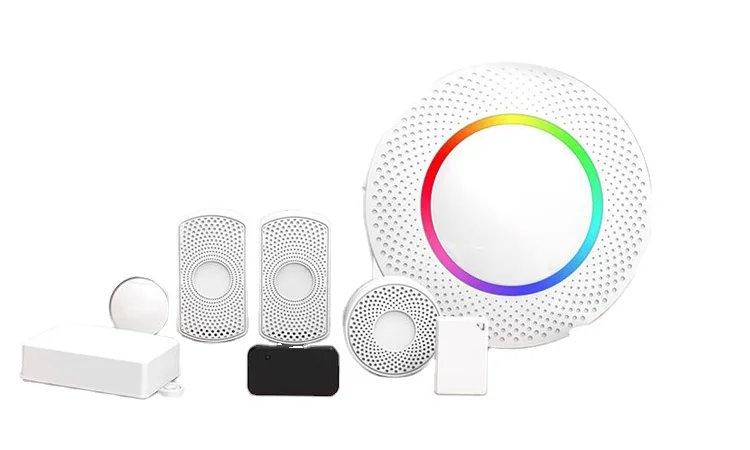

Related products


C7.2E7.3G1-3


                           C7-Card Beacon                                                E7-Waterproof Beacon                                            BLE&Wifi Gateway





Company information


Thingoo,a trademark of Minew, is focused on the BLE technoloy for low-cost location tracking into an existing application. Founded in 2007, Minew was specialized in IoT field for more than a decade and keeping up with customer demands all the time. By providing smart devices and IoT solutions, we serve to optimize people's lives, works and businesses to make life easier. This is achieved by connecting our products to users' smart devices and target objects in a WiFi covered space, with Bluetooth functions on. Thus people could position, find, track, receive messages, check status and control target objects. We have already served clients from more than 100 countries and regions with 12 million sales volume sold so far. Today, we have collaborated with a lot of top-class corporations including ARM, Ericsson, Google, Huawei, ect.


Minew company information

FAQ:

1.How to order samples?

-You can contact us by sending an inquiry on Alibaba.

-You can pay the samples via Paypal/Alibaba Trade Assurance/TT, samples can supply from stock. you can receive the samples within 3-4 days after you pay it.



2.What service we will offer after sample order?

  The following technical data and documents will be provided.

  1.SDK     2. API    3. Demo APP     4. Configuration APP    5. Instructions




3.How long will it take for producing volume orders?

-If we have pcb in stock,the lead time is 2-3 weeks

-If there is not enough pcb in stock,the lead time is 3-4 weeks.



4.Can you customize the logo/mac address on the interface of G1?

-Yes.
