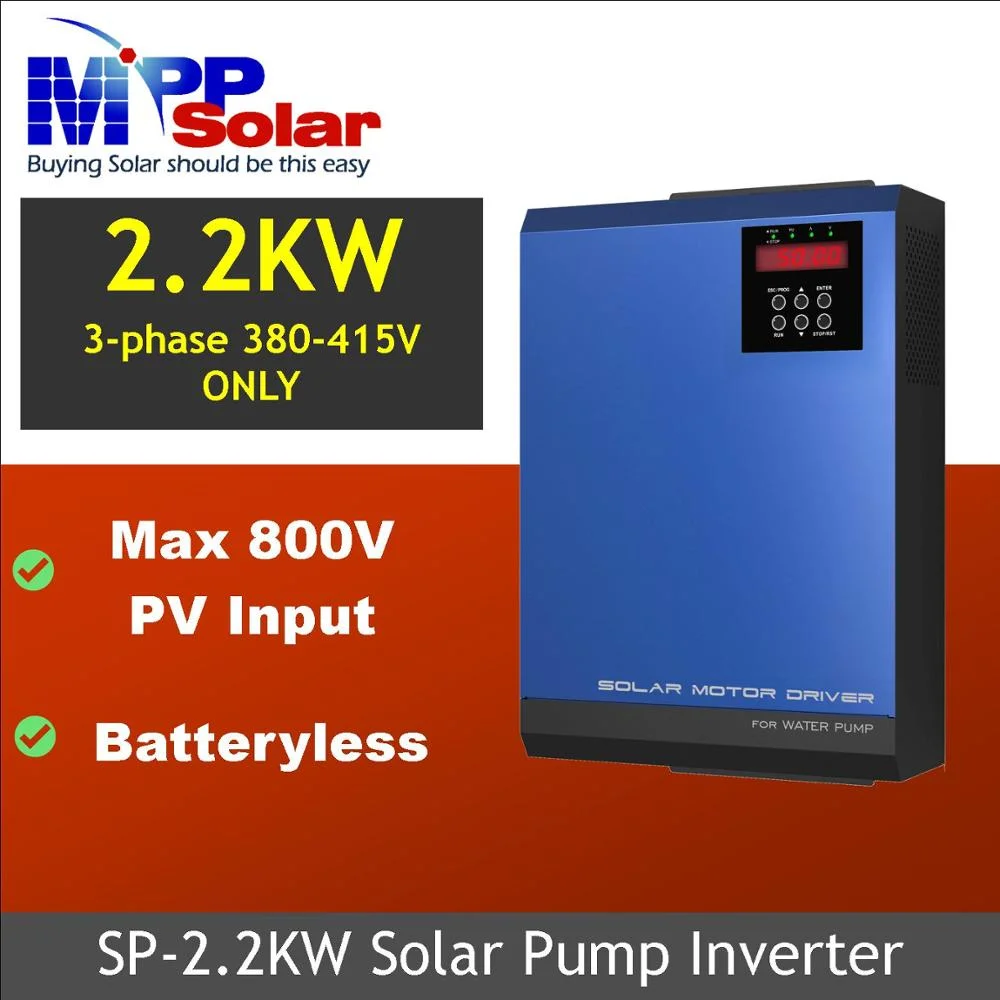

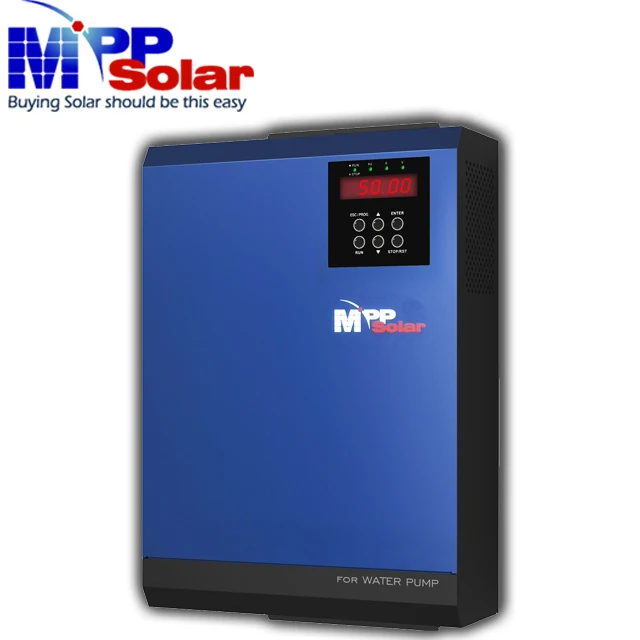

2.2kw 3 phase Solar water pump inverter

This SP-2.2kw is a 2.2kw 3 phase solar pump inverter with the following features:

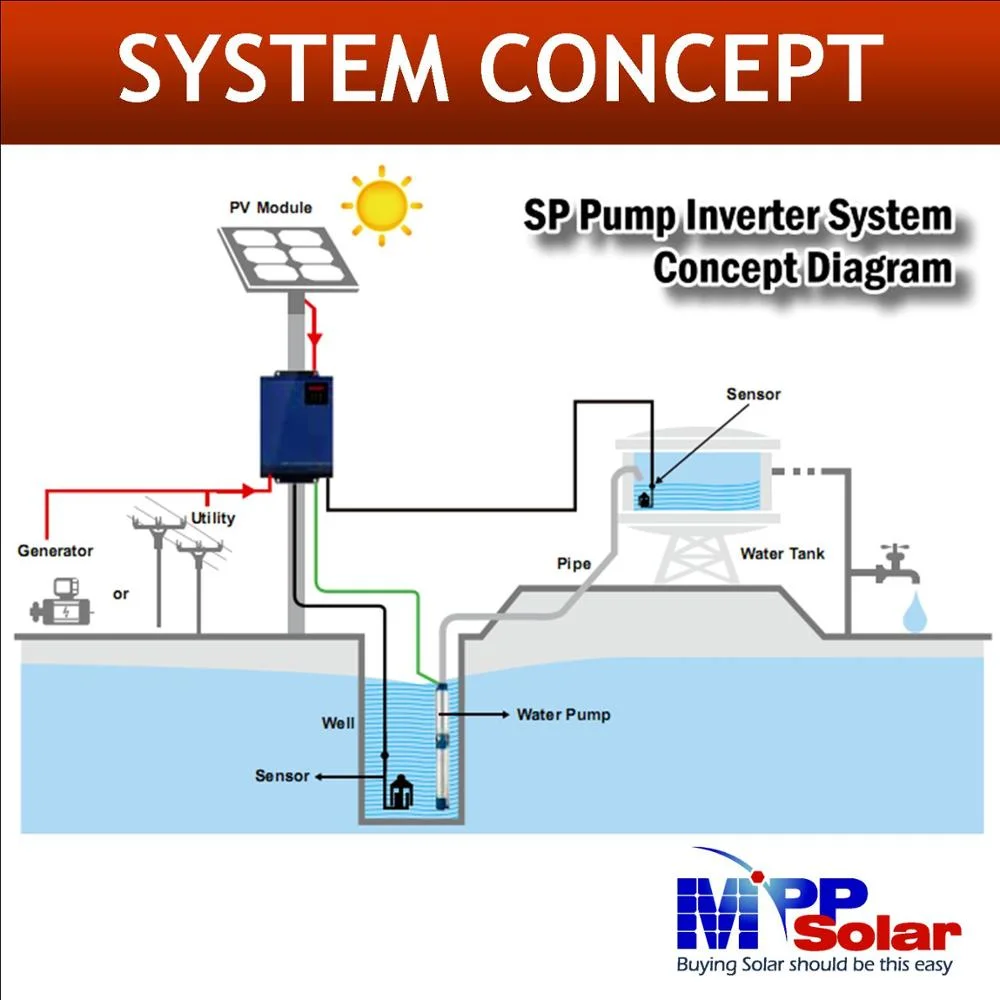

• Battery-less design 3-phase SOLAR pump inverter (run from Solar or AC directly)


• Built in MPPT solar charger


• High PV Input Voc 800V!


• Max solar power 3500w


• 2.2KW pure sine wave output



• 380/400/415/440VAC 3 phase input/output


• Compatible with IEC standard 3-phase asynchronous motor


• Peak 97% efficiency!


• 50HZ or 60HZ supported (programmable setting)


• Compatibility with utility or generator


• Auto-restart feature after PV reconnect or AC return


• Automatic derating at high temperature


• Soft start feature available


• Full feature system protection


• RS232 / RS485 monitoring feature


• Large LCD / LED display


• (optional) Monitoring of water tank level through input dry contact signal





SP Solar Pump Inverter	SP-2.2K	SP-7.5K	SP-11K
INPUT POWER
Max PV array	3,500W	12,000W	17,600W
Max PV Input Voc	800Vdc
MPPT Range	500 - 600Vdc
Startup Voltage	350Vdc
Max Input PV current	4.3A	14.5A	21.3A
(Optional) AC Input Power	4,000VA	11,000VA	16,500VA
(Optional) AC Input Voltage	380, 400, 415, 440VAC (3 phase)
(Optional) AC Input Max Current	5.8A	20.5A	27A
OUTPUT POWER
Power Phase	3 Phase only
Output Voltage	380, 400, 415, 440VAC (3 phase)
Max Output Power	2,200W (supports 0.75~3HP water pump)	7,500W (supports 3~10HP water pump)	11,000W (supports 10~15HP water pump)
Peak Efficiency	97%
Max Output Current	5A	17A	26A
Motor Type	3-Phase asynchronous motor
Output Frequency	50Hz / 60Hz, adjustable
ENVIRONMENTAL / MECHANICAL  SPECIFICATIONS
Protections	Over/Under-Voltage, Over Current, Over Temp, Short Circuit, Surge
Communication	RS-232, RS-485
Operating Temp.	-20°C~ 45°C (100% load, power derate >45°C)
Operating Humidity	0~95%RH Non-Condensing
Dimension	110*230*330mm
Weight/Packing	5.5Kg	6Kg	6.5Kg
