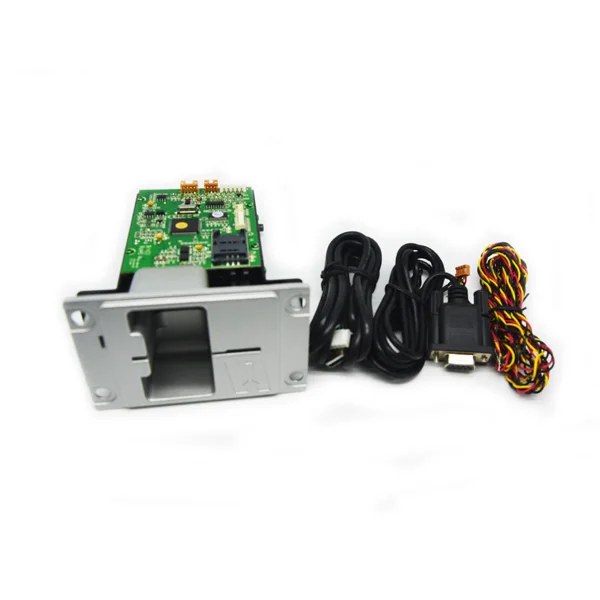

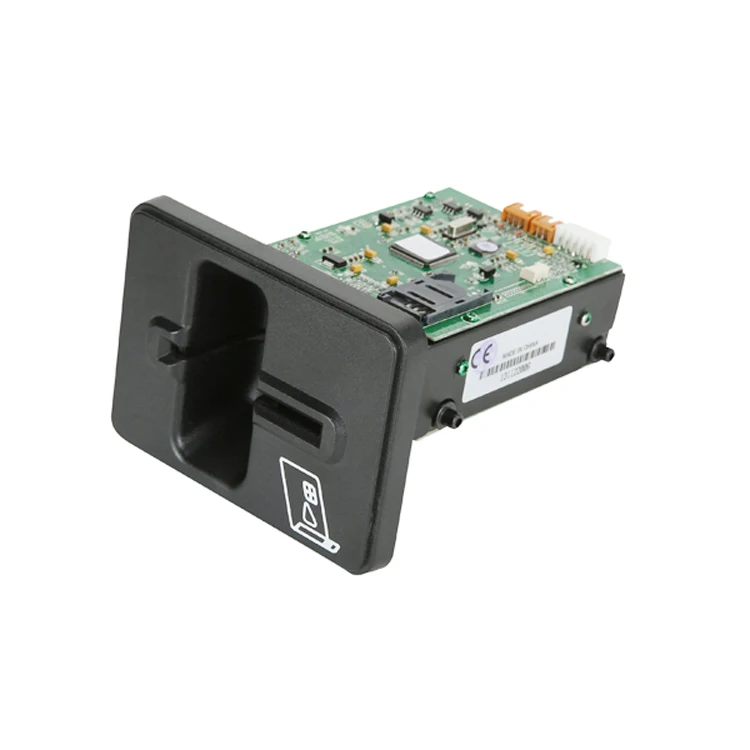

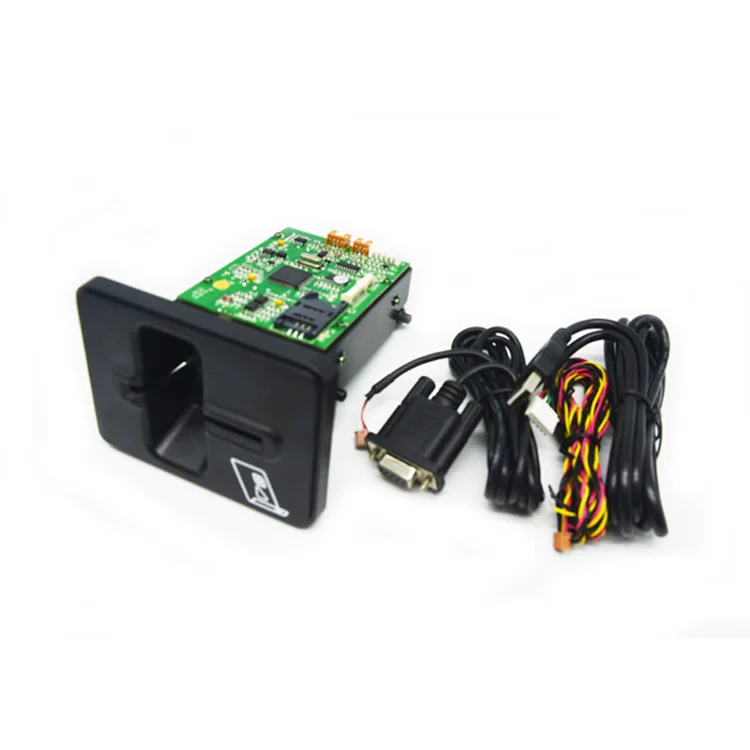

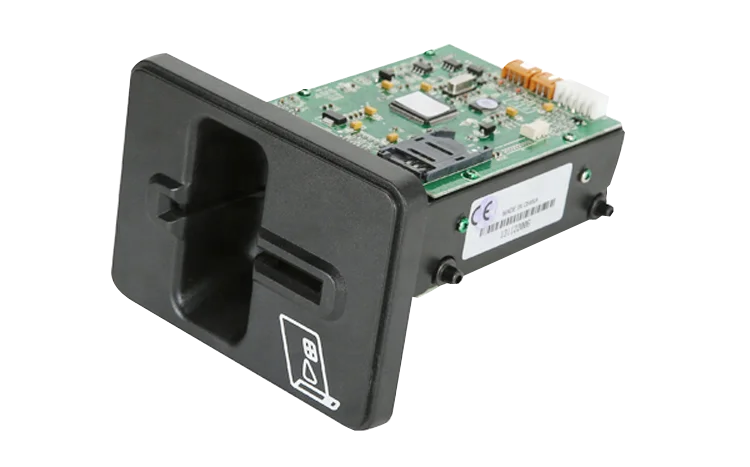

CRT-288-K001 ручной вставки киоск кард-ридер mag трека карт ic чип

Power

DC 5V±5% or USB

Power Consumption

Work current: <200 mA

Interface

RS232 or USB Interface (Automatically detect)

Card Specification

Width: 53.92~54.18 mm
Length: 85.47~85.90 mm
Thickness: 0.76mm ±0.08 mm

Net Weight

Approx. 240g (Excluding accessory and package)

Dimension

Refer to dimension drawing

Reliability

A.Vibration: No negative effort on all functions under normal condition after exposed15min.each on X, Y and Z directions of 2mm amplitude, from 5 to 50Hz/min vibrate and acceleration is 2m/S²(0.2G).

B. Shock: No negative effort on all functions under normal condition after shock one time on X, Y and Z directions of 294M/S², 11ms peak acceleration shock.

Life time

Magnetic head 1,000,000 times Min
IC card contact carrier and contact: 300,000 times Min
Latch Mechanism: 500,000 times Min

Error Rate

Magnetic card: <1/1,000,( 15~25℃,35~60%RH, perfect standard card )
IC card: <1/1,000,( 15~25℃,35~60%RH, perfect standard card )
RFID card:<1/10,000,( 15~25℃,35~60%RH, perfect standard card )

Abnormal card

Allowance of card warp: 2mm max

MTBF

>1 X105 hrs ( Electronic components only )
Note:250 times/day,25 days/month,300 hrs/month

Environment

Operation:    0℃-50℃,      0~90% RH ( non-condensing )
Storage:     -25℃~80℃    0~95% RH ( non-condensing ,dried before usage )
Normal environment:15~25℃,35~60%RH

IC card standard

ISO7816 standard certified, EMV2000 Level1, PBOC3.0 (WITH CERTIFICATE)
e.g.(AT24C01, 24C02, 24C256, SLE4447, SLE4428, CPU T=0/T=1)

Magnetic card standard

Physical characteristics: ISO7810 and 7811 standard compliant
Card dimensions: SO ISO7810ID-1- type card compliant
Embossing: ISO7811-1, ISO7811-3 compliant
Recording format: ISO7811-2, ISO7811-4, ISO7811-5, ISO7811-6 complaints

RFID card standard

ISO14443-3 compliant (TYPE A:e.g. S50,S70,UL etc )
ISO14443-4 compliant(TYPE A CPU, TYPE B CPU e.g. Mifare plus, Mifare DesFire etc)
