1000L трехслойная пластиковая выдувная формовочная машина для резервуара

Описание и отзывы

Трекер стоимости

Характеристики

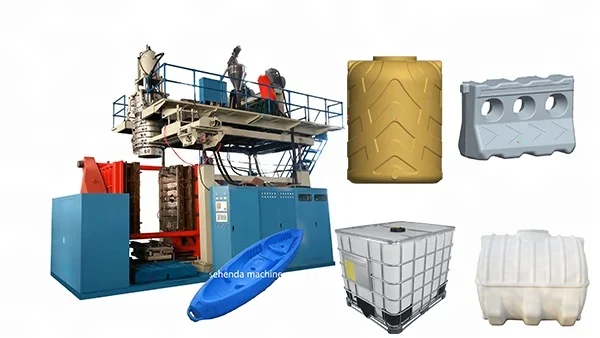

  1000L 3 layer  plastic blow moulding machine for water tank  loft tank , blow molding machine, blowing machine

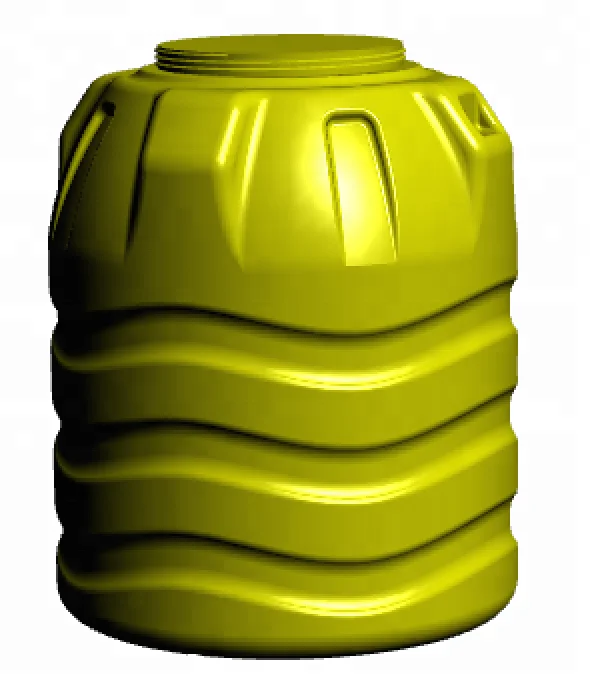

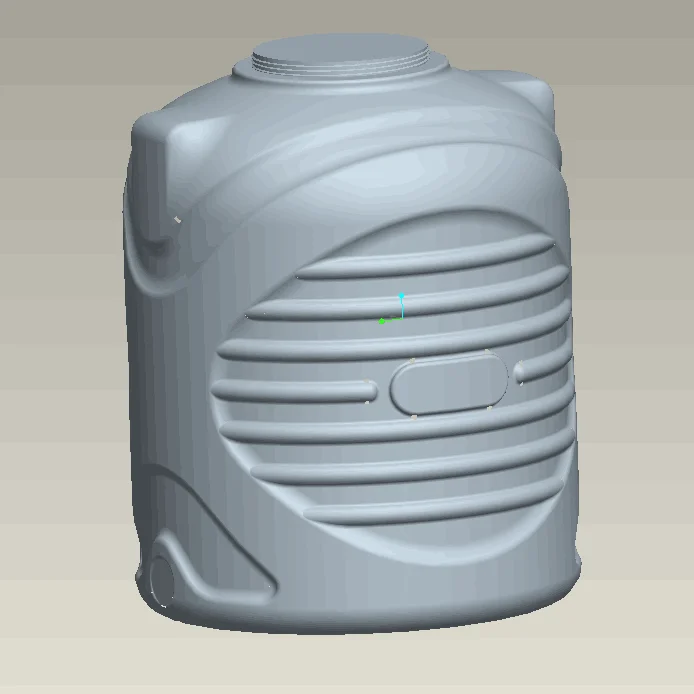

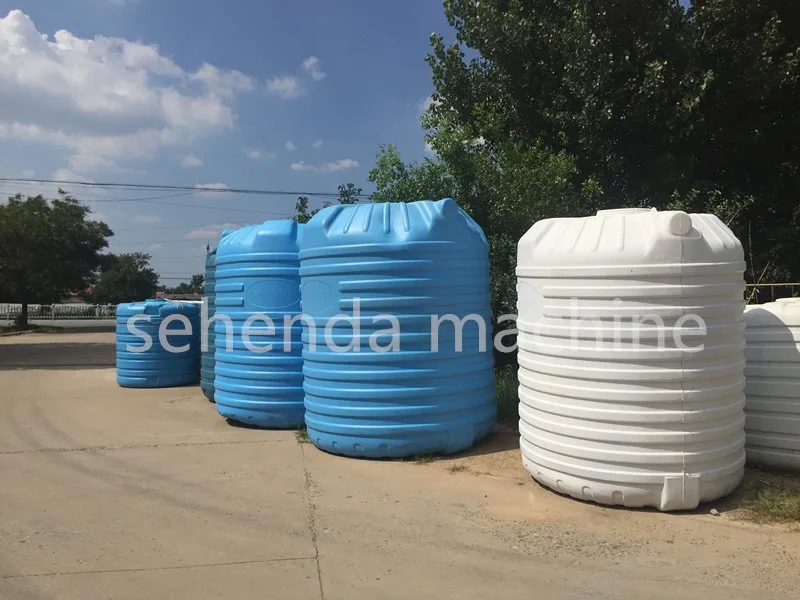

1. Appliction: For container and tank from 200to 1000 liter, 1-3 layer

, also can be used to produce pallet, waste bin, road barrier, septictank,and so on.



2. Manpower: 2 new workers are enough for the whole production line, even both are female, and two weeks training are free of charge.



3. Output: 10-17 pcs for 1000L 3 layer tank per hour the weight and thickness can be adjusted by you from 1mm to 10 mm.



4. Material: PE ,HDPE



5.Main Markets: Asia, South Amereica, European.



30 years specializing in manufacturing huge blow moulding machine worth your trust .

For more details? Pls contact us.



Technical   specification
		SKJ1000L ONE LAYER	SKJ1000L DOUBLE LAYER	SK1000L THREE LAYER
Max. product   volume	L	1000	1000	1000
Screw diameter	MM	135	110	110
Screw L/D   ratio	L/D	30:1
Screw drive   power	KW	110	75	75
Screw heating   capacity	KW	28	36	48
Screw heating   zone	ZONE	8	12	18
Output	KG/H	340	350	500
Oil pump drive   power	KW	37
Clamping force	KN	800
Mould open   space	MM	2300
Mould   thickness	MM	1000
capacity	L	35
Die head   capacity	KW	35	40	45
No. of heating   zone	ZONE	4
Die head   material	38 CRMOALA(accumulator,lining,piston,die)
Control action	MITSUBISHI PLC
Blowing   pressure	MPA	0.6
Cooling water   pressure	MPA	0.2
size of   machine	MM	To be confirmed	To be confirmed	To be confirmed
Weight of   machine	MT	20	24	28
