Экструзионная пластиковая выдувная формовочная машина высокого

Экструзионная пластиковая выдувная формовочная машина высокого

Категория: >>>
Поставщик: Zhangjiagang,Orange,Machinery,Co.,Ltd.

Цена:16 980,00 $ - 18 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	20206.72 $*	21216.1 $*
Aug-15-2025	20036.77 $*	21038.88 $*
Jul-15-2025	16810.32 $*	17651.44 $*
Jun-15-2025	19697.93 $*	20682.13 $*
May-15-2025	17150.7 $*	18008.22 $*
Apr-15-2025	19357.42 $*	20325.50 $*
Mar-15-2025	19187.46 $*	20146.56 $*
Feb-15-2025	19018.14 $*	19969.89 $*
Jan-15-2025	18848.37 $*	19790.17 $*

Характеристики

Product Description

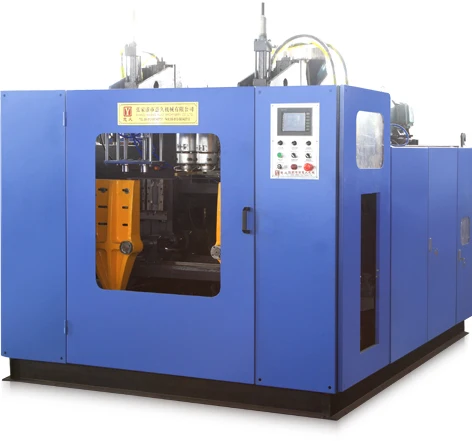

\t SPECIFICATIONS FOR 2LITER extrusion plastic blow moulding machine high quality
\t Main parameter	\t Available material	\t PE,PP......	\t
	\t Max. Product Volume	\t L	\t 2
	\t Dry Cycle	\t (pcs/h)	\t 900×2
\t	\t Machine Size	\t (L×W×H)(m)	\t 2.8×2.2×2.4
\t	\t Machine Weight	\t Ton	\t 4.3
\t	\t Installed capacity	\t KW	\t 29
\t Plasticizing system	\t Plasticizing capacity	\t kg/h	\t 70
	\t Screw Heating Zone	\t zone	\t 3
	\t Screw Drive Power	\t kw	\t 15
\t Hydraulic system	\t Oil Pump Power	\t KW	\t 5.5
	\t System pressure	\t MPA	\t 10
	\t	\t	\t

Main Features

*PLC+touch screen: making the operation easy.
*Automatic malfunction alarm: with self-diagnosis,
making the malfunction clear at a glance.
*Center input die head: eliminating the knit line completely and making it easy to change the material and color.
*Double linear guide rail: Unique "liner guide" to the clamping structure to ensure mold-lock uniform, knit line smoother, stable and quite working.
*Mould locking system: adopts Crank arm-Center lock design to provide the strong clamping force.
*High speed and efficient plasticizing: mixing well and ensuring the produce purity.

Certifications

Detailed Images

Machine Parts

Name: Hydraulic system

Brand:YUKEN

Original: JAPAN

The hydraulic system includes hydraulic pump,hydraulic valve integration and pipes with the medium of HM series anti-wear hydraulic oil-N46# (high enviroment temperature) or N32#(low environment temperature). Controlled in proportional pressure mode,pressure of all move is adjustable according to the machine running to ensure that the machine runs stably and reliably. Control the hydraulic system with imported proportional valve,ensureing the action steady,accurate and energy saving.
