Инфракрасная галогенная нагревательная кварцевая Коротковолновая лампа с

Описание и отзывы

Трекер стоимости

Характеристики

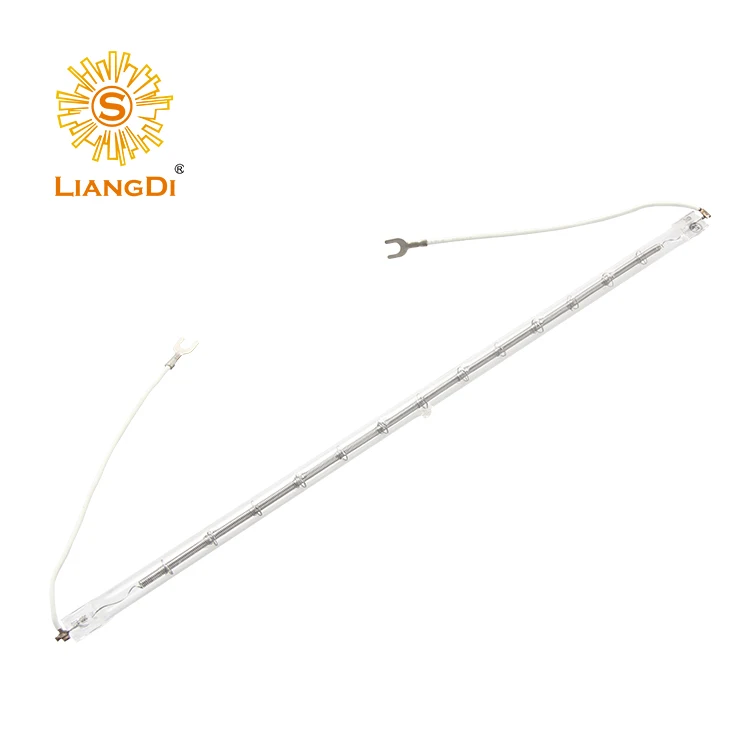

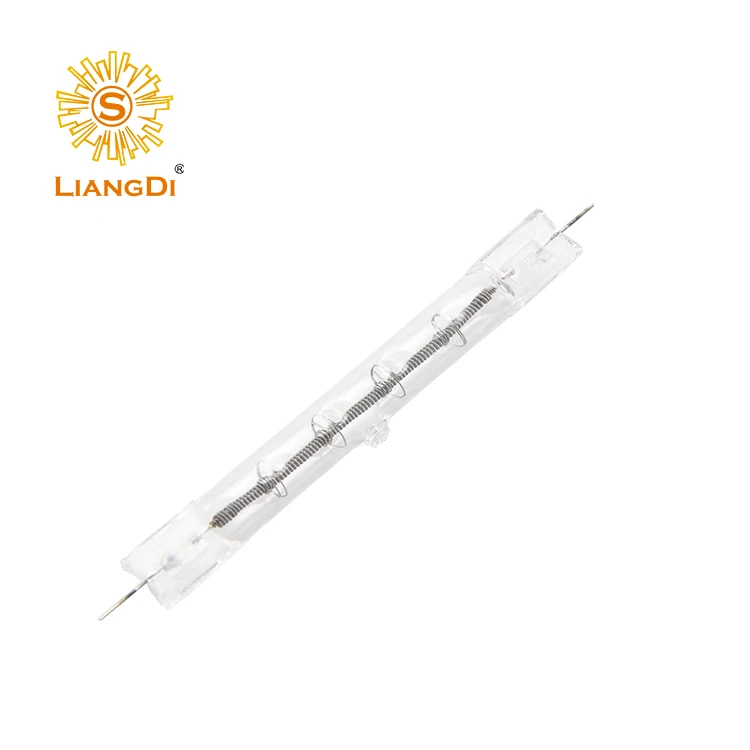

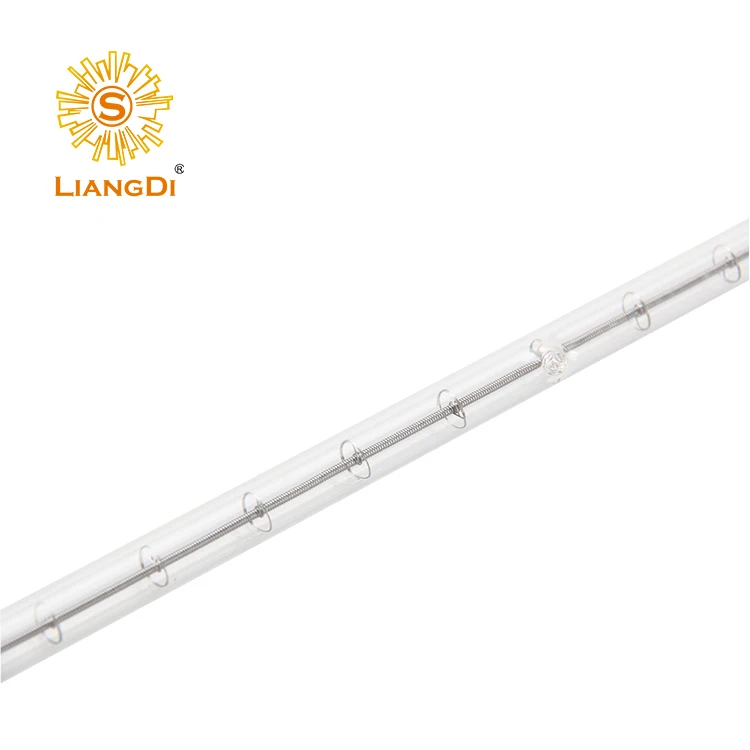

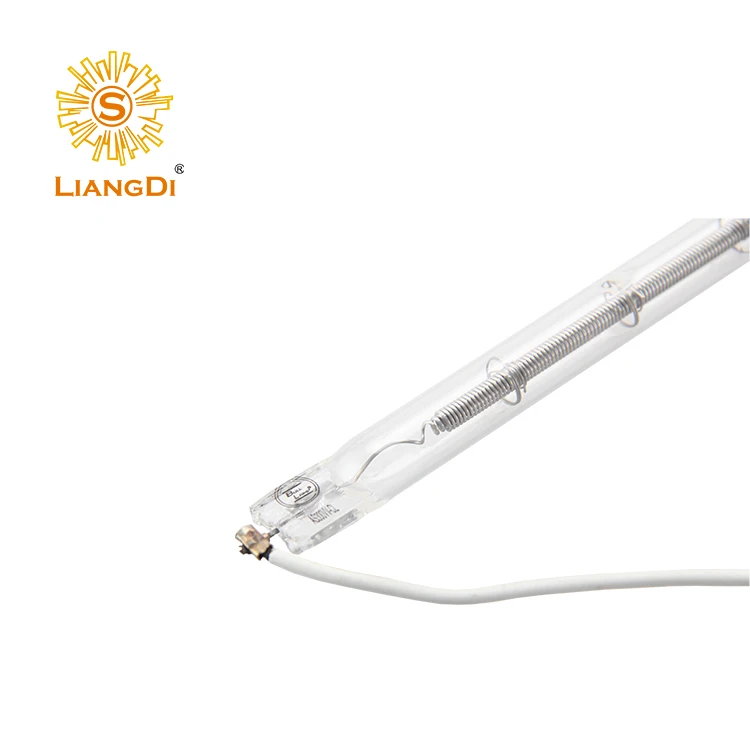

Infrared Halogen Heating  QuartzShorwave Gold Coated Lamp

Certifications:  CE,RoHS,REACH



Specification:



Range:Infrared Short Wave



Shape:Straight



Power: 5000W-5000W



Finish:Gold,Clear,Reflecotr,Ruby



Life Time 8000 hours



Any special specifications , please contact sales

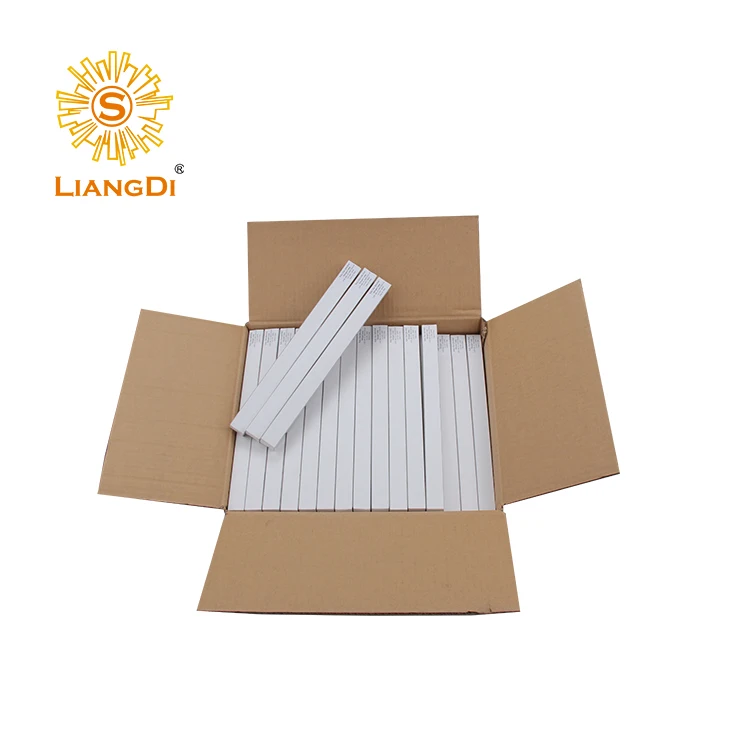

Packing



Inner package 1





Inner package 2





Outer package



Application



Liangdi Infrared lamps for various industry procsess



Plastics ,Bottle blowing





Cooking &Food Warming



in catering applications,infrared lamp are used to keep food warm,keeping the tastes right



Paint drying in tunnels and body shopd

Comfort Heating



The Liangdi lamps are used for indoor&outdoor heating



 .Terraces,Patio



 . Hotel rooms



 . Coffe &Bars



 . Factory workshop





Benfits of Short Infrared Heaters







 Infrared Lamp VS Gas



Why Infrared ?

Benefis of short wave infrared radiation lamps compared with other

radiating elements

-Efficinecy: 92% of the energy consumed is transformed into infrared radiation and hence into heat(table 1),Ablity to direct the radiation:As with light,it is not affected by air currents ,there is no loss of enery,and the heat is applied where it is neeeded.

-Versatility:The power input can be adjusted between 0% and 100% without any effect on lifespan.

-Cleanliness and Safety:No noise,dust or smoke.

-Compactness :Optimal power density.

IRA-short wave.

IRB-medium wave.

IRC-long wave.



Why Short Wave ?

Basially,the shorter the wave,the more easily it travels throught the air,Short wave infrared generates heat by heating the object it meets with,without heating the air around it ,Even effective and instand heat withou pre-heating.A good example for this mode of acton is the effect that occurs when a person walks out of the shade into the sunlight.Although the ambient temperate remains the same,they feel the temperate as considerably warmer under direct solar radiation.



Tables 1 Comparing the different types of Radiators.



	Short Wave Infrared	Medium Wave Infrared	Long Wave Infrared
Typical Source	IR Halogen Lamp	Quartz Heat Source	Resistance
Materials	Tungsten filament welded in a quartz tube	Filament in compound of Fe-Cr-Al in a quarzt tube	Filament in compound of Fe-Cr-Al In a steel tube
Radiant Efficiecny	85%	60%	40%
Swith-on/Swith-off times	1 second	30 seconds	5mm
