Характеристики





Infrared Heating


1: Can switch on and off frequently
2: 1~2 seconds fast response time to full power heating
3: Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage)
4: Accurate(±1 ℃)heating temperature control with SCR regulator
5: Small installation space, flexible horizontal or vertical burning position
6: For all industrial applications, the highest working temperature up to 1000 ℃

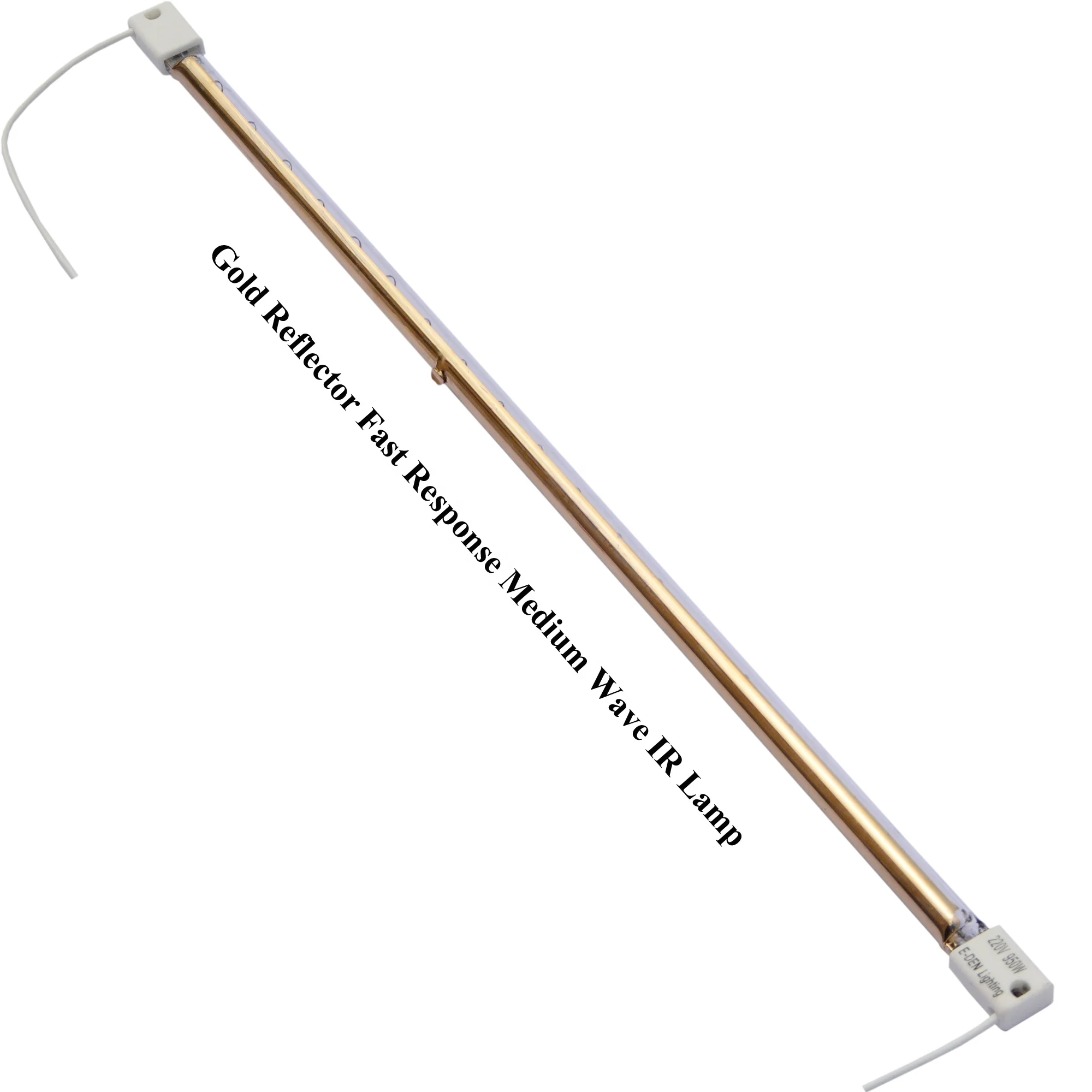

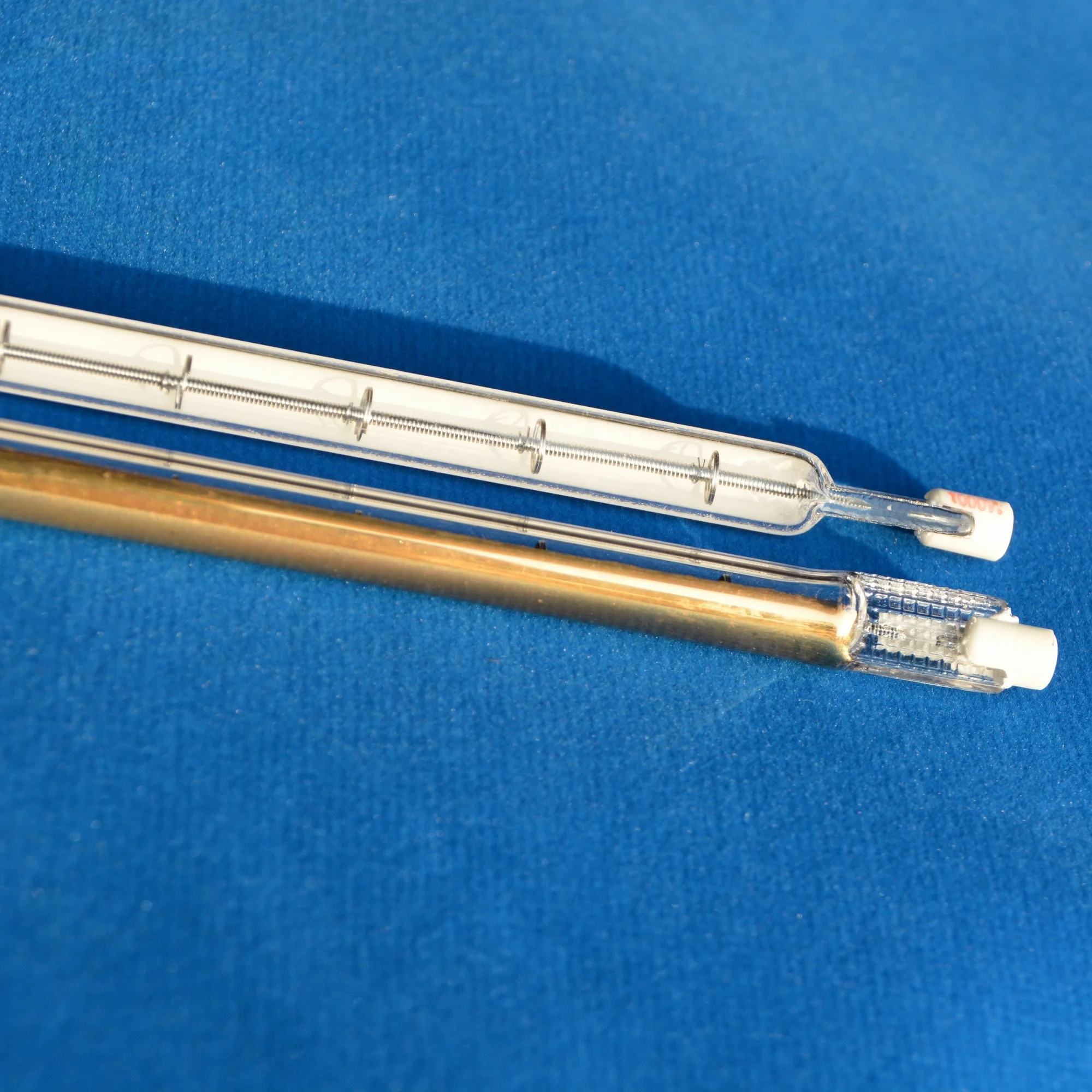

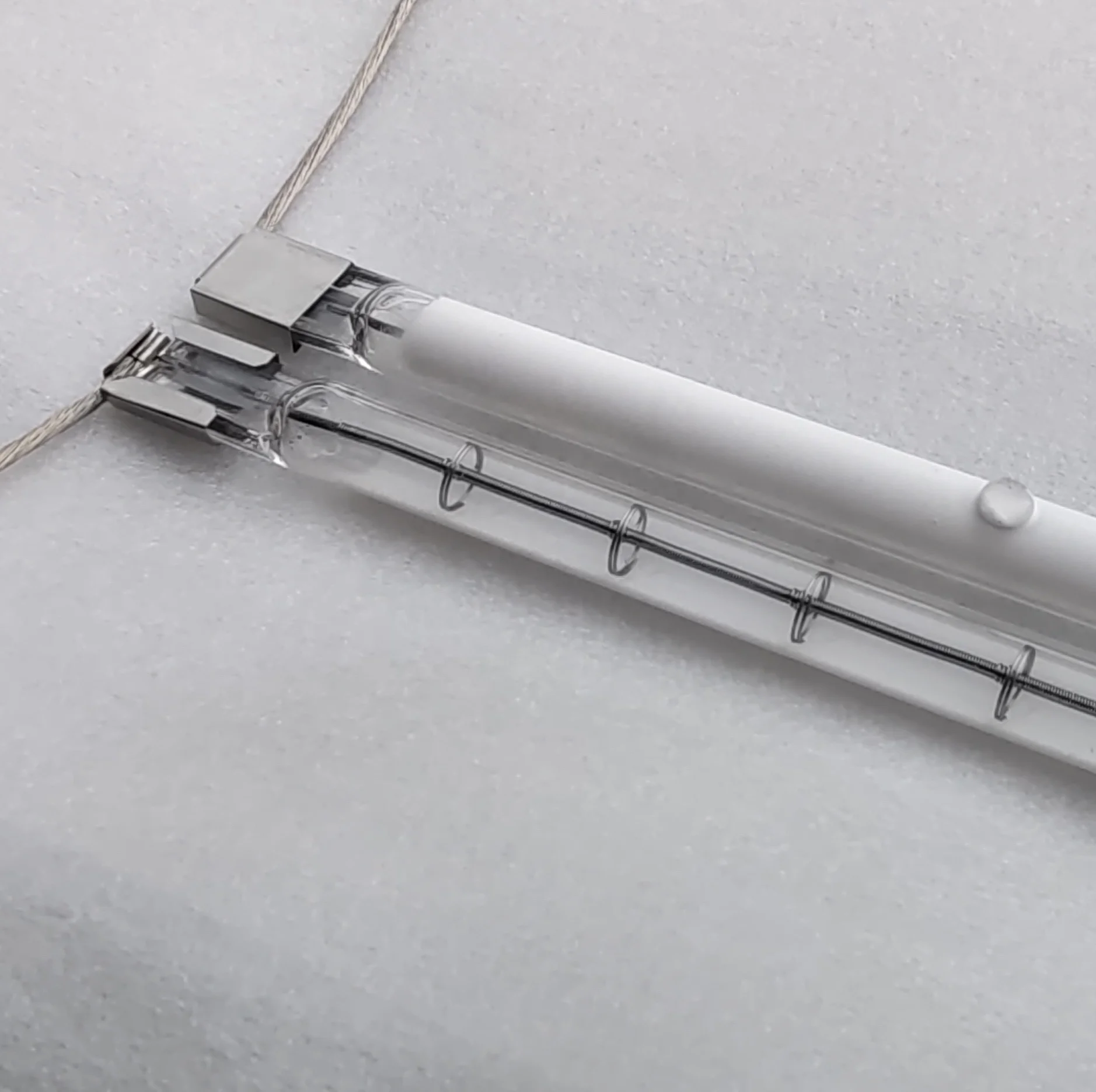

7:Special Gold reflector (90% reflective rate) and Nano-ceramic reflector (70% reflective rate) coated on lamp quartz surface to reflect and increase the infrared radiation on heated objects
8: Different objects different matched IR radiation wavelength Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
9: Higher density power output The highest surface power output of short wave lamp is 200KW/M2, Fast response medium wave lamp is 130KW/M2, Carbon medium wave lamp is 100KW/M2, Medium wave lamp is 60KW/M2.
10: We guarantee 5000 hours average working life.

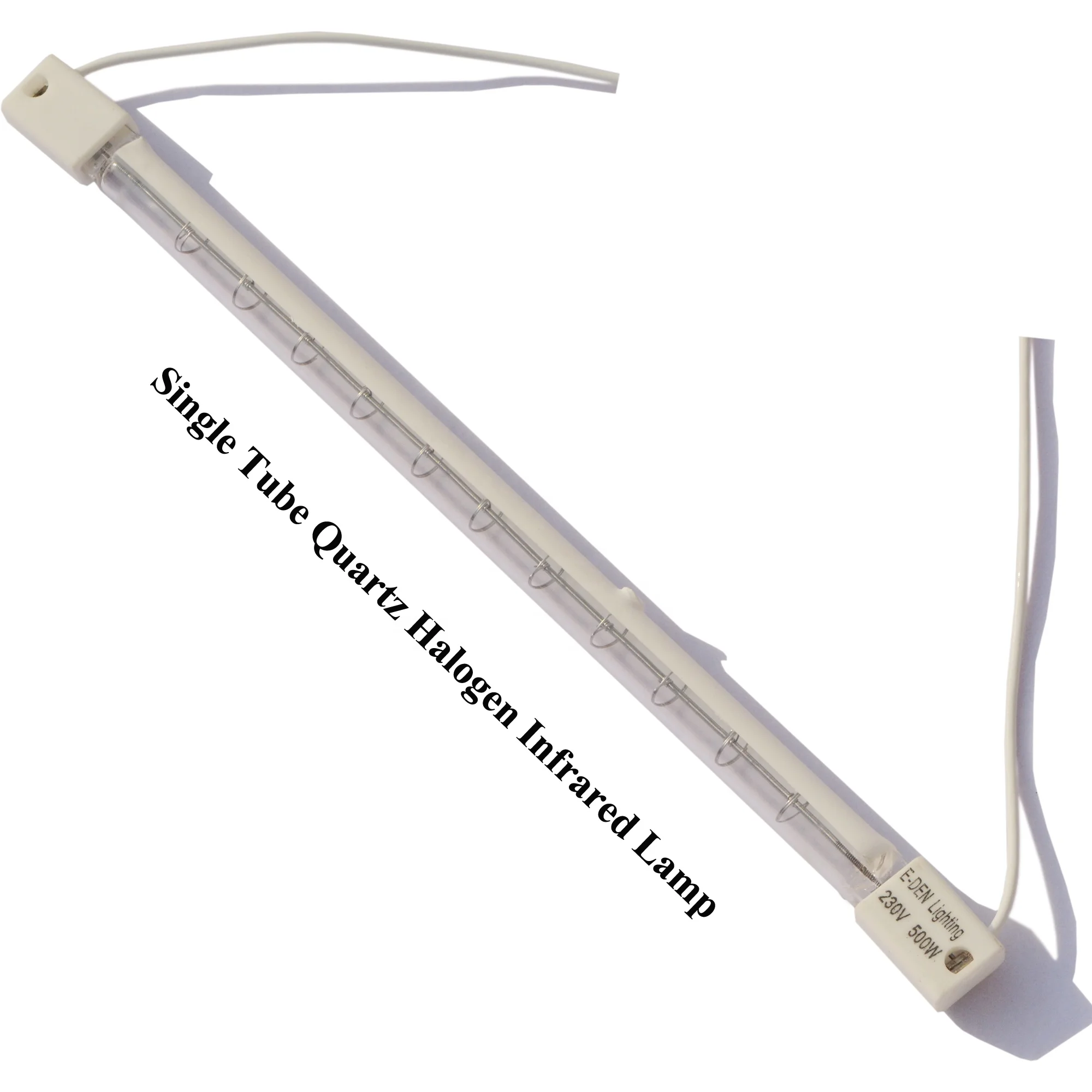

Standard Design of Single Tube Infrared Lamp


According to the different ending caps, single tube infrared lamps can be produced in the following different types.











Technical drawing


Voltage
Wattage
Total length
Heated length
Diameter
Reflector
Burning position
End Type

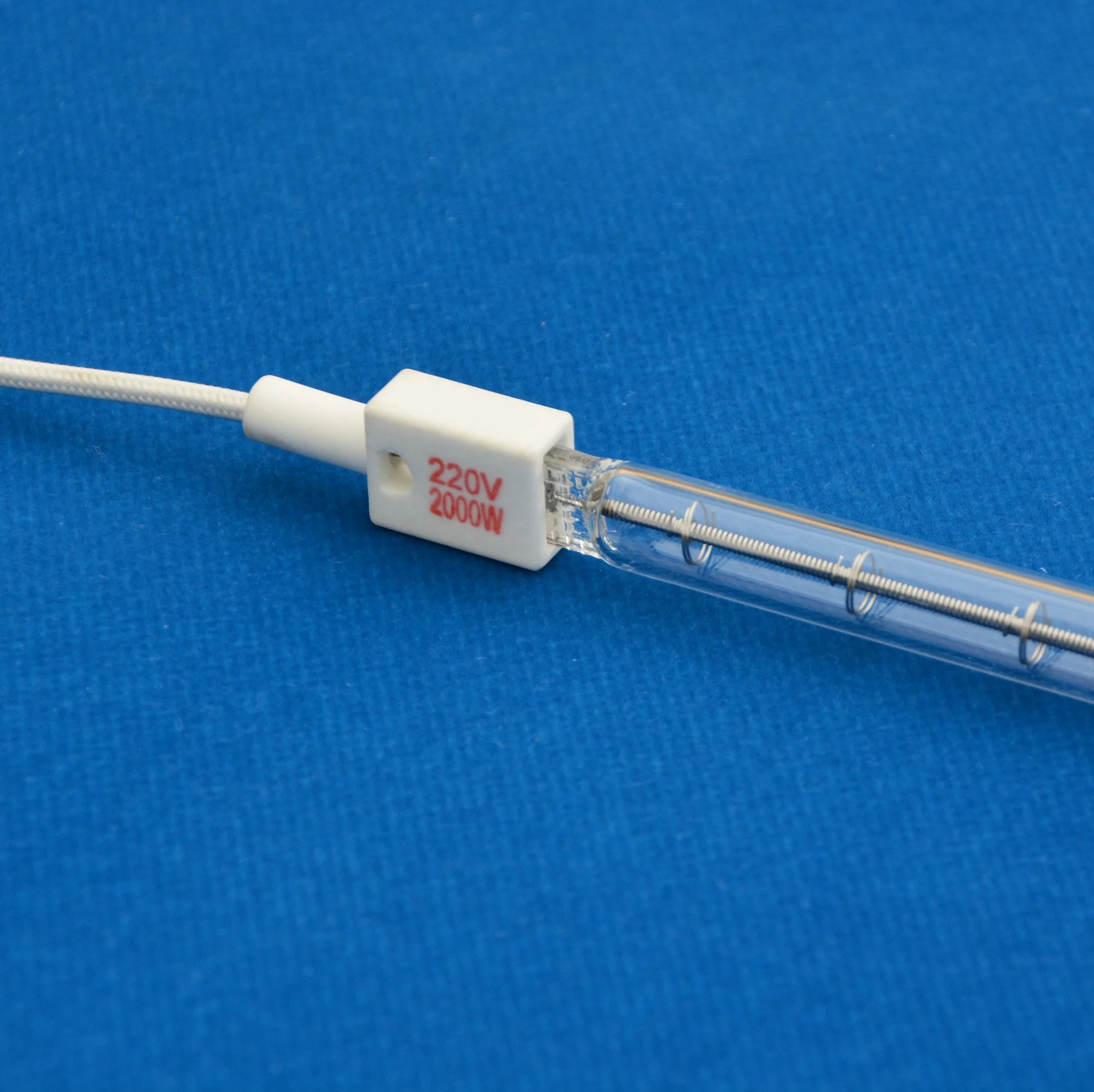

220V
2000W
555mm
490mm
10mm
Ceramic
Universal
SK15/A
400V
3000W
728mm
658mm
10mm
Clear
Horizontal
D
220V
2000W
1020mm
930mm
10mm
Clear
Horizontal
R7s/E














Short Wave Single Tube Infrared Lamp

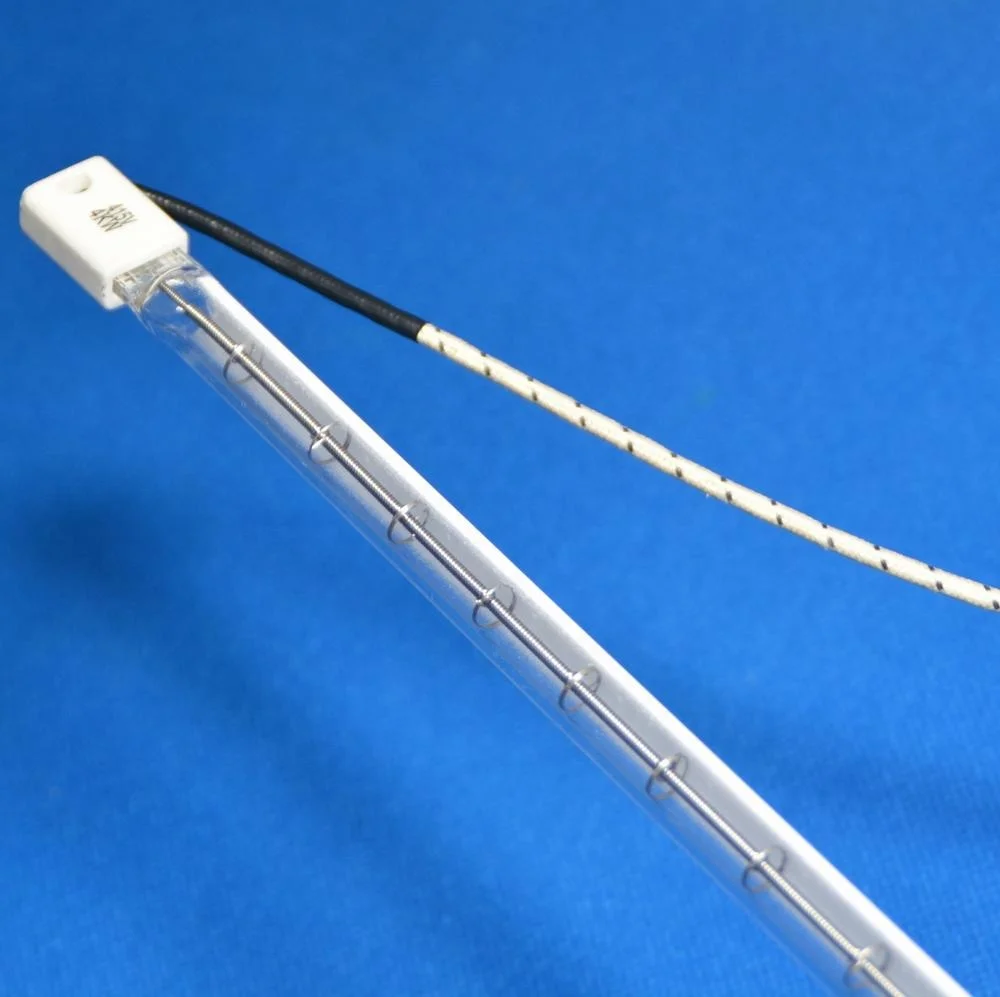

Short wave single tube IR lamp
Peak wavelength
1.0-1.4 μm
Heating filament
Tungsten
Filament working temperature
1800℃-2200℃
Response time
1 second
Diameter
10mm
11mm
12mm
14mm
15mm
19mm
Max. Length
1.1m
1.1m
1.5m
2.0m
2.0m
2.5m
Reflector
White ceramic or Gold reflector
Burning position
Horizontal or Vertical












\t\t\t\t\t\t\t\t\tCompany Information \t\t\t\t\t\t\t




Nanjing E-DEN Lighting Technology Co., Ltd., a professional manufacturer and trading company established in 2011, specialized in producing infrared heating lamps and providing IR heating solutions. Our customers spread all over the Euro-Asia and south and north America, such as Germany, Italy, UK, Spain, USA, Canada, Russia and other dozens of countries. We also offer OEM/ODM manufacturing service for our customers all over the world. We can design and produce infrared heating lamps or heaters according to your requests. We manufacture singe and twin tube IR heating lamps in short wave, fast response medium wave, carbon medium wave and medium wave. Base on reliable quality and honest reputation, our IR products pass the ISO 9001 international quality certification and CE safety certificate. We always do our best to provide our customers highest quality products and most satisfactory after-sales service.
