lignite dryer machine/Mineral Slag Dryer for sales



Zhengzhou Yufeng Heavy Machinery Co., Ltd has been one of the largest mining machinery manufacturers in China. It mainly deals with Crushing and screening equipments, Mineral processing equipments, Artificial sand and stone making equipments and AAC equipments,dryer and rotary kiln, Lime and Cement production equipment and other equipments. We welcome all friends from home and abroad to visit our company to check the high quality products. Our service center sincerely hopes that we can have a successful cooperation.

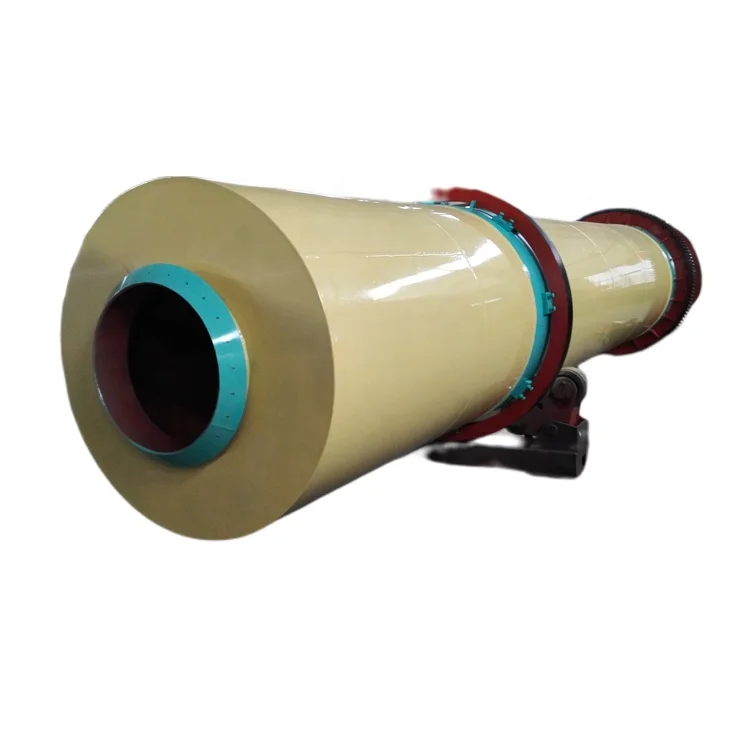

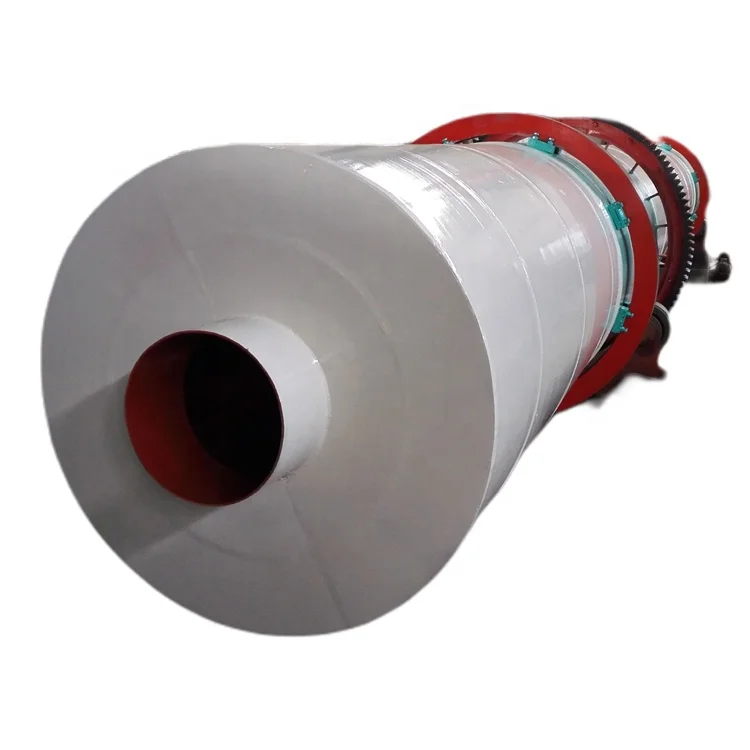

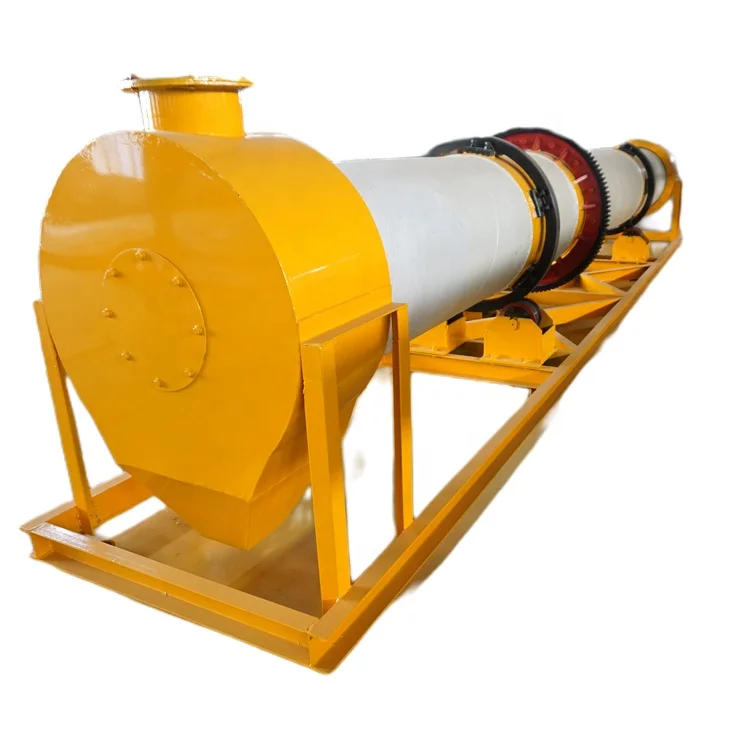

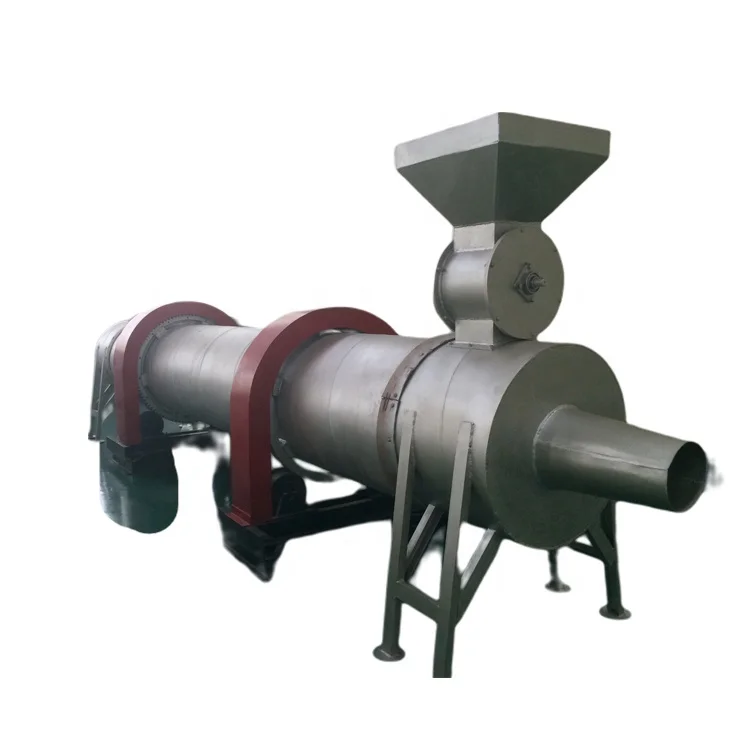

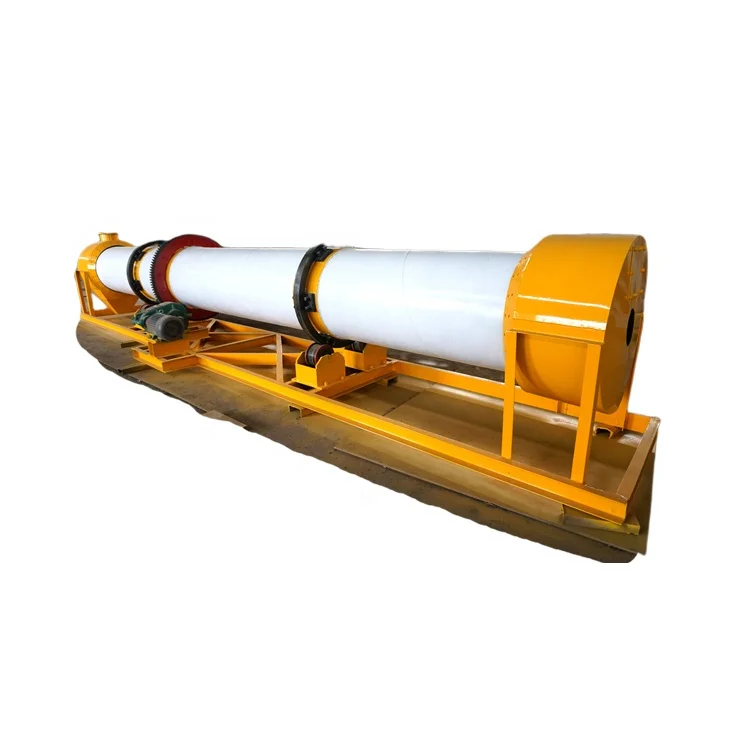

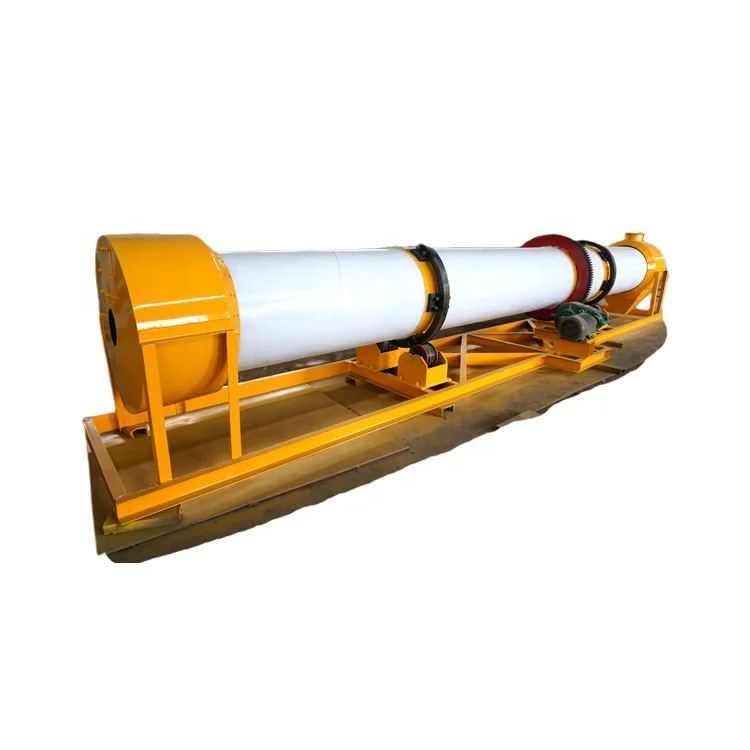

Introduction of lignite dryer machine

Rotary dryer machine is widely used for drying materials in the industries of cement, mine, construction, chemical,compound fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350o)



Application of lignite dryer machine

Rotary drum Dryer Machine is widely used in building materials, metallurgy, chemical industry and cement industry, which is widely used to dry the stuff such as limestone, coal powder, slag and clay.



Features of  lignite dryer machine

1) Rotary drier/dryer with professional design

2) Low energy consumption

3) Long life span; Simple structure

4) Low cost and high output

5) Automatic operation

6) High capacity and efficiency



Structure of lignite dryer machine Rotary dryer/drier machine is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.





1. Shell: Q235-B

2. Tyre: ZG45

3. Bull gear: ZG45

4. Supporting roller: ZG45

5. Shaft of Supporting roller: 45 stell forging

6. Pinion: 40Cr

7. Motor: YCT355-4B

8. Reducer: ZL100-22.4-II







Installation of lignite dryer machine 1. The equipment should be installed on the basis of the horizontal concrete, fastened by the foundation bolt.

2. The dryer body should be vertical with the level when installation.

3. Check the bolt from all the parts, assure it fastened.

4. Equipped with the power line and control the switch according to the equipment.

5. After check, it can be production after the normally testing.







Parameters of  lignite dryer machine

Model	Diameter of dryer (mm)	Length of dryer (m)	Gradient (o)	Rotational speed (r/min)	Weight (t)	Power (kw)	Volume (m³)
0.6x8	600	8	3-5	8	5.1	4	2.26
0.8x10	800	10	3-5	7.2	6.9	4	5.02
1.0x10	1000	10	3-5	6.73	7.5	5.5	7.85
1.2x12	1200	12	3-5	5.8	13.1	11	13.31
1.5x12	1500	12	3-5	4.8	22.3	15	21.2
1.8x14	1800	14	3-5	3.2	45.8	30	48.22
2.2x18	2200	18	3-5	3	50.3	37	70.43
2.4x20	2400	20	3-5	2.83	78.4	45	90.43
2.8x24	2800	24	3-5	2.59	97	75	147.8



Note: Please feel free to contact me by Skype: yfplant or Cell: +0086 15890678157 or +86 13598025274 if you are interested in our machine. Welcome to visit.
