Роторная барабанная сушилка сушильное оборудование промышленная роторная сушильная


Поделиться:


Цена:38 500,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-15-2025 45815.86 $* 48106.19 $*
Aug-15-2025 45430.21 $* 47702.43 $*
Jul-15-2025 38115.34 $* 40021.77 $*
Jun-15-2025 44660.28 $* 46893.19 $*
May-15-2025 38885.45 $* 40829.43 $*
Apr-15-2025 43890.93 $* 46085.18 $*
Mar-15-2025 43505.76 $* 45680.65 $*
Feb-15-2025 43120.62 $* 45276.34 $*
Jan-15-2025 42735.8 $* 44872.34 $*

Характеристики



Products Description

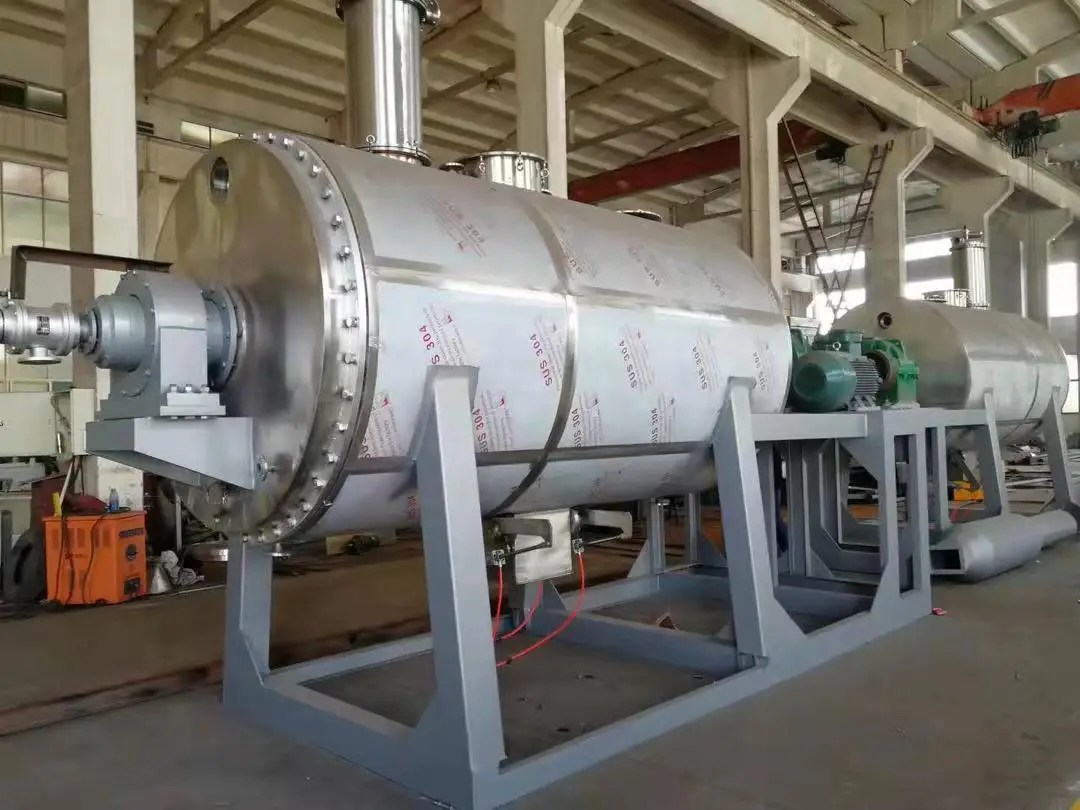

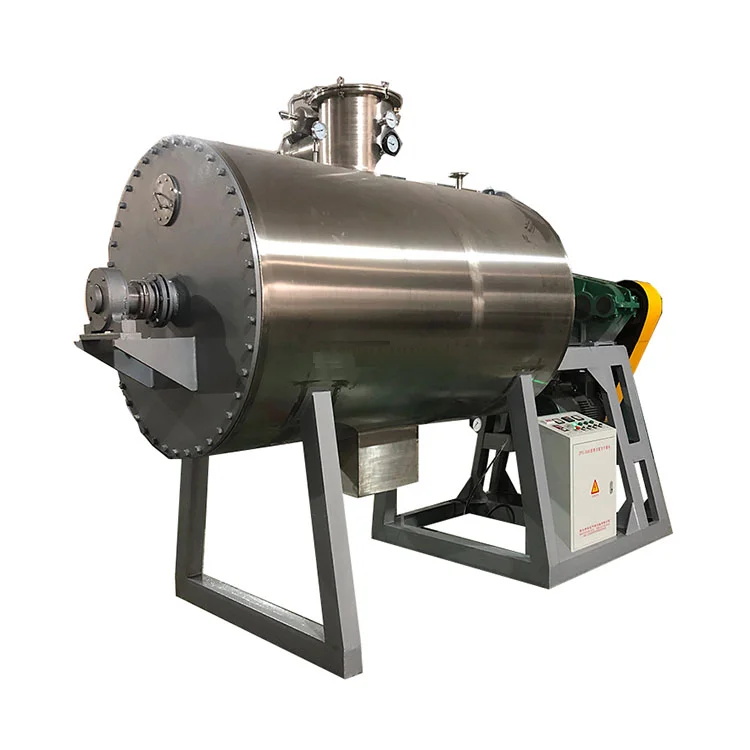

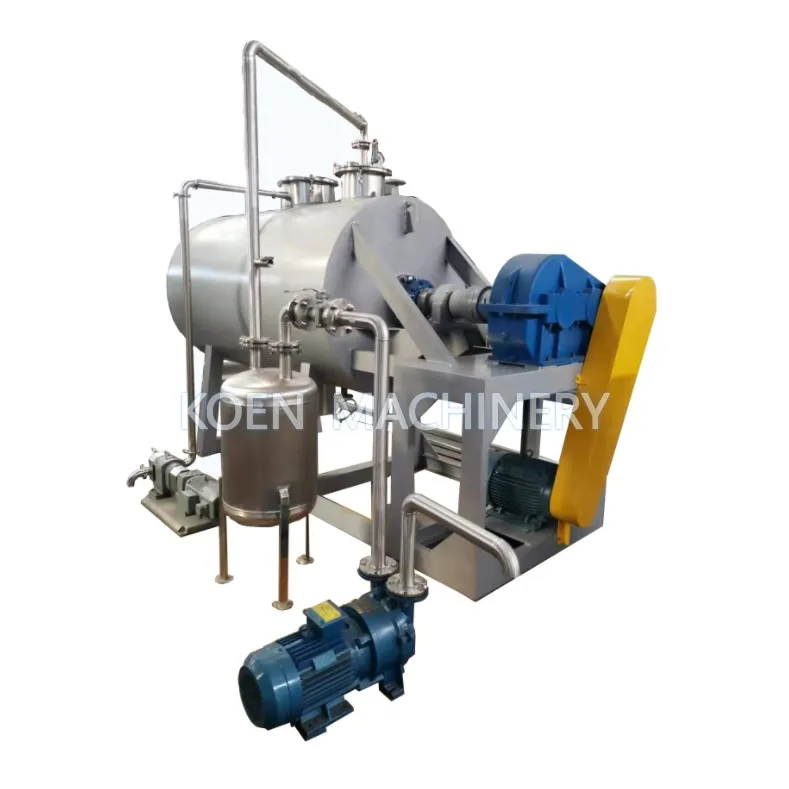

ZPG series industrial rotary drum sludge dryer machine

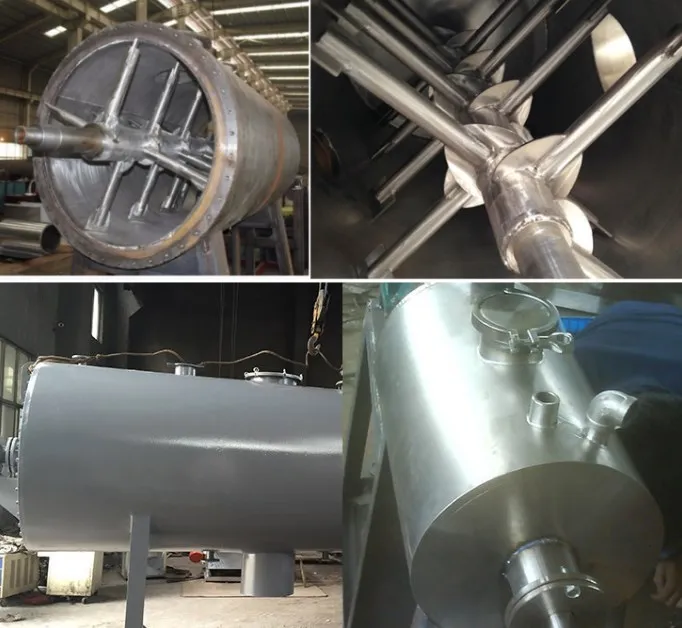

Working principle : The main structure of ZPG vacuum harrow dryer is a horizontal cylindrical container with jacket, which is equipped with a low-speed mixing shaft, and the shaft is equipped with rake teeth arranged in a certain direction. There are two forms of mixing shaft, one is a non heated rake shaft, and the other is a hollow rake shaft that can be filled with hot medium (hot water and hot oil). The jacket is filled with heating medium (hot water, hot oil). The wet material feed into the cylinder, and the rake gear shaft stirs the material to heat evenly. Under the control of the time relay, the rake gear shaft operates according to forward rotation stop reverse rotation stop forward rotation at a certain time interval. The operation cycle is set by the user according to the process operation conditions of the material. Under the regular stirring of the rake gear shaft, the dried materials in the cylinder move to both sides and to the middle, and then again and again until the materials are dried to the process requirements. A vacuum interface is arranged on the upper part of the inner cylinder and connected to the vacuum system to heat and dry the dried materials under negative pressure, which can ensure that the dried materials are heated at low temperature and will not damage the physicochemical properties of the materials. After the materials meet the drying requirements, open the discharge valve at the bottom of the cylinder to allow the materials to move to the middle under the stirring of the rake gear shaft for discharge.

Application:
ZPG series vacuum harrow dryer has been widely used for drying wet cake product after filtration especially sticky heat sensitive paste material. This equipment can be used in drying process of various Pharmaceuticals, Intermediate Compounds, Fine Chemicals, Chemicals, Agro Chemicals, Pesticides, Insecticides, Dyes and Food Products which have the following properties:








Item
ZPG-500
ZPG-1000
ZPG-1500
ZPG-2000
ZPG-3000
Working volume L
300
600
900
1200
1800
Stirring speed rpm
10-15
10
10
8-10
8-10
Power
2.2
3
4
4
5.5
Jacket design pressure Mpa
≤0.3
Cylinder inner pressure
-0.09~ -0.096




Recommend Products




Packing




FAQ


Q1: Where is your factory? How can I visit there?
A1: Our factory location is Changzhou, China.If want to visit our company , you can fly to Shanghai Pudong Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
