Приглушаемый светодиодный драйвер 3 А 2 1 0-10 В 12 светодиодного освещения или для Triac Вт 24


Поделиться:


Цена:535,58 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 679.3 $* 693.76 $*
Jul-15-2025 551.2 $* 562.87 $*
Jun-15-2025 669.72 $* 682.24 $*
May-15-2025 663.70 $* 676.35 $*
Apr-15-2025 530.41 $* 541.63 $*
Mar-15-2025 653.11 $* 666.12 $*
Feb-15-2025 647.99 $* 660.28 $*
Jan-15-2025 642.22 $* 655.96 $*

Характеристики

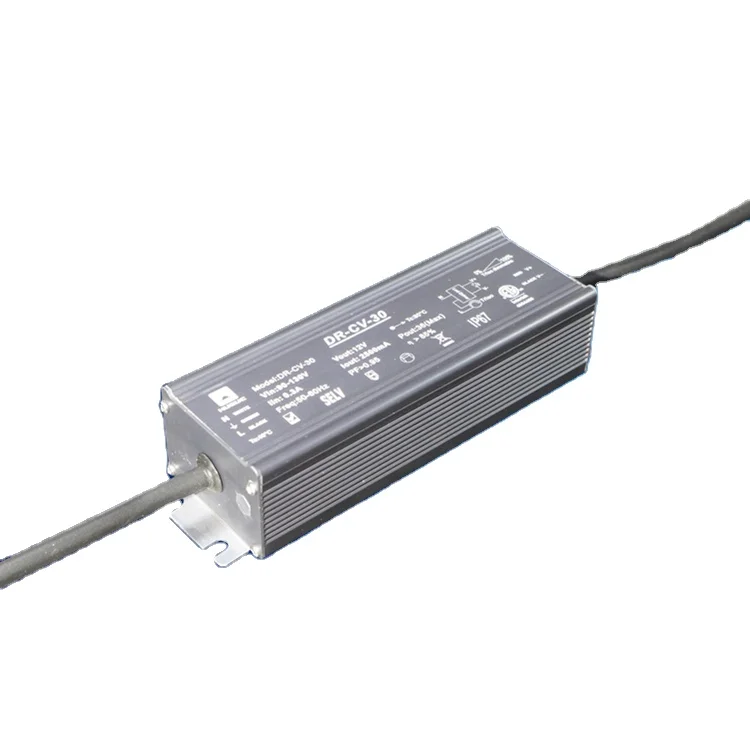

3A 2A 1A 0-10V led driver dimmable 12V led light driver OR Triac dimming led driver from 12W 24W 50W



Product Overviews



led driver.jpg

Output Power  9/12/18/20/24/30/33/40/60/80/100/150/180/240 to 300w (Customized)
AC Input   85v,90v,110v,130v,180v,220v,240v,265v,300V (Customized)
DC Output  12v-80V (Customized)
Dimming type  Triac, 0/1-10V, DALI, PUSH, PWM, 2.4G wireless, Zigbee (Optional)
IP Class  IP20, IP66, IP67 (Customized)
Certificate  ETL, UL, FCC, TUV-GS, CE, RoHS, CB, SAA (Optional)
Life time  50,000 hours



The technical parameters above is only for your reference, please contact us for more infprmation.



Product Description



Dimming type     Triac           0/1-10V           PUSH           DALI           PWM           RF           Zigbee
Dimming Range  0% -100%,Flicker free, Noise free, Smooth dimming
Approved  Dimmers  Lutron, Leviton, Euchips, Scnendais, Kaoyi
Input Voltage  range  90-130 &180-240VAC In-Rush Current 30A/186μs
Frequency  range  50/60Hz Max.THD(Full Load) 10%
Power  factor  >0.95 Time To Light(At230V) <1S
Full  load  efficiency  ≥85% Surge  Protection 1KV
No Load Power
Consumption
 0.8W
Output Output  mode  Constant  Current / Constant  Voltage
Output voltage range  12-80V
Rated  power  9-300W (customized)
Output LF Voltage Ripple (<120Hz)  ±5%
Output  type  single
Protect Short circuit protection  Intermittent  restart  mode, after  the  exception  can  be  automatically  restored
Overcurrent protection  Vout*150%
Overvoltage protection  < 270VAC
Environtment Working Temp/Humidity  -30-45℃,5-95%RH
Storage Temp/Humidity  -40-70℃,5-95%RH
Temperature coefficient  ±0.03%/℃(0-50℃)
Vibration  5-55Hz/2g,30  Mimutes
Safety& EMC Safety  EN60598
Pressure  I/P-O/P:3KVAC   IP-FG:1.88KVAC   O/P-FG:0.5KVAC
Insulation  resistance  I/P-O/P   I/P-FG   O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC  Emission  EN55022,EN55015  Class  B
EMC  Immanity  EN61547, ENV5024, EN61000-4-2/3/4/6/8/11
Other Level of protection  IP20, IP66, IP67
Shell Material  Plastice, Aluminum, Metal
