5m 3/h Aliva насос для сухого бетона
- Категория: Shotcrete Machine >>>
- Поставщик: Wenzhou,Engineering,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1964.55 $* | 2062.45 $* |
| Aug-18-2025 | 1947.39 $* | 2044.43 $* |
| Jul-18-2025 | 1634.25 $* | 1716.80 $* |
| Jun-18-2025 | 1914.96 $* | 2010.27 $* |
| May-18-2025 | 1667.61 $* | 1750.7 $* |
| Apr-18-2025 | 1881.39 $* | 1975.66 $* |
| Mar-18-2025 | 1865.30 $* | 1958.13 $* |
| Feb-18-2025 | 1848.74 $* | 1940.9 $* |
| Jan-18-2025 | 1832.74 $* | 1924.49 $* |
Характеристики

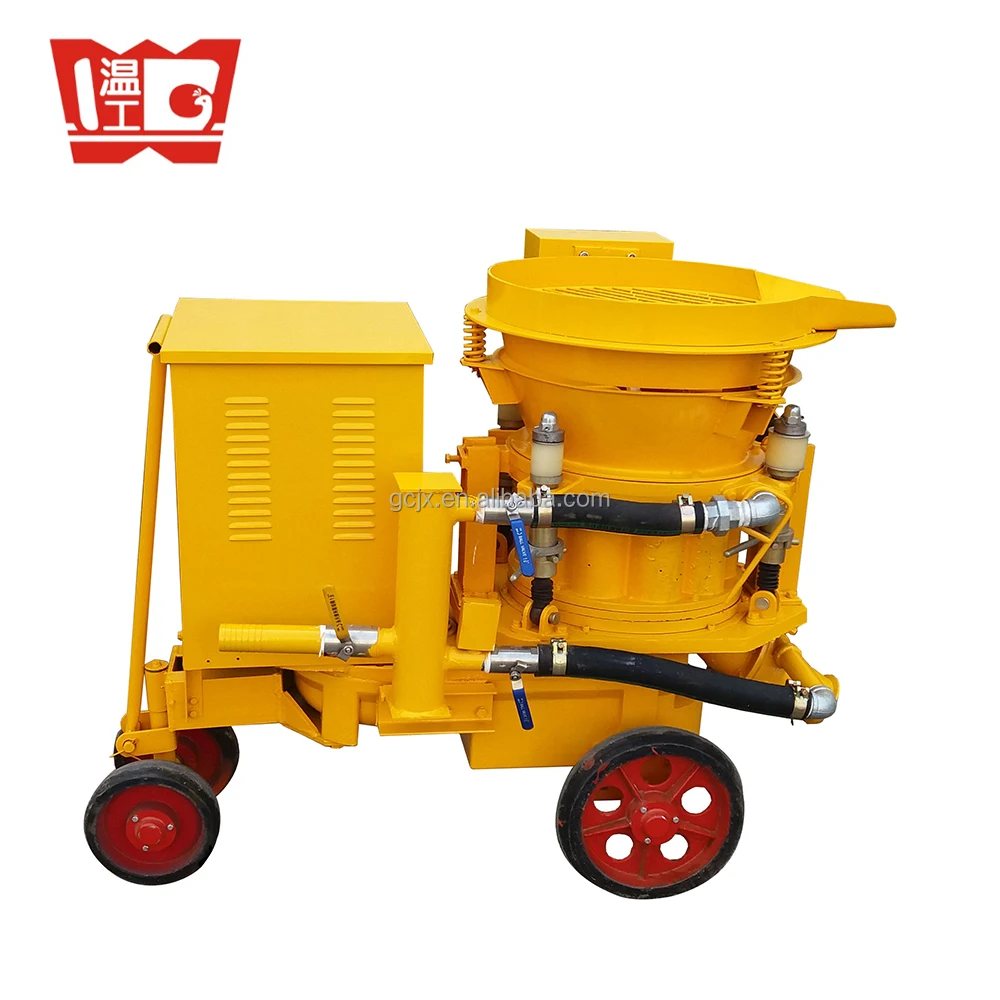

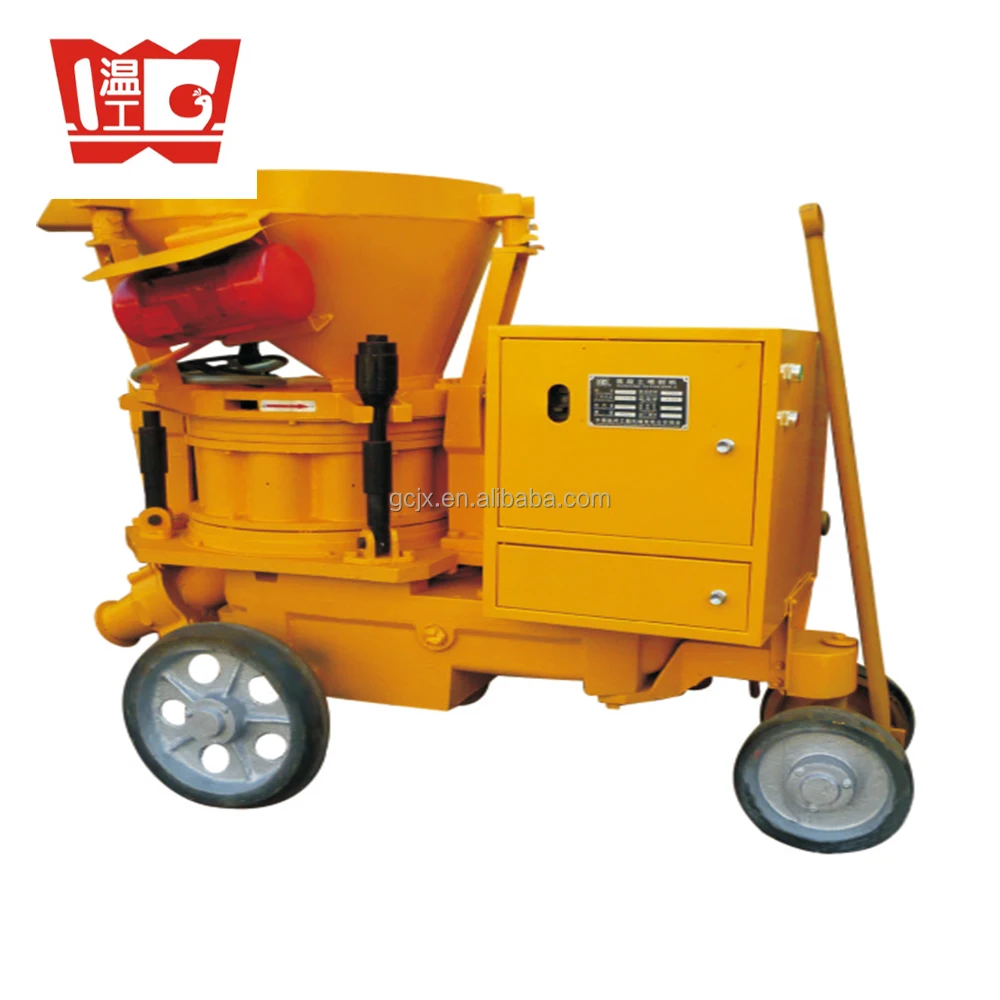

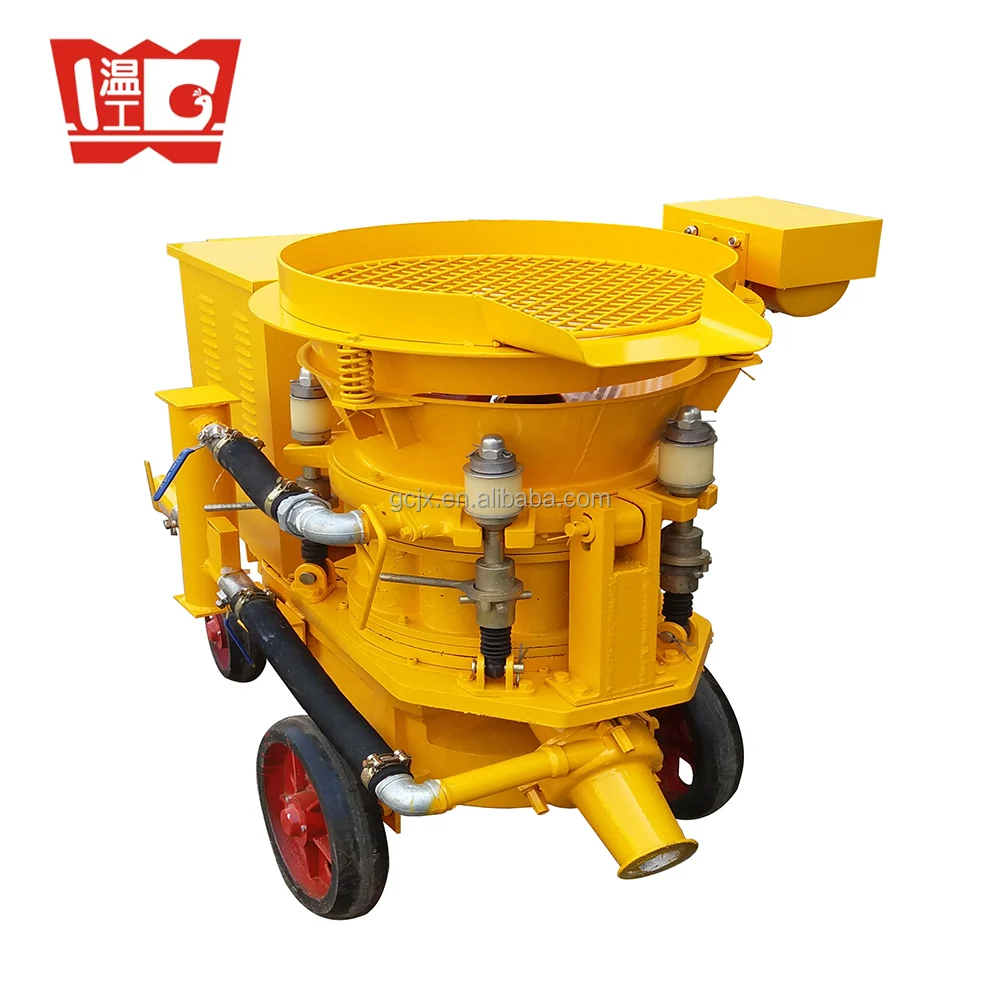

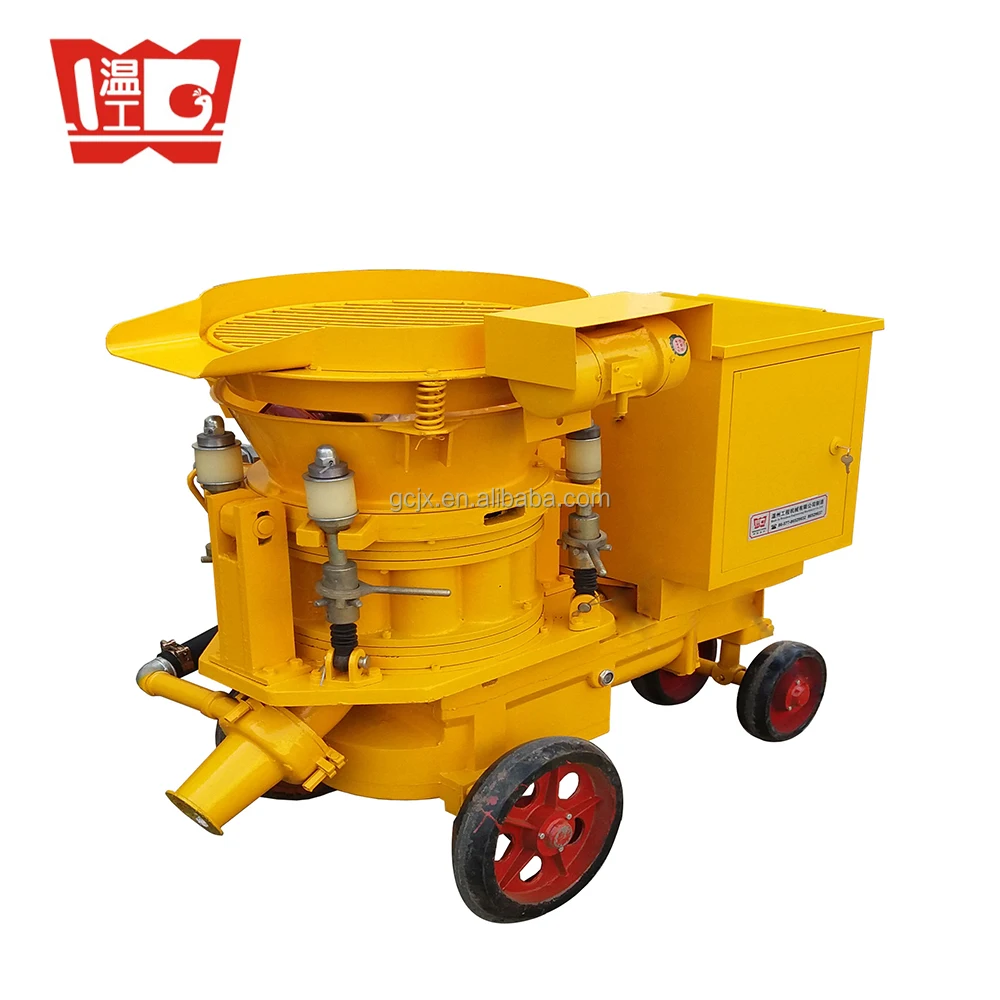

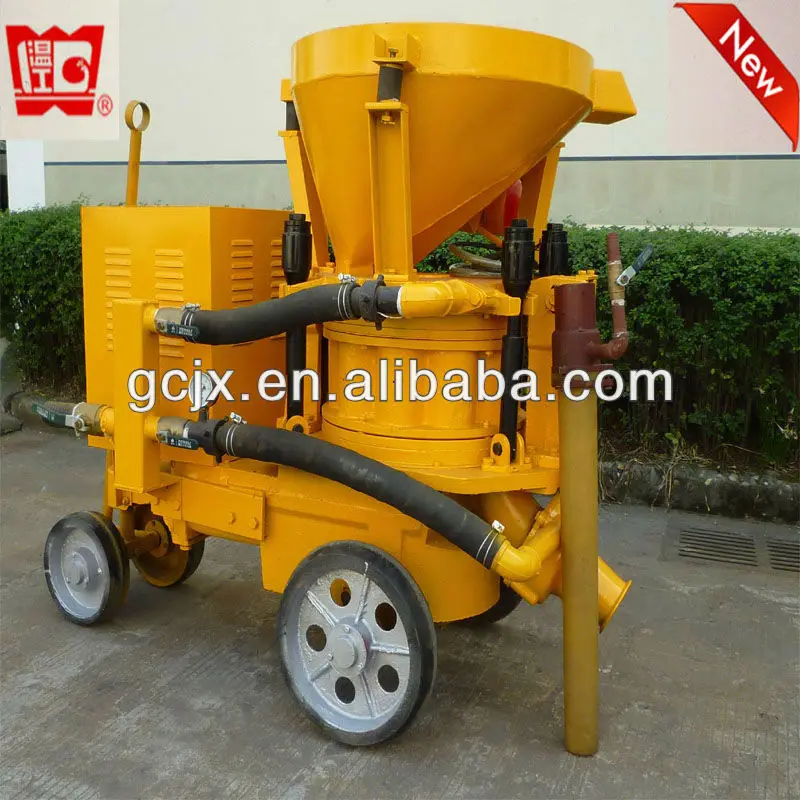

PZ-5 Concrete shotcrete pump
PZ series dry concrete shotcrete machine can be used for dry spraying, moist spraying, and wet spraying which introduced present new technology of concrete shotcrete. It is an optimized and improved generation product, adopts straight-through type chamber with smooth material flow. It also has advantages with strong ability of handling mixture, blanking delay, less remaining material, low dust, single-point compaction, easily adjustment and maintain, rubber sealing plate with long service life, small volume and strong mobility, low feeding height and small labor intensity etc.
PZ series dry concrete shotcrete machine is widely applicable for spraying concrete construction in tunnel, culvert, railway, highway, water conservancy projects, underground projects, coal mine, moorland mine well and roadway.
Technical parameter
| Model | PZ-5 |
| Working capacity | 5-5.5m3/h |
| Working air pressure | 0.2-0.4Mpa |
| Air consumption | 7-8m3/h |
| Max Horizontal transport distance | 200m |
| Max High transport distance | 40m |
| Applicable water cement ratio | 0.4-0.45 |
| Max diameter of material | 20mm |
| Engine power | 5.5kw |
| Net Weight | 700kg |
| Dimension | 1520×820×1280mm |
1. PZ-5 is very popular used in lots of applications, so it's accepted always in Russia, Chile, Philippines etc.
2. Wearing spare parts for concrete shotcrete pump
Company Information
***10000 Square Meters factory plant,with more than 100 works
We have study and produce concrete machine Since 1973.
***Excellent Showroom
Most machine are in warehose if the phase is 3 phase, 380V,50HZ.
***Professional Production Line
Most of our workers are working hear over 5-10 years
Exhibition & Visitng
Welcome to our factory!!!
It would be our great honor to show & test our machine for you.
From left to right:
1. Our engineers in India to help our clients to use JP70-L
2. Our engineers in Zhejiang Zhaoshan Group
3. G.M. and doctor Falken beng of PFT visit us.
4.Expert M. Shanid Khan from Putzmeister visit us.
5.G.M., KJGS Dietar Swbada of BAUMANN in our exbibition
6.G.M. Holger Binader from famous company THIE LENHAUS pride highly of our machine.
7.Expert William from Dupont technical exchange in our factory.
8. Engineers from UAE visit Zhejiang Construction Group,
to see how our mortar machines used there.
***Clients from AUE/Saudi Arabia/Franch/ Chile/ India visited our factory.
***Exhibition every year---Welcome to our fair
Packaging & Shipping
***Wooden case packing
**the wheel or leg would be fixed by iron wire, in this way,
the machine would never shake or move in container,
Keep stable.
**for huge size machine, it's nude packing. without wooden case.
But the surface would be protected by shrink bag and bubble bag.
