Product Overview

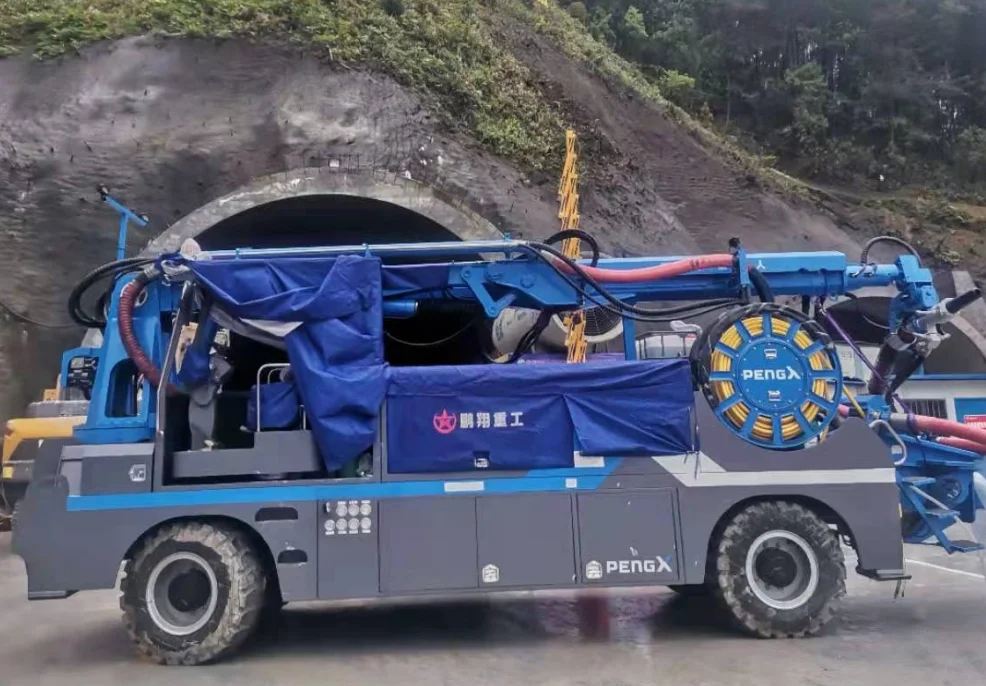

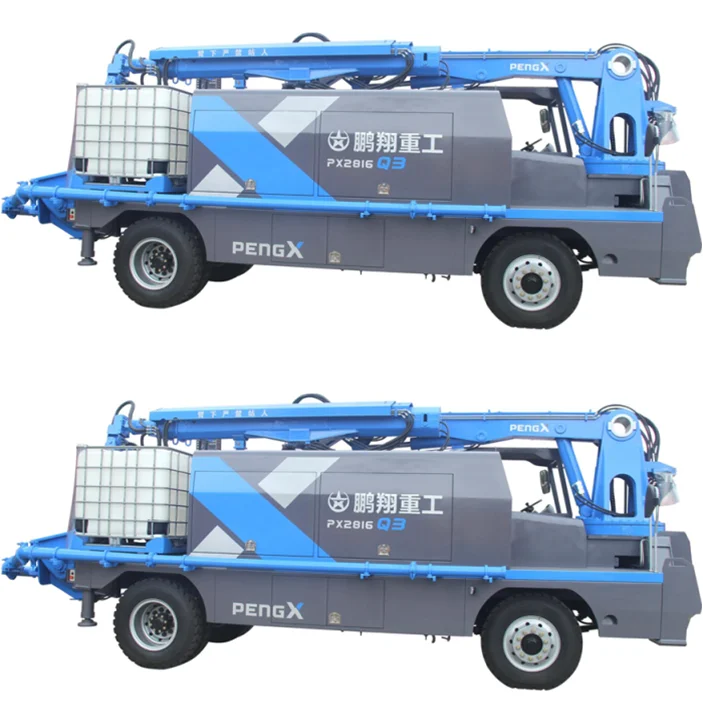

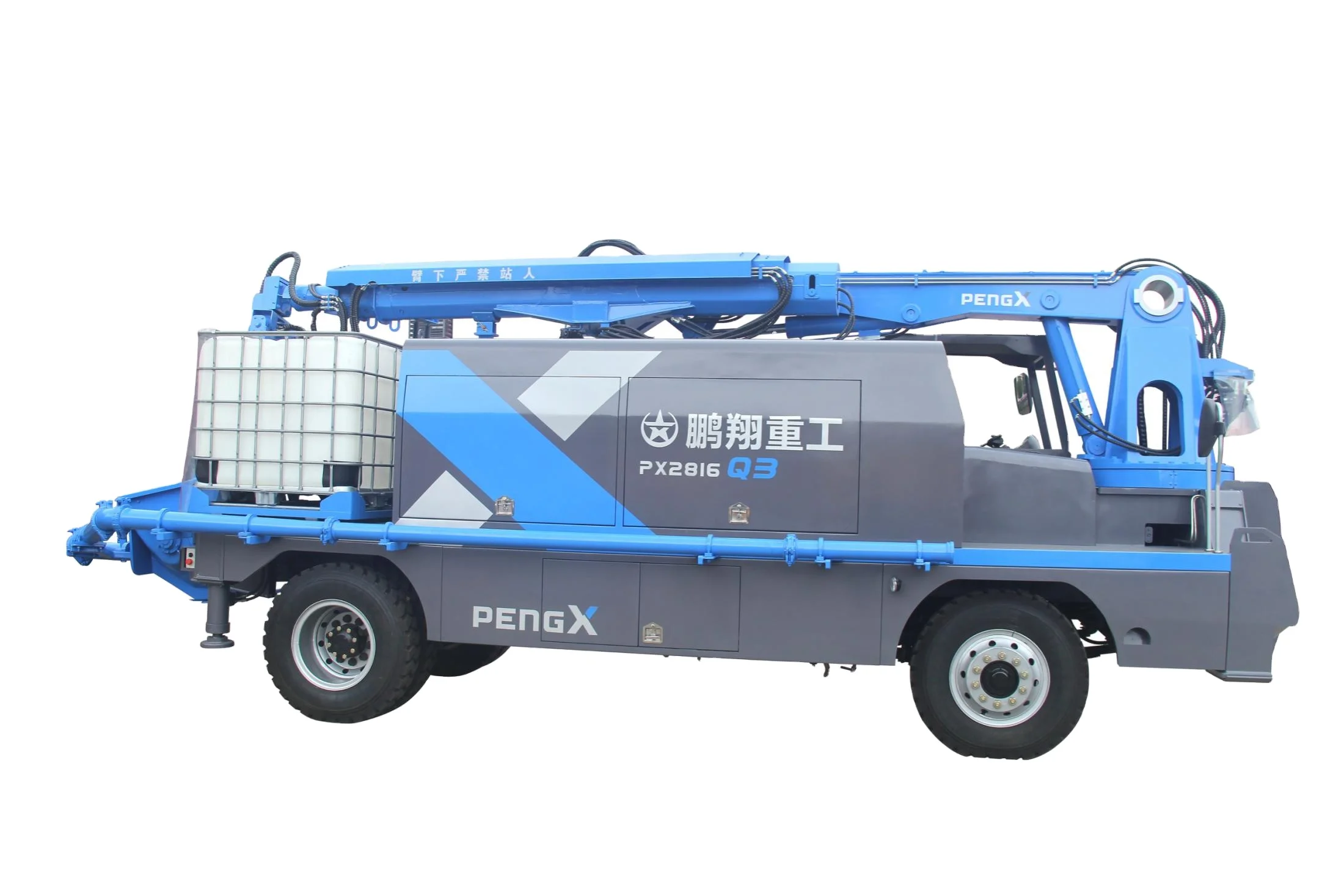

wholesale sale Wet Shotcrete machine Robot Arm Automatically Tunnel Mining Construction Shotcrete Robot Machine
As a new generation produced engineering chassis wet shotcrete machine, which is researched and developed after synthesizing wet shotcrete machine technology domestic and oversea, solving spraying deficiency that traditional small shotcrete machine cannot meet concrete spraying need in long and big tunnel, vastly improving the working environment for workers inside tunnel, increasing working efficiency, reducing concrete consumption, truly ensuring working quality, double power working system, lower carbon emission, Suiting environmental protection concept. JIUHE engineering chassis wet shotcrete machine is best choice for tunnel construction like water conservancy and hydropower, railway, highway and so on.
truck mounted wet shotcrete machine Advantage
1 ) Adopt thin air now conveying type wet shotcrete machine Good adaptatlon for concretem mixture , Iower dosage for binding materlal and addltlves
2 ) Speclal boom structure
Adopt two stages boom structue with movable slewlng support strut , suitable for benchlng tunnelling method , meet three benches annular dlgglng Ieavlng core , this kind spraylng method wlthout working b Iind angle .
3 ) Wireless remote control System , Improve wolklng environment .
4 ) World famous onginal parts and components
5 ) Motor and diesel double englne system , can change quickly as per need well 一 adapted
1 ) Adopt thin air now conveying type wet shotcrete machine Good adaptatlon for concretem mixture , Iower dosage for binding materlal and addltlves
2 ) Speclal boom structure
Adopt two stages boom structue with movable slewlng support strut , suitable for benchlng tunnelling method , meet three benches annular dlgglng Ieavlng core , this kind spraylng method wlthout working b Iind angle .
3 ) Wireless remote control System , Improve wolklng environment .
4 ) World famous onginal parts and components
5 ) Motor and diesel double englne system , can change quickly as per need well 一 adapted
Wheel wet spray machine parameters | YZ27 | |
Overall dimensions(L*W*H) | 8200*2460*3350(mm) | |
Weight(KG) | 16400 | |
Rated power of motor | 45KW+30KW | |
Engine style | Diesel 4-cylinder | |
Engine Power | 95KW | |
Min operating voltage | 350V | |
Misfire cylinder diameter | Φ180mm | |
Misfire cylinder stroke | 800mm | |
concrete delivery capacity | 30m3/h | |
delivery pipe dia. | Φ125mm-Φ89mm | |
Max.Aggregate diameter | Φ16mm | |
Driving system | 4WD full hydraulic chassis | |
Wheel base | 4150mm | |
Max travel speed | 25KM/h | |
Max gradeability | 20° | |
Steering | 4WS(Optional) | |
Hopper volume | 0.3m3 | |
Outlet pressure | 7.5Mpa | |
Operation Parts | Wireless remote control + electro-hydraulic valve | |
Special configuration | Solid tire | |
Large-caliber pipes reduce the chance of pipe blockage Large transfer support, good stability
World-class controller, German ifm, easier to operate Large radiator, more stable hydraulic pressure and high efficiency

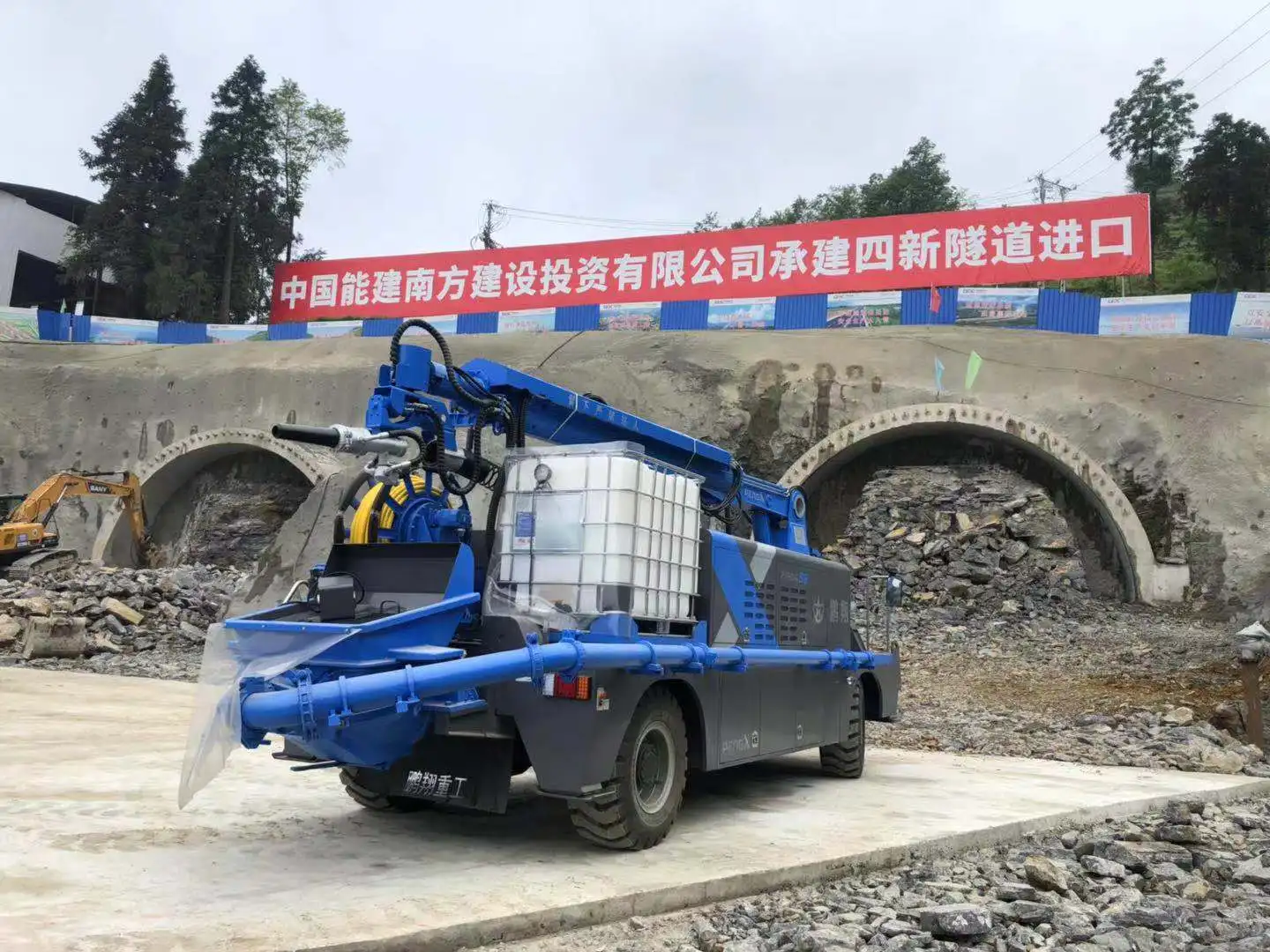

Successful Project
Company Profile
Why Choose Us
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts: LiuYang is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance: LiuYang is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training: LiuYang offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: LiuYang can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
(2)Spare parts: LiuYang is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance: LiuYang is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training: LiuYang offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: LiuYang can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
Delivery and package
After-sales service
To train operating,maintenance and construction people for our customers.
1： Keep clients updated when our company getsadvanced payment;
2：Confirm production details with clients;
3:Take photos and send all pictures to customers during production;
1： Keep clients updated when our company getsadvanced payment;
2：Confirm production details with clients;
3:Take photos and send all pictures to customers during production;
4: Inspection and testing the product before delivery;
5： Always be ready to answer technical questions concerned from our customers.
6： Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
7： To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
8： Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
5： Always be ready to answer technical questions concerned from our customers.
6： Be responsible for the quality of our products and provide technical service of installing,making ajustment,testing and maintenance on the site in time.
7： To dispatch technicans to the worksite at short notice to solve problems or fix breakdowns.
8： Keep a record of our customers and be informed of the working performance of our products,feedback and suggestions of our customers so as to make a good cooperation with customers.
FAQ
Q1: Why should I choose you?
1. after sales service support in different languages;
2. Guidance of installation and commissioning
on site can be provided by factory-trained technicians or local Authorized Service Center;
on site can be provided by factory-trained technicians or local Authorized Service Center;
3. Technical training can be carried out for customers in the factory or on the job site
4. Plenty of original spare parts with proven quality are all available from our central stocks in HUNAN Province and alldistributors'depots;
5. All kinds of technical documents in different languages.
Q2:Where is your factory located?
Q2:Where is your factory located?
A:Our factory is located in HUNAN
Q3: How many do you produce every month?
A: We can produce 3000 pcs every month.
Q4: Can you use our brand?
A: Yes, OEM is available.
Q5: What is delivery time?
A: It depends on the order quantity .Normally our lead-time is 7-30 days.
