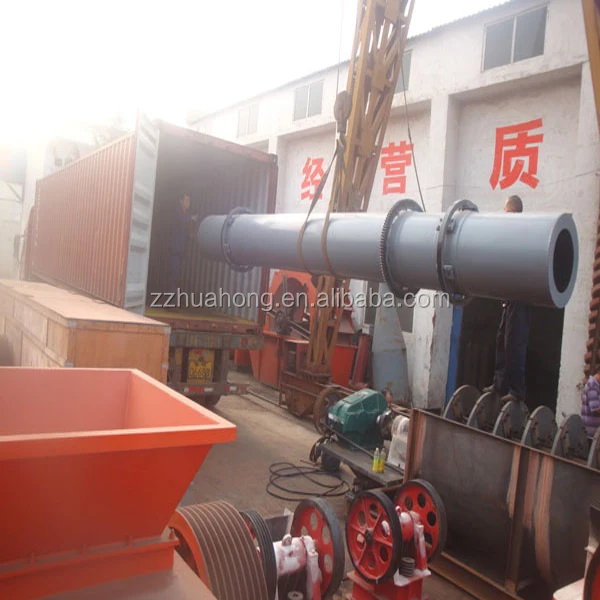

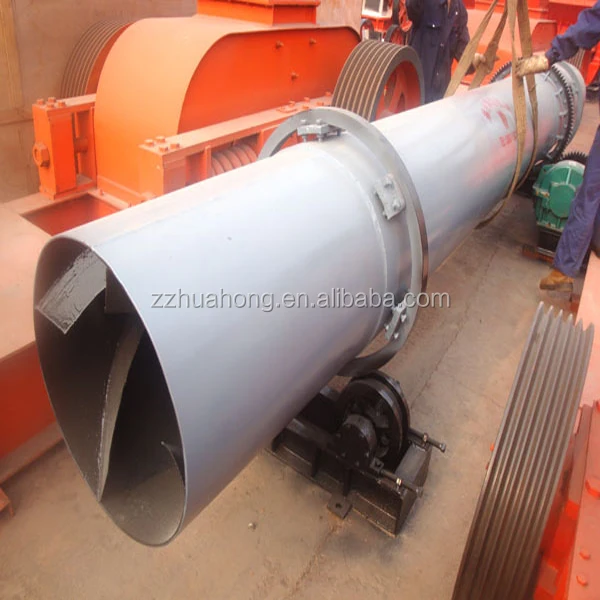

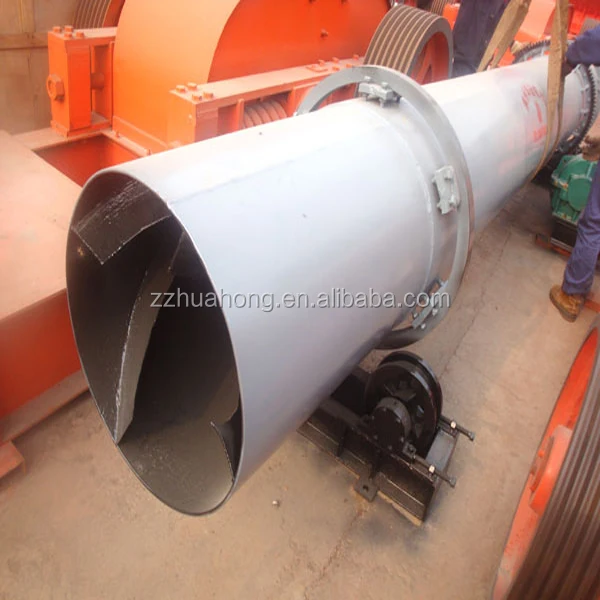

New animal manure dryer for chicken manure,pig manure,cow manure,poultry manure,dairy manure,cattle manure,fowl manure
Animal manure dryer application:
Animal manure dryer is widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)
Animal manure dryer Structure:

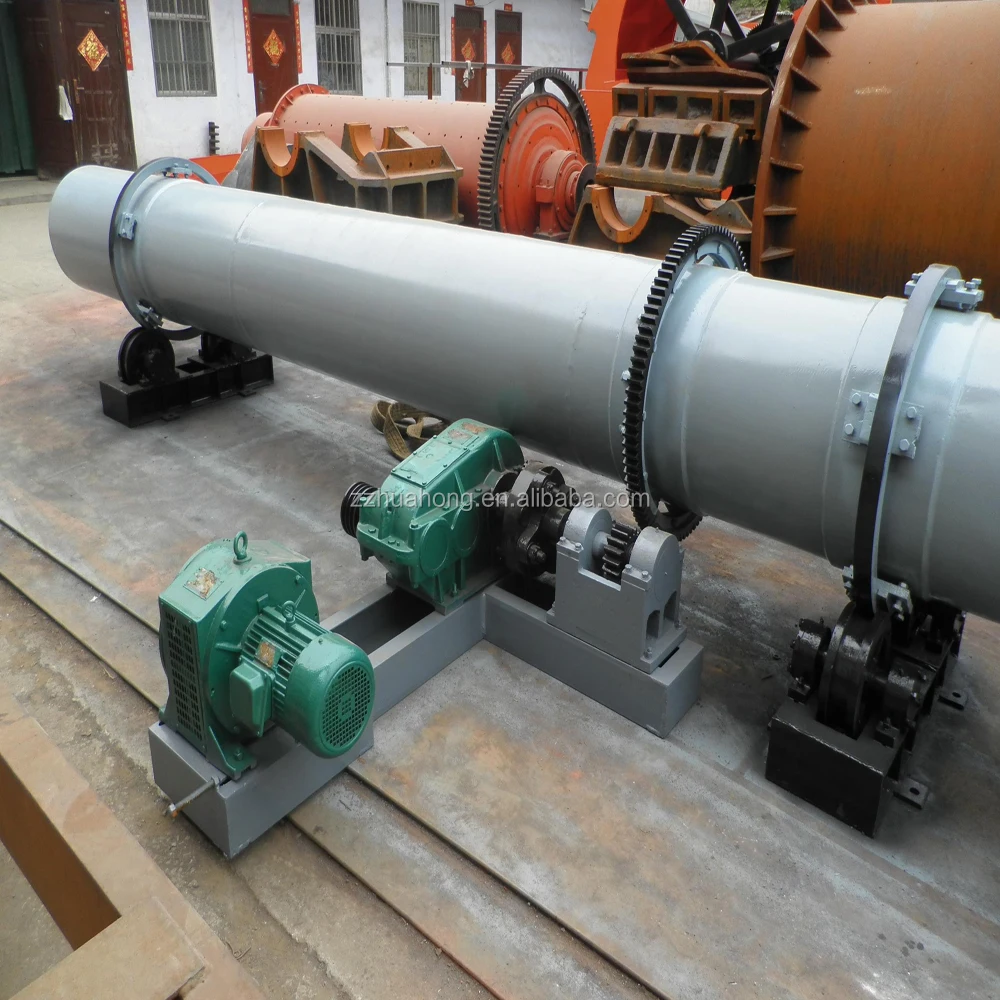

Animal manure dryer is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.
Animal manure dryer working principle:
Animal manure dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
Animal manure dryer specifications:
Model (mm) | Obliquity(%) | Rotation speed (r/min) | Feeding temperature (degree) | Power (kw) | Capacity(t/h) | Weight (t) |
Ø600x6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
Ø800x8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
Ø800x10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
Ø1000x10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
Ø1200x10000 | 3-5 | 3-8 | <=700 | 7.5 | 1.8-5 | 14.5 |
Ø1200x12000 | 3-5 | 3-8 | <=700 | 11 | 2-6 | 14.8 |
Ø1500x12000 | 3-5 | 2-6 | <=800 | 15 | 3.5-9 | 17.8 |
Ø1800x12000 | 3-5 | 2-6 | <=800 | 18 | 5-12 | 25 |
Ø2200x12000 | 3-5 | 1.5-6 | <=800 | 18.5 | 6-15 | 33 |
Ø2200x18000 | 3-5 | 1.5-6 | <=800 | 22 | 10-18 | 53.8 |
Ø2200x20000 | 3-5 | 1.5-6 | <=800 | 30 | 12-20 | 56 |
Ø2400x20000 | 3-5 | 1.5-5 | <=800 | 37 | 18-30 | 60 |
Ø3000x20000 | 3-5 | 1.5-5 | <=800 | 55 | 25-35 | 78 |
Ø3000x25000 | 3-5 | 1.5-5 | <=800 | 75 | 32-40 | 104.9 |
