China Factory Ce Small Sawdust Rotary Drum Dryer Wood Chips Rotary Dryer



Hot selling :





1. The general introduction of the Sawdust Rotary Drum Dryer

we have two types of the sawdust dryer , one is the air flow type sawdust dryer with samll capacity , the other is the wood sawdust rotary drum dryer .

2.(1) The general introduction of the   Sawdust Rotary Drum Dryer

This eco-friendly dryer dryer is suitable for drying materials of moisture 30~60%. The eco-friendly dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are put into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of eco-friendly dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock. This eco-friendly dryer reduces the moisture to 8~12% with the advantages of low cost consumption and high efficiency.

2.(2)The specifications of the Sawdust Rotary Drum Dryer with capacity 300-800kg/h capacity:

Model	Power(kw)	Capacity(kg/h)	Weight(kg)	Moisture content
HJ-4	4	300-400	1000	20-40% to 8-12%
HJ-6	4	400-600	1500	20-40% to 8-12%
HJ-8	11	700-800	1800	20-40% to 8-12%
HJ-10	15+0.75	800-1000	2500	20-40% to 8-12%





3.(1)  (1) The general introduction of the  Sawdust Rotary Drum Dryer



wood roatry drum dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, sawdsut drying system is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering .

(2)The specifications of the Sawdust Rotary Drum Dryer   with capacity 800-2500kg/h capacity :

Model	GT630	GT800	GT1000	GT1200	GT1500
Capacity kg/h	600-800	800-1000	1200-1500	1500-2000	2000-2500
Main Power	5.5kw	7.5kw	7.5kw	11kw	15kw
Air lock power	1.1kw	1.5kw	2.2kw	2.2kw	2.2kw
Weight	2600kg	2800kg	3800kg	4500kg	5000kg
Diameter of roller	630mm	800mm	1m	1.2m	1.5m
Length of roller	9m	10m	10m	12m	12m
Total length	9+4m	10+5m	10+5m	12+6	12+8m
Wood waste consumption	15-20kg/h	20-25kg/h	30-40kg/h	40-50kg/h	50-60kg/h
Moisture	From 40-70% to 8-12%

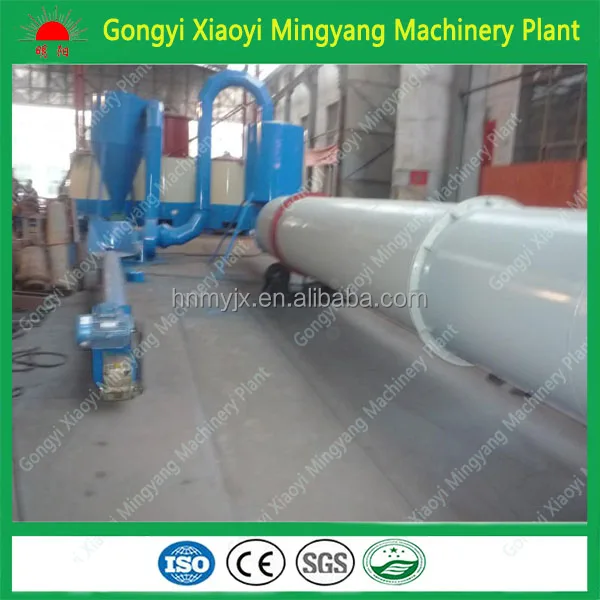

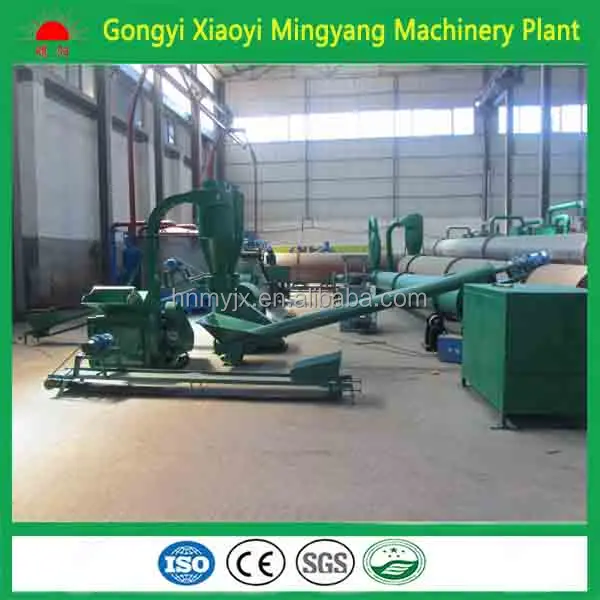

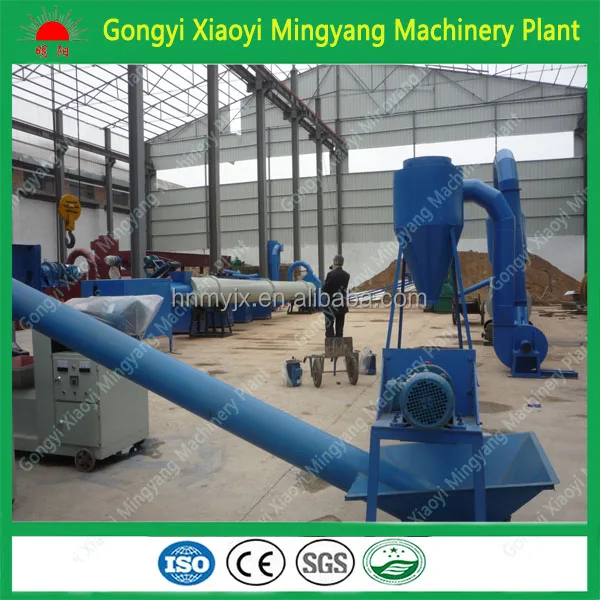

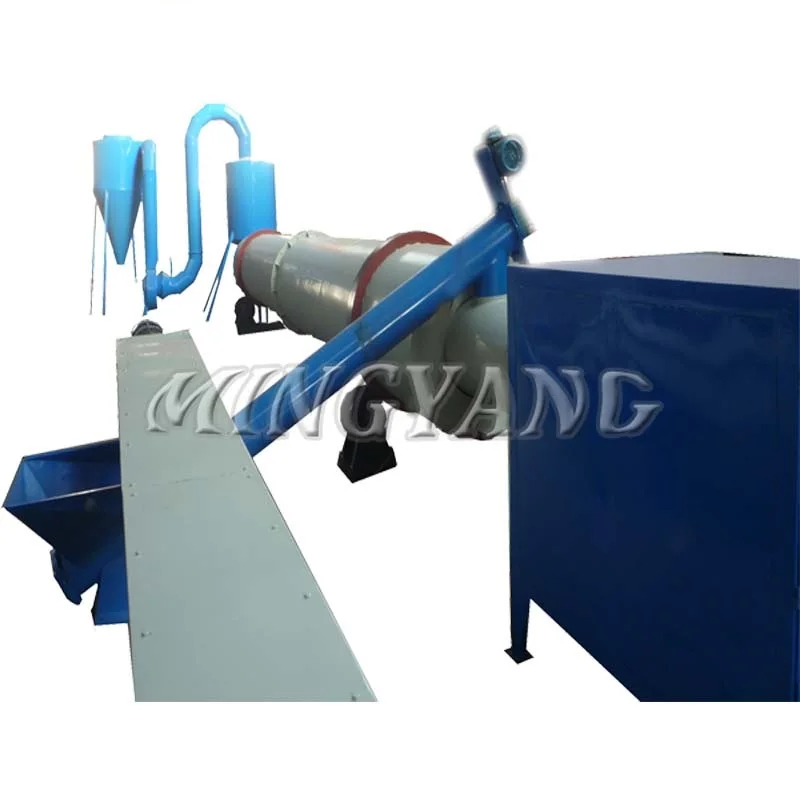

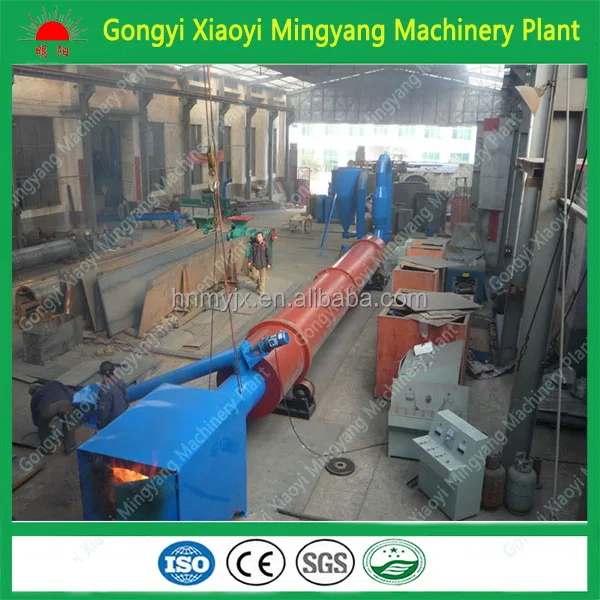

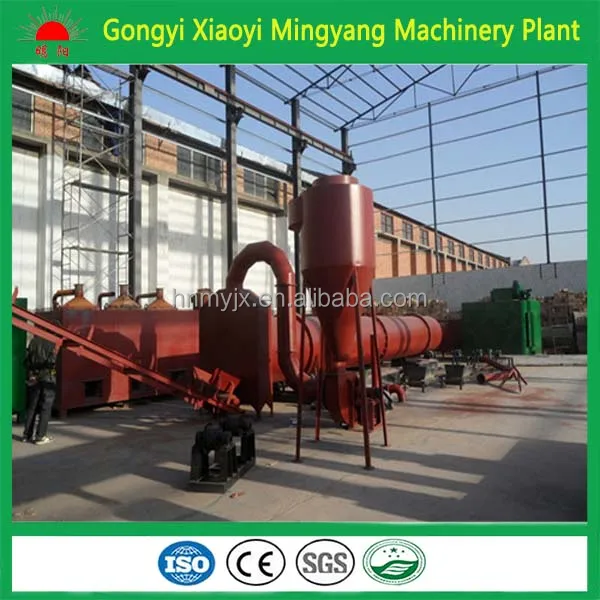

4. The photos of the Sawdust Rotary Drum Dryer in our production room  :





5. The photos of the Sawdust Rotary Drum Dryer  during transportation :
