Building Material  precast concrete Hollow core slab Machine  /floor slab/Roof slab making machine for prefab house

 008615866626003

1.Advantages:



1.Advanced and matured technology



2.Fast molding speed :1.2-1.4m/min



3.Low labor strength and high efficiency



4.Long service life



5.Strong bearing

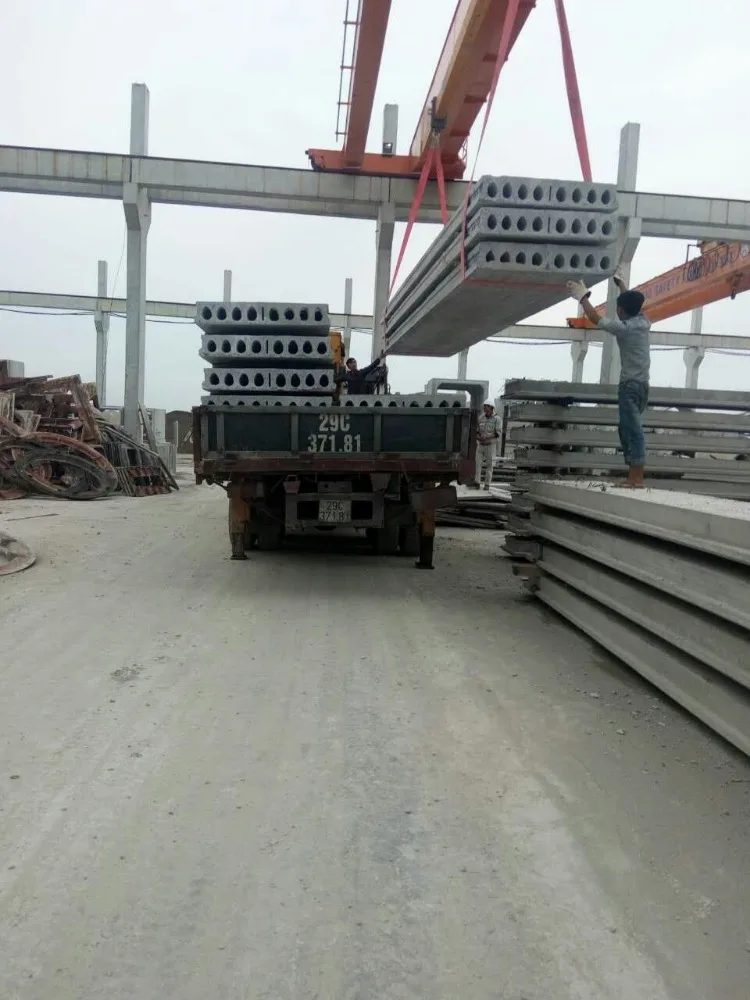

The products: The concrete hollow core board can be used as the floor in the buildings. They are stout with many steels inside. With smooth surface, solid construction, high strength and precise dimension, the hollow core slab meets all the national specification requirements.

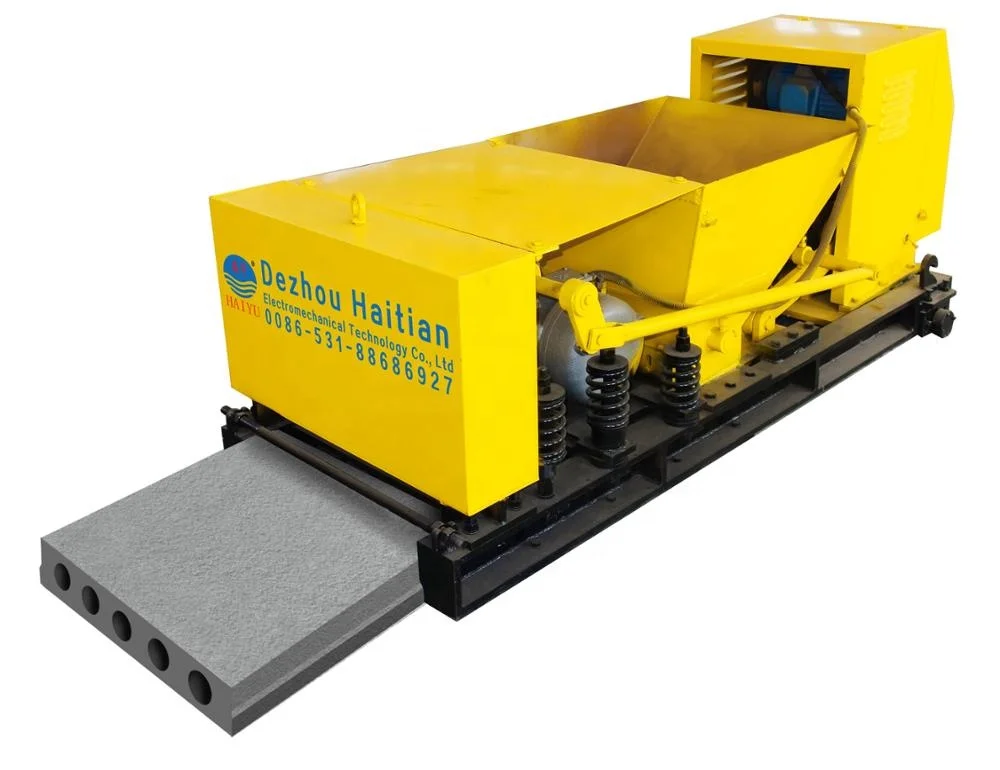

The machine: The precast cncrete slab machine produced in Haitian is the best concrete components with top technique in China. There is the vibration set inside the machine which can help form slabs faster. The precast concrete slab forming machine is well designed, easy to control, maintain and repair.



The company: Haitian is a professional producer of Precast Concrete Slab Forming Machine. Our company can design and manufacture various kinds of concrete structures molding equipment according to customers' demand.



Working Principle:

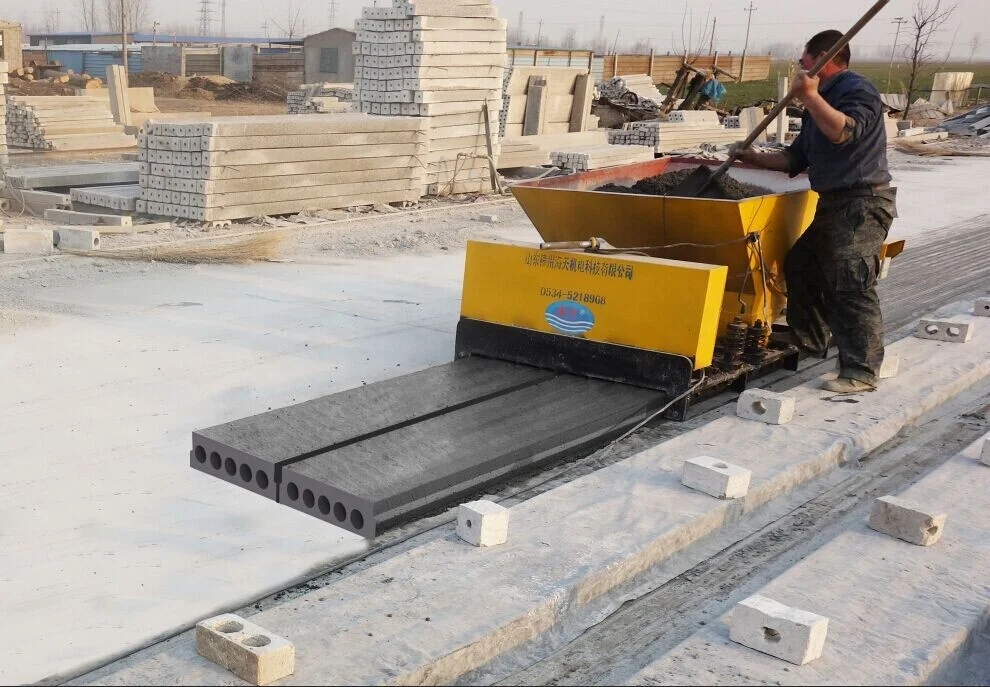

 Powered by the motor, the precast concrete slab machine works on the concrete flat platform. The incompact materials are pushed into the forming part by the speed reducing convening and the slider’s repeatedly moving on straight, then the materials push each other to air out.



The continuously working of vibration plate will highly plastify the concrete. At the same time, the slider is pushing the materials backwards, which forced the machine go along with the steel wire overcoming the frictional resistance. The concrete slab is forming during the process behind the machine. After a few days' maintenance, it can be cut in to concrete slabs of differerent lengths.



Precast Concrete Hollow Core Roof Slab Making Machine

Hollow Core Concrete slab Machine	Motor Power (kw)	Vibrator power (kw)	Weight (kg)	Forming speed (m/min)	Holes no.	Dia. Of holes	Dimension L*W*H (m)
TW50X500	3	0.8	700	1.2-1.4	8	Φ25	1.8*0.75*0.65
TW50X500 +80X500	4.0	1.5	930	1.2-1.4	6	Φ25 (Φ42)	2.03*0.73*0.66
TW60X500 +80X500	4.0	1.5	910	1.2-1.4	7	Φ25 (Φ42)	2.03*0.83*0.66
TW90X600	4.0	2.2	955	1.2-1.4	6	Φ50	2.1*0.84*0.73
TW100X600	4.0	2.2	975	1.2-1.4	6	Φ60	2.1*0.85*0.73
TW120X600	5.5	3.0	1050	1.2-1.4	5	Φ76	2.1*0.85*0.75
TW120X900	7.5	3.0	1580	1.2-1.4	8	Φ76	2.5*1.3*0.9
TW120X1200	7.5	3.0	1650	1.2-1.4	11	Φ76	2.5*1.7*0.9





Hollow core slab machine	Motor Power(kw)	Main VibratorPower(kw)	Inner vibrator power(kw)	Forming speed(m/min)	Holes no.	Hole shape	Weight(kg)
200x900	11	3.6	0.8	1-1.2	6	Peach	2600
250x900	11	4.7	0.8	1-1.2	6	Peach	3700
300x900	11	4.7	1.1	1-1.2	5	Peach	4500
200x1200	11	11	1.1	1-1.2	8	Peach	3100
250x1200	15	11	1.1	1-1.2	8	Peach	4500
300x1200	18.5	15	1.5	1-1.2	6	Peach	5100
