750 подача гофрированного кровельного листа, формовочная машина
US $14500-$15000
IBR популярная в Южной Африке/роликовая формовочная машина с
- Категория: Board Making Machinery >>>
- Поставщик: BOTOU,SANYANGTONGTAI,MACHINERY,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.10 $* | 0.17 $* |
| Aug-15-2025 | 0.98 $* | 0.25 $* |
| Jul-15-2025 | 0.10 $* | 0.20 $* |
| Jun-15-2025 | 0.62 $* | 0.65 $* |
| May-15-2025 | 0.0 $* | 0.13 $* |
| Apr-15-2025 | 0.92 $* | 0.68 $* |
| Mar-15-2025 | 0.69 $* | 0.34 $* |
| Feb-15-2025 | 0.76 $* | 0.55 $* |
| Jan-15-2025 | 0.82 $* | 0.45 $* |
Характеристики
Products Description
686 Trapezoidal Roofing Sheet Roll Forming Machine
We can make machine as your requirement.this machine is easy operation
Main parameter
No | Item | Specification | ||||
Raw material | GI or PPGI | |||||
Material thickness | 0.25-0.6MM | |||||
Roller material | High grade 45# steel with Cr12 quenched | |||||
Shaft material | High grade 45# steel with Cr12 quenched | |||||
Shaft diameter | 70mm | |||||
Roller stations | 18 | |||||
Middle plate thickness | 16mm | |||||
Machine size | 7100*1200*1200mm | |||||
Productivity | 12-15m/min | |||||
Material | GCR12 | |||||
Method | Hydraulic cutting | |||||
Driving way | Chain 1 inch | |||||
Motor | 5.5KW | |||||
Hydraulic oil pump | 5.5KW | |||||
Voltage | 380V,50HZ ,3 phase or customized as your need | |||||
PLC ,invertor | Delta from Taiwan | |||||
Screen | Delta ,touch screen | |||||
Encoder | Omron from Japan | |||||
Language | Chinese & English or as your request | |||||
Working flow
Working flow
Uncoiler --Feeding table --Roll forming system --Hydraulic cutting --Finished product--Receiving table

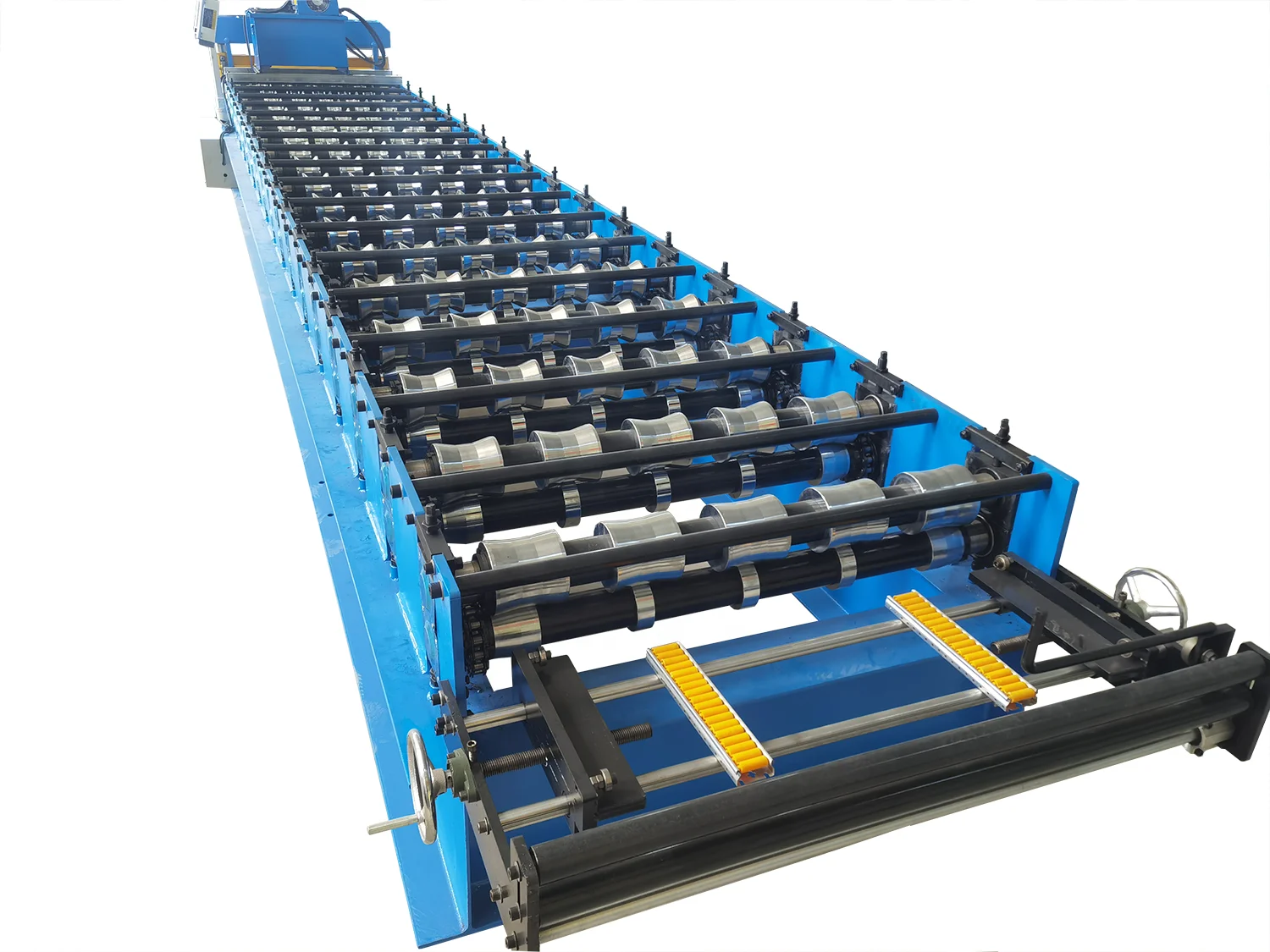

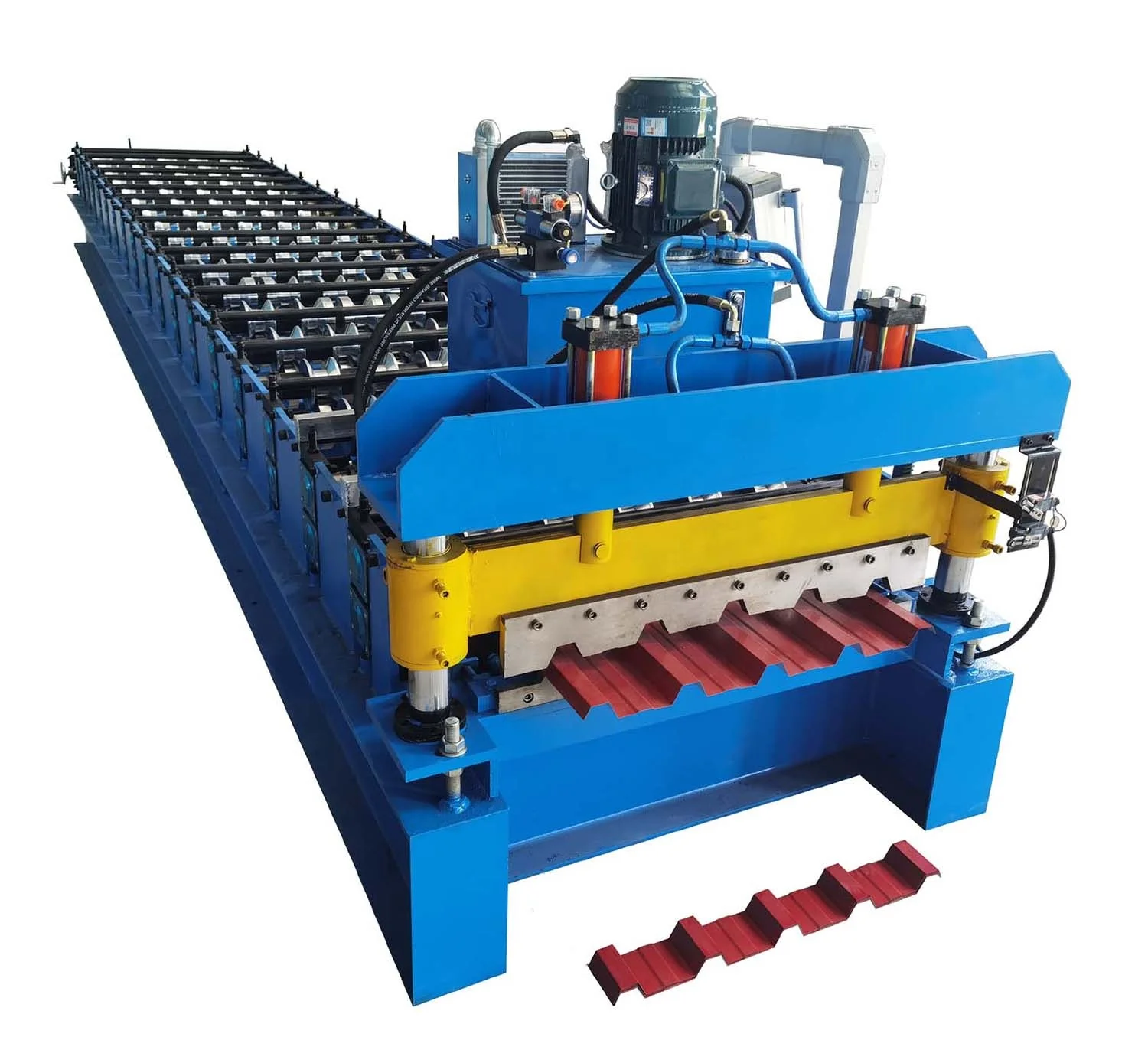

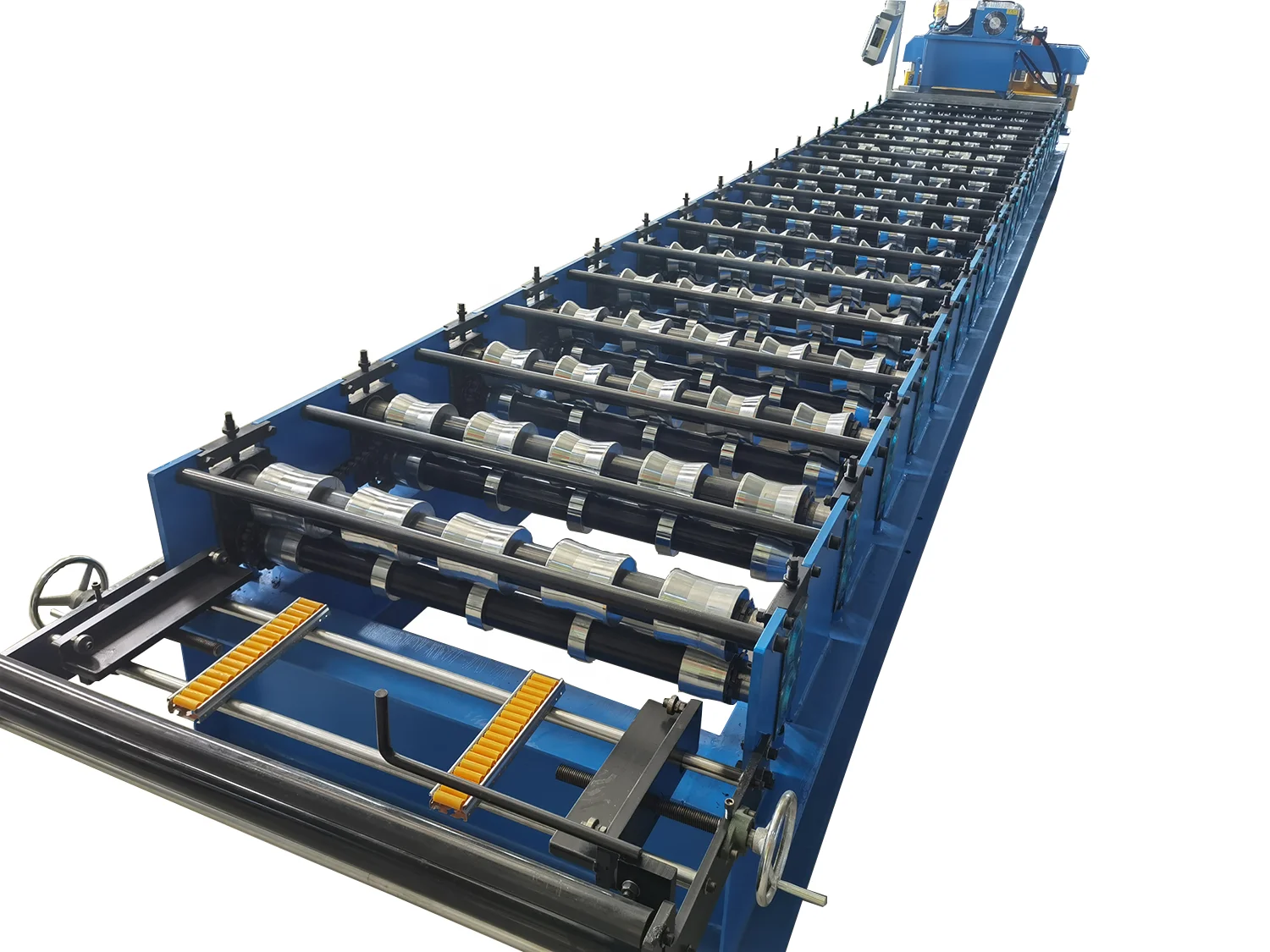

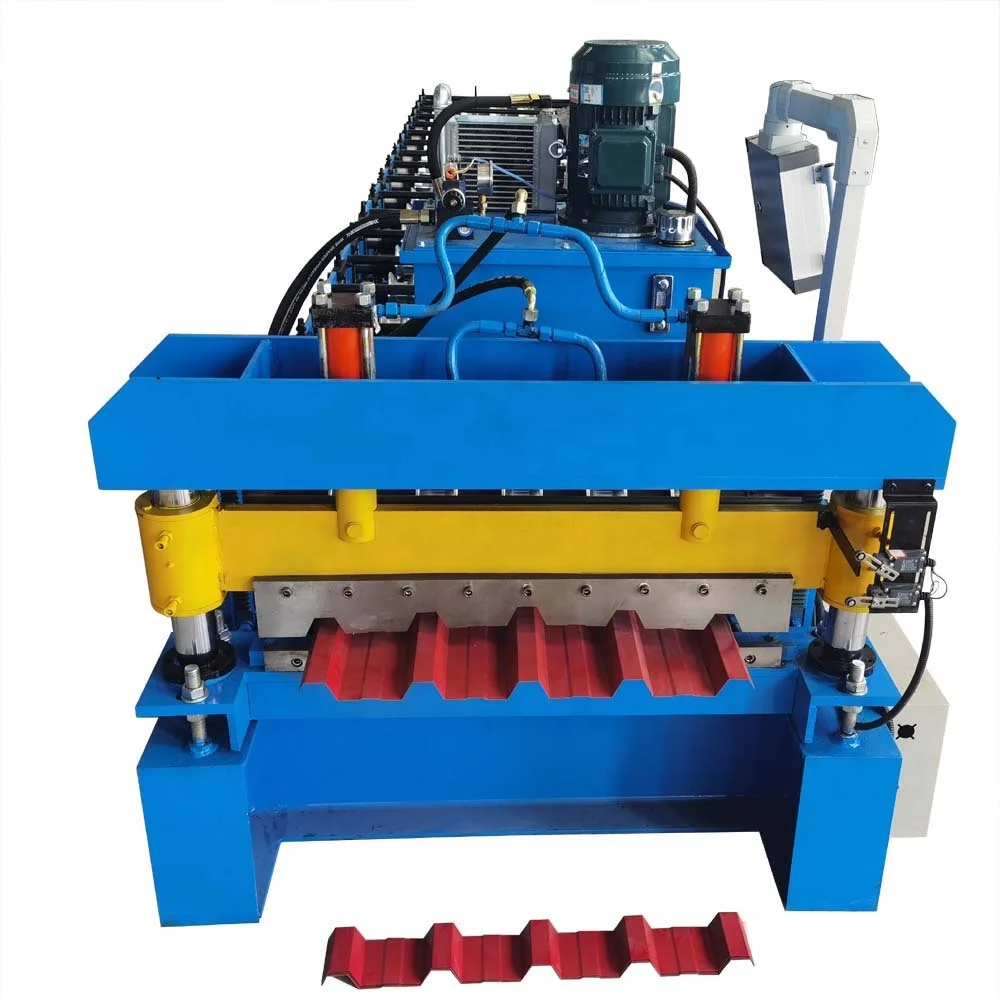

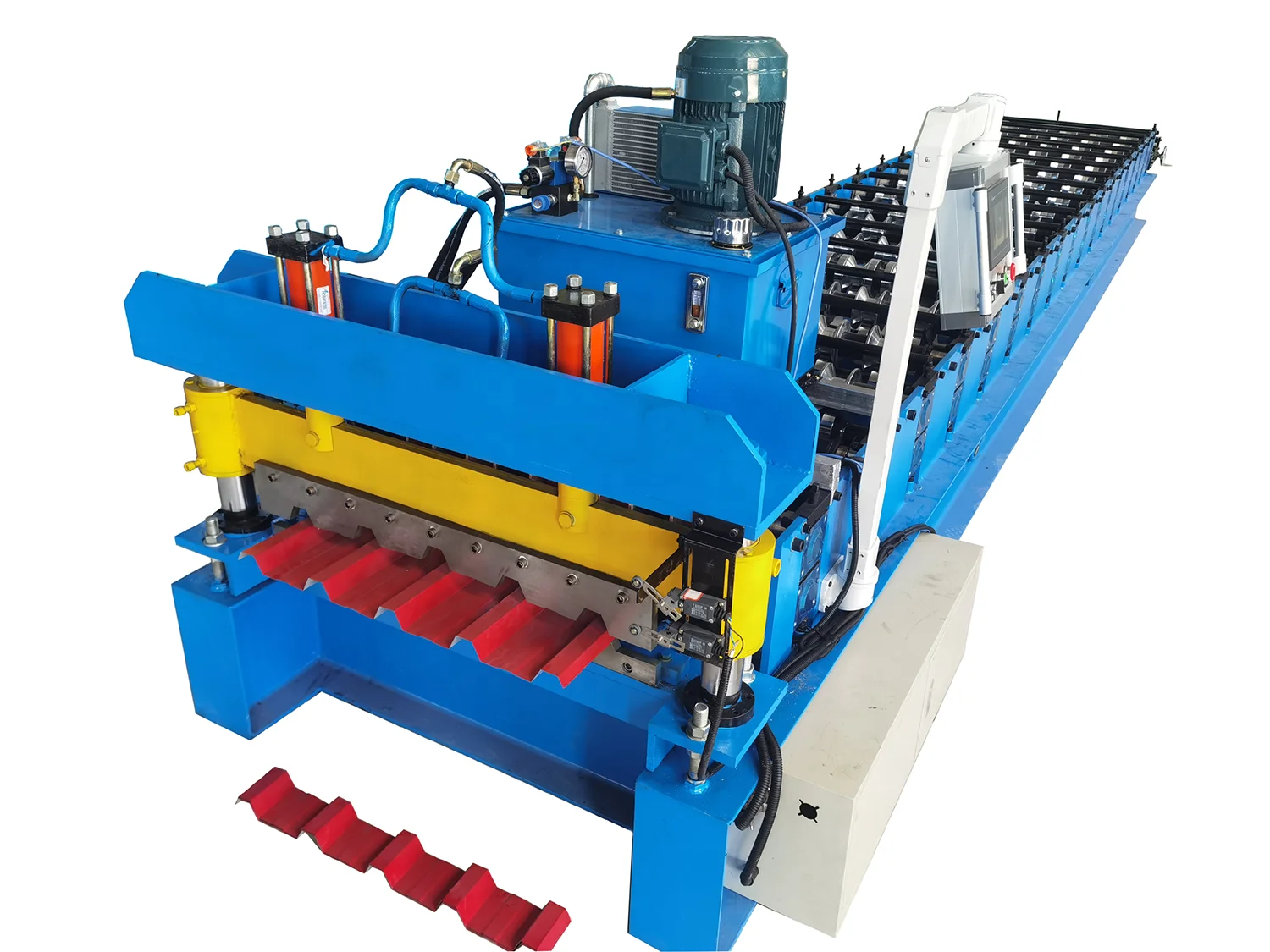

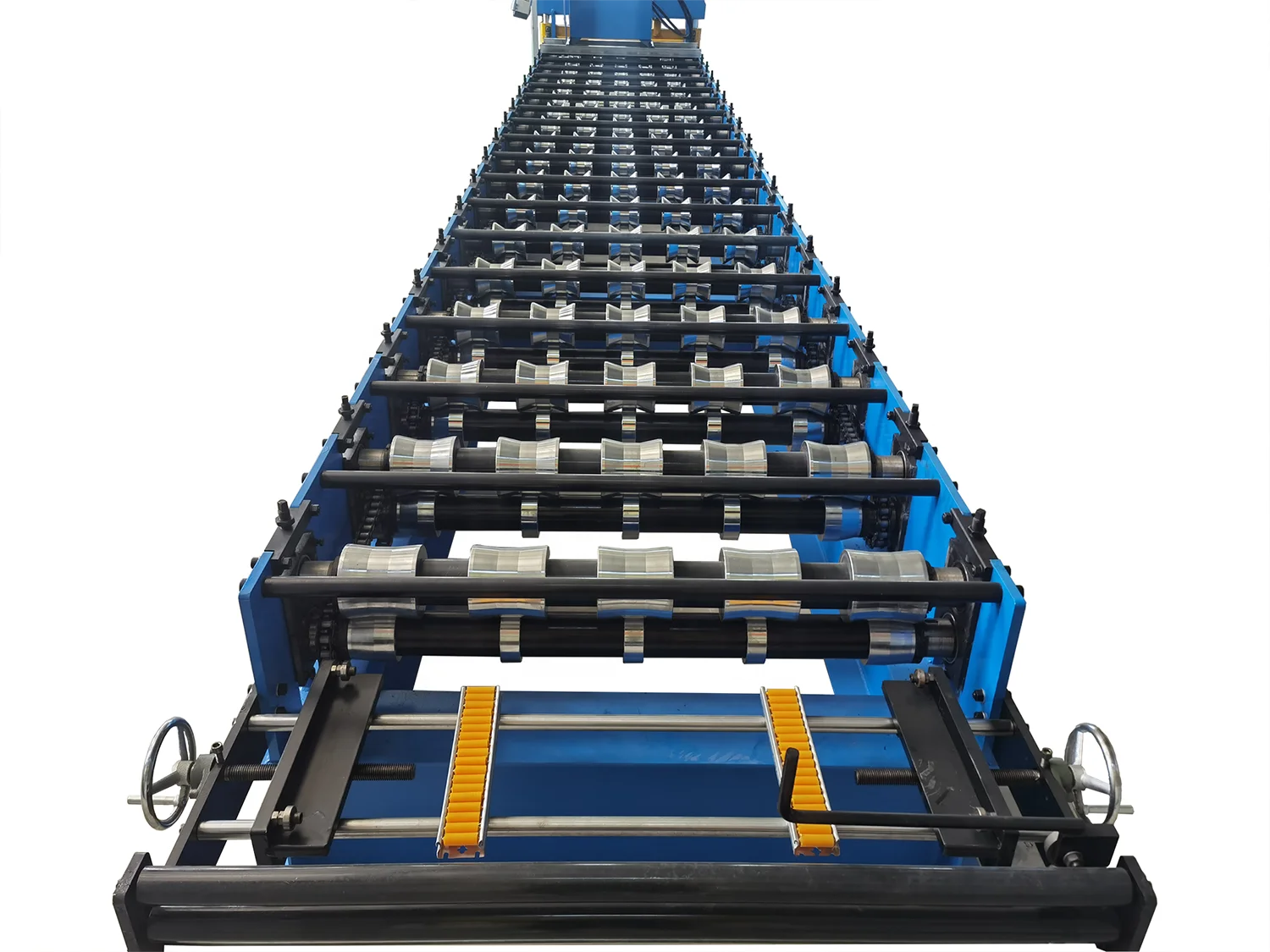

Details Images
If you want more machine pics and videos ,pls contact
Other related machines for you to choose
1. Shutter Door Roll Forming Machine
Slat shutter door machine is the most common style ,it is used fro making flat shutter door panels ,simple but strong and cost effective ,many custoners choose this style
2. Three Layer Roofing Sheet Roll Forming Machine
Nowdays ,more and more customers prefer to choose one machine can make more profiles ,as the styles make the view very beautiful and attract more and more customers for them
3. 750 Wall panel Roll Forming Machine
1) Machine with 2 round holes
If you prefer the panel with two round holes ,then a online punching mould is enough ,if you want it with many holes on the surface ,then need a 25T punching machine ,with a servo feeding motor ,which can higher the speed and enlarge the production
4. Metal Stud Roll Forming Machine
5. Corrugated Roofing Sheet Roll Forming Machine
Company Profile
Botou Sanyangtongtai Machinery Co.,ltd is a leading manufacturer for steel plate coiling
machinery,cold-bending & rolling steel plate shaping machineries and automatic production lines.The products are mainly used in steel structure industry for producing C&Z type purlin,colored wall and floor protecting steel plate, thermal insulating plate and
load-bearing plate of buildings, and other complementary thin wall cold-bending shaped steelplates,expresswayrailings,colorfuldecorating and protecting steel plates for high-grade steel stucture residendces.
machinery,cold-bending & rolling steel plate shaping machineries and automatic production lines.The products are mainly used in steel structure industry for producing C&Z type purlin,colored wall and floor protecting steel plate, thermal insulating plate and
load-bearing plate of buildings, and other complementary thin wall cold-bending shaped steelplates,expresswayrailings,colorfuldecorating and protecting steel plates for high-grade steel stucture residendces.
