Высокоскоростная машина для изготовления угловых краев из бумаги/Угловой протектор картонных коробок с сертификатом CE

Высокоскоростная машина для изготовления угловых краев из бумаги/Угловой протектор картонных коробок с сертификатом CE

Цена:17 000,00 $*

Количество:

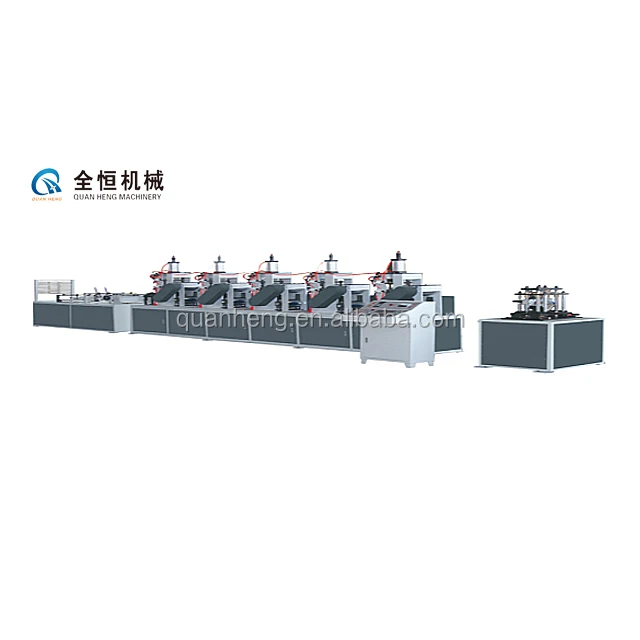

High Speed Paper Angle Protector Plate Punch Triple-purpose Machine

photobank (1)

Product Description

Machine type	Hign speed paper Corner protector machine
Technical parameter		Control system
Paper Angle Protection Specification	Wide20-100mm	Interface	Machine specific
	Long50-9000mm	Program version	cx-pq.04
	Thick2-8mm	Frequency converter	ERG
Production speed	0-10m/min(50-100mm) 0-10m/min (angle protection length 50-100mm)	Major Executing Devices (Contactors, etc.)	CHINT
Production speed	0-40m/min(1500mm) 0-40m/min (guard angle longer than 1500mm)	Button	Siemens
Host power	7.5kw+4.3kw	Emergency stop	Siemens
Control mode	Frequency control	knob	Siemens
Raw material	150g-200g The surface of the paper 150g-200g	Cylinder element	CEHNGDI/SUOPAI/TIANAO
Raw material	300g-700g Core paper 300g-700g	Synchronization Controller	Machine specific
Cutting mode	Automatic cutting	Configuration device
Number of operators	1-2people	Octagonal device
Size(mm)		Right-angle paper holder
Host Size:LWH	70007001400(mm)	Automatic gluing device
Coverage:L*W	22m*3m	Cutting table device (CNC)
Hub diameter	258mm	Stainless steel operating table
Hub height	150mm	Stainless steel mounting frame
Host weight	2780kg	The guide wheel of the upper paper rack is stainless steel tube.
Total weight	4590kg	Application tools

Our Services

photobank (11) photobank (10) contact-u1s

A set of inner hexagonal wrenches
