Пивоваренное оборудование 300L 400L 500L резервуар для пивоварни с сертификацией CE система ферментации крафтового
- Категория: Ферментационное оборудование >>>
- Поставщик: Shandong,Hermann,Biological,Engineering,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.0 $* | 0.51 $* |
| Aug-18-2025 | 0.10 $* | 0.71 $* |
| Jul-18-2025 | 0.77 $* | 0.70 $* |
| Jun-18-2025 | 0.43 $* | 0.56 $* |
| May-18-2025 | 0.3 $* | 0.30 $* |
| Apr-18-2025 | 0.88 $* | 0.84 $* |
| Mar-18-2025 | 0.19 $* | 0.30 $* |
| Feb-18-2025 | 0.18 $* | 0.13 $* |
| Jan-18-2025 | 0.26 $* | 0.78 $* |
Характеристики

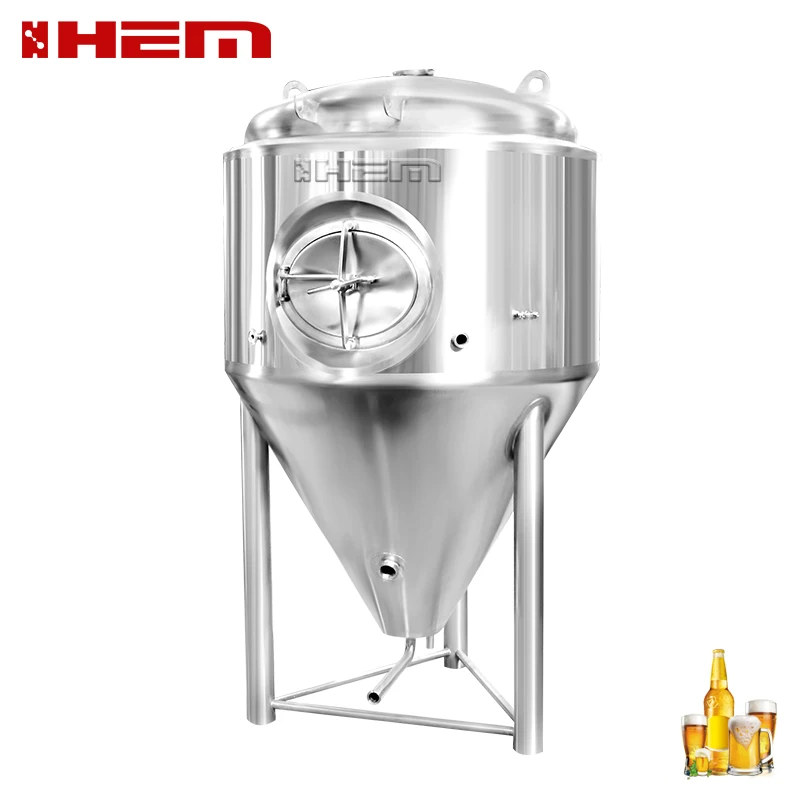

300L 400L 500L Brewing equipment Brewery Tank CE Certificated Craft Beer Fermenting System
Model | HEM-500L |
Capacity | Useful capacity：500L； Gross capacity：650L |
Material | SUS304 |
Application | Restaurant, bar, hotel, brewery |
Cooling method | Jacket section cooling |
Thickness | Inner：3.0mm; External2.5mm |
Outrigger | Ø102mm*4 |
Test pressure | 0.2Mpa |
Working pressure | 0.09Mpa |
Heat exchange area | 1.8m2 |
Weight | 300kg |
Advantages of fermentation tank :
1). 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China
1). 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China
2). The cooling efficiency of Maitreya plate jacket is greatly improved.
3). Two stage cooling mode.
4). The insulation layer material is high-grade polyurethane with a thickness of 100mm.

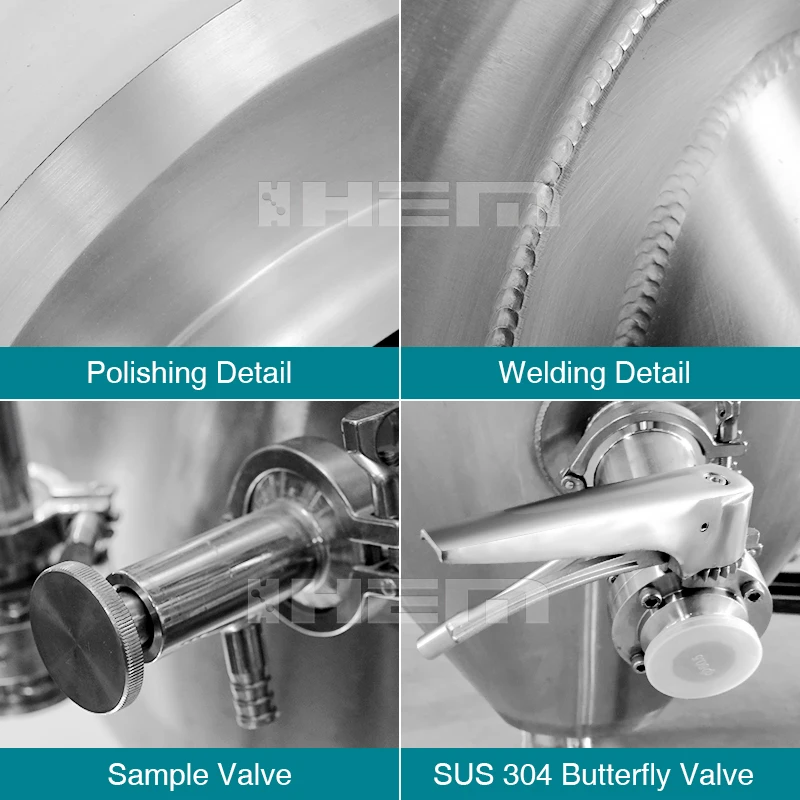

5). Polishing accuracy up to Ra0.4μ m .
6). Strict tank pressure test.
7). Energy conservation and pollution emissions.
Medium capacity fermentation tanks suitable for hotels and restaurants and medium breweries. The fermentation tanks use certified stainless steel material. All tanks and jackets inspected and pressure tested to 3 times operatiing pressure.
Item | Production capacity | Volume in US Gallon | Heating area | Tank diameter | Height |
HEM-100 | 100L/day | 26US Gallon | 0.5㎡ | 650mm | 1500mm |
HEM-200 | 200L/day | 53US Gallon | 0.8㎡ | 850mm | 1600mm |
HEM-300 | 300L/day | 79US Gallon | 1.2㎡ | 960mm | 1700mm |
HEM-400 | 400L/day | 106US Gallon | 1.5㎡ | 1060mm | 2000mm |
HEM-500 | 500L/day | 132US Gallon | 1.8㎡ | 1160mm | 2300mm |
HEM-5BBL | 5BBL/day | 155 US Gallon | 1.9㎡ | 1200mm | 2350mm |
HEM-600 | 600L/day | 158US Gallon | 2.0㎡ | 1220mm | 2350mm |
HEM-700 | 700L/day | 185US Gallon | 2.4㎡ | 1260mm | 2380mm |
HEM-800 | 800L/day | 212US Gallon | 2.5㎡ | 1260mm | 2400mm |
HEM-7BBL | 7BBL/day | 216US Gallon | 2.5㎡ | 1280mm | 2450mm |
HEM-1000 | 1000L/day | 264US Gallon | 2.6㎡ | 1360mm | 2500mm |
HEM-10BBL | 10BBL/day | 310 US Gallon | 2.8㎡ | 1460mm | 2700mm |
HEM-1500 | 1500L/day | 396US Gallon | 3.2㎡ | 1520mm | 2900mm |
HEM-2000 | 2000L/day | 528US Gallon | 3.6㎡ | 1560mm | 2850mm |
HEM-2500 | 2500L/day | 660US Gallon | 3.8㎡ | 1650mm | 3200mm |
HEM-3000 | 3000L/day | 792US Gallon | 4.5㎡ | 1760mm | 3800mm |
HEM-4000 | 4000L/day | 1057US Gallon | 4.9㎡ | 1900mm | 4100mm |
HEM-5000 | 5000L/day | 1320US Gallon | 7.2㎡ | 1960mm | 4400mm |
1.How to achieve temperature control?
The PLC or digital dispalyer could control the temperature by connecting with the PT 100 sensor.The brewing tanks with rock wool to keep warm,the fermenters and bright beer tank with PU as cooling jacket to keep cool.
2.Which countries your products are exported to?
Our stainless steel microbrewery equipment are sold all over the world and with related certifications.
3.How to use your machine?
We have paper instructions in English, and we will teach till you do it well.
4.How long is your delivery time?
Usually it takes about 50 working days to manufacture a brewery.Depending on the size of the brewery,the amount of custom designed equipment,our general workload and the way of shipping this period can be shorter or longer.
5.Do you provide after-sales service?
Yes,we could provide after-sales service.We have many professional engineers, they can go to your place and teach your person installation and brewing.
The PLC or digital dispalyer could control the temperature by connecting with the PT 100 sensor.The brewing tanks with rock wool to keep warm,the fermenters and bright beer tank with PU as cooling jacket to keep cool.
2.Which countries your products are exported to?
Our stainless steel microbrewery equipment are sold all over the world and with related certifications.
3.How to use your machine?
We have paper instructions in English, and we will teach till you do it well.
4.How long is your delivery time?
Usually it takes about 50 working days to manufacture a brewery.Depending on the size of the brewery,the amount of custom designed equipment,our general workload and the way of shipping this period can be shorter or longer.
5.Do you provide after-sales service?
Yes,we could provide after-sales service.We have many professional engineers, they can go to your place and teach your person installation and brewing.
6). 6-year warranty, only for tanks, excluding electrical appliances, wearing parts such as cushions, seals, etc. (mixing seals, pump seals, butterfly valves and other valve seals), pumps.
7). The price does not include electrical appliances, etc.
1. Container loading(20GP/40GP/40HQ).
2. Packed with plastic film and iron frame for main tank.Fittings use iron cabinet.
3. Customer's requirements available.
2. Packed with plastic film and iron frame for main tank.Fittings use iron cabinet.
3. Customer's requirements available.
