Производственная линия печатных плат (машина для
- Категория: Electronics Production Machinery >>>
- Поставщик: Beijing,SXY,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.60 $* | 0.7 $* |
| Aug-18-2025 | 0.29 $* | 0.41 $* |
| Jul-18-2025 | 0.53 $* | 0.93 $* |
| Jun-18-2025 | 0.4 $* | 0.74 $* |
| May-18-2025 | 0.47 $* | 0.64 $* |
| Apr-18-2025 | 0.8 $* | 0.70 $* |
| Mar-18-2025 | 0.32 $* | 0.88 $* |
| Feb-18-2025 | 0.47 $* | 0.93 $* |
| Jan-18-2025 | 0.81 $* | 0.71 $* |
Характеристики
Product Description

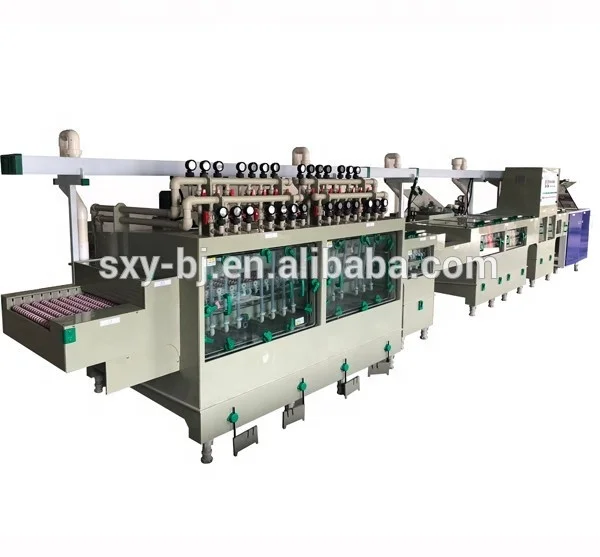

PCB SES Production Line ( Dry Film Stripper / Etching /Dry Film Stripper Machine) | ||||||
Machine Model | DES-700 | |||||
Machine Power | 380V/50HZ/47KW | |||||
Working width | 700mm | |||||
Dry Film Developer area | size: 700mm W x 2000mm L pump: 4KW motor x 2 sets double etching with oscillation heater: titanium -- 3KW/pc x 2 pcs cooling : titanium pipe coils | |||||
size: 700mm W x 2000mm L pump: 4KW motor x 2 sets double etching with oscillation heater: titanium -- 3KW/pc x 2 pcs cooling : titanium pipe coils | ||||||
size: 700mm W x 2000mm L pump: 4KW motor x 2 sets heater: titanium -- 3KW/pc x 2 pcs cooling : titanium pipe | ||||||
Conveyor Wheel | specialized conveyor wheel for PCB machine | |||||
Machine Size | 12000x1700x1800mm | |||||
Protection Function | 1. Temperature Control System 2. Pressure Control System 3. Double Filter System 4. Conveyor Control System | |||||
PCB DES Production Line is inlcude dry film developing, etching, film stripping. Developing part is used to dissolve the unexposed part, the exposed part retained. Etching area is to etch the exposed copper surface to get the desired line pattern. Dry Film Stripper maachine will remove all the remain dry film on the line pattern. | ||||||

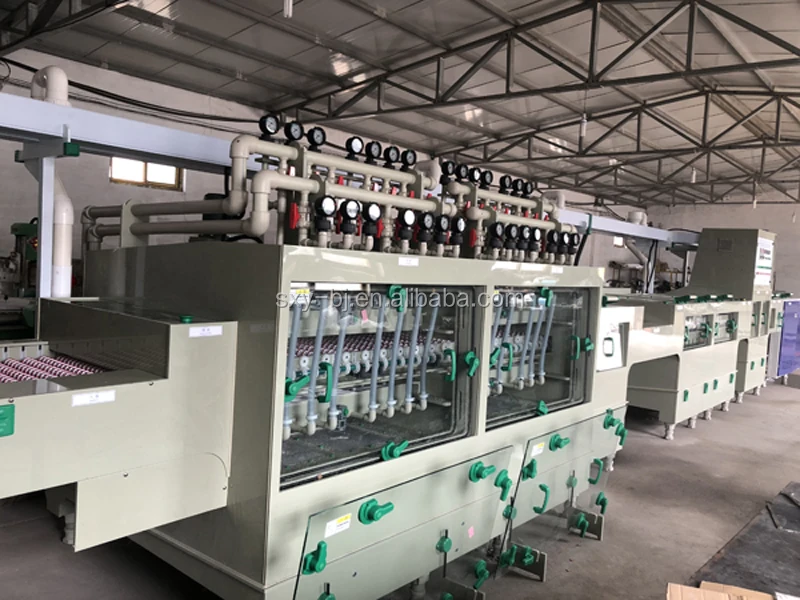

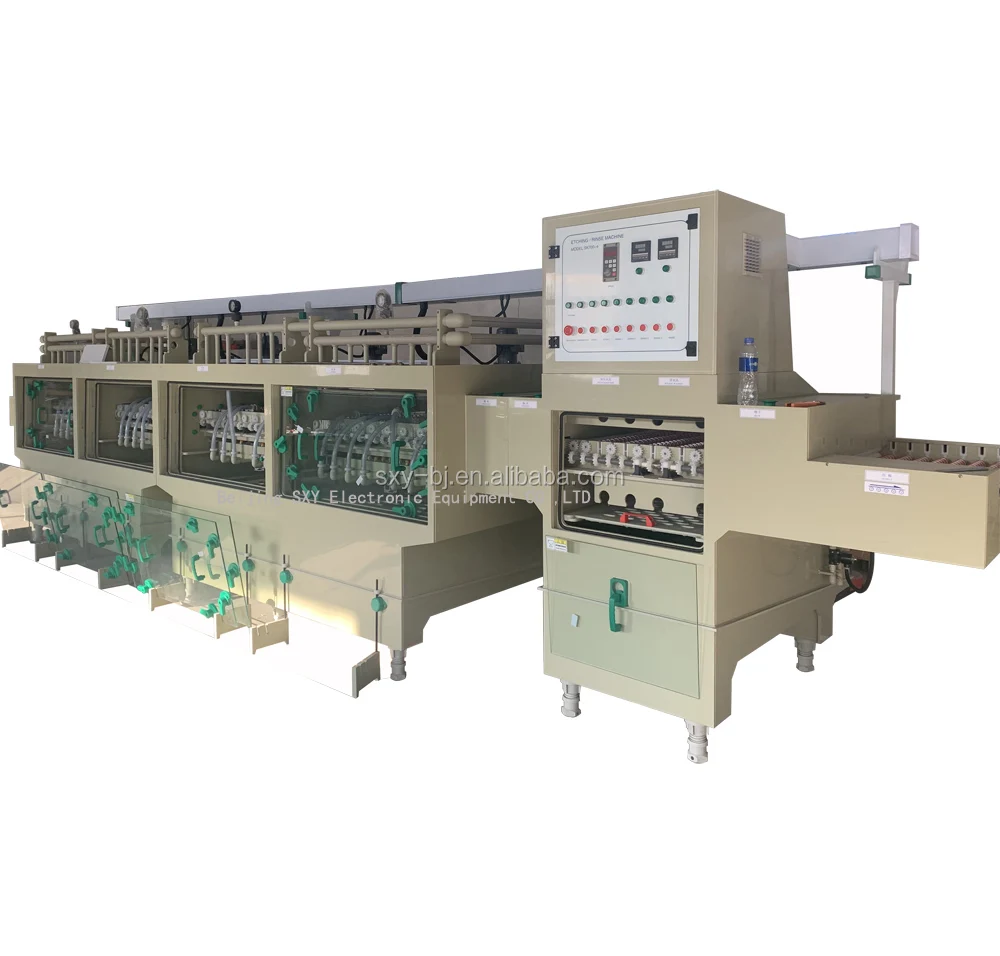

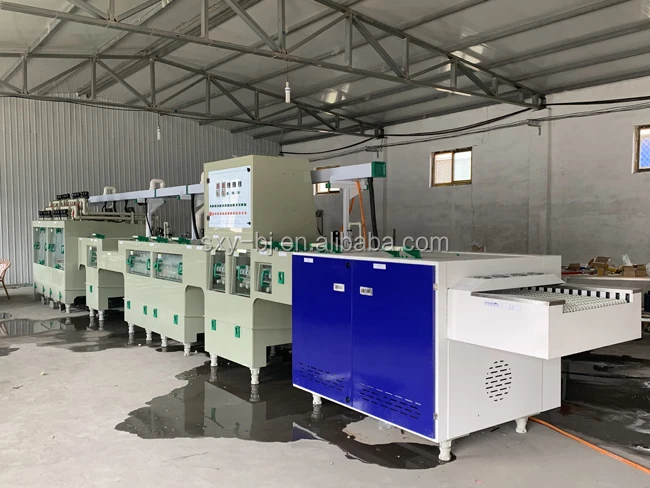

Detailed Images
