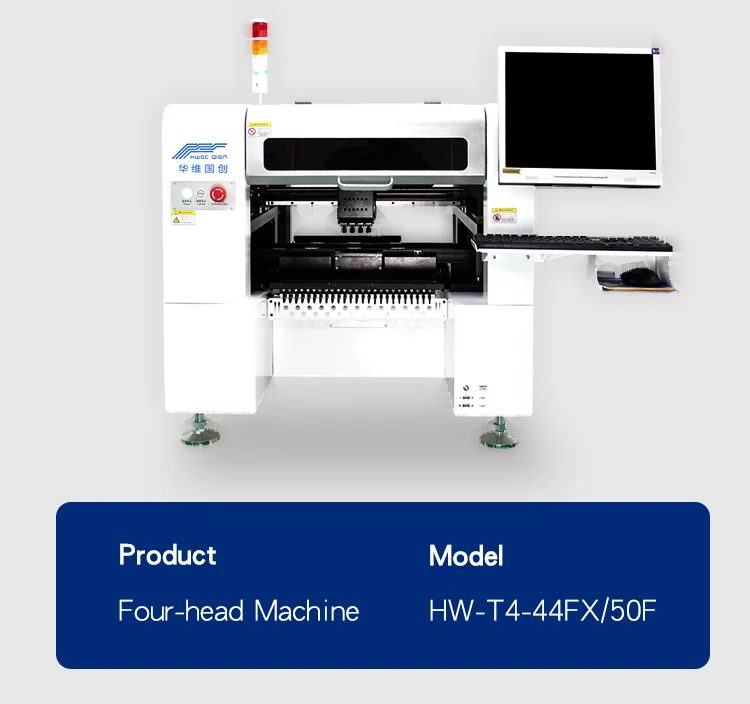

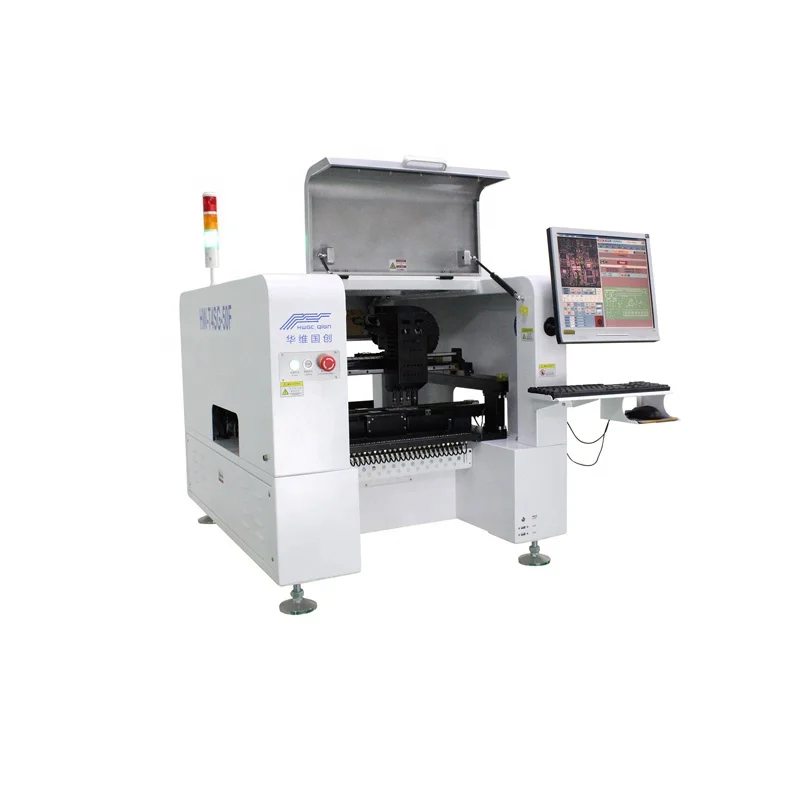

Высокоскоростная автоматическая машина для производства светодиодных лент HWGC HW-T4SG-50F Pick Machine SMT SMD LED производственная
- Категория: Electronics Production Machinery >>>
- Поставщик: Beijing,Huaweiguochuang,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.67 $* | 0.68 $* |
| Aug-15-2025 | 0.15 $* | 0.39 $* |
| Jul-15-2025 | 0.53 $* | 0.85 $* |
| Jun-15-2025 | 0.30 $* | 0.96 $* |
| May-15-2025 | 0.99 $* | 0.61 $* |
| Apr-15-2025 | 0.69 $* | 0.98 $* |
| Mar-15-2025 | 0.48 $* | 0.51 $* |
| Feb-15-2025 | 0.57 $* | 0.91 $* |
| Jan-15-2025 | 0.71 $* | 0.57 $* |
Характеристики
Specification | ||
Maximum circuit board area | 400*200 mm | |

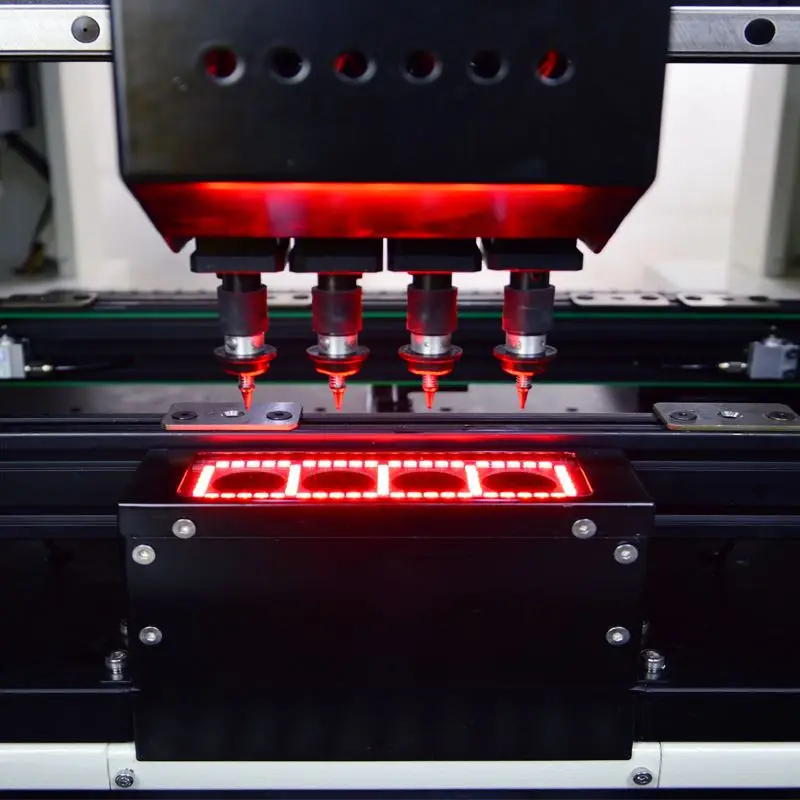

Number of mounting heads | 4 | |
Maximum movement range of Z axis | 20 mm | |
Maximum mounting rate | 9,500 PCS/hour | |
Average mounting rate | 8,000 PCS/hour | |
Positioning accuracy | 0.01 mm | |

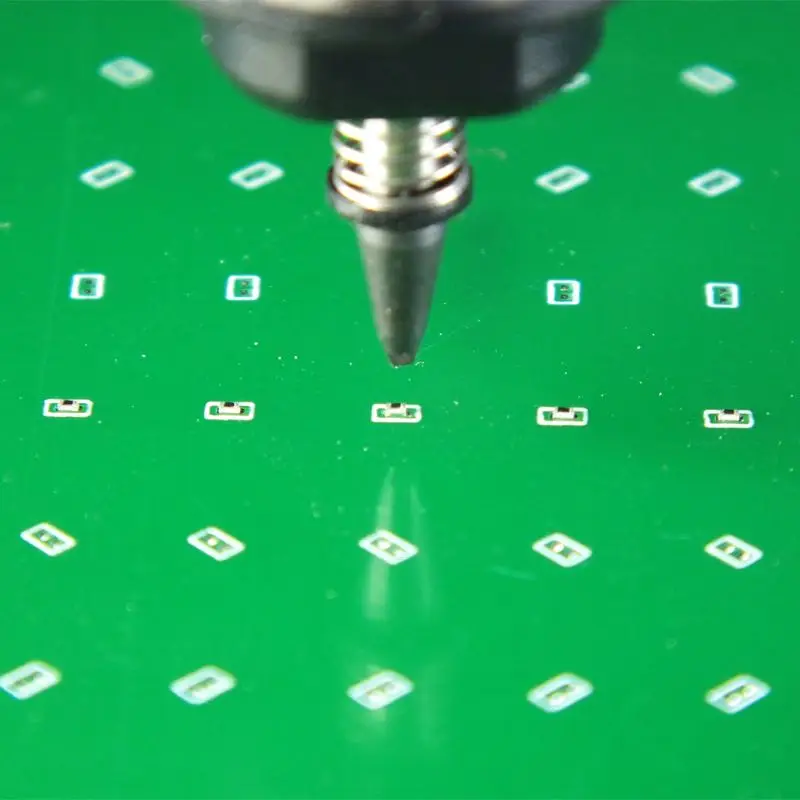

Buffering range of suction nozzle | 4.5 mm | |
Power supply | 220V/110V, 50 Hz | |
Compressed air: | 0.6-0.7 Mpa | |
Average power | 400 W | |
Recognition Mode | Four Heads Synchronized Recognition | |

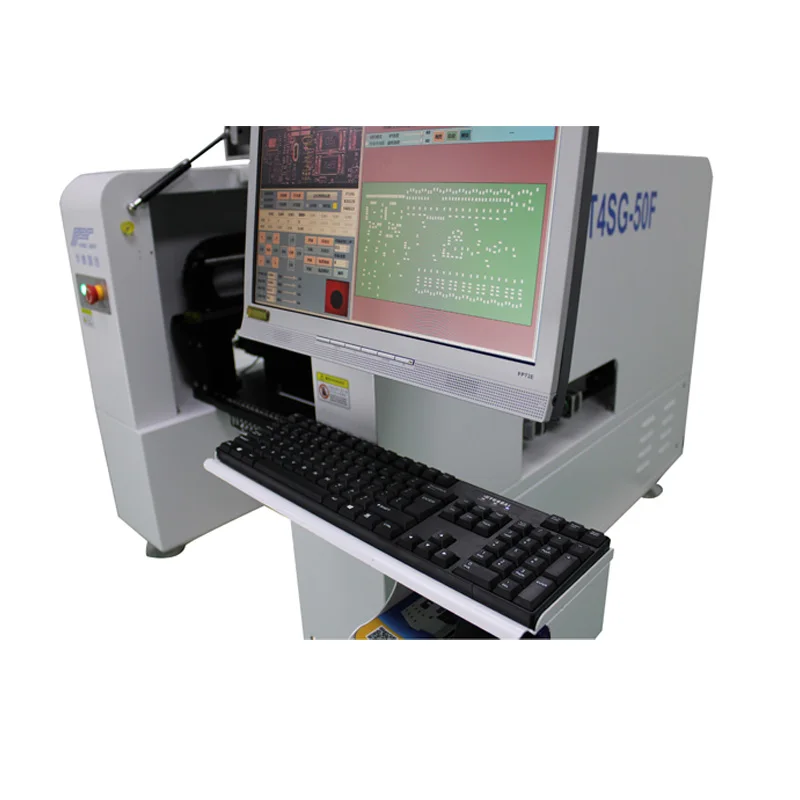

Number of cameras | a Mark camera, four high-speed cameras, a high-definition camera | |
Product weight | 210KG | |
PCB access mode | automatic Left-in and right-out access, supporting left-right device connection function | |
Quantity of trays | Up to 48 non-feeder feeding components are supported, each of which can specify its coordinates within the mounting range. | |
Complex speed to mount resistance and Chip | 6000/CPH | |
0201-40*40mm,Pin spacing 0.3mm | ||
Chip(Matching which support electric feeder can mount the 0402,0201) | ||
Quantity of feeders | 50 PCS | |
Service motor | Panasonic servo motor | |
Guide rail | Taiwan TBI Linear Guide rail | |
Driving mode | Taiwan TBI ball screw | |
Nozzle Vacuum Source | Japan CKD High Speed On-off Vacuum Generator with Vacuum Damage | |
Minimum air capacity of pump | 80-120 L/min, volume more than 60 L | |
Gas quality requirements | oil-water separation device, dust filter device, air pressure stabilization device | |

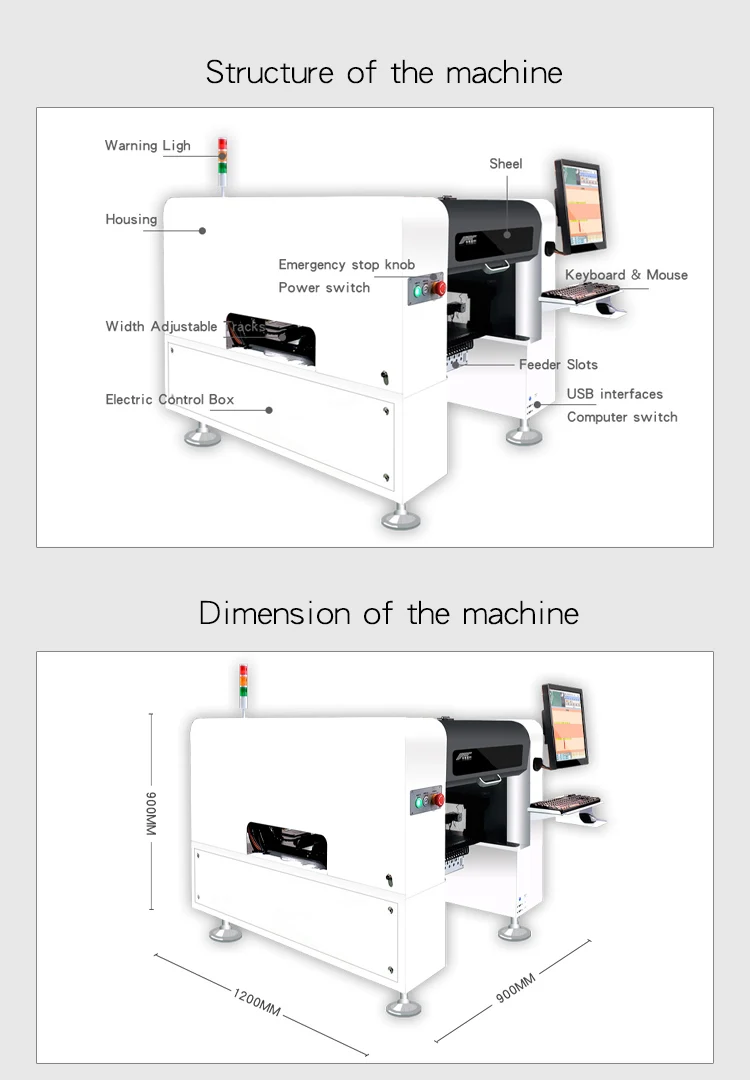

Dimension | 900×1140×900mm | |
