Китай ЧПУ гидравлический Одношпиндельный патрон вращающийся токарный станок
- Категория: Woodworking Machinery >>>
- Поставщик: Weihai,Hanvy,Plywood,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.95 $* | 0.49 $* |
| Aug-20-2025 | 0.2 $* | 0.47 $* |
| Jul-20-2025 | 0.34 $* | 0.8 $* |
| Jun-20-2025 | 0.14 $* | 0.74 $* |
| May-20-2025 | 0.50 $* | 0.43 $* |
| Apr-20-2025 | 0.88 $* | 0.28 $* |
| Mar-20-2025 | 0.69 $* | 0.25 $* |
| Feb-20-2025 | 0.69 $* | 0.82 $* |
| Jan-20-2025 | 0.45 $* | 0.74 $* |
Характеристики
Product Description
Product Application
China CNC Hydraulic Single Spindle Chuck Veneer Rotary Peeling Lathe Plywood Machine
1.Max.log length is 2700mm.Max.log diameter is 800mm
2.Hydraulic spindle
3.AC/DC motor,CTB CNC control system/Japan Mitsubishi control system.
CNC control knife gap.
China CNC Hydraulic Single Spindle Chuck Veneer Rotary Peeling Lathe Plywood Machine
Max.cutting diameter | mm | 170-800 |
Max.cutting length | mm | 2150-2700 |
Range of veneer thickness | mm | 0.35-3.9 |
Chuck diameter | mm | 100 |
Rotating speed | rpm | 0-160 |
Motor power | KW | 75 |
Grinding angle of appropriate tool | degree | 18-22 |
Total power | KW | 90.25 |
Weight | kg | 15000 |
Main Features
Spindle veneer peeling lathe machine from China factory
This 8ft hydraulic single spindle veneer peeling machine BQ1226/8E is good for big diameter of wood log which up to 800mm,it's equipped with another seperate machine-log centering charger machine as below picture.
1. Max.cutting diameter 800mm
2. Min.cutting diameter 170mm
3. Max.cutting lenth 2700mm
4. Chuck diameter 100mm
5. Range of veneer thickness 0.35-3.9mm
Spindleless Veneer Peeling Machine
Peeling speed 100m/min
Max log diameter 500mm
Peeling veneer thickness 0.5-3.0mm
Spindleless Veneer Peeling Machine with Clipper
Peeling speed 50m/min
Max log diameter 500mm
Peeling veneer thickness 0.8-3.0mm
Detailed Images

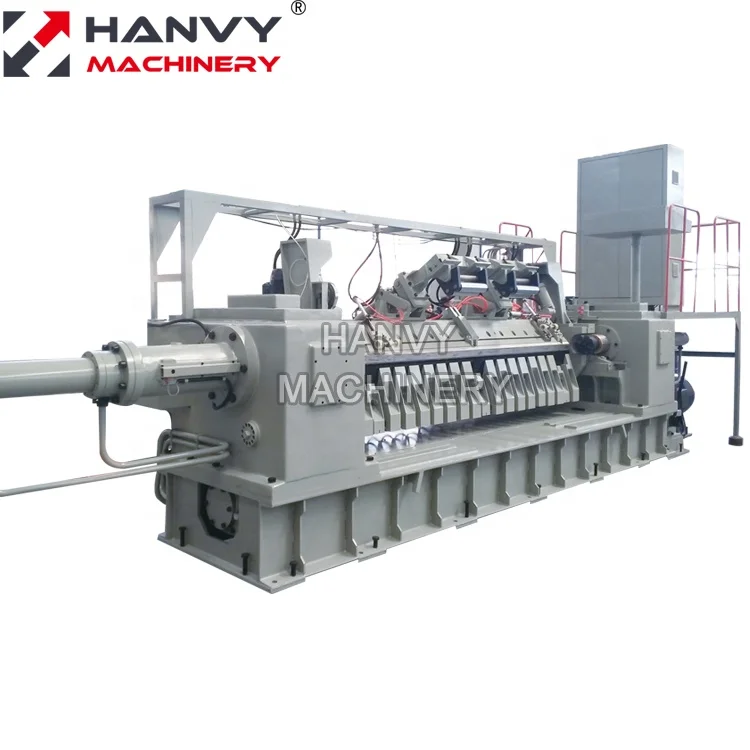

Hydraulic Rotary Single Spindle Veneer Peeling Machine
Peeling log uniformly with CNC control.
Peeling range for log diameter: 800mm-170mm

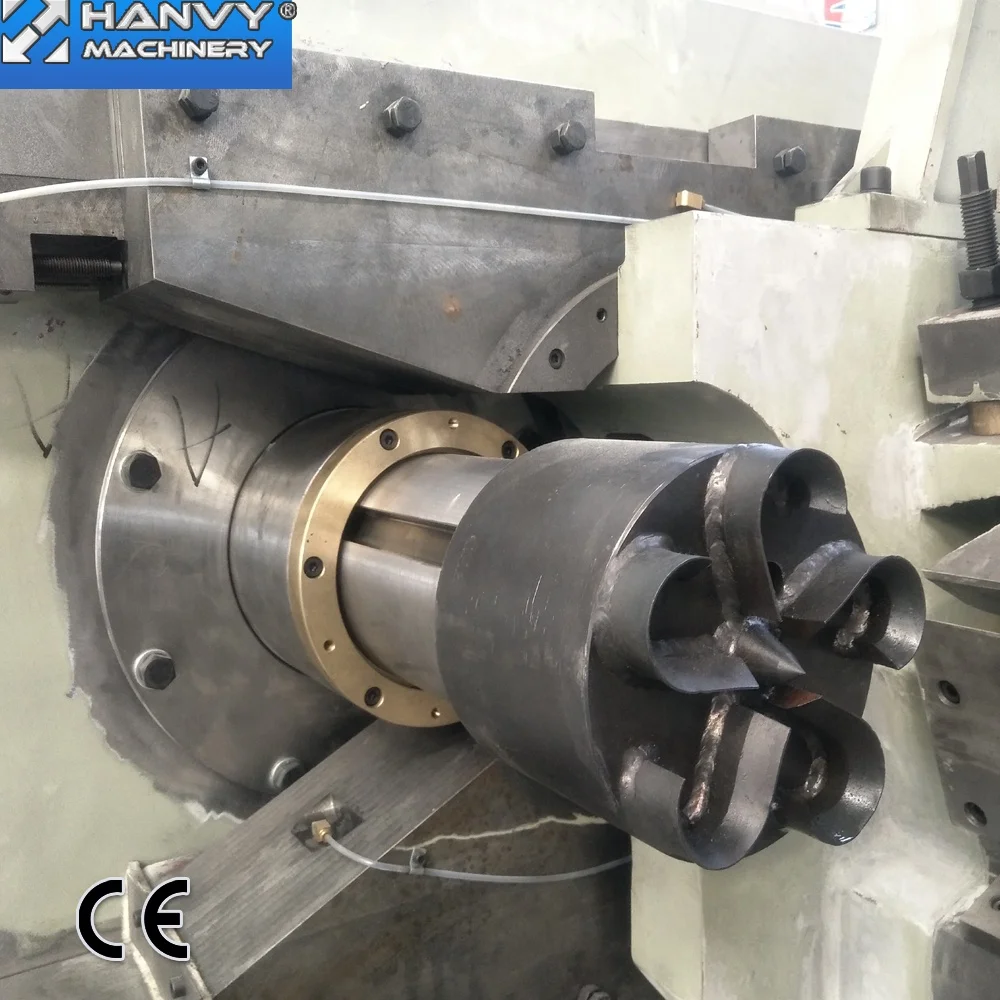

Chuck for spindle veneer peeling machine
Single spindle/chuck diameter 100mm.
China Veneer Machine Manufacture for Plywood Making Equipment
Main motor power 75KW
Total power 90.25KW
Hydraulic Spindle Rotary Veneer Peeling Lathe/single axle wood veneer peeling machine
Intercepting knife design,you may get differnt width as you prefer to.
Production Chart
Hanvy Machinery,is the original and professional manufacturer for plywood production machinery,we can supply you full wood veneer peeling line for plywood production.
This veneer spindleless peeling line is very popular in veneer and plywood industry worldwide.
It occupies space 38x8m.
The full line includes:
1. Log feeder 2. Log debarker 3. Debarked log feeder 4. Veneer peeling machine
5. Veneer conveyor 6. CNC veneer rotary clipper 7. Veneer stacker 8. Waste conveyor
This veneer spindleless peeling line is very popular in veneer and plywood industry worldwide.
It occupies space 38x8m.
The full line includes:
1. Log feeder 2. Log debarker 3. Debarked log feeder 4. Veneer peeling machine
5. Veneer conveyor 6. CNC veneer rotary clipper 7. Veneer stacker 8. Waste conveyor
HANVY PRESSING LINE
The pressing line incudes 500Ton cold press machine with automatic infeed and outfeed device,SIEMENS PLC Control.600Ton or 800Ton hot press machine,10/15/20 layers,opening 70mm or customized.
SIEMENS PLC control,5 different pressure controls,6 modes data for high plywood quality.
CE Certification,top quality in China.Click above picture into detailed link.
SIEMENS PLC control,5 different pressure controls,6 modes data for high plywood quality.
CE Certification,top quality in China.Click above picture into detailed link.
Certifications
We've got ISO and CE certificates for many plywood machines,which could reach EU and US quality standards.
About Us
We have accumulated over 30 years experience, and have successfully made a strong impact in the international markets. Our entire range comprises machines like Log Debarker, Veneer Lathe Peeling Machine, Veneer Dryer, Glue Spreader, Plywood cold press, Hot Press Machine, Plywood D.D Saw , Log Home Machinery, and Log / Timber Saws and Moulders.
Hanvy plywood machines are widely sold to over 60 countries so far,such as Turkey,Russia,Poland,Germany,Brazil,Ukraine,Mexico,Australia,Southeast Asia,African,US,etc.
1 Year warranty for all machines,sit installation and commissioning service provided by our professional engineering team.
Hanvy plywood machines are widely sold to over 60 countries so far,such as Turkey,Russia,Poland,Germany,Brazil,Ukraine,Mexico,Australia,Southeast Asia,African,US,etc.
1 Year warranty for all machines,sit installation and commissioning service provided by our professional engineering team.
Packing & Delivery
Packaging | ||
Size | 20ft | |
Weight | 15000kg | |
Packaging Details | Shrinkage film for overall,small sapre parts are packed in plywood box. Underneath with plywood pallet for forklift transportation. | |
