JCX-1325 деревообрабатывающий 1325 6090 1212 фрезерный станок с ЧПУ гравировальный маршрутизатор контрольная dsp-голубым
- Категория: Woodworking Machinery >>>
- Поставщик: Beijing,Yandiao,CNC,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 2023.64 $* | 2124.83 $* |
| Aug-15-2025 | 2006.52 $* | 2106.3 $* |
| Jul-15-2025 | 1683.10 $* | 1767.23 $* |
| Jun-15-2025 | 1972.16 $* | 2071.50 $* |
| May-15-2025 | 1717.57 $* | 1803.68 $* |
| Apr-15-2025 | 1938.11 $* | 2035.42 $* |
| Mar-15-2025 | 1921.23 $* | 2017.62 $* |
| Feb-15-2025 | 1904.79 $* | 1999.88 $* |
| Jan-15-2025 | 1887.34 $* | 1981.72 $* |
Характеристики
Product Overview

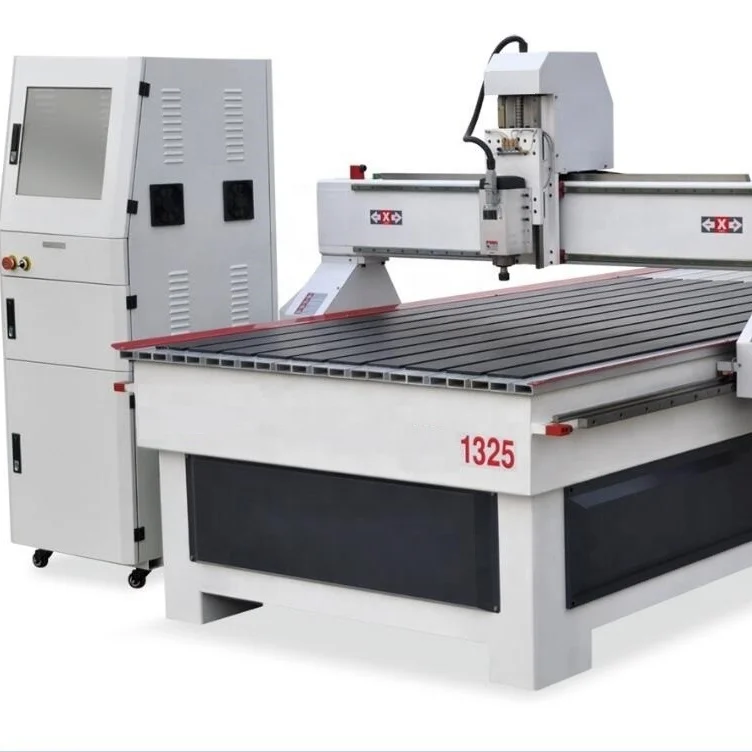

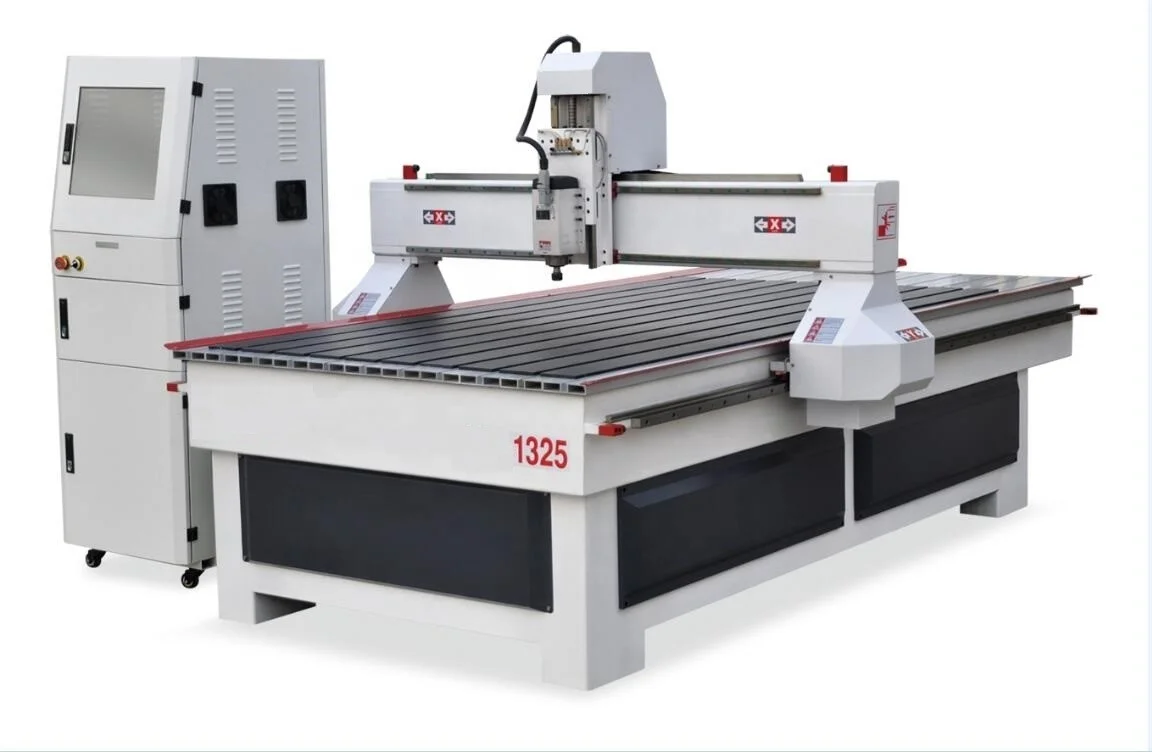

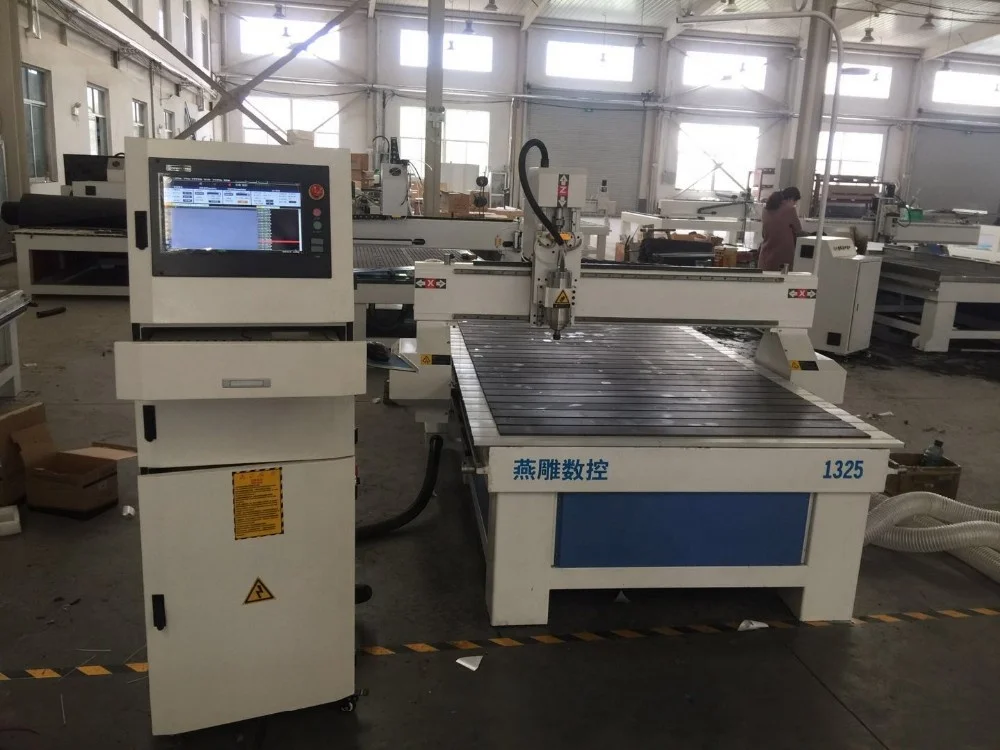

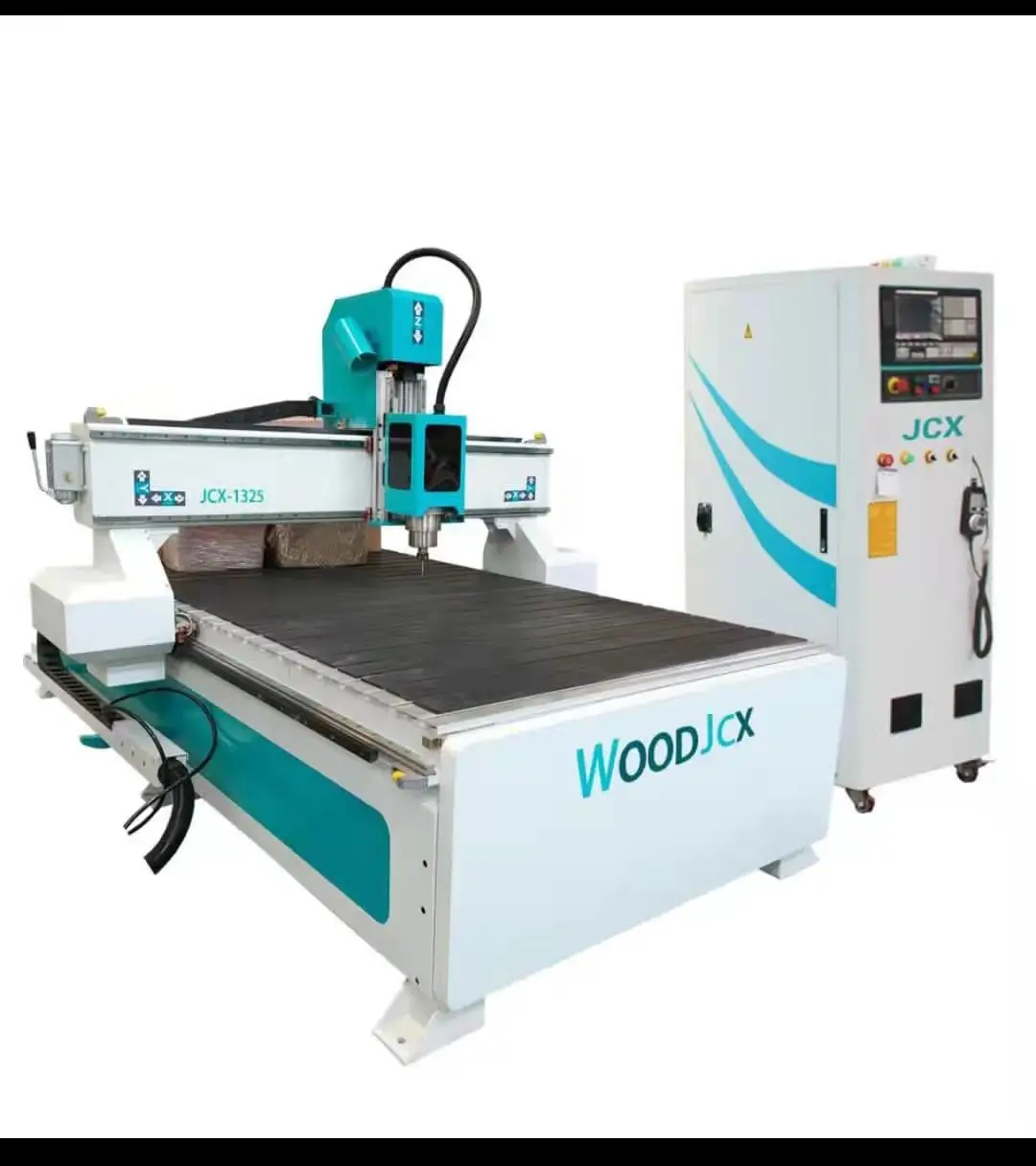

1325 CNC Woodworking Disc ATC machine
This CNC Woodworking Disc ATC (automatic tools change) machine is suitable for the processing of diversified and complex product or diversified processing, and has a wide range of uses.
Model | JCX-1325 | ||||
X-Y-Z axis working area | 1300*2500*300mm | ||||
Transmission | X/Y axis with German WMH rack,Z axis with ball screw | ||||
Spindle | Italy HSD 9.0KW Air-cooling spindle | ||||
ATC type | carousel ATC(12 tools for changing) | ||||
Motor | Yaskawa Servo motor and driver | ||||
max spindle power | 24000RPM | ||||
working precision | ±0.05mm | ||||
reposition precision | ±0.05mm | ||||
Converter | Taiwan Delta | ||||
Working table | vacuum absorption &t-slot working table | ||||
Max speed | 35m-45m/min | ||||
Max working speed | 20m-30m/min | ||||
Control system | SYNTEC | ||||
Total Power(KW) | 9KW | ||||
Voltage | AC380V/50HZ | ||||
command code | G code,U00,mmg plt HPGL | ||||
Software Optional | MasterCAM, Powermill, AlphaCAM i.e | ||||
Product Description
Machine advantage
1. ATC function: Disc automatic changing tools , 12 tools, saving time of changing tools.
2. Bed structure : Whole bed is steel structure welding , strong rigidity, no deformation.
3. Servo motor and driver: Taiwan LNC servo motor and driver, high speed and precision.
4. Guide rail: Taiwan square guide rail, running smoothly ,high precision .long span life.
5. Vacuum table : With powerful absorbing power ,ensure the flatness of material surface.
6. Two Rollers : Two Rollers for fixing small piece of materials for more stable working.
7. Control system: Easy operation, help correct errors in processing files in advance .
8. Automatic oil filling system: Lubricate transmission part, improve working life of machine.
Applicable Materials
Wood furniture processing industry, Home decoration, Wooden crafts processing industry, Large panel cutting , large relief carving
products, Car modification and Loudspeaker Box making industry.
