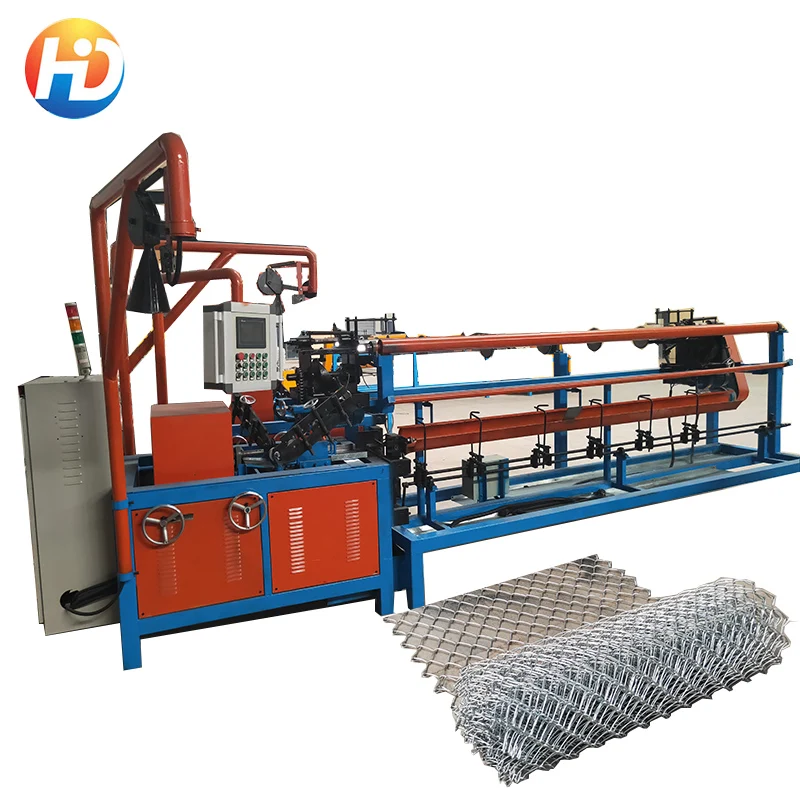

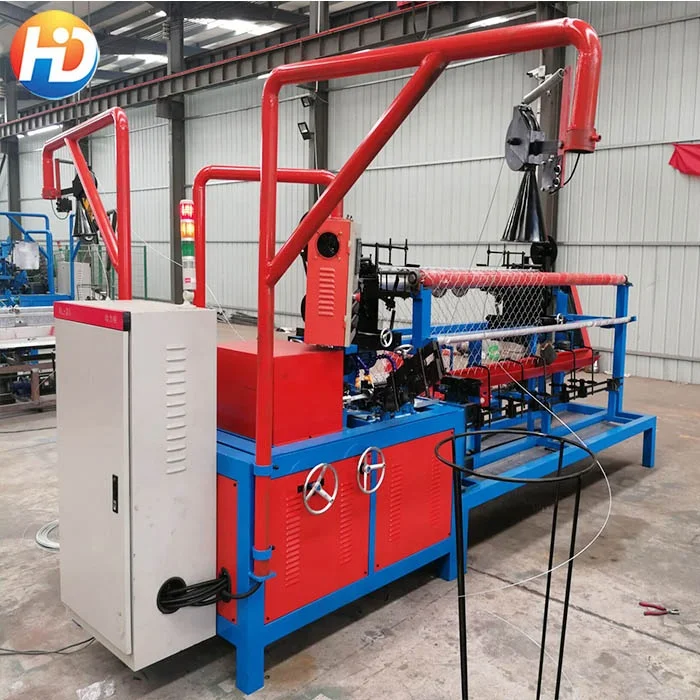

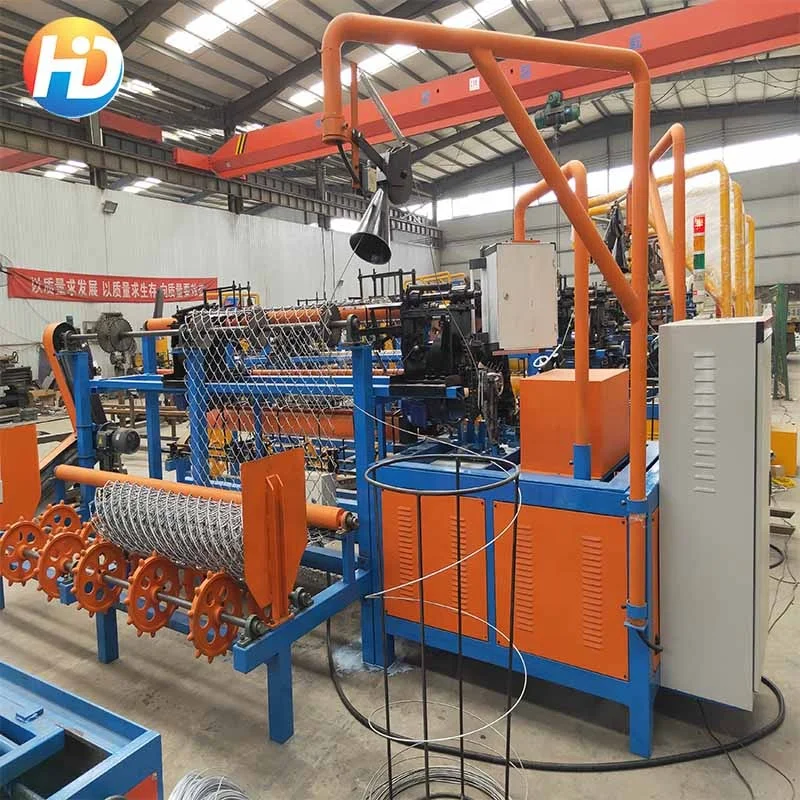

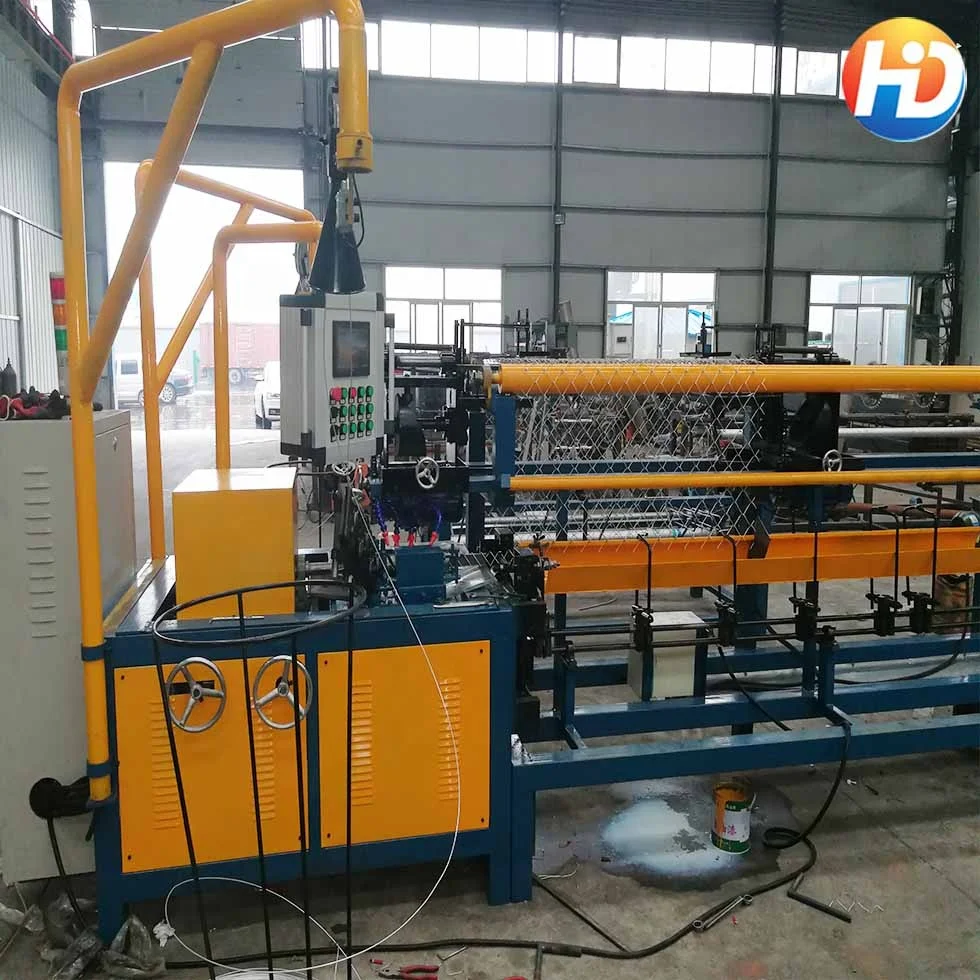

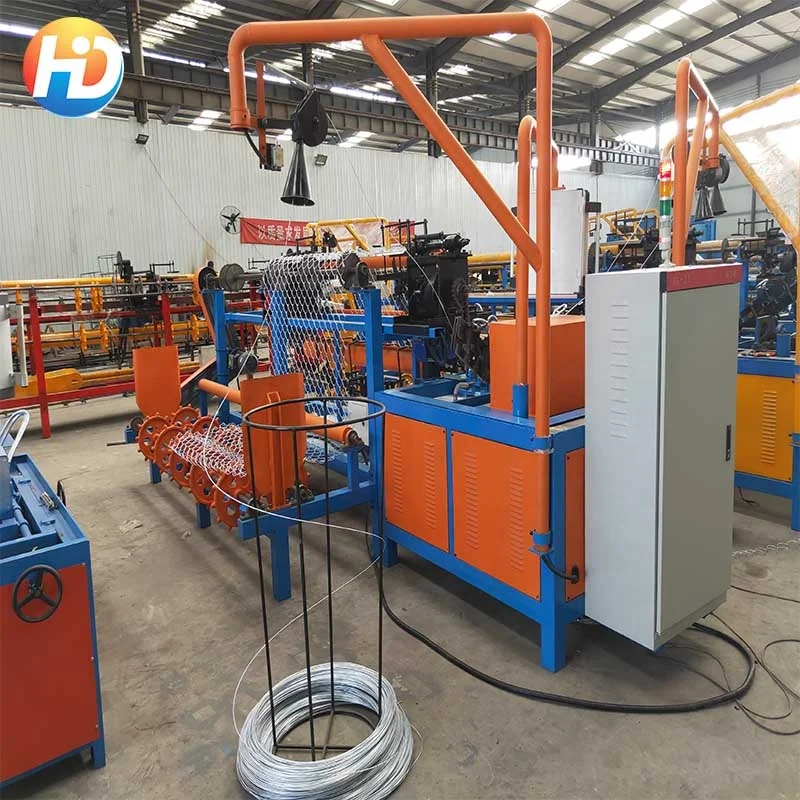

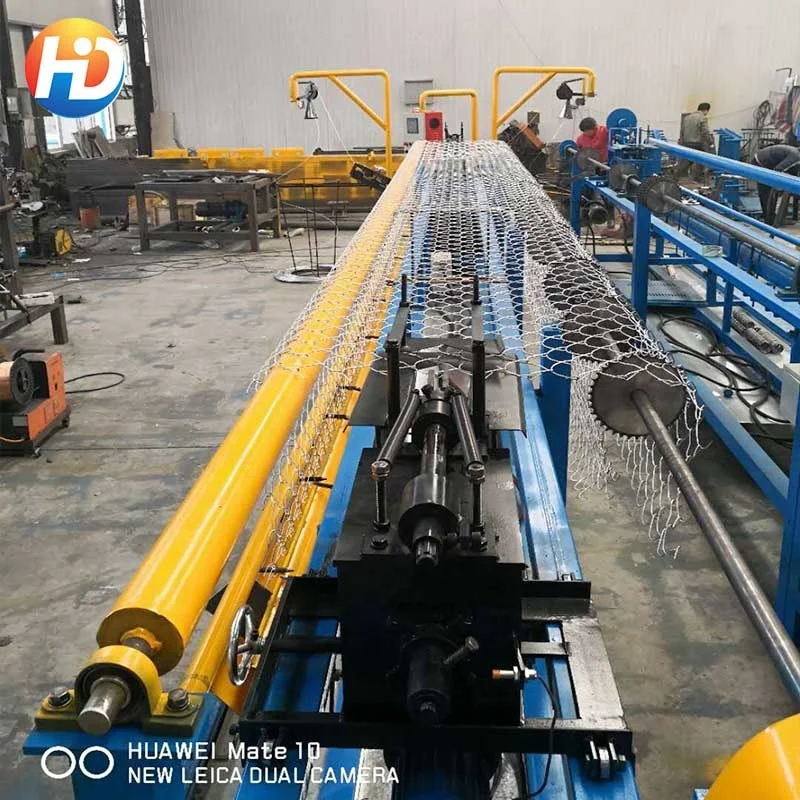

Chain link fence machine or Diamond   mesh making machine. Chain link fence machine is one of Wire Mesh Fencing Machine .It's auto wire fencing   machine. It's CNC PLC Controlled fully automatic machine with best service.This mesh fence machine use   servo motor controlling.Servo motor can produce with high speed, high quality. high accuracy. it contain   rolling part and edge folded or twisted part. cyclone wire mesh machine. The mesh is diamond shape .



· Wire fencing capacity (speed) :140m2 / hour – ( as result of tests 70mm mesh size)

· Wire fencing option up to 6 meters height.(the minimum could be any size)

· Rolling models is 4 types. (Normal,Combi, Partially Compact, Compact) So transfer costs decrease 70%.

· Designed for continuous working system as 24 hours.

· Dual-wire input,Dual mold technology

· Can Working with galvanized Wire.PVC coated wire.Stainless steel wire,Black Annealed wire,aluminum      cald steel wire. Hard wire

· Automatically fencing, cutting, and roll wrapping process.

· All the information about metering, wire fencing and speed can be set can set via touch screen.

· Informs the wire fencing errors with light and sound.

· Allows document information about the daily work and metering report.

· High Energy Saving through the patented operating system and software..

· Intervening immediately via internet connection on event of a technical failure.Video or phone all ok

· Just one technical person is enough to wire fencing process.

· Our machines are warranty for 1 year

Double wire automatic chain link fence machine
Machine	Dimensions	mm	6200*2100*2000 (3m wire mesh machine)
	Power	Kw	10 (5.5Kw servo motor)
	Weight	Kgs	1750
Wire mesh	Mesh Width	m	0.5-3
	Wire Diameter	mm	1.6-4.5 (PVC Wire : 1.8mm – 5.8 mm)
	Hole size	mm	25-100(1"-4")
Others	wire materials	Galvanized Wire,PVC Coated Wire,Stainless Steel Wire, Vinyl coated wire,aluminum cald steel wire, etc.
	capcity	m2/hour	80-150
	Rated Voltage	V	220 380 420 440 etc







Good performance of Automatic Chain link fence machine:
1: production efficiency is about twice of same species
2: fault is the lowest in the same species
3: machine is easy and simple to handle.the worker has the common mechanical konwledge can master it in one hour
4:the loss of the raw materials of the same species is 1%-5%,while the innovative Chain link fence machine is nearly zero.
5:the Chain link fence machine can Save 20% of your electricity
6:it is suitable to all kinds of mild steel wires
7:the mesh size has a wide of wide adjustable range
8:the preferential price and first-class quality is the most ideally choice of the customers

1)  PLC controlled Fully automatic machine 
2) servo-motor control Speed, and good performance
3) Double wire feeding(inlet)

4) Chain link fence width automatic change
5) Chain link machine/machine with best service
