Product Description
This machine adopts electrical synchronous control technique, both welding time and cent-control welding is composed of digital and integrated electric circuit. this operation is accurate, it has stable function, and without welded tracks. not only welding speed is fast but also it is easy to learn and operate, Step motor controls fallen wefts structure and drawing materials are automatic, so it is even and accurate the edge of mesh is regular, it is unnecessary to slice the side. Drawing mesh adopts the device with the elastic tension link and fixing mesh, it is easy to regulate mesh hole and mesh size is rather accurate, welding aperture could also adjust randomly within range.
Specifications of welding machine | ||
Wire diameter | 0.8-2mm | |
Mesh hole size | 12.5-50mm | |
Max weaving width | 1.2/1.5/2/2.5m | |
Feed speed | 120-180 rolls/min | |
Total power | 4kw | |
Machine weight | 2500kgs | |

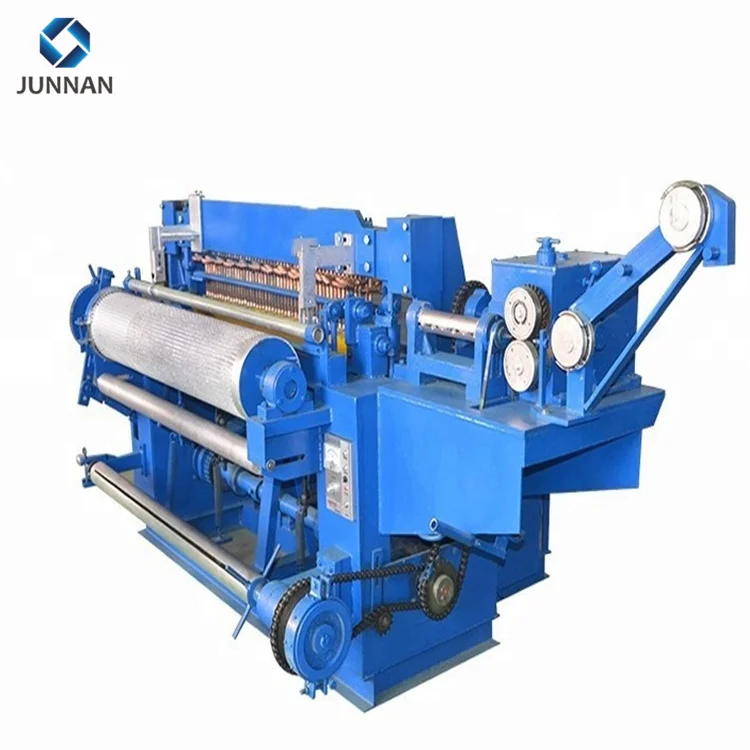

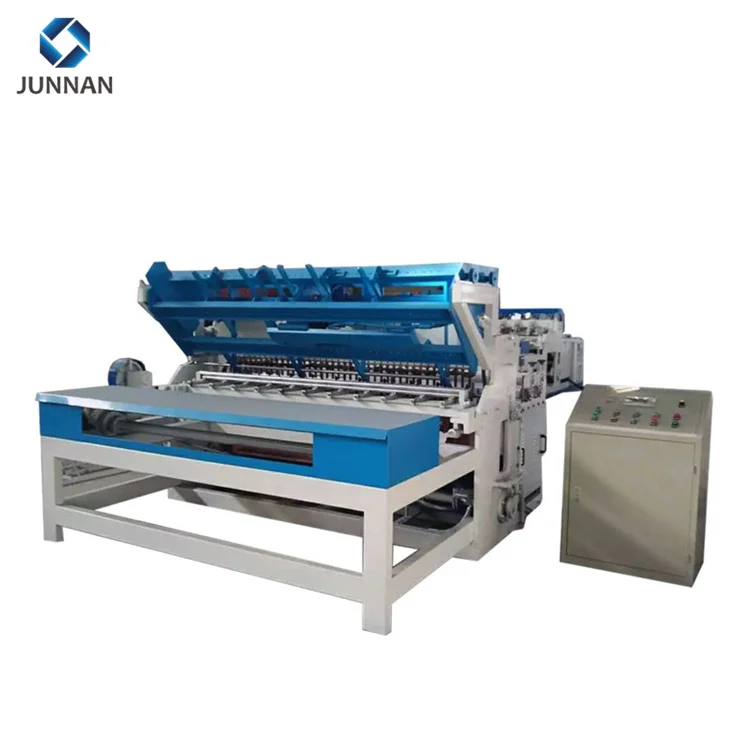

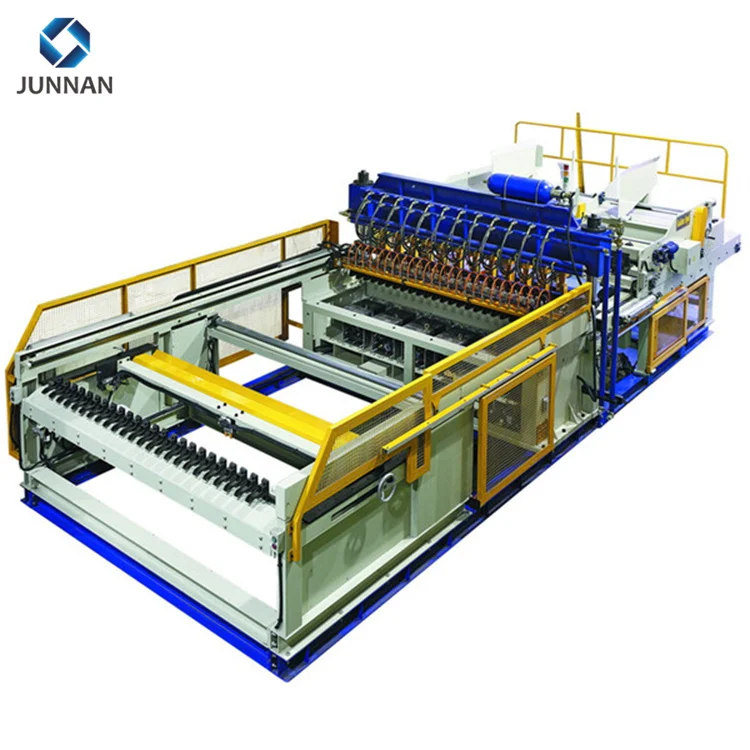

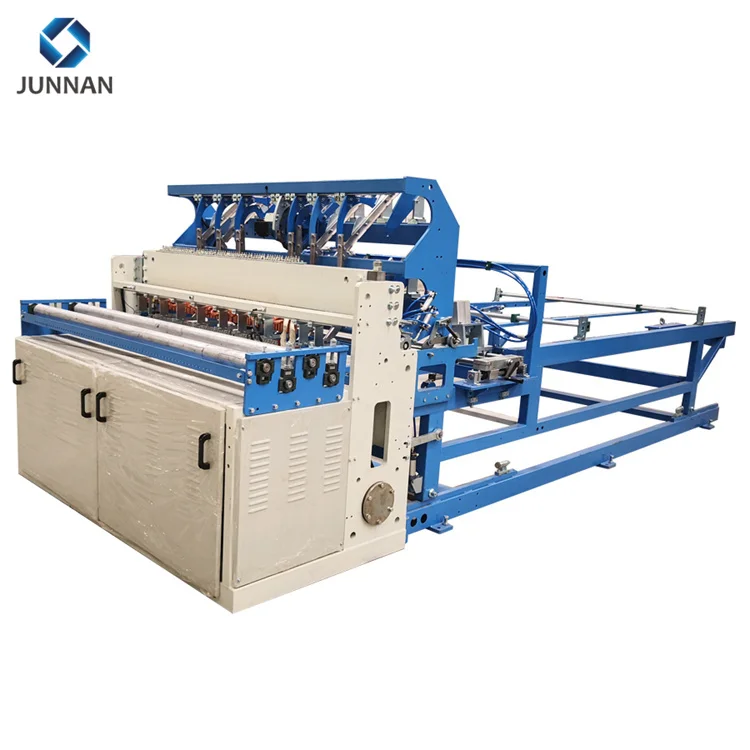

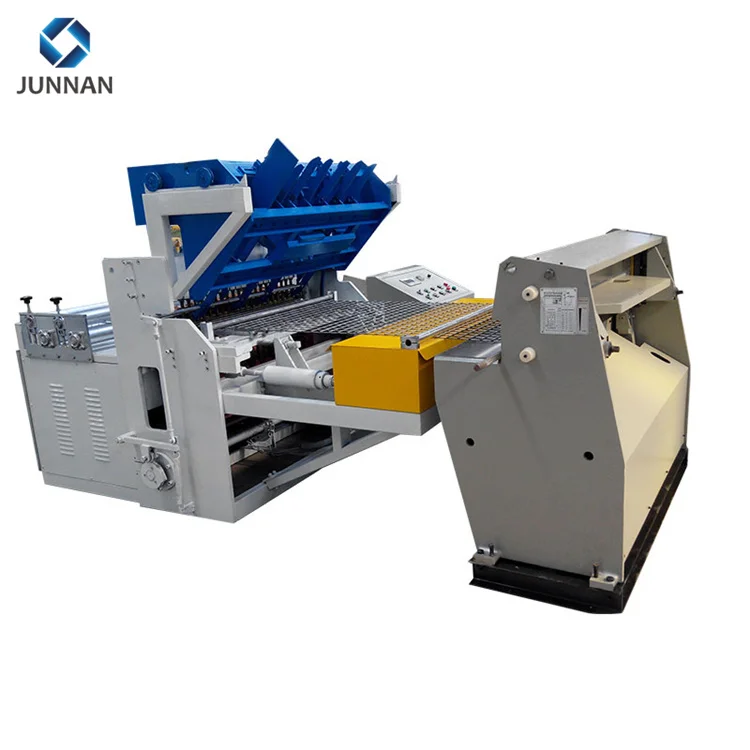

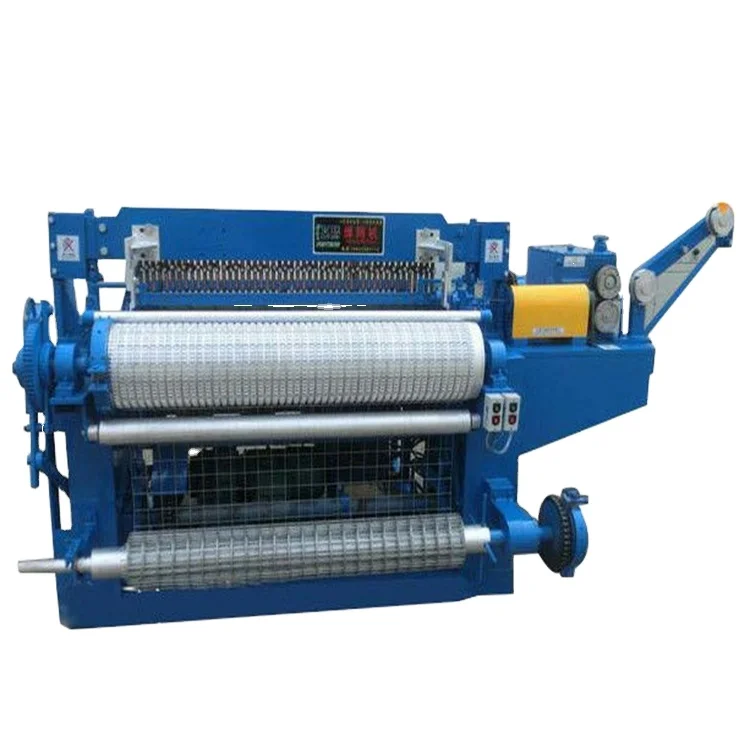

Detailed Images
1 Both of line wire and cross wire are fed from wire coils automatically.
2 Raw material can be black wire, galvanized wire or stainless steel wire.
3 One time two or three mesh rolls can be produced.
4 The mesh roll length can be set by counter switch on the control panel.
5 The welding transformers can be adjusted for different wire diameters.
6 The welding time and welding current can be adjusted on the control panel to guarantee solid welding.
7 Sturdy structure and world famous electric components are used like Simens, Schneider, Delta etc.
8 Water cooling transformer is used for hot area.
4 The mesh roll length can be set by counter switch on the control panel.
5 The welding transformers can be adjusted for different wire diameters.
6 The welding time and welding current can be adjusted on the control panel to guarantee solid welding.
7 Sturdy structure and world famous electric components are used like Simens, Schneider, Delta etc.
8 Water cooling transformer is used for hot area.
9 Patent design for process of thick hard black wire.One time two or three mesh rolls can be produced.
Finished products
Galvanized wire mesh is widely used in industry, agriculture, aquaculture, construction, transportation, mining, etc.. Such as machine protective cover, animal livestock fence, garden fence, fence, protective window, channel poultry cages, egg baskets and office food baskets, basket and decoration.
Packing&Delivery
1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire rope to make it stable.
3. It needs one 20 feet or 40 feet container for shipment.
2. The main machine will be fixed in the container by steel wire rope to make it stable.
3. It needs one 20 feet or 40 feet container for shipment.
