High Performance Raycus Ipg Fiber Laser 20w 30w 50w Portable Fiber Laser Marking Machine For Metal Plastic

mini laser marker.jpg

Product Description

Main configuration of Portable Fiber Laser Marking Machine



Fiber Laser

Optical fiber laser integrated structure, no optical pollution, no power of the coupling loss, compact structure compact, air cooling, one machine two functions.



Laser long service life

XTL-F series optical fiber laser marking machine use 1064 nm laser diode as the sources are used to pump, the average working hours can up to 100000 hours.

Small and exquisite Volume , applicable in the bad environment

Optical fiber surface area/volume ratio is high, also good cooling effect, no need huge water cooling system, just simple air cooling, can be running in bad conditions, such as high impact, high vibration, high temperature, dirt under the conditions of the normal operation.

Free maintenance operation

Optical fiber laser no need for any maintenance (not including adjust or clean lens)



Light path and galvo scanner

The optical system: 1064 nm based on the high precision, vibrating mirror reflection focusing system.

Laser correction: choose red visible laser collimator's systems instructions axis position, indicating light and laser coaxial, in the process to tracing the function of the instructions and timely and accurate registration.

Galvo mirror is set to track operation of the laser executive mechanism, and it mainly consists of high accuracy servo motor, motor driven plate, mirror, F-θ lens and dc supply of power.



Computer control system

HP laptop operating system in English



Special marking software of Portable Fiber Laser Marking Machine

Marking software in WINDOWS interface,English operating system, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD and so on many kinds of drawing software:time date, bar code, serial number, mark, output in English, graphics, all kinds of bar code, Qr code, etc. Word stock the function is all ready, 200 kinds of fonts, can customize wired font, creating one of the proprietary dictionaries.

laser marker (6).jpglaser marker (1).jpg

1.1 The European CE standard production

1.2 Laser type: fiber laser source. We used the best brand in China- Raycus laser source, the power 20w/30/50w for optional

1.3 Scsnhead brand galvo head.

1.4 F-theta lens: 110*110mm, 200*200mm (or 300*300mm)

1.5 Control system: Beijing JCZ control system, and EZCAD software

1.6 Supported Photoshop, Coral draw and format AI, PLT, DXF, BMP, DST, DWG, DXP etc.

1.7 Computer: HP laptop (industrial computer for desktop type)

1.8 Free parts: protective glasses, pedal, limited bar

laser marker (2).jpglaser marker (3).jpg
laser marking (1).jpg



Technical parameters of Portable Fiber Laser Marking Machine

ModelXTL-F20/30/50 Portable Fiber Laser Marking Machine
optical laserRaycus laser
Laser wavelength1064nm
Average output power20/30/50w
Whether or not to bring the light isolationbring
Modulation frequency range20kHz~80kHz
Maximum speed7000mm/s
resolution0.001mm
Repositioning precision±0.003mm
Marking area110*110mm/200*200mm/300*300mm
Minimum line width0.01mm
Minimum height of characters0.2mm
Cooling wayAir cooling
Laser power supply0.5KW/AC220V/50Hz~60Hz(optional 110V)
Manual working table strokeMovements itinerary 285 mm (desktop type)
Environmental requirements0 ~ 35 ° C, 90% or humidity



Advatages of Portable Fiber Laser Marking Machine

1.Desktop Fiber Laser marking machine Fast marking Speed and High Efficiency

2.High Electro-optic Conversion Efficiency

3.Perfect marking effect

4.Integrated structure,small and compact size,less occupied area,easy transportation

Characteristics of fiber laser marking machine

1.Multiple power laser light source, available for many industries;

2.Fast speed, high efficiency, stable output power, high reliability;

3.Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition;

4.High electro-optic conversion efficiency, little energy coupling loss, less power consumption with just 0.5 KW/Hour;

5.Small and compact size, easy to carry, save production space.

Application

>>Applicate materials Portable Fiber Laser Marking Machine

Many type of metals: Gold,Silver,Stainless Steel,Copper,Aluminum,chrome Brass,etc

Alloy and metal oxides: Anodized Aluminum

Some non-metallic materials & Special surface treatment:silicon wafer, Poly urethane, ceramics, plastic, rubber, epoxy resin, PVC, PC, ABS, Coating film etc.



Application industry of Portable Fiber Laser Marking Machine

1.Electrical Engineering and Electrical part and component

2.Mobile (Cover, battery, keyboard, IPhone Case)

3.Jewellery(Ring, pedetant, bracelet),eyeglass,clocks and craft

4.Building materials,PVC pipe

5.Car motor car spare part, Instrument and meters and cutting tool

6.plastic case,aviation and aerospace,

7.military product,hardware fitting and accessory,sanitary appliance

8.food and beverage ,Medicine package and medical instrument,solar Pv industry

Samples

Samples of Portable Fiber Laser Marking Machine




lsaer samles (1).png



Our Services

1.24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.

2.Two-year warranty is provided.

3.Professional staff for installation and training if needed.

4.Spare parts are supplying on time or doing some inventory if promising certain sales volume.

5.Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.

6.If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.

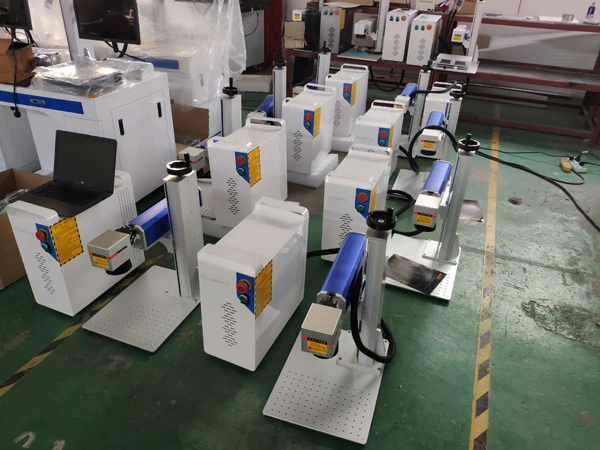

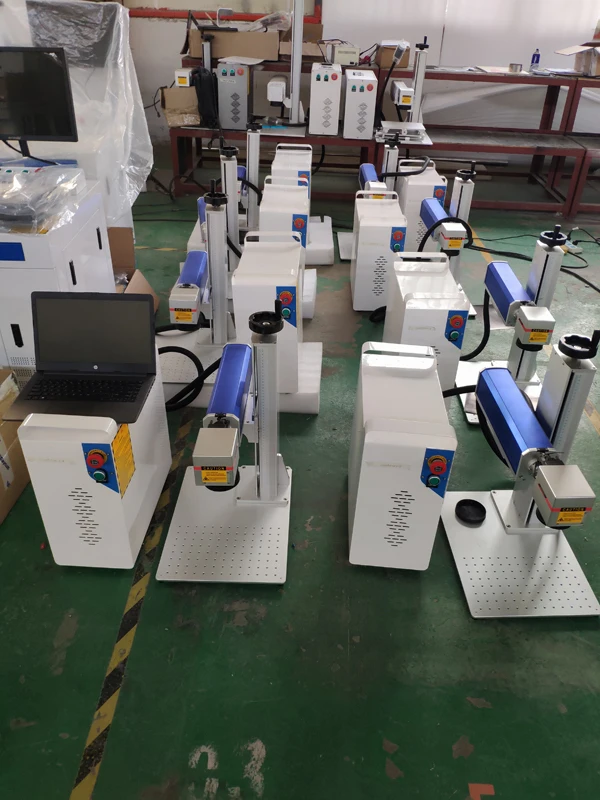

Our Factory



Contact us

Lisa, XT Laser

Email: lasermachine02@ xtlaser.com

Whatsapp(Cel)/Skype/Wechat: 008615954124625

Address:Headquarters: NO.316 Xinggang road,Jinan City, Shandong province,China.

.png

Company Information

 Jinan Xintian Technology Co., LTD. is a high-tech enterprises,which gather development, design, manufacture ,sales and service.our main products are laser marking machine, laser cutting machine,  pneumatic making machine, laser welding machine and laser engraving machine ,constantly developing new products in the field of automation field, focusing on supply solutions for the manufacturing enterprise with industrial automation system .we persist technological innovation as our direct ideas, adopted the advanced technology of the whole industry, absorbed top technology, with high standard manufacture industry, the development, advanced technology and control system, provide the best system integration solutions of industrial application fields.

FAQ

Q: What's your optional Fiber Laser Marking Machine?

A:We supply 20w, 30w ,50w fiber laser marking machine with CE and FDA passed



Q: What's the optional marking area of Fiber Laser Marking Machine ?

A: Standard marking area of our machine is 110*110mm, we also provide 75*75mm, 175*175mm, 200*200mm, 300*300mm marking area as optional



Q: What's the delivery time for Fiber Laser Marking Machine?

A: In 5-7 working days we will ready your machine, after we got your payment.



Q:How about the payment?

A:50%TT advance and 50%TT balance before delivery



Q:This is the first time I use this kind of machine, is it easy to operate Fiber Laser Marking Machine?

Before shipping, we will ensure machine have a good working condition, and we will equip English machine user manual or guide video that show you how to operate machine.





Portable Fiber Laser Marking Machine
