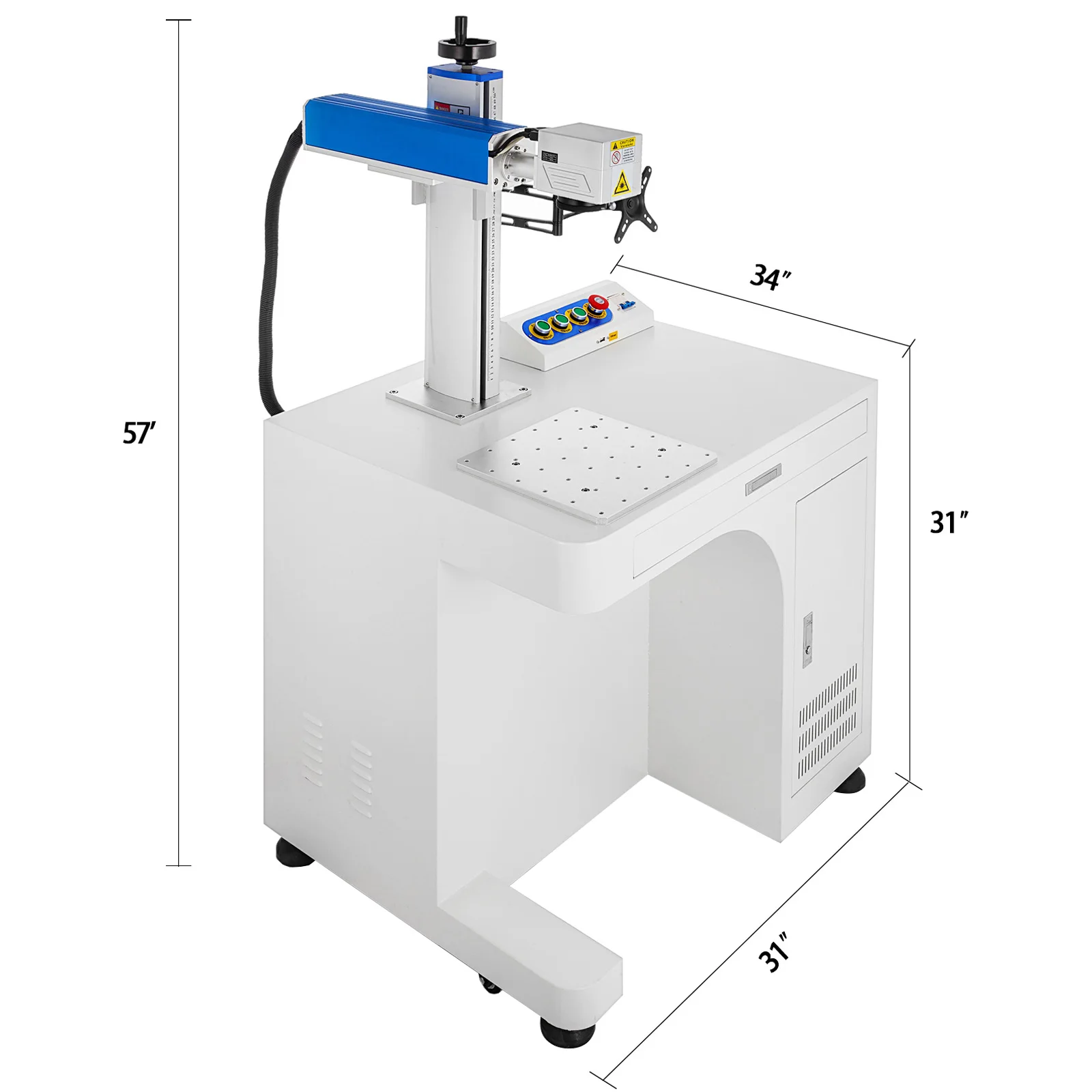

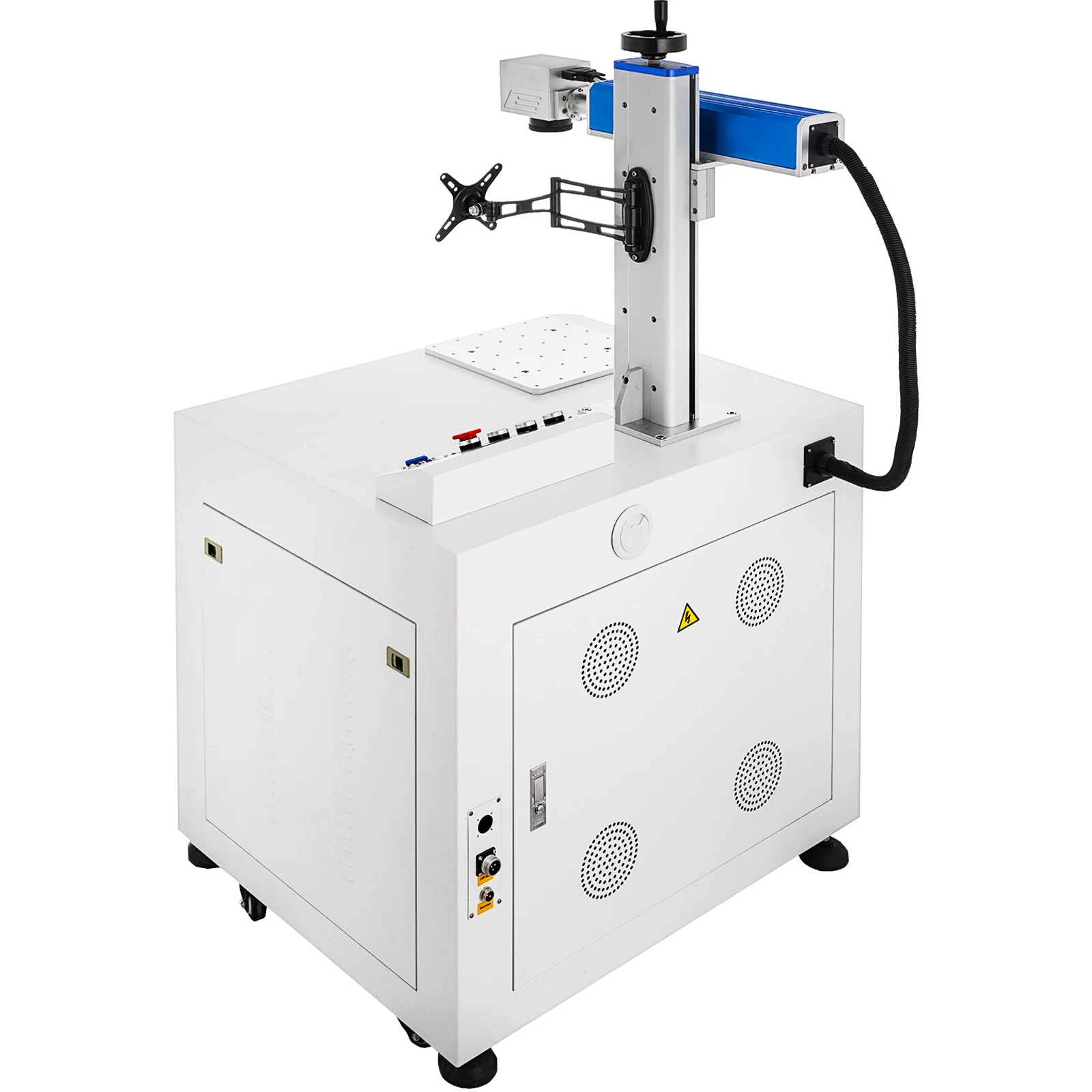

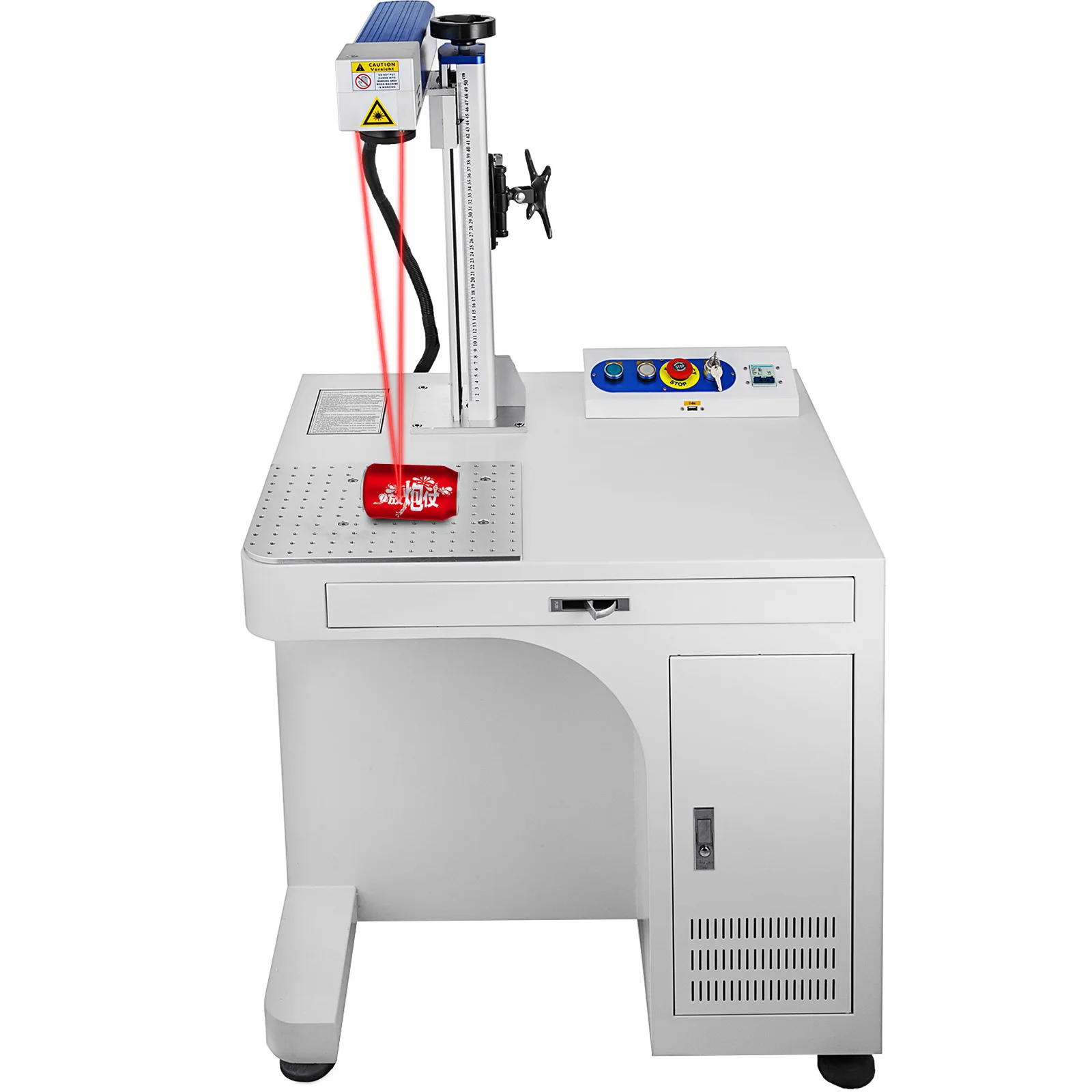

20W Fiber Laser Marking Machine

The 20W fiber laser machine can mark on both metal and non-metal. The fiber laser marking machine adopts an integrated design structure, is specially designed for any industry to use. With a new optical seal system, it's stable and precise; also, the appearance is beautiful upscale. It comes with a scale ruler and field lens, which can make simple and accurate positioning. With laser focusing function, high efficiency, and marking depth can be controlled. With a sturdy work table, it enables a wide range of uninterrupted markings.

· Strong Compatibility

· Manual Focus Function

· Refined Fittings

· Conveniently Portable

· [STRONG COMPATIBILITY]- Compatible with Windows XP, 7, 8, 10 (Support 32 bit / 64 bit. NOT compatible with the iOS system). The marking software is compatible with CORELDRAW, AUTOCAD, PHOTOSHOP, and other format files.

· [MANUAL FOCUS FUNCTION]- This fiber laser engraving machine features laser focusing function, as long as the thickness of the material to be marked entered the software, the device can be manually positioned by red light.

· [REFINED FITTINGS]- The laser engraver for metal is equipped with a lifting wheel for height adjustment, and three switches on the control panel are easy to operate.

· [CONVENIENTLY PORTABLE]- Four caster wheels are equipped at the bottom of the machine for the convenience of movement. The laser engraver metal also comes with four rubber base plates for the stability of the machine while operating.

· [WIDELY USED]- The fiber laser 20W is widely used in many industries: Jewelry, computer and cell phone keyboards, auto parts, electronic components, buckles, integrated circuits, and so on.

· Strong Compatibility

Can be compatible with windows XP, 7, 8, 10 (Support 32 bit / 64 bit. NOT compatible with iOS system). The marking software is compatible with CORELDRAW, AUTOCAD, PHOTOSHOP and other format files; support PLT, PCX, DXF, BMP, etc, can use SHX, TTF font directly; also support automatic coding, marking serial number, production date, bar code, QR code, etc.

· Laser Focusing Function

Focus can be automatically performed. As long as the thickness of the material to be marked is entered in the software, the machine can automatically focus.

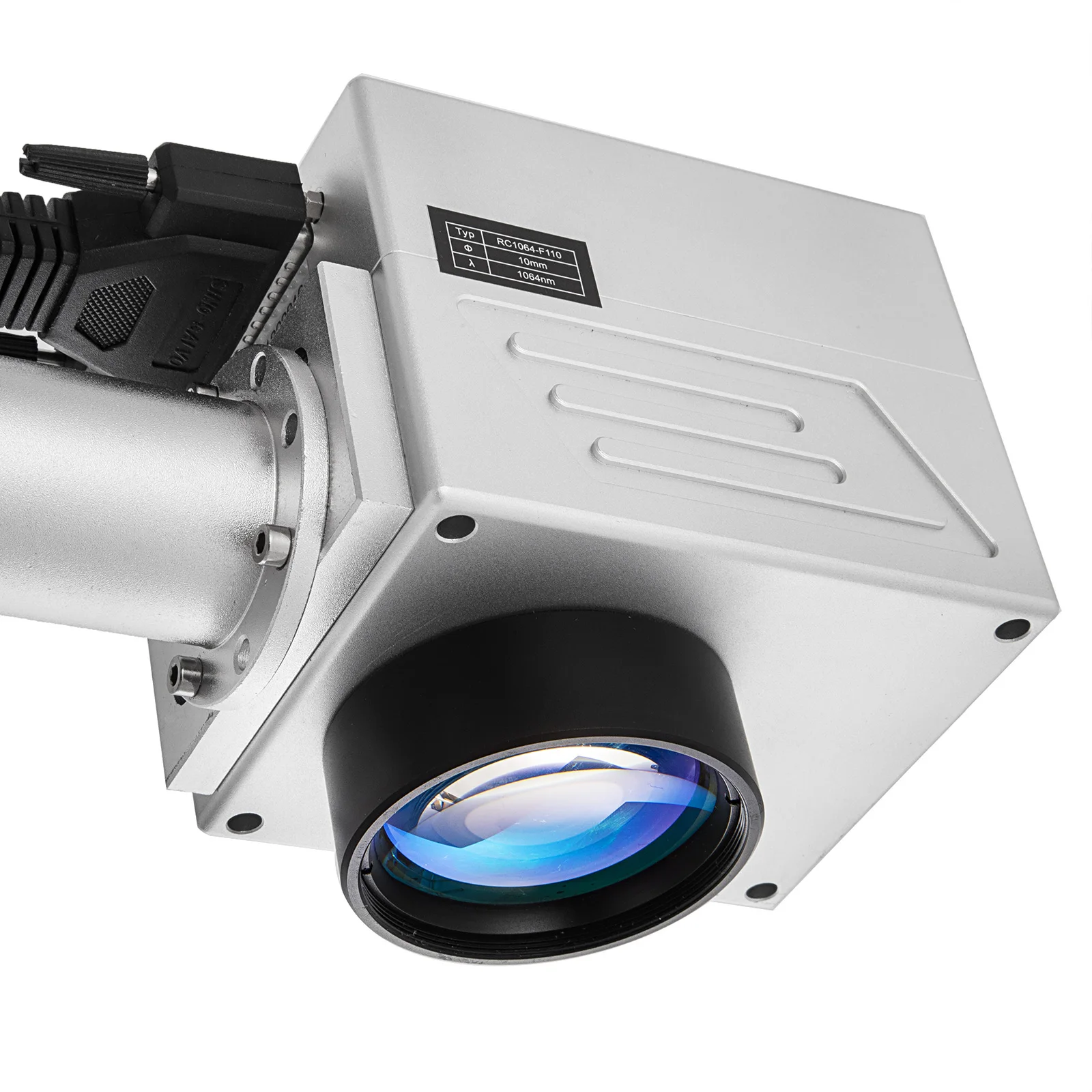

· Galvanometer System

High speed digital scanning galvanometer system, the imported high-speed galvanometer scanning head greatly reduces the delay and improves the marking speed.

· Elaborate Lifting Wheel

Equipped with a hidden lifting rod for high positioning accuracy. The wheel can be used to adjust the height of galvanometer system and the little handle on wheel makes the adjustment easier.

· Portable Caster Design

Four caster wheels are equipped at the bottom of the machine for convenient of movement. The machine also comes with four rubber base plates for stable of the machine while operating.

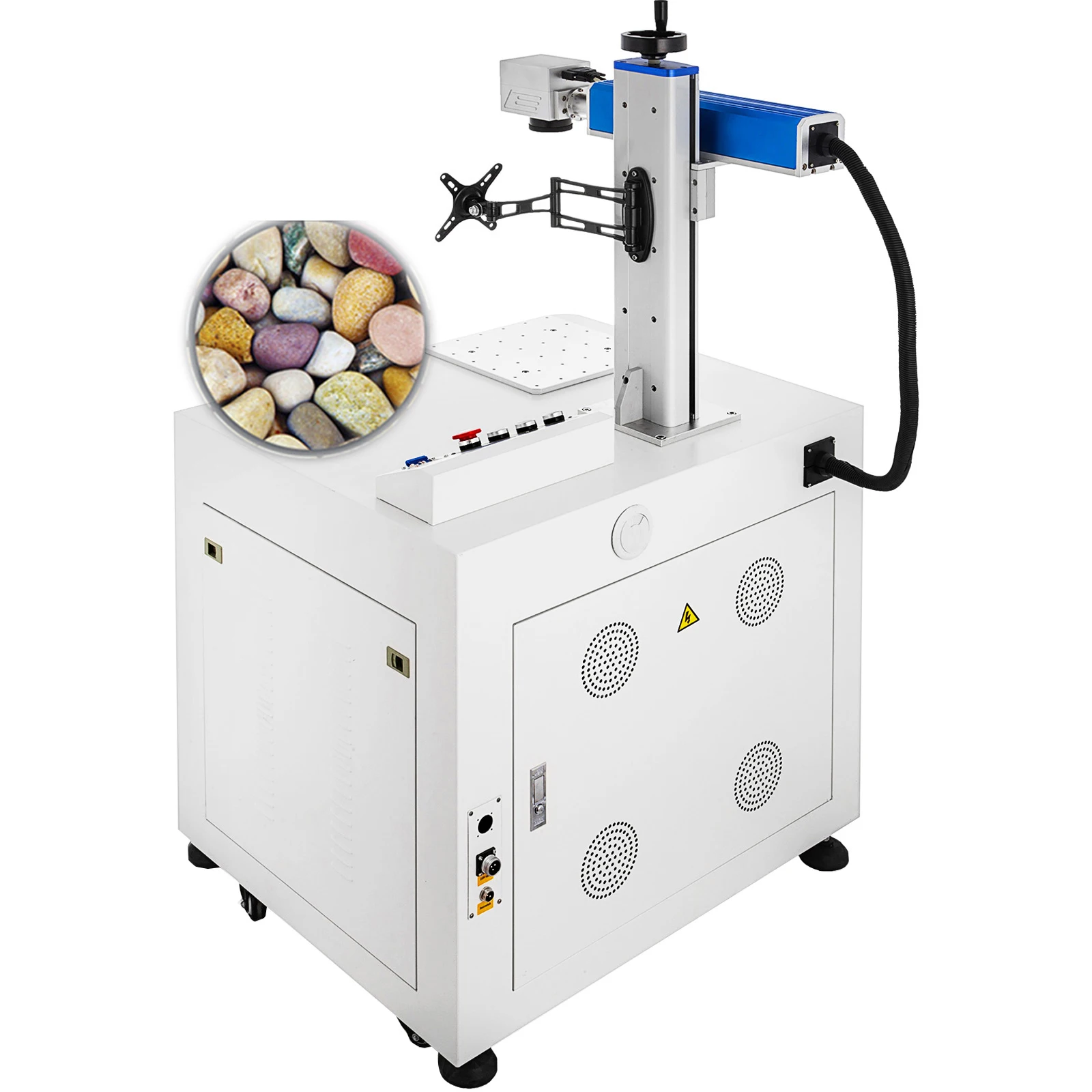

· Wide Application

Capable to mark on varieties of metals and non-metallic materials, especially suitable for high hardness, high melting point and brittle materials, making it an ideal tool for many industries.

· Product: Fiber laser machine

· Output power: 20W

· Voltage: 110V, 60Hz

· Marking size: 150 x 150 mm(5.91 x 5.91inch)

· Laser wavelength: 1064 nm

· Laser frequency: 20KHz-80KHz

· Marking depth: 0.01-0.5 mm

· Marking speed: 8000 mm/s

· Minimum width: 0.01 mm

· Precision: 0.0001 mm

· Beam diameter: <30um

· Life: >100000 h

· Cooling: Air cooling

· Compatible Software: Auto-Cad, CorelDraw, Photoshop

· Computer system: Windows XP/7/8/10 (Support 32 bit / 64 bit)

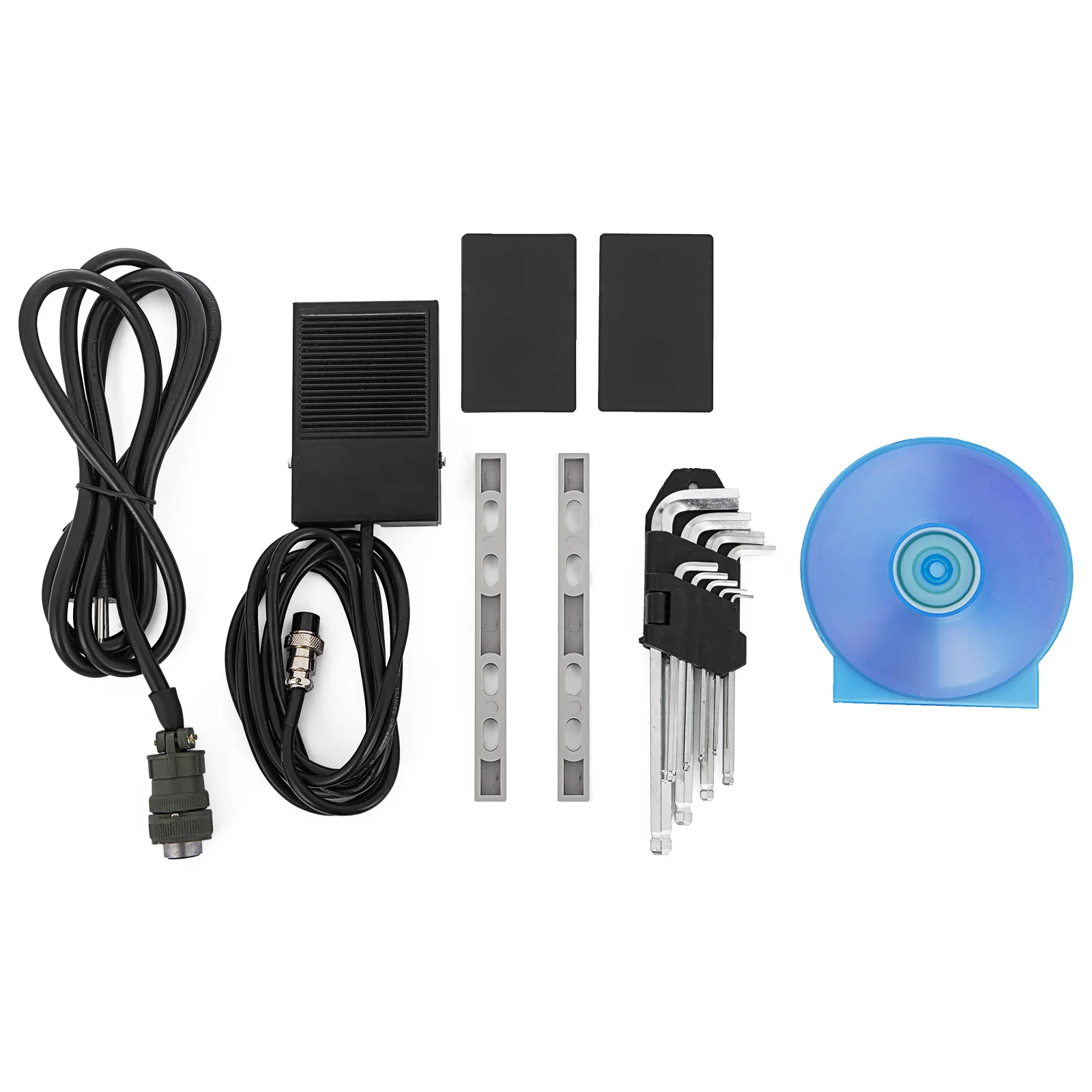

Package Content

· 1 x Fiber Laser Machine

· 1 x U Disk

· 1 x Power Cable

· 1 x Data Line

· 1 x Screwdriver

· 1 x Set of Hexagon Wrench

· 1 x Ground Wire

· 1 x Foot Switch

· 1 x Computer Stand

· 2 x Product Manual
