Усилитель мобильного сигнала GOBOOST 1700 2100 МГц aws скачиваемое программное обеспечение ретранслятор сотового усилитель 2G 3G
- Категория: Repeater >>>
- Поставщик: Shenzhen,Goboost,Communication,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 17.56 $* | 17.13 $* |
| Jul-18-2025 | 13.95 $* | 13.56 $* |
| Jun-18-2025 | 16.97 $* | 16.47 $* |
| May-18-2025 | 16.5 $* | 16.80 $* |
| Apr-18-2025 | 13.19 $* | 13.19 $* |
| Mar-18-2025 | 16.97 $* | 16.16 $* |
| Feb-18-2025 | 16.64 $* | 16.57 $* |
| Jan-18-2025 | 16.39 $* | 16.8 $* |
Характеристики
Product Description

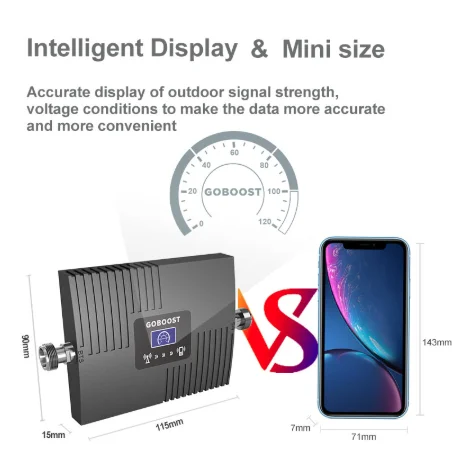

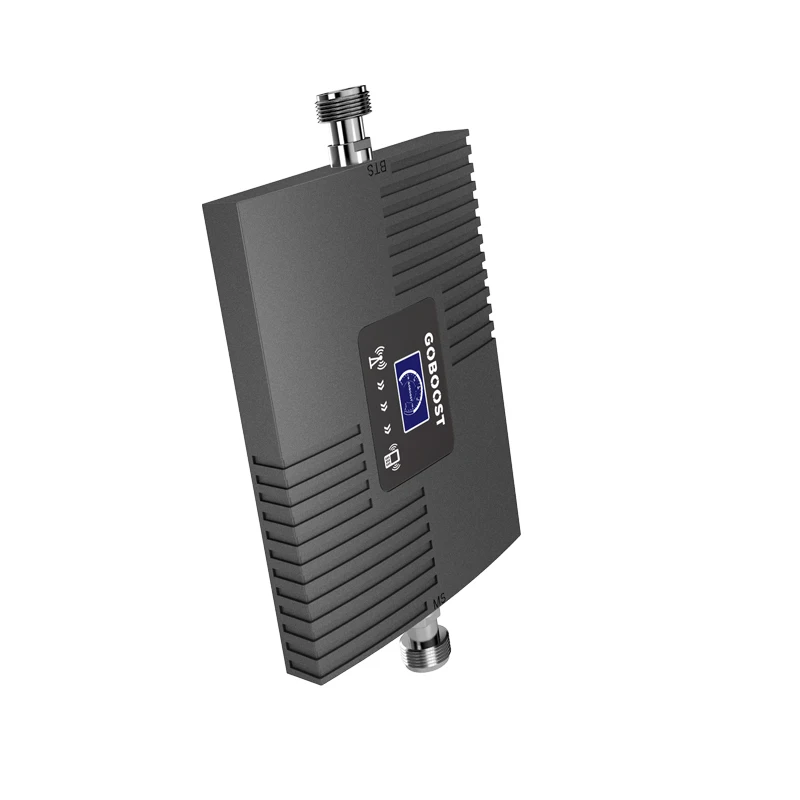

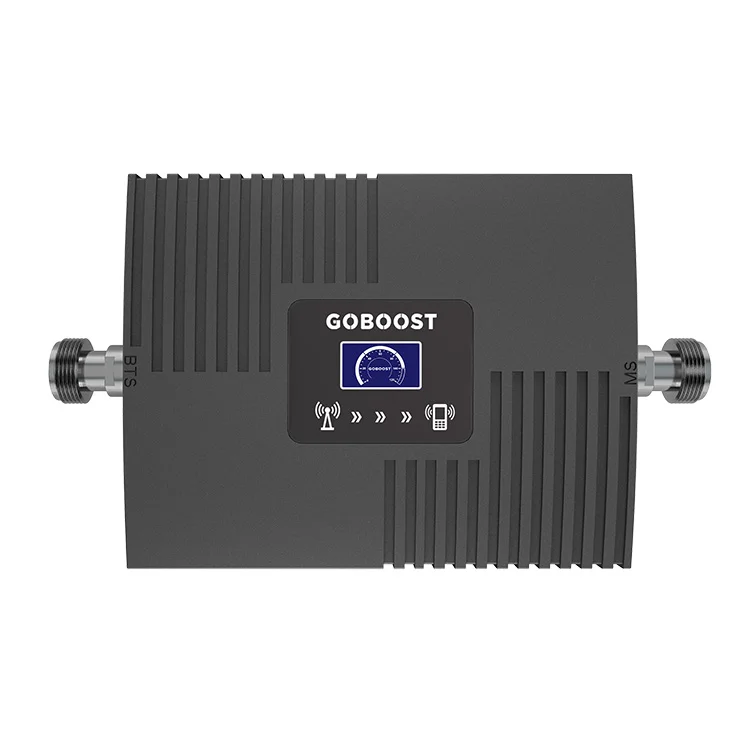

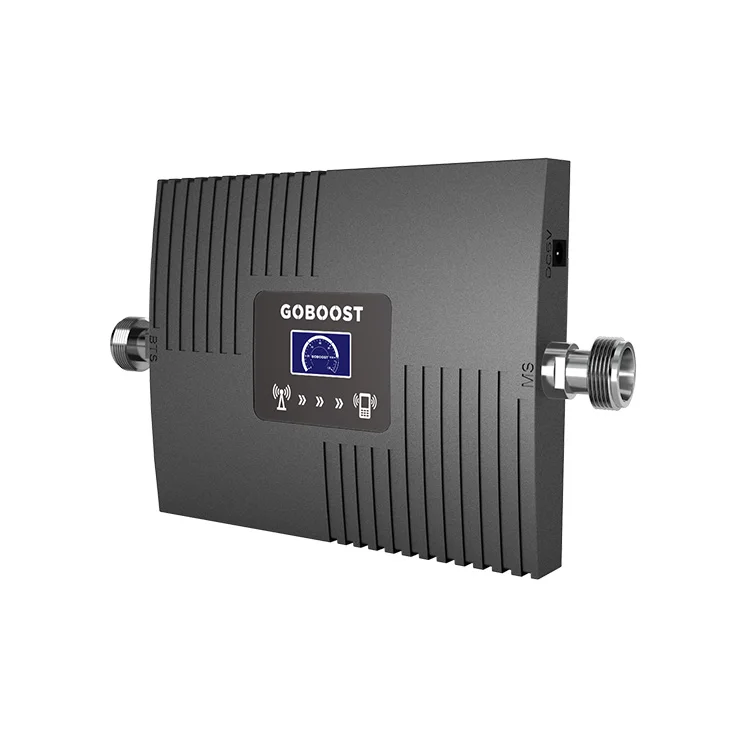

GOBOOST 1700/2100mhz aws cell phone signal booster cellular signal repeater 2G 3G 4G AmplifierGOBOOST 1700/2100mhz aws mobile signal booster download software cellular signal repeater 2G 3G 4G Amplifier
Sepcification
Specification should care about :
| Model No | GB17-AWS | ||
| Parameter data | Uplink | Downlink | |
| Frequency Range | AWS | 1710~1755 MHz | 2110~2155 MHz |
| Output Power | 15 ±2dBm | 17±2dBm | |
| Gain | 60 ±2 dB | 65±2dB | |
| Bandwidth | 25M | ||
| Ripple in Band | ≤6dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| VSWR | ≤1.4 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 1A | ||
| Power Comsumption | < 6W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Dimensions (D*W*H ) | 140*80*16(mm) | ||
| Net weight | < 0.24Kg | ||
| Packing size (D*W*H ) | 233*117*32(mm) | ||
| Gross weight | < 0.36Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||
How can repeater bring your mobile phone better signal?
•The outside antenna catches low signal from operator servicer’s base station and delivers it to cell phone repeater through the connection cable (coax).
•After the signal is accepted by the mobile repeater, this device amplifies it.
•Then this amplified signal goes through the connection cable (coax) to the inside antenna.
•And after that, the amplified signal transmits to your cell phone.
• Finally, your cell phone will get good signal, never on and off

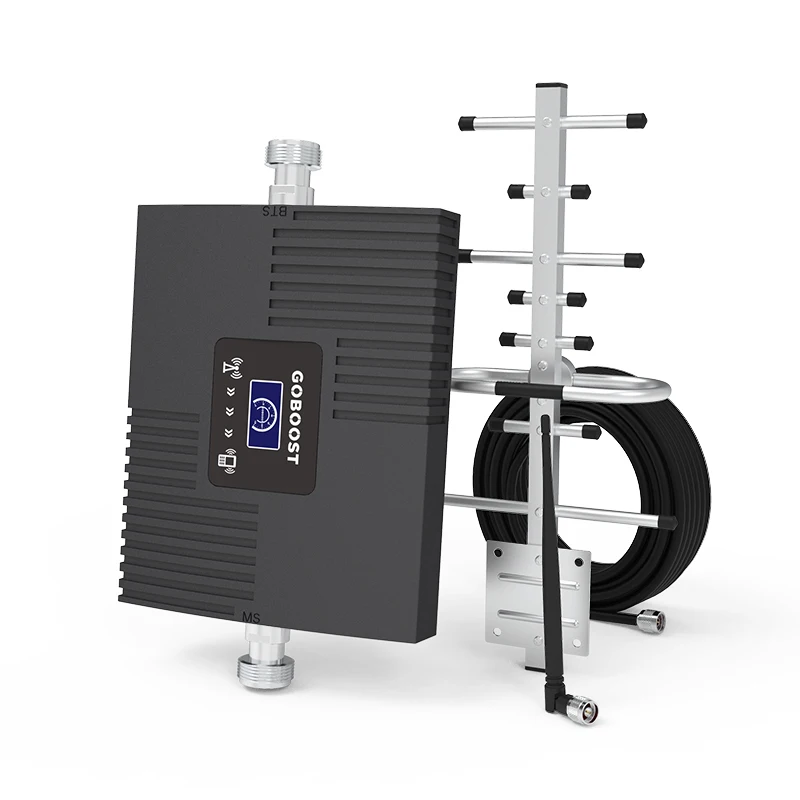

A regular cell phone repeater consists of (full kit)
1 -Outdoor antenna log periodic antenna(or wall mounted, yagi antenna)
2 - Indoor Omni ceiling antenna( panel antenna)
3 – Power adapter
4 - User manual
5 - Cell phone repeater
6. 10 meters outdoor cable and 5 meter indoor cable
Installation steps
How should you install repeater (very easy and simple):
Packing&Shipping
Packing Detail:
Shipping:
1. All the available ways are indicated at the page of product. We would send out the order as per your choice.
2.The parcel would be sent to the exact address that you fill in the order. In order to make you receive the parcel promptly and safely, please provide right contact info.
3.If you do not receive the parcel within the protection time, please contact us at the first time, we would check it for you or extend the protection time.
Company Information
Our Services
Delivery:
1. Sample within 1-2 days
2. Wholesales Orders : 3-5days according various quantities
3. OEM
5-10 days after receiving your sample confirmation and payment.
Warranty:
1. 2 years warranty for the products.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you
new one for free
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please
send us some pictures and video about it need to confirm your problem, then we will send you free new
goods instead
FAQ
Signal problem & installation technique supporting
1.If still weak signal receipt after installation, please check if outdoor antenna point to signal tower correctly or
elsewhere has stronger signal and confirm signal strength achieve-70DBM.
2.If still have no signal after installation, please check our device power adapter whether connected perfectly?
And connectors connect well.
3. If strength is not steady, please check if outdoor and indoor antenna is too close; please ensure outdoor
antenna has distance of 10 meters at least, with a barrier and not in a same horizontal line.
4. Packed the outdoor connector by waterproof glue, otherwise wet reduce the signal cover area.
