33dBm 2W High Gain Cell Phone Signal Booster For 700MHz 4G Mobile Phone Signal Amplifier

Our shipping settings are based on the United States.
If you need it, please leave your detailed shipping address.
We will adjust the shipping cost according to your specific address.
Thank you for your cooperation. If you have any questions, please contact us in time.

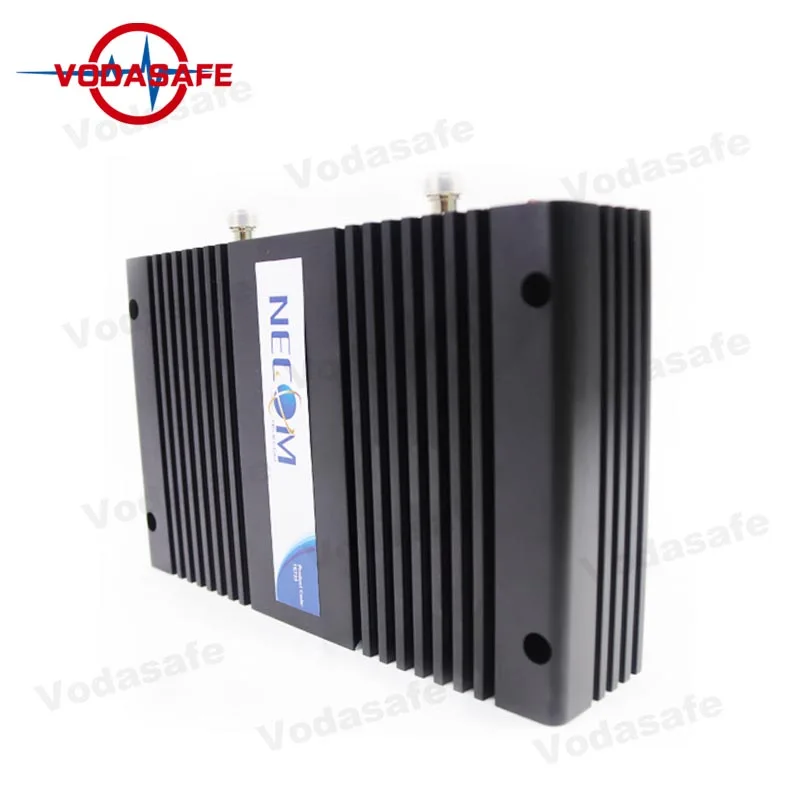

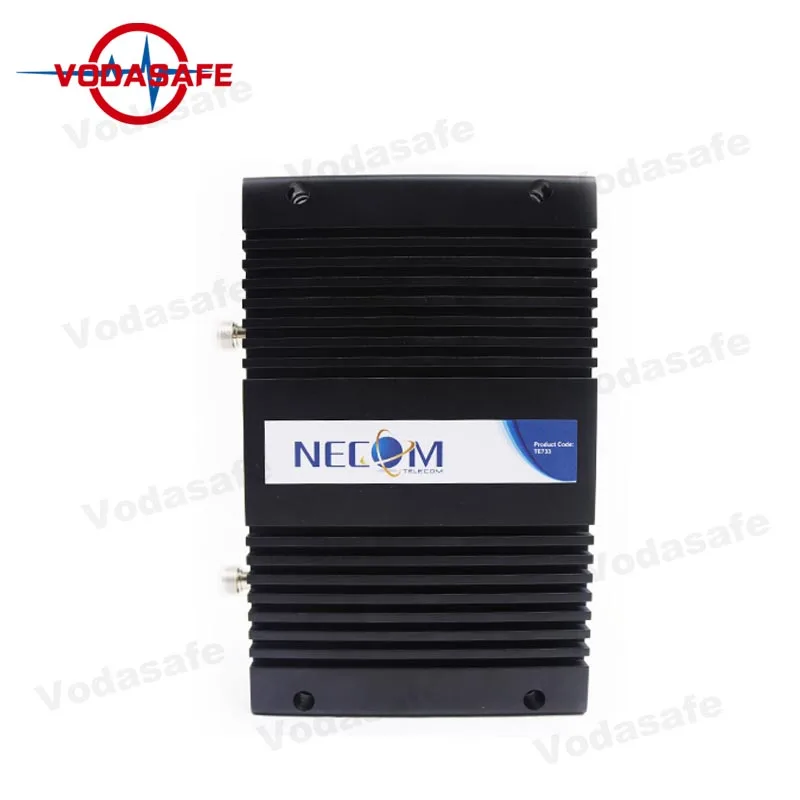

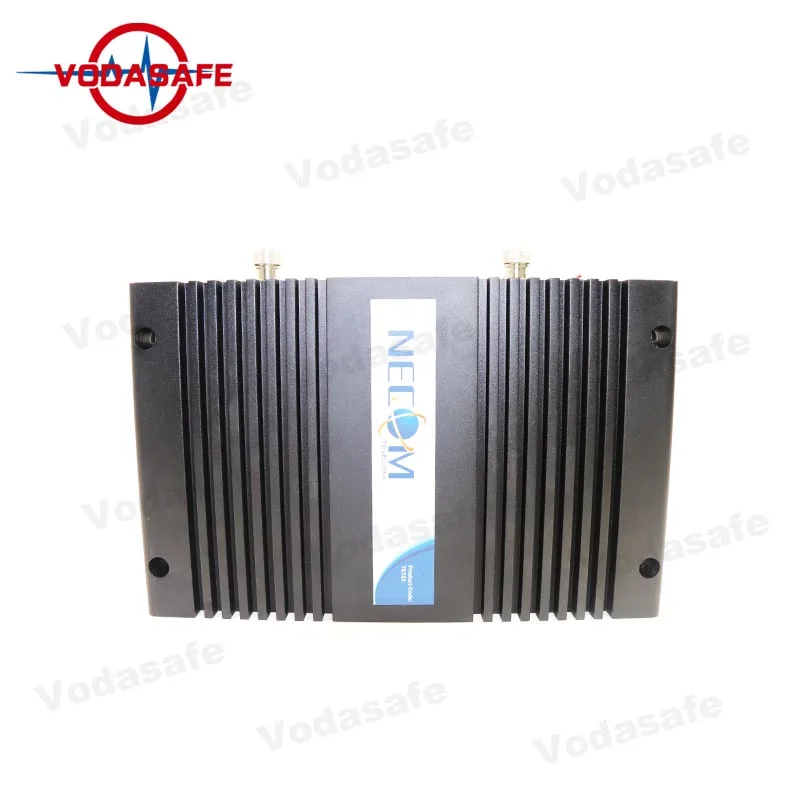

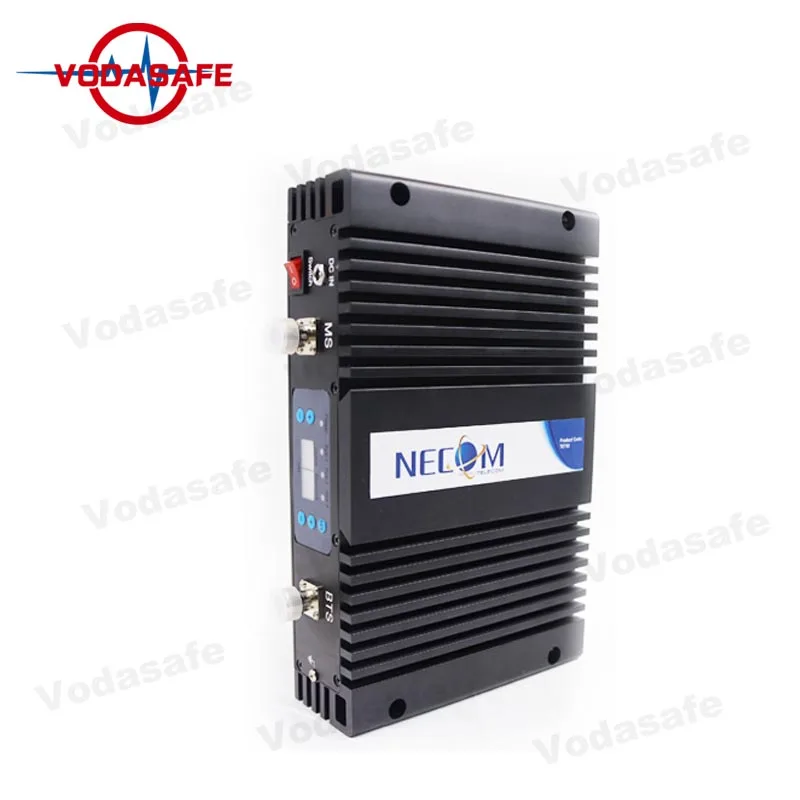

4GLTE700 TE-733 Full Band Pico-Repeater
Brief Description:
This model  signal booster 4glte700MHz,with an outdoor donor antenna could receive the signals and bring good signals in a relative good signal sources places and pass the signal to the amplifier and then spread it to where the
Signal is weak. Such as parking lots, basements, elevators and some hotels etc. These products need to be used in remote areas of the mountains.The machine can cover a range of 500-3000 square meters in some places where some signals are relatively simple.If the signal environment is not very good, the coverage area will be small. Only amplifying the downlink signal will not effect on the operation of the base station.

Features:
*High system gains.
*Full duplex and double-end design, external power supply, and convenient installation.
*ALC technology with auto-steady function adopted.
*Provide power indication and uplink and downlink indications.
*With the amplified power, the intermodulation and spuriousness are suppressed effectively.
*The reliability conforms to GB6993-86 standards.
*The electromagnetic compatibility conforms to ETS300 609-4 standards.

Applicable place:
It can be applied in Building rooms there have weak signal of mobile.

Specification:
Frequency Range:
1. TE-733B (Uplink: 703-748MHz; Downlink: 758-803MHz);
Gain:
1. TE-733B (Uplink)Gp≥80dB (Downlink)Gp≥85dB;
Outout Power:
1. TE-733B ≥33dBm  2W;
Pass band ripple:≤4dB
Guard band rejection: (BW-60dB)≤120MHz, (BW-70dB)≤127MHz;
I/O impedance:50/N Connector;
I/O return loss:≤-10dB;
Noise figure:≤-8dB;
Inter-modulation attenuation(Po=13dBm):≤-40dBm;
Transmission :≤0.5μs;
Ambient:-10ºC-50ºC;
Power supply: AC110~220V±10%/45-55Hz;
Size: 350mm×230mm×60mm;
Weight: 4.5kg;
Reliability: To the GB6993-86 standard;
Electromagnetic: To the ETS300 694-4 standard;

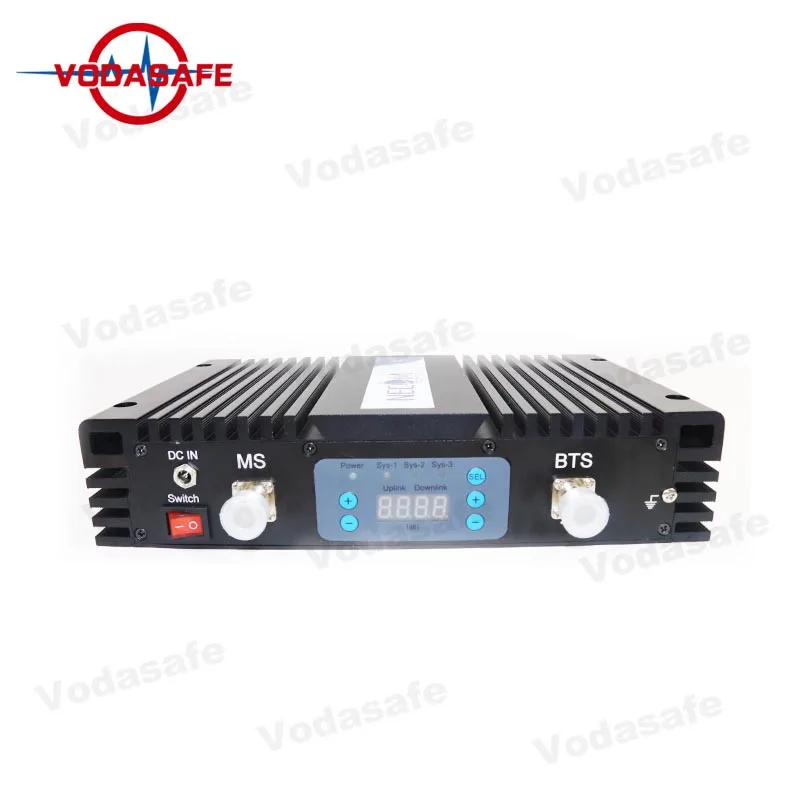

Function:
a) Power supply LED denote
b) Export power LED denote

Package contents:
1 pcs booster
1 set power supply
1pcs user manual
1 set installation screws
