Глубоководная гидравлическая буровая установка XCMG 700 м XSL7/350 для гусеничных скважин
- Категория: Mine Drilling Rig >>>
- Поставщик: Xcmg,E-Commerce,Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 11900.79 $* | 12495.92 $* |
| Aug-16-2025 | 11800.44 $* | 12390.14 $* |
| Jul-16-2025 | 9900.34 $* | 10395.83 $* |
| Jun-16-2025 | 11600.99 $* | 12180.68 $* |
| May-16-2025 | 10100.85 $* | 10605.11 $* |
| Apr-16-2025 | 11400.48 $* | 11970.12 $* |
| Mar-16-2025 | 11300.93 $* | 11865.71 $* |
| Feb-16-2025 | 11200.89 $* | 11760.56 $* |
| Jan-16-2025 | 11100.49 $* | 11655.35 $* |
Характеристики
Product Description

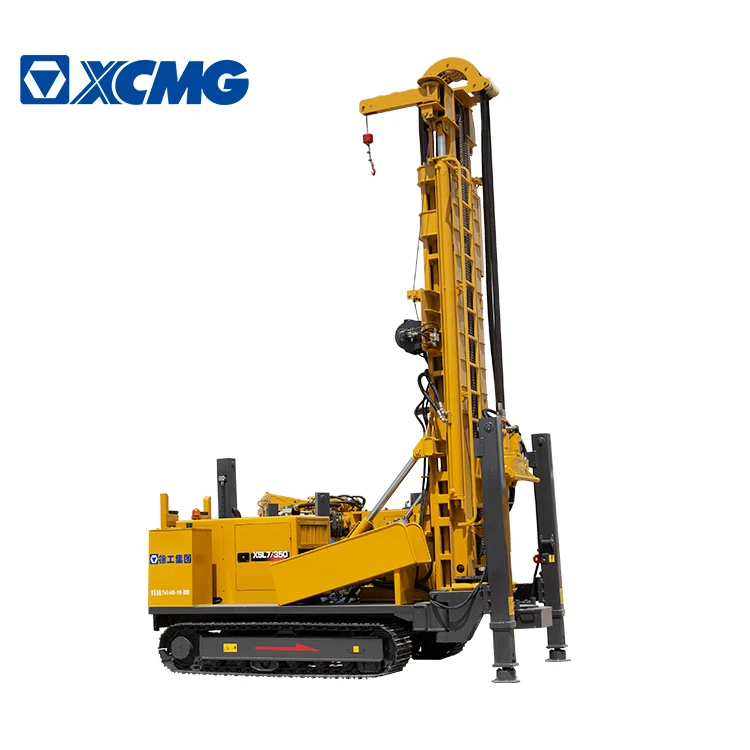

XCMG XSL7/350 drilling depth 700m full hydraulic deep water well drilling rig
XSL series deep(water) well drlling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with
very high drilling efficiency.
Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.
The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
* Mature and reliable hydraulic top drive power head with large bearing capacity and good sealing effect.
* The gap adjustable telescopic drill collar can meet the requirements of long casing construction and has high work eficiency.
* Unique hydraulic matching technology for high system efficiency.
* Integrated visualization pressurize and pressurize decompression feed system for fine adjustment of diling pressure according to dilling depth.
* Four hydraulic high supporting legs are provided to achieve rapid leveling of the rig without liting. The swing-type centering device provides a wide working space when working.
XSL series deep(water) well drlling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with
very high drilling efficiency.
Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads, it can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.
The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.
* Mature and reliable hydraulic top drive power head with large bearing capacity and good sealing effect.
* The gap adjustable telescopic drill collar can meet the requirements of long casing construction and has high work eficiency.
* Unique hydraulic matching technology for high system efficiency.
* Integrated visualization pressurize and pressurize decompression feed system for fine adjustment of diling pressure according to dilling depth.
* Four hydraulic high supporting legs are provided to achieve rapid leveling of the rig without liting. The swing-type centering device provides a wide working space when working.
Specification
Parameter | Units | XSL7/350 | ||
Drilling capacity | Drilling depth | m | 700(dia.102) | |
Max. diameter of working floor | mm | dia.500 | ||
Feeding system | Max. lifting capacity | KN | 350 | |
Max.feeding capacity | KN | 150 | ||
Max. lifting speed | m/min | 32 | ||
Max. feeding speed | m/min | 60 | ||
Stroke | mm | 7000 | ||
Top drive | Max. torque | N.m | 12200/6100 | |
Max. speed | r/min | 180/90 | ||
I.D | mm | dia.55 | ||
Floating distance | mm | / | ||
Max.tilting angel | ° | / | ||
Deck engine | Type | / | CUMMINS QSB5.9-C210 | |
Rated power | KW | 154 | ||
Main winch | Hoisting capacity | KN | 30(Optional） | |
Tool winch | Hositing capacity | KN | 15 | |
Breakout device | Max. breaout torque | N.m | 36000 | |
Vise clamping range | mm | Customized | ||
Mud pump | Max.flow | L/min | / | |
Max. pressure | MPa | / | ||
Foam pump | Max.flow | L/min | 35 (Optional) | |
Max.pressure | Mpa | 4 (Optional) | ||
Mud pipe | I.D | mm | Dia.55 | |
Max.pressure | Mpa | 8 | ||
Chassis | Drive mode | / | Crawler base | |
Rated power | kw | / | ||
Highest speed | km/h | 3 | ||
Max.climbing gradient | % | 39 | ||
Working dimension | mm | 5150x3250x10500 | ||
Transportation dimension | mm | 6400x2250x2860 | ||
Weight | t | 14 | ||

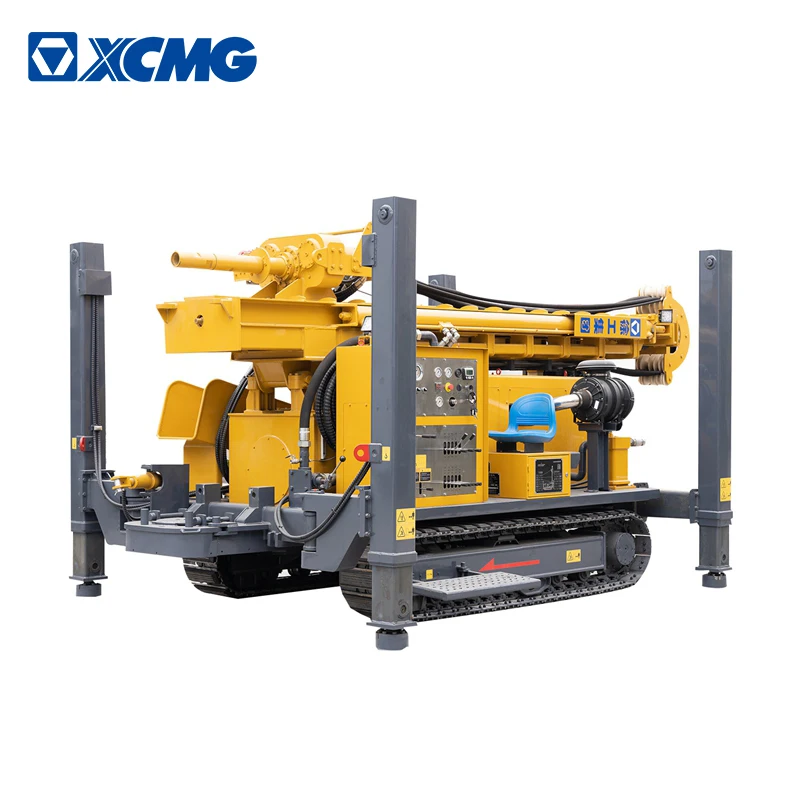

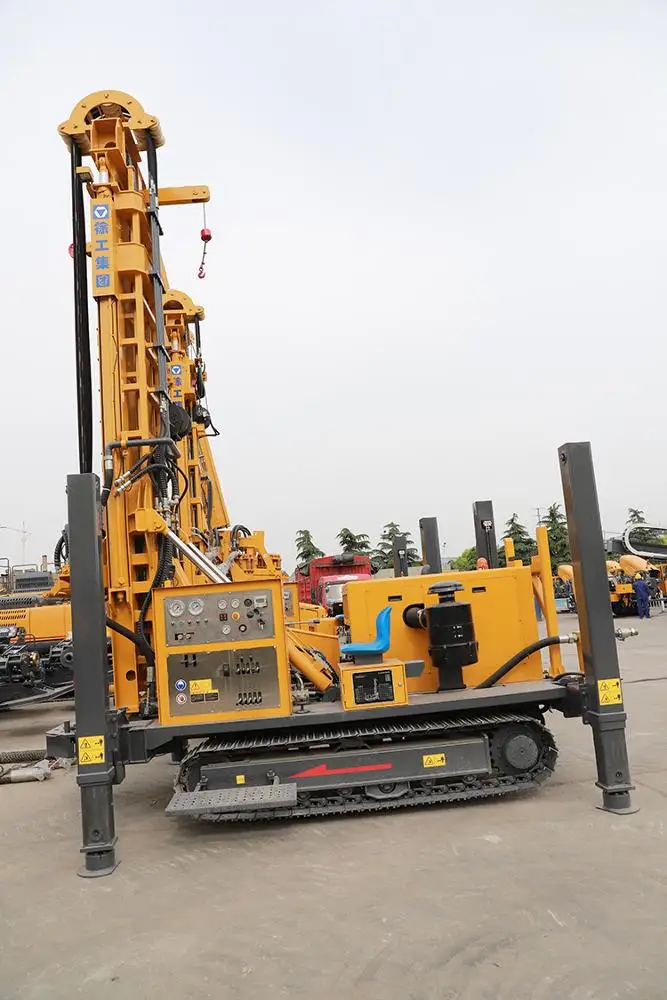

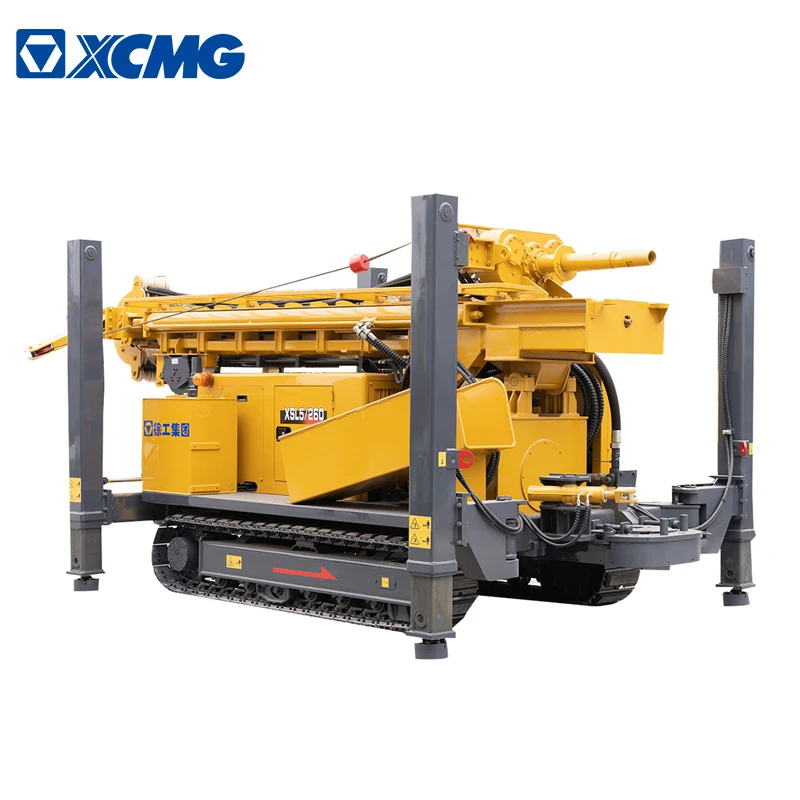

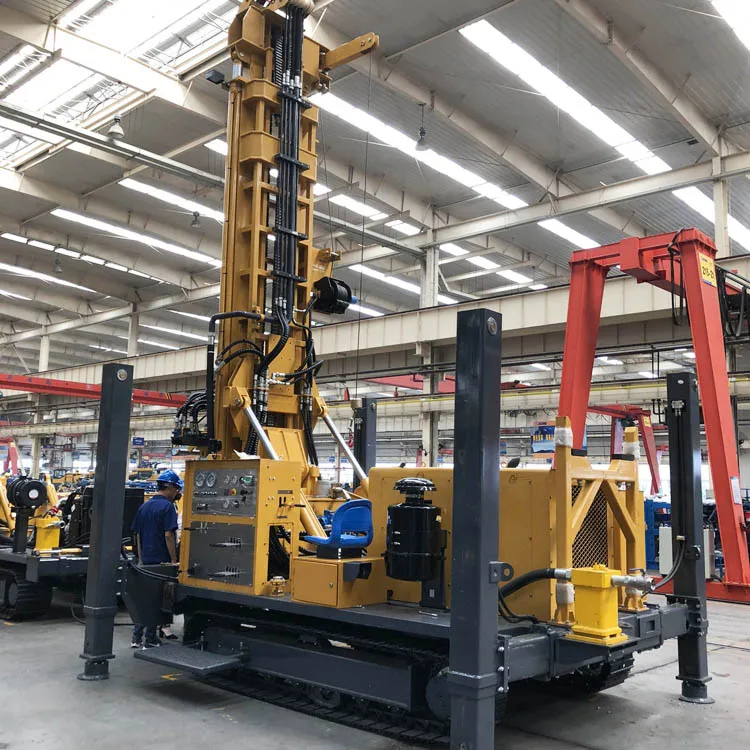

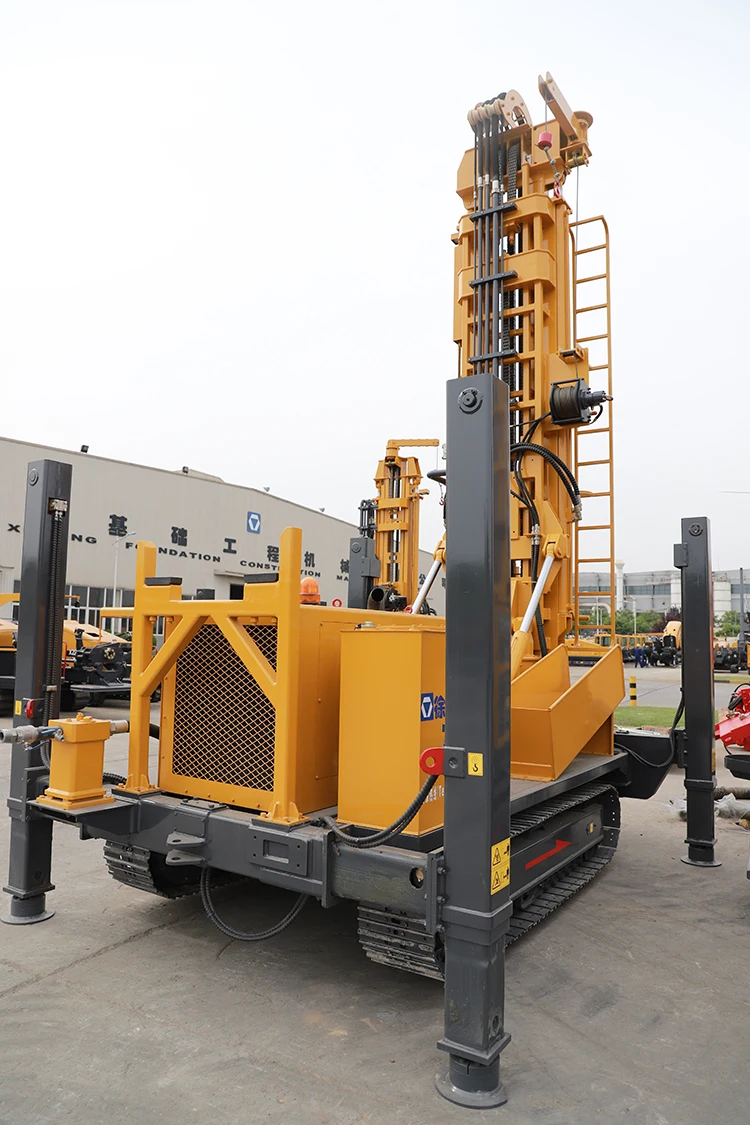

Product Show
