Характеристики


Product Description
Specification
Product Overview

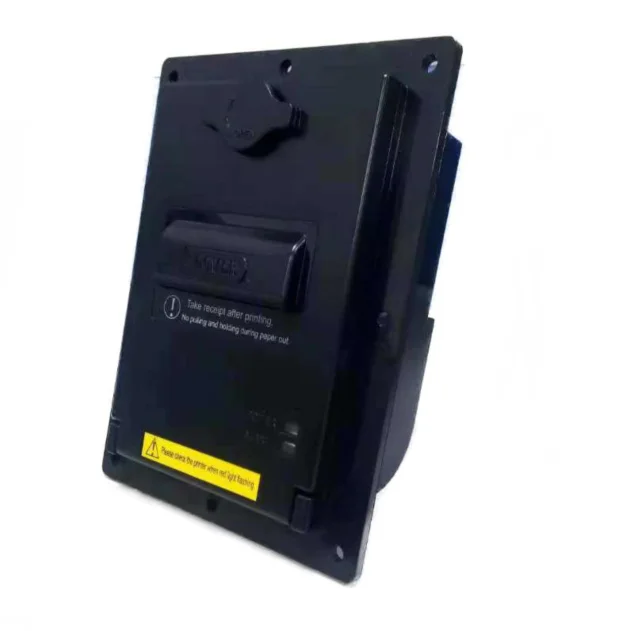

This product is an embedded thermal receipt printer designed as industrial standard with following features:


* Thermal printing
* With Fujitsu FTP-628MCL103#72-R two inch printing mechanism
* Platen bracket material: die casting aluminum
* Error detection for print head over heat(protective circuit for power), no paper and platen open(indicate error on ALARM LED
if platen not closed properly)
* With sawtooth cutter(outside near paper exit) made from plastic
* With paper feed and self test button
* Support picture and logo printing
* Over heat protection for printing mechanism
* Interface selection: RS232 and RS485(through reserved DIP switch position)


Noted: 1): RS-485 interface selected while shipping from MINGTE factory.
2): Electrical level for RS232 interface: EIA

* Printer address(settable): through DIP switch
* Printing speed: 50mm at 3A peak current & slow speed at 1A current limit controlled by ESC commands
* Communication protocol: ESC C
* Baud rate(settable): 2400, 4800, 9600 and 19200(through DIP switch)
* Support online update
* Front panel with lock
* Water and dust proof
* PCB ROHS compliant
* Interface connector: 6 PIN Molex Mini-fit(part no 38-28-1063) and 2 Pin conncector molex minifit for power
* Long lifetime
Technical Index
* Working voltage:
Rated working voltage: DC 8V. Working voltage range: DC 6~9.5V
* Average working current: 3A/1A(can choose by ESC commands)
Static current: 110mA
* Outline dimensions: Max size: 133.5mm × 178.5mm × 80.5mm, tolerance: +/- 0.3mm
* Weight: 450g
* Paper loading method: easy paper loading
* Thermal paper roll: Max external diameter: 50mm

Perforated minimum inner diameter: 12mm
* Paper width: 57.5±0.5mm
* Paper thickness: 60 to 100 um
* Printing width: 48mm
* Printing resolution: 384 dots / line
* Character per line: 9*24 dots(42 characters), 12*24 dots(32 characters), 24*24 dots(16 characters), western characters 1、2.
20h—7fh standard ASCII code.
* No of logo saved: 16 nos max (500Kbyte capacity). Memory size of logo: max 32K byte for one logo. Printed logo height: 1 inch.
Note: Can adjust the logo qty and size based on customer requirements.)
* Printing speed: ≥50mm/s(DC8V/3A, heating dots are 25% per line)

Printing speed: ≥20mm/s(DC8V/1A, heating dots are 25% per line)
* Printer receiving buffer: 4KB
* Printing lifetime: 50Km
* Lock lifetime: 5000 times. Lock cover (plastic) to hide lock: clockwise direction to close and anticlockwise direction to
open.
* Printer enclosure material: PC+V0 plastic material
* Axis for front cover: 180 degree (or same as PT100)
* LED Error indicators: Alarm(RED), Power(GREEN)
* Environment conditions:

Working temperature: 0~55℃. Relative working humidity: 5~85%(no condensation)
Storage temperature: -20~70℃. Relative storage humidity: 10~95%(no condensation). Note: Printer will not be damaged if exposed to
-40°C, but MINGTE can not make sure the printing density.
* Ingress protection enclosure: IP54
* Electrostatic Discharge (ESD): Contact discharge: 6KV; Air discharge: 8KV (can self-restore). Note: 8KV (contact discharge):
maybe the printer will crash, and need to be restarted. 15KV (air discharge): maybe printer components will be damaged.
* Surge: Power line: ± 2KV; Signal line: ± 1KV(can self-restore)
