1700C 1800C U W-образный молибденовый дисилоцид MoSi2 нагревательный элемент для
- Категория: >>>
- Поставщик: Yancheng,Vinson,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.63 $* | 0.25 $* |
| Aug-20-2025 | 0.8 $* | 0.12 $* |
| Jul-20-2025 | 0.12 $* | 0.23 $* |
| Jun-20-2025 | 0.15 $* | 0.15 $* |
| May-20-2025 | 0.36 $* | 0.1 $* |
| Apr-20-2025 | 0.7 $* | 0.58 $* |
| Mar-20-2025 | 0.8 $* | 0.7 $* |
| Feb-20-2025 | 0.12 $* | 0.34 $* |
| Jan-20-2025 | 0.72 $* | 0.8 $* |
Характеристики
\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t
1700C 1800C U W shape Molybdenum Disilicide MoSi2 rod heater heating element for Furnace
Molybdenum disilicide(MoSi2) heating element:
Mosi heating element is a kind of resistance heating element basically made of pure molybdenum Disilicide. In oxidizing
atmosphere, a layer of compact quartz protective film is formed on the surface of Mosi 2 element owing to the high temperature combustion, which prevents Mosi 2 from continuously oxidizing.
Mosi heating element is a kind of resistance heating element basically made of pure molybdenum Disilicide. In oxidizing
atmosphere, a layer of compact quartz protective film is formed on the surface of Mosi 2 element owing to the high temperature combustion, which prevents Mosi 2 from continuously oxidizing.
In oxidizing atmosphere, its Max temperature can reach 1800 c and its applicable temperature is 500-1700. It can be widely used in such applications as sintering and heat treatment of ceramics, magnet, glass, metallurgy, refractory etc. the commercial name of our Mosi 2 heating element is KERONE Mosi 2 Heating Elements.
mosi2 heating element
mosi2 heating element
1. According to temperature: 1700C and 1800C

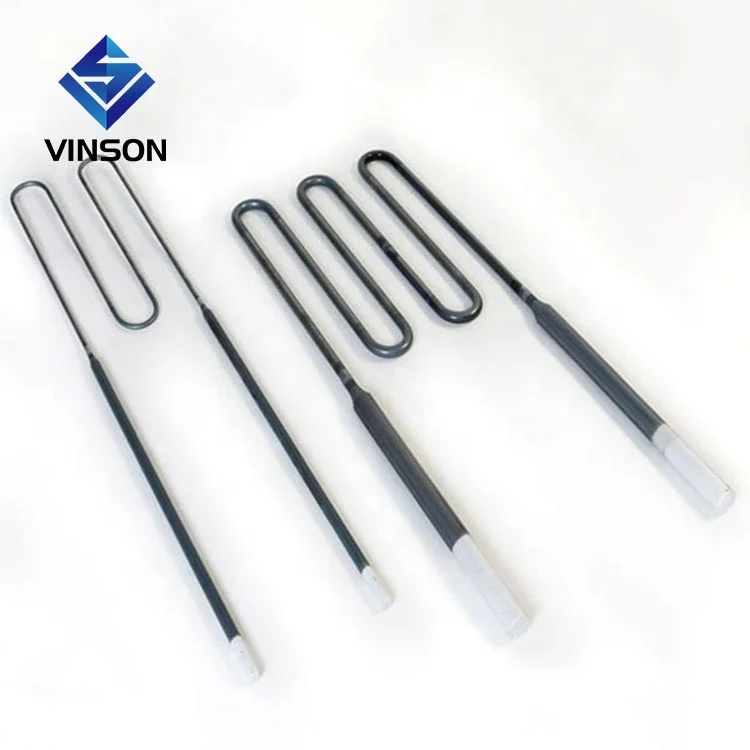

2. According to Shape: U, W, I, UL, WL, Spiral types.
2. According to Shape: U, W, I, UL, WL, Spiral types.
mosi2 heating element standard size
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1900 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1700 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1800 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
M1900 type (d/c): dia3/6, dia4/9, dia6/12, dia9/18, dia12/24
Physics characters of mosi2 heating element
Bulk density | Bending strength | Hardness | Apparent porosity | Drawing water rate | Thermal elongation |
5.6~5.8g/cm3 | 20MPa(20℃) | (hv)570kg/mm² | 0.5~2.0% | 0.5% | 4% |
Recommend surface load:
Furnace Temp(°c) | 1400 | 1500 | 1600 | 1650 | 1700 |
Surface load of hot zone(W/cm²) | <18 | <15 | <12 | <10 | <8 |
Installation of mosi2 heating element

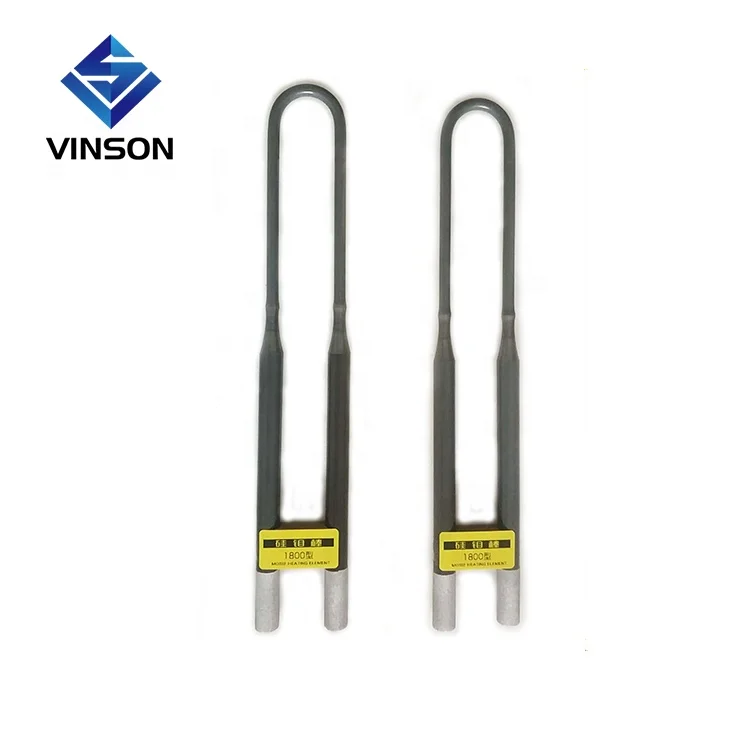

1)Vertically hanging
Under normal temperature, MoSi2 element is very brittleness, while under high temperature, it is plasticity, so the better way to install U Shape element is to hang it vertically from the furnace top through the support clamping chuck. The aim of such way is to avoid putting the mechanical stress directly to the element heat-generating end; otherwise the element will easily be broken.
2) Support clamp
Support clamp are applied to 9/18 and 6/12 two kinds of elements respectively. The support clamp supports the whole weight of the element and the position of the element is also determined by it, therefore, it must be installed carefully to assure the element vertically hung. In order to prevent the element from being over heated locally, the taper part of the element lower end must put into the furnace chamber.
Under normal temperature, MoSi2 element is very brittleness, while under high temperature, it is plasticity, so the better way to install U Shape element is to hang it vertically from the furnace top through the support clamping chuck. The aim of such way is to avoid putting the mechanical stress directly to the element heat-generating end; otherwise the element will easily be broken.
2) Support clamp
Support clamp are applied to 9/18 and 6/12 two kinds of elements respectively. The support clamp supports the whole weight of the element and the position of the element is also determined by it, therefore, it must be installed carefully to assure the element vertically hung. In order to prevent the element from being over heated locally, the taper part of the element lower end must put into the furnace chamber.
mosi2 heating element Application:
Item | name | distinction criterion | specification |
Heating elements | 1700 type | Element operating temperature 1700℃ is acceptable | Le Φ 6-12W type/U type/L type/all kinds of heating element |
1800 type | Element operating temperature 1800℃ is acceptable | ||
1800J type | Element operating temperature≥1800℃ | Le Φ 3-12W type | |
1800T type | Element operating temperature≤1800℃ | Le Φ 3-12W type U type |
Small furnace (power100KW) | Large furnace(Power 100-500KW) | ||||
Furnace temperature | Voltage | furnace temperature℃ | Voltage | ||
20-150 | 1/3 Operating voltage | 1/3 Operating voltage200-300 | 1/3 Operating voltage | ||
150-500 | 2/3 Operating voltage | 300-700 | 2/3 Operating voltage | ||
500-operating temperature | The Whole-Operating Voltage | 700-Operating temperature | The Whole-Operating Voltage | ||

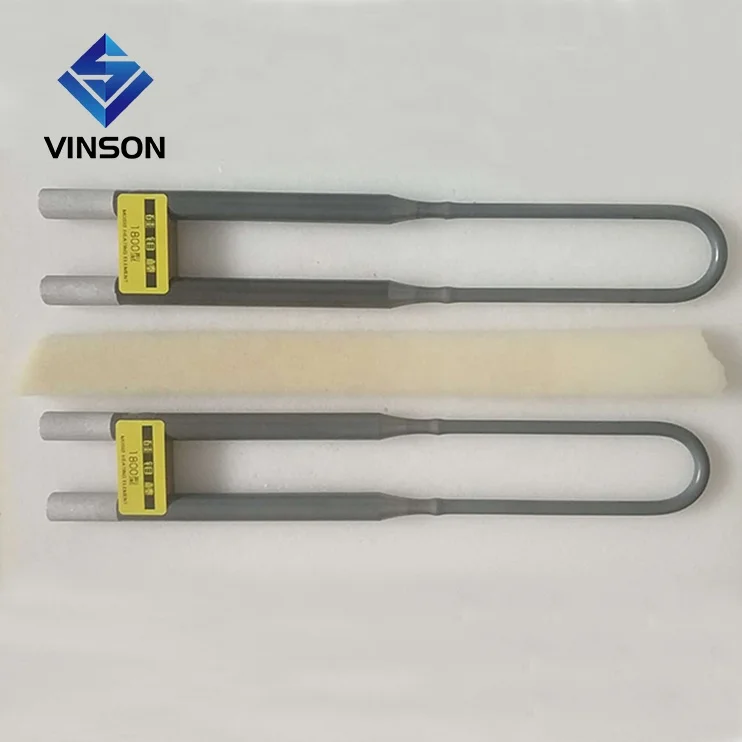

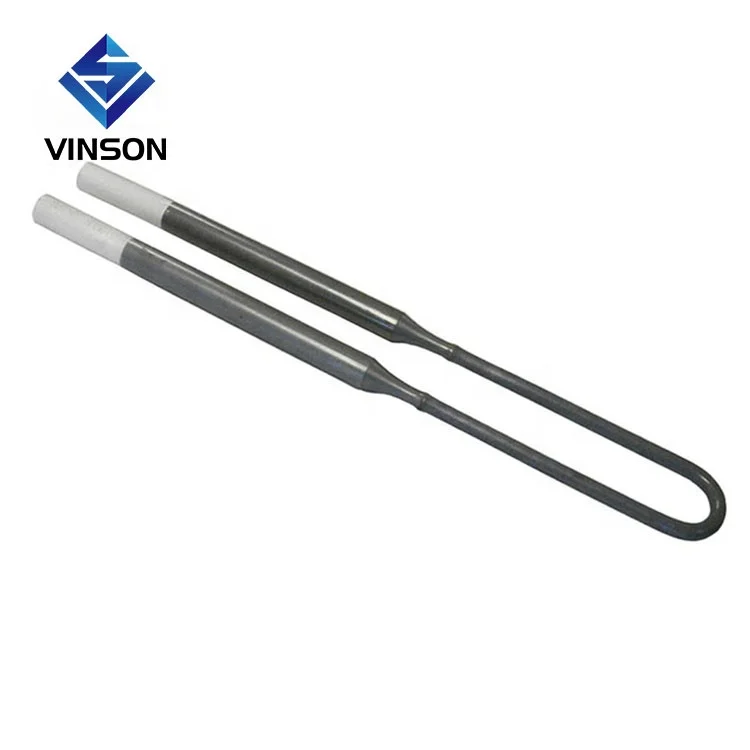

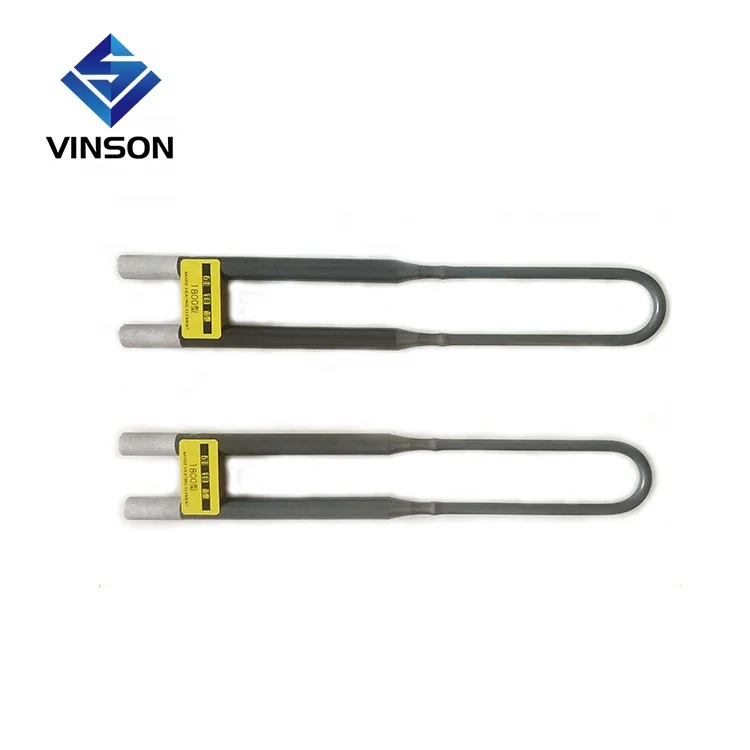

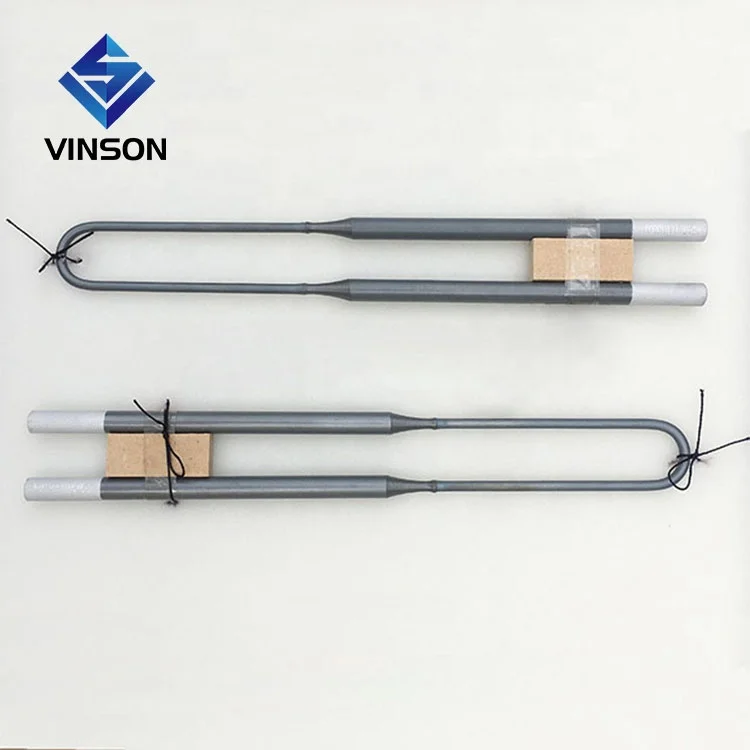

Picture of mosi2 heating element
Order Guide
Normal model for 1700C 1800C U W shape Molybdenum Disilicide MoSi2 rod heater heating element for Furnace
When you need it, please tell us the following data
HD: Diameter of Hot Zone(mm)
CD: Diameter of Cold Zone(mm)
HL: Length of Hot Zone(mm)
CL: Length of Cold Zone(mm)
M: Shank Spacing(mm)
HD: Diameter of Hot Zone(mm)
CD: Diameter of Cold Zone(mm)
HL: Length of Hot Zone(mm)
CL: Length of Cold Zone(mm)
M: Shank Spacing(mm)
Package & Delivery
Package for MoSi2 heating element
Wooden box packed filled with foam inside to avoid damage
FAQ
1. How can I get your prompt quotation for mosi2 heating element?
We can give you reply with quotation quickly if you kindly send the inquiry with following factors: diameter (or thickness and
width), brand name (or working temperature), electrical resistance(Resistivity), application and quantity.
2.What's the MOQ of the order?
No limit, we can offer the best suggestions and solutions according to your condition.
3. Which payment terms can you accept?
Alibaba assurance/Paypal/Western union and TT Bank are available for us.
4. After an order is placed, when to delivery?
7-10 days after confirming the order
5. Does your company accept customization?
We accept OEM service.
6. How to solve the quality problems?
If the products don’t conform to customer’s samples or have quality problems, our company will be
responsible to make compensation for it based on enough evidences.
7. What is the HS code?
The HS code is 85169090
We can give you reply with quotation quickly if you kindly send the inquiry with following factors: diameter (or thickness and
width), brand name (or working temperature), electrical resistance(Resistivity), application and quantity.
2.What's the MOQ of the order?
No limit, we can offer the best suggestions and solutions according to your condition.
3. Which payment terms can you accept?
Alibaba assurance/Paypal/Western union and TT Bank are available for us.
4. After an order is placed, when to delivery?
7-10 days after confirming the order
5. Does your company accept customization?
We accept OEM service.
6. How to solve the quality problems?
If the products don’t conform to customer’s samples or have quality problems, our company will be
responsible to make compensation for it based on enough evidences.
7. What is the HS code?
The HS code is 85169090
\t\t\t\t\t\t\t\t\tOur Factory \t\t\t\t\t\t\t
Yancheng Vinson Technology Co., Ltd was established in 2001 and has about 20 years' production history. We have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development.
"Quality is in my hand, Customer is in my heart" Quality is our culture, Our products have been exported to Europe, America, Asia, Mid East etc more than 200 countries. We are extensively used in electric heating and other industries. We hope our products and services can benefit your company, and our cooperation can be mutually beneficial win-win situation.
