Qingzhou GONGLE factory price greenhouse coal stove gas oil heater for poultry

Advantages:



1) Cpal, gas or oil burning,clean
2) energy saving
3) high efficiency
4) economic, good performance
5)automatic controlled,widely used for greenhouse,poultry house, industrial etc heating.

Specifications for greenhouse/poultry house/ industrial etc air heater:



WZD automatic gas/oil stove / heatert  SPECIFICATION
	calorific value		heated area	Temperature	Diesel	Liquid gas	Natural gas	Power	Power	Outsize ( mm )
	Kcd/h	KW	m2	°C	Kg/h	Nm3/h	Nm3/h	KW	V	L	W	H
WZD-5	5*104	60	350	60-100	5	2.27	5.58	0.55/1.5	380/220	1310	940	1425
WZD-10	10*104	120	700	60-100	10	4.54	11.7	0.85/2.2	380/220	1574	1280	1520
WZD-15	15*104	175	1000	60-100	15	6.4	16.3	1.1/3	380/220	1760	1300	1550
WZD-20	20*104	230	1300	60-100	20	9.1	23.4	1.76/5.5	380/220	1860	1340	1580

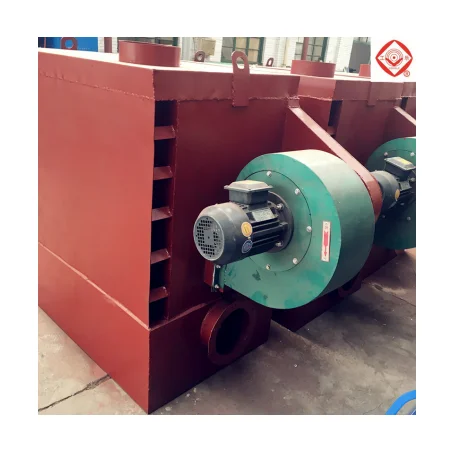

1)Oil/Gas burning air heater/stove:

1.Automatic andcontrol box

2.Oil or natural gas burner

3.Air blower to make the air enter into the stove

4.Hot air outlet ,connect the air tunnel

5.The hoop for hoising at the four corners



The heat exchange system of this product is made up of resistent stainless steel sheet .

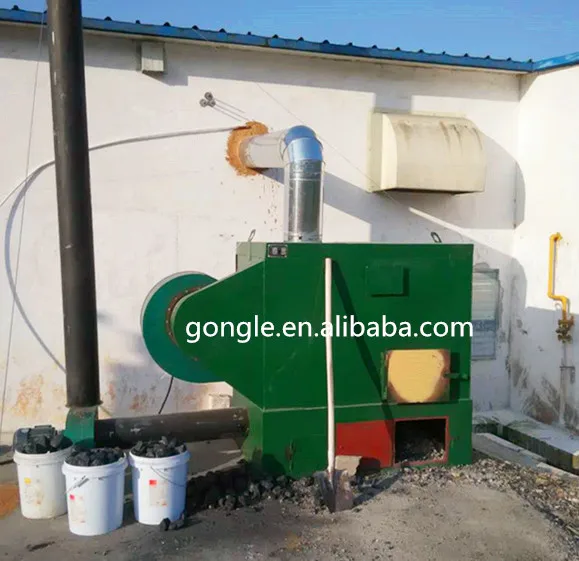

 2)Coal burning air heater/stove:
Technical parameters:

Detail pictures:





1.Coal feeding mouth

2.The soot door to clear away the coal cinder

3.Maintenance hole

4.air blower and air inlet

5.hot air outlet

6.Induced draft fan

7.Stack nozzle ,exclude the smoke



3)the control box for air heater:



Other hot producsts  as below , if you are interested in our some products, welcome to trouble us :
