Изготовитель EMT индивидуальные металлические образцы с несколькими отверстиями КОРРОЗИОННЫЙ купон для тестирования
- Категория: Другие инструменты для испытаний >>>
- Поставщик: Shenyang,Emt,Piping,Technology,Co.,ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 11.77 $* | 11.78 $* |
| Jul-17-2025 | 9.38 $* | 9.54 $* |
| Jun-17-2025 | 11.73 $* | 11.0 $* |
| May-17-2025 | 11.4 $* | 11.50 $* |
| Apr-17-2025 | 9.99 $* | 9.5 $* |
| Mar-17-2025 | 11.52 $* | 11.22 $* |
| Feb-17-2025 | 11.19 $* | 11.65 $* |
| Jan-17-2025 | 11.84 $* | 11.18 $* |
Характеристики
Products Description
Corrosion Coupons
Corrosion coupons are a simple yet effective tool for providing a quantitative estimation of corrosion rates occurring in an operating system.
They also provide a visual indication of the type of corrosion which may be occurring in the monitored system.
Name | Cutomized Metal Corrosion Coupon For Pipeline Testing | ||||||||
Material | Stainless Steel 304、Stainless Steel 316、DSS F51、Carbon Steel A105N、Inconel 625 | ||||||||
Operating Temperature | -20-+120 | ||||||||
Feature | 1.Easy Operating | ||||||||
2.High Accuracy Long Life | |||||||||
3.High Efficiency Low cost | |||||||||
Payment | TT/LC | ||||||||
Advantage | 1.They are light weight and flexible. | ||||||||
2. Nice Injection efficiency. | |||||||||
3.Accurate location tracking. | |||||||||
THE CORROSION COUPON
Is a piece of metal of predetermined shape, size and surface area
·Is a metal of similar chemical composition to the process equipment
·Has a uniform reproducible surface finish
·Has a distinguishing serial number
·Is exposed to the same corrosive medium as the process facilities
·Is exposed for a fixed period of time
·Gives visual indication of the type of corrosion
·Indicates the rate of corrosion
·Is a metal of similar chemical composition to the process equipment
·Has a uniform reproducible surface finish
·Has a distinguishing serial number
·Is exposed to the same corrosive medium as the process facilities
·Is exposed for a fixed period of time
·Gives visual indication of the type of corrosion
·Indicates the rate of corrosion

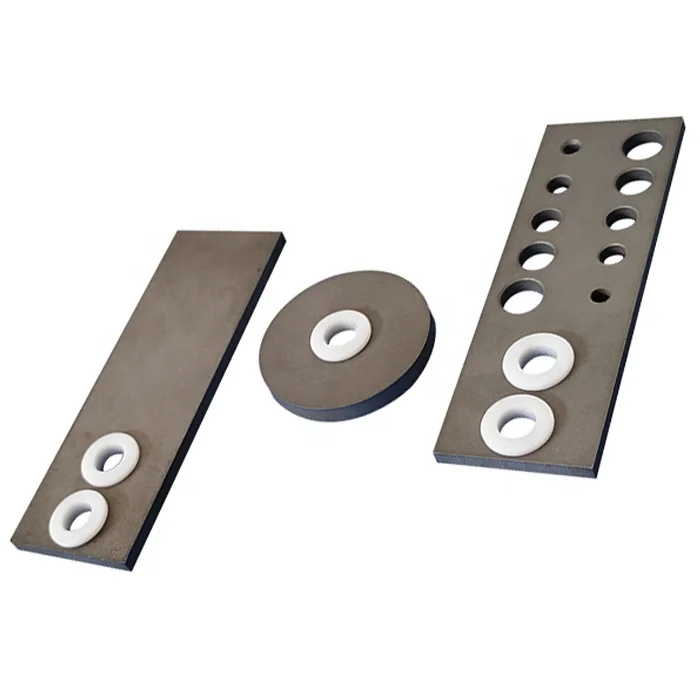

Strip Coupon - Standard
Commonly-used coupon supplied for most evaluations.
The size is 3" x ¾“ x 1/16"
(76.2mm x 19.0mm x 3.2mm)
with two (2) mounting holes.
The exposed surface area is 4.65 in2 (3,000mm2).
Strip Coupon - Multihole
Used with low pressure access equipment or through narrow ports that a standard ¾\u0093 wide coupon cannot pass.
The size is 3" x ½" x 1/16" (76.2mm x 19.0mm x 3.2mm)
with two (2) mounting holes.
The exposed surface area is 2.65 in2 (1,709mm2).
Disc Coupon
These circular coupons are used in stacked multiple disc monitoring applications. Standard size is Ø 1.25" with a thickness of 1/16" (Ø 31.8mm x 3.2mm)
with one mounting hole.
with one mounting hole.
The exposed surface area is
2.65 in2 (1,709mm2).
2.65 in2 (1,709mm2).
Details Images

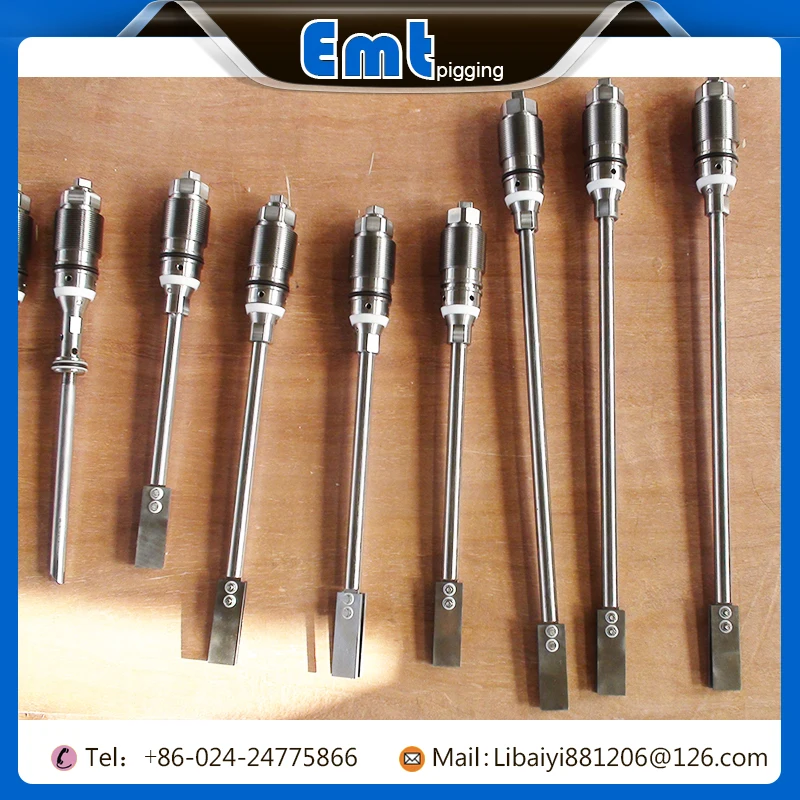

Installation Instructions
Coupon Insulation
Caproco standard coupons come furnished complete with insulation made from Delrin, which has a temperature rating of 200"F (93"C). Insulation for higher temperature requirements is available and should be specified when required.
The higher temperature insulation materials are:
Teflon - 500"F (260"C)
Rulon - 550"F (288"C)
Ceramic - 1472"F (800"C)
Rulon - 550"F (288"C)
Ceramic - 1472"F (800"C)
If you have any request of pigging products,just contact us,we can design products as your require!
Why Choose Us
2. Samples will be offered to attest to the quality and our services.
3. The fastest feedback!
4. The fastest delivery time.
5.24 hours,7 days online.
EMT has own factory and reliable raw material supplier, so you can enjoy no MOQ and prompt delivery!
Packaging & Shipping
Anti-corrosion oilpaper
We will use the anti-corrosion oilpaper to pack the corrosion coupon to prevent rust.
Mark the NO. and the N.W.
Mark the different NO. on the
every corrosion coupons to distinguish others. And mark
the N.W. to record data.
Zip-lock bag
After packed the anti-corrosion oilpaper, the corrosion will put in the Zip-lock bag to save.
PLYWOOD CASE
We use PLYWOOD CASE as packaging, it has the following advantages:
1.Light weight,clear lines,insulation,high strength,not easy to deformation.
2.No fumigation required.
Transport
We cooperate with many express companies. That could help you choose a courier company with cheaper freight.
By Sea
Shenyang is close to Dalian Port, inland transportation costs almost nothing and takes short time.
