SIDIOU STWQ4-14C гибочная машина поставщик комбинированных высококачественных профилей
- Категория: Rebar Cutting Machine >>>
- Поставщик: Xuchang,Sidiou,Intelligent,Machinery,Works,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 22610.92 $* | 23741.88 $* |
| Aug-20-2025 | 22420.34 $* | 23541.41 $* |
| Jul-20-2025 | 18810.44 $* | 19751.70 $* |
| Jun-20-2025 | 22040.42 $* | 23142.93 $* |
| May-20-2025 | 19190.98 $* | 20150.70 $* |
| Apr-20-2025 | 21660.91 $* | 22743.38 $* |
| Mar-20-2025 | 21470.82 $* | 22544.37 $* |
| Feb-20-2025 | 21280.10 $* | 22344.45 $* |
| Jan-20-2025 | 21090.13 $* | 22145.1 $* |
Характеристики

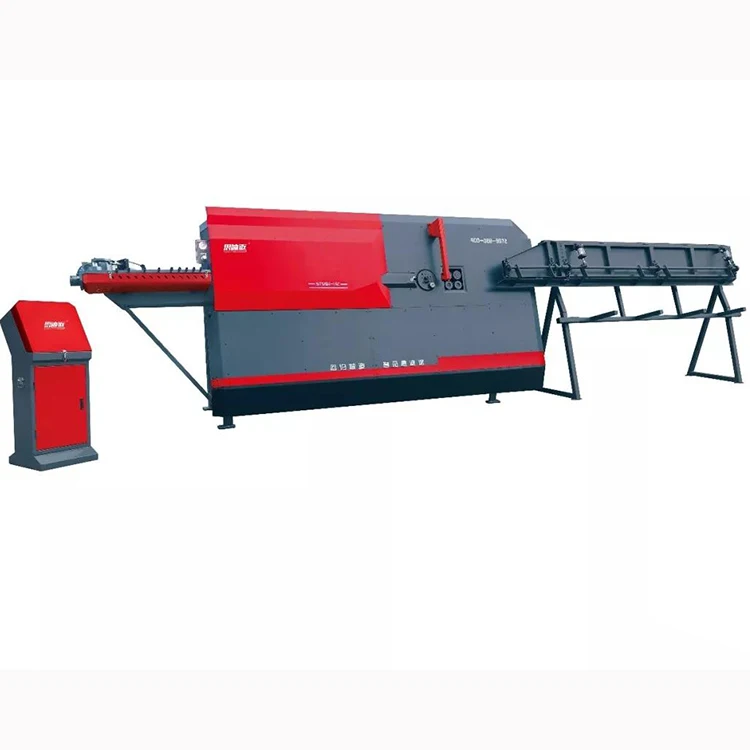

SIDIOU STWQ4-14C bending machine supplier combined high quality profile
Product Description
The automatic bending machine can straighten and bend the cold-rolled ribbed steel with a diameter of 4-10 mm, hot-rolled three-grade steel, round steel bars and colored round materials. The automatic bending machine is simple in operation, high automation and convenient in adjustment.

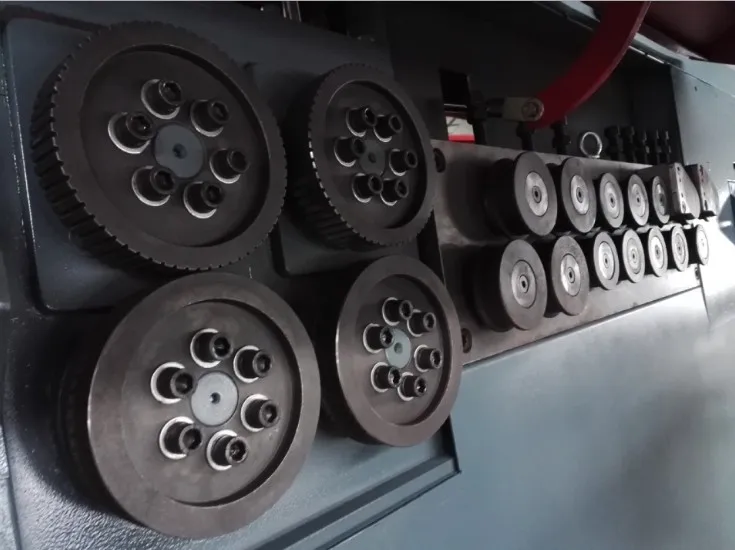

1. Straightening part: The straightening part consists of 24 straightening rolls. The straightening roller is driven by the motor cam belt drive system and the reducer. The straightening roll is composed of upper and lower 12 rolls and horizontal 12 rolls. The amount of roll reduction reaches the straightening of the steel bar.
2. Hydraulic shearing part: The hydraulic shearing part is driven by a 4kw motor to drive the hydraulic pump, solenoid valve and relief valve to control the cutting cylinder. The cutting device is installed at the front end of the bending part, and the signal is given by the stroke switch of the bending part during operation, which is the synchronous operation of cutting and bending.

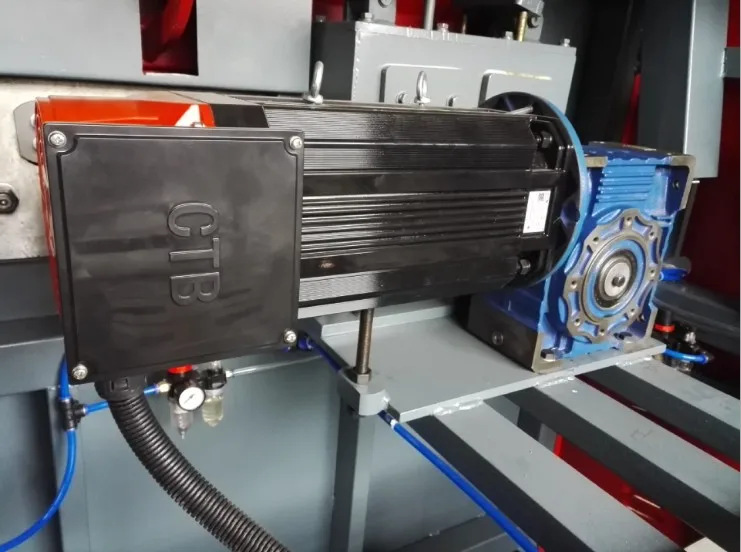

3, Electrical control device: electrical control device are mainly composed of straightening motor, bending hoop motor, hydraulic system motor, solenoid valve, console, length control travel switch and circuit.
2. Hydraulic shearing part: The hydraulic shearing part is driven by a 4kw motor to drive the hydraulic pump, solenoid valve and relief valve to control the cutting cylinder. The cutting device is installed at the front end of the bending part, and the signal is given by the stroke switch of the bending part during operation, which is the synchronous operation of cutting and bending.
3, Electrical control device: electrical control device are mainly composed of straightening motor, bending hoop motor, hydraulic system motor, solenoid valve, console, length control travel switch and circuit.
Product Paramenters
Company Introduction
Xuchang SIDIOU Intelligent Machinery Works Co.,Ltd. is ,specialized in cnc stirrup bender ,cnc bending center,rebar bender ,rebar cutter ,rebar straightening and cutting machine ,rebar stirrup bender ,rebar spiral maker etc.
Our machines have got more than 20 patents and exported to more than 40 countries,we attend china canton fair as exhibitor every year since 2011
