Высокое качество 220/ 380/ 415/ 440VAC GW40B червячная передача вождения 6-30 мм ручной арматуры круглого адвокатского сословия конструкции стальной слиток гибочный
- Категория: >>>
- Поставщик: Henan,Grimmsky,Machinery,And,Electric,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 631.75 $* | 663.83 $* |
| Aug-15-2025 | 625.53 $* | 656.3 $* |
| Jul-15-2025 | 525.26 $* | 551.85 $* |
| Jun-15-2025 | 615.58 $* | 646.27 $* |
| May-15-2025 | 535.77 $* | 562.43 $* |
| Apr-15-2025 | 604.76 $* | 634.94 $* |
| Mar-15-2025 | 599.3 $* | 629.70 $* |
| Feb-15-2025 | 594.36 $* | 624.7 $* |
| Jan-15-2025 | 588.22 $* | 617.53 $* |
Характеристики

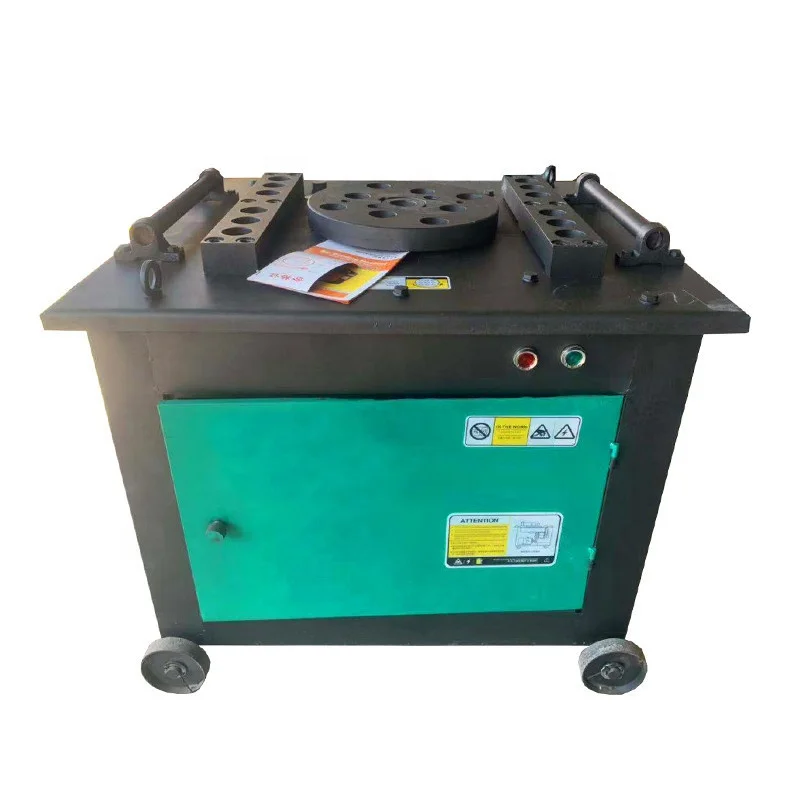

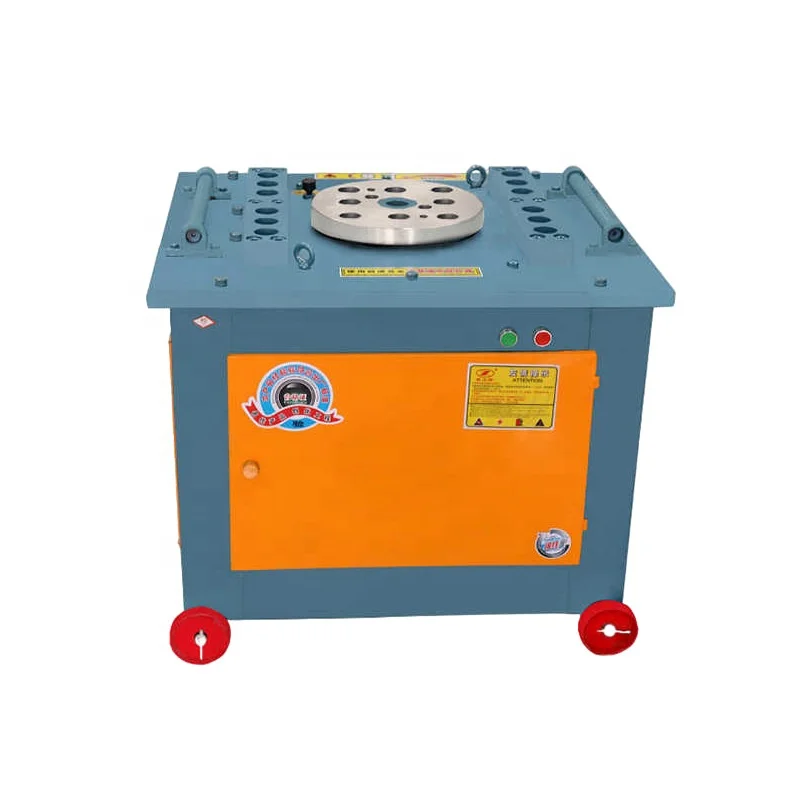

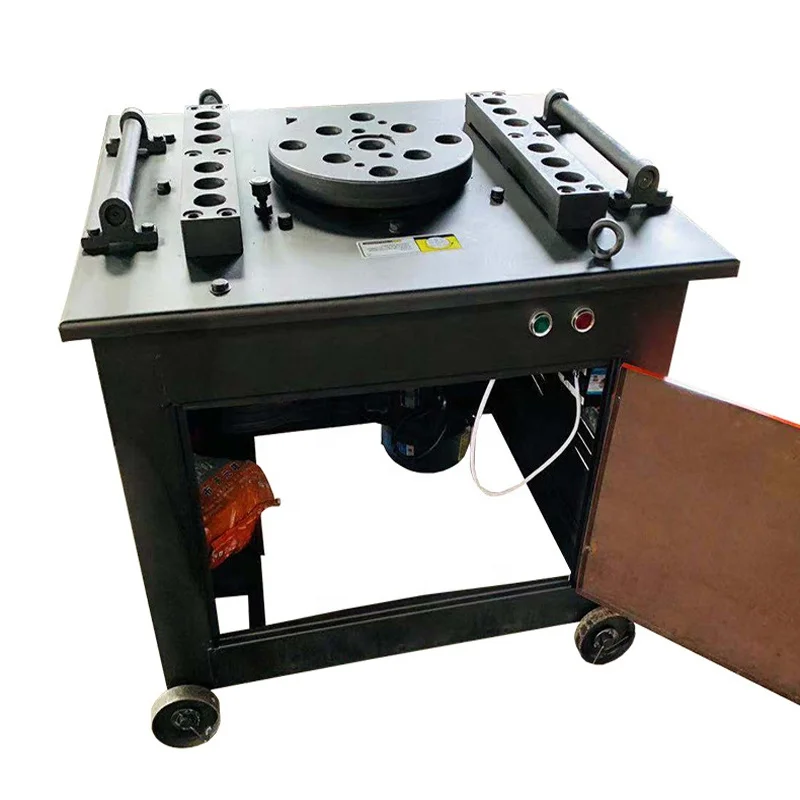

GW40B Round Bar Bender Steel Bar Bending Machine Rebar Bending Machine
Product Overview
Rebar Bending Machine
Steel bar bending machine is applicable to normal carbon steel, hot rolled round steel and screw steel in all kinds of reinforced concrete in construction engineering.
Our Advantages
Professional production team, production line, technician.
1. The steel bar bender is a double driving wheel, equipped with pre bending device, which can work in a straight and reverse direction. After the driving wheel is replaced, it can bend flat steel, square steel, square pipe and rectangular pipe.
2. The steel bar arc bending machine adopts double driving wheel transmission structure, forming once.
1. The steel bar bender is a double driving wheel, equipped with pre bending device, which can work in a straight and reverse direction. After the driving wheel is replaced, it can bend flat steel, square steel, square pipe and rectangular pipe.
2. The steel bar arc bending machine adopts double driving wheel transmission structure, forming once.
3. The working wheel of the steel bar arc bender is made of high steel, which is solid and durable. The fully enclosed steel plate welded gear box has ultra-low noise.
4. The arc steel bar bending machine has the advantages of simple operation, convenient maintenance, efficient and fast arc bending efficiency, and preparation of arc bending, which can realize one-time forming.
Product Description
Model | GW40A | GW40B | ||||
Power | 3KW=4HP | 3KW=4HP | ||||
Voltage | 220VAC/ 380VAC/ 415VAC/ 440VAC/ Customized | 220VAC/ 380VAC/ 415VAC/ 440VAC/ Customized | ||||
Dimension | 740*860*650MM | 740*860*650MM | ||||
Disk Diameter | 350MM | 350MM | ||||
Bending Diameter | 6-28MM Rod Bar | 6-30MM Rod Bar | ||||
Bending Speed | 22pcs/min | 22pcs/min | ||||
Net Weight | 180KGS | 220KGS | ||||

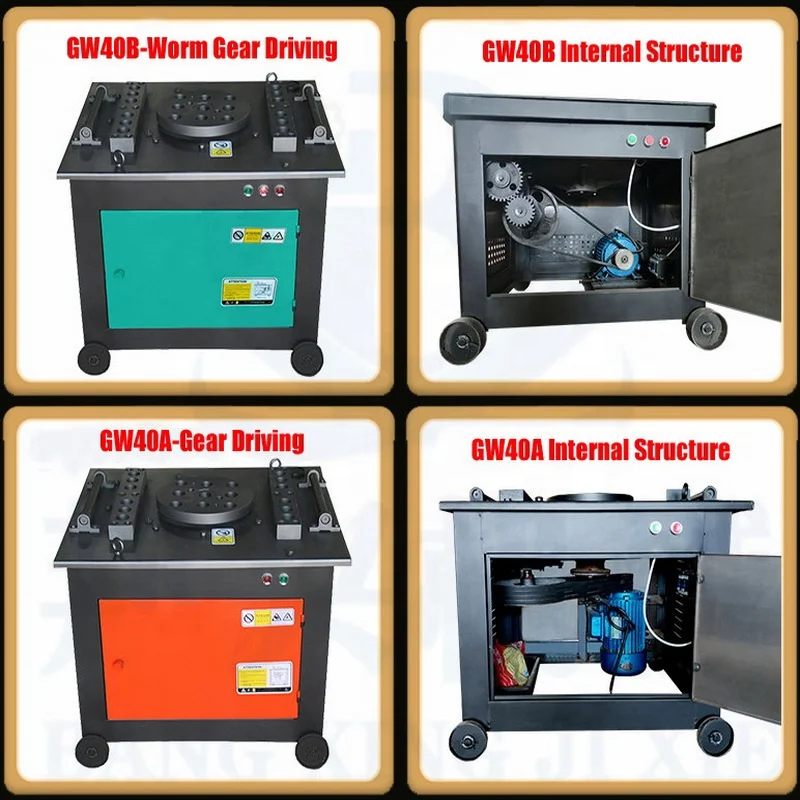

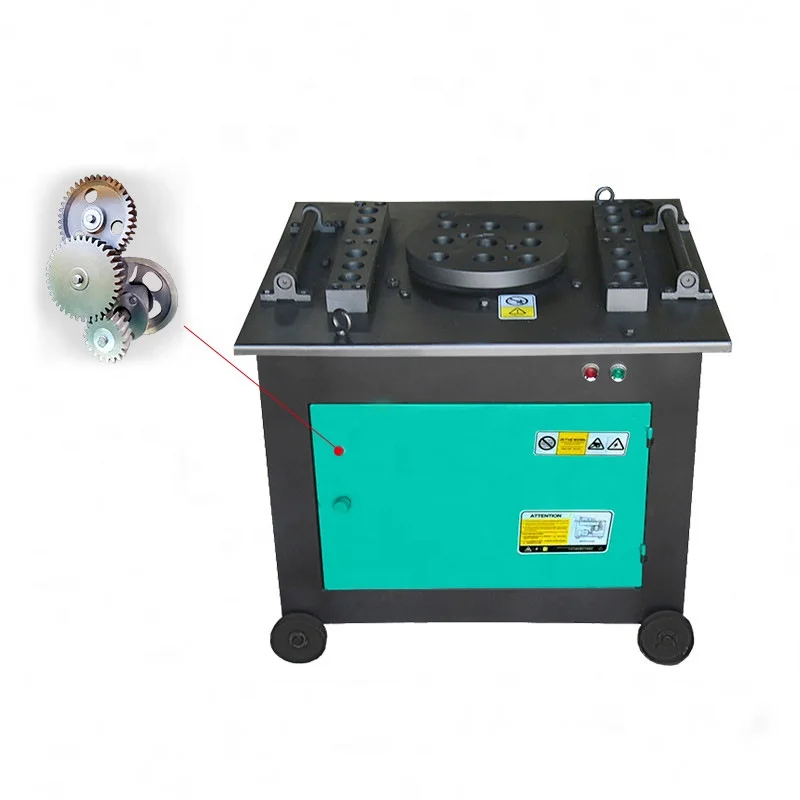

Driving Mode | Gear Driving | Worm Gear Driving | ||||
Motor Speed | 1440RPM | 1440RPM | ||||
Test Showing

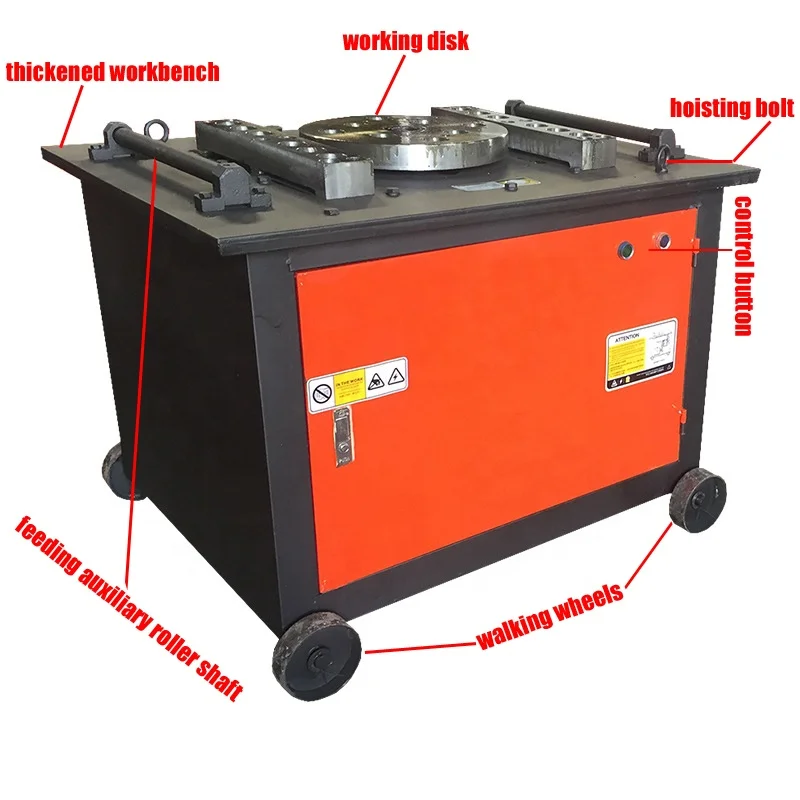

Details Images
Factory Workshop Showing
Main Application
Packing Showing
