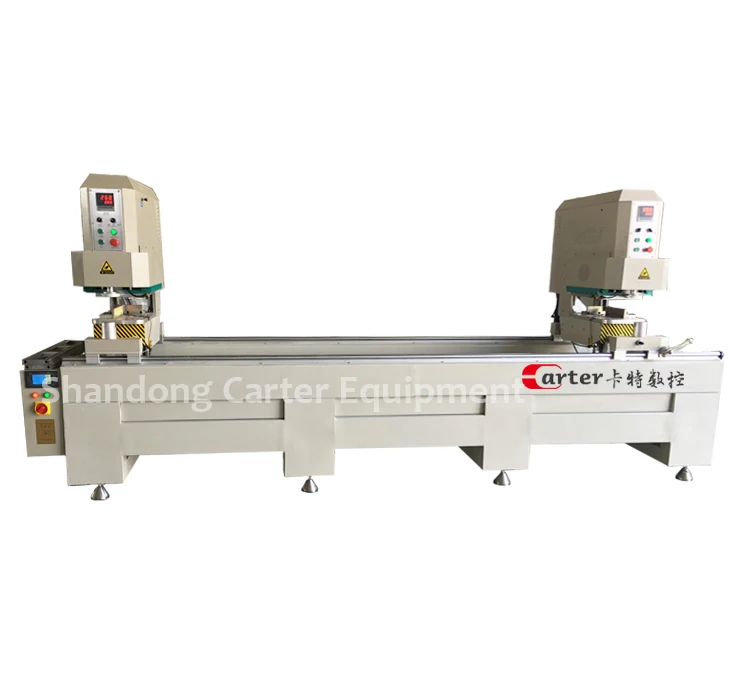

Бесшовная сварочная машина из ПВХ оборудование для окон и
- Категория: Окна и двери, делая машину >>>
- Поставщик: Shandong,Carter,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.94 $* | 0.37 $* |
| Aug-15-2025 | 0.71 $* | 0.77 $* |
| Jul-15-2025 | 0.75 $* | 0.29 $* |
| Jun-15-2025 | 0.1 $* | 0.23 $* |
| May-15-2025 | 0.92 $* | 0.97 $* |
| Apr-15-2025 | 0.14 $* | 0.70 $* |
| Mar-15-2025 | 0.20 $* | 0.76 $* |
| Feb-15-2025 | 0.82 $* | 0.88 $* |
| Jan-15-2025 | 0.45 $* | 0.37 $* |
Характеристики
Product Description
* Variable angle welding between 30 to 180 degree.
* Specialized for V-welding, cross welding easily, avoid complicated adjustment.
* Imported square bearing system guarantee clamping, heating plate, locating plate moving precision& reliable performance.
* The upper and down movement of the heating plate adopts the linear slide movement machinery. The welding heating is the upper
and lower double heating plate device. The upper and lower movement welding method ensures the smooth movement precision of the
welding plate up and down.
* The operation of the local pressure clamp use high-precision imported square rail to ensure the linearity and smoothness of
welding
* One head with welding any angle of the function, to meet the user’s welding arc window and other special-shaped doors and
windows requirements
* Can adjust the PLC parameters, according to different profiles easy to adjust the data.
* Used for colorful and white profiles
* Two hand safety operation
* Specialized for V-welding, cross welding easily, avoid complicated adjustment.
* Imported square bearing system guarantee clamping, heating plate, locating plate moving precision& reliable performance.
* The upper and down movement of the heating plate adopts the linear slide movement machinery. The welding heating is the upper
and lower double heating plate device. The upper and lower movement welding method ensures the smooth movement precision of the
welding plate up and down.
* The operation of the local pressure clamp use high-precision imported square rail to ensure the linearity and smoothness of
welding
* One head with welding any angle of the function, to meet the user’s welding arc window and other special-shaped doors and
windows requirements
* Can adjust the PLC parameters, according to different profiles easy to adjust the data.
* Used for colorful and white profiles
* Two hand safety operation
power volatge | 220V 50~60Hz or As Customer need |
Input Power | 2.5kw |
Welding profile height | 20~120mm |
Welding Width | 120mm |
Welding range | 400-3500mm |
Overall size | 4300×1100×1700mm |

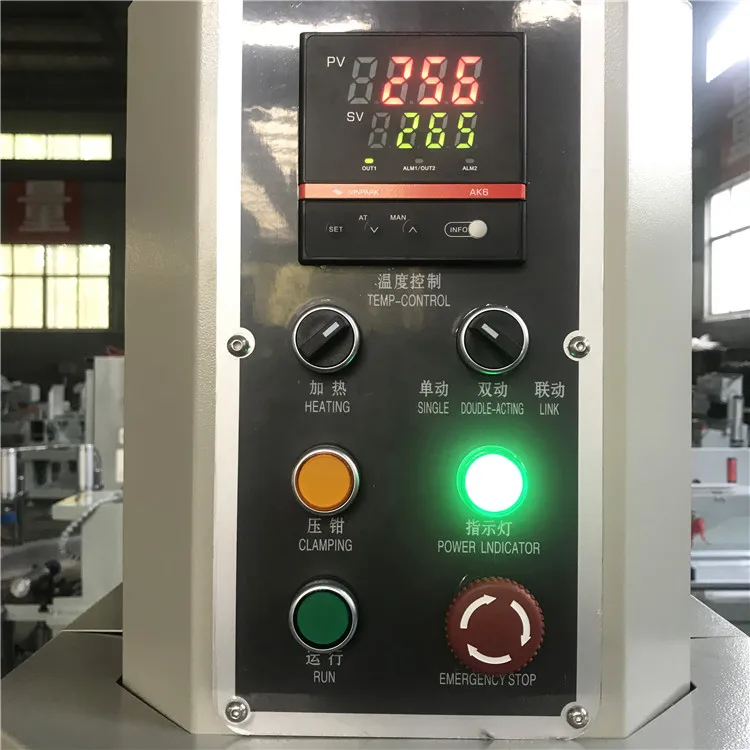

Impoted PLC control
The switches: HEATING
SINGLE-DOUBLE ACTING-LINK
CLAMPING
POWER INDICTOR
RUN
EMERGENCY STOP

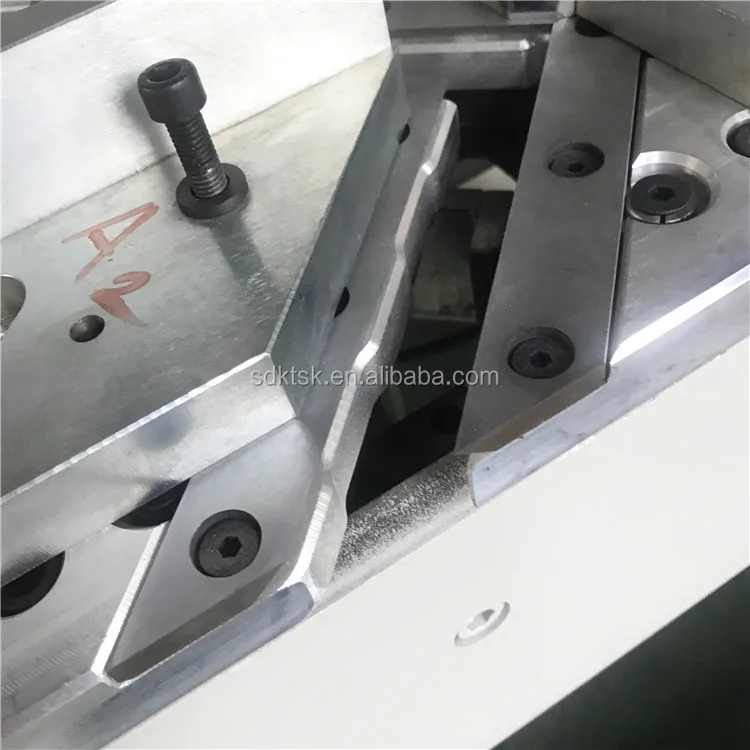

One head has 4knives:
up side - 2knives
bottom side-2 knives.
After welding, the machine will clean the up and down surface seam.
Then no need another corner cleaning machine for up and down surface

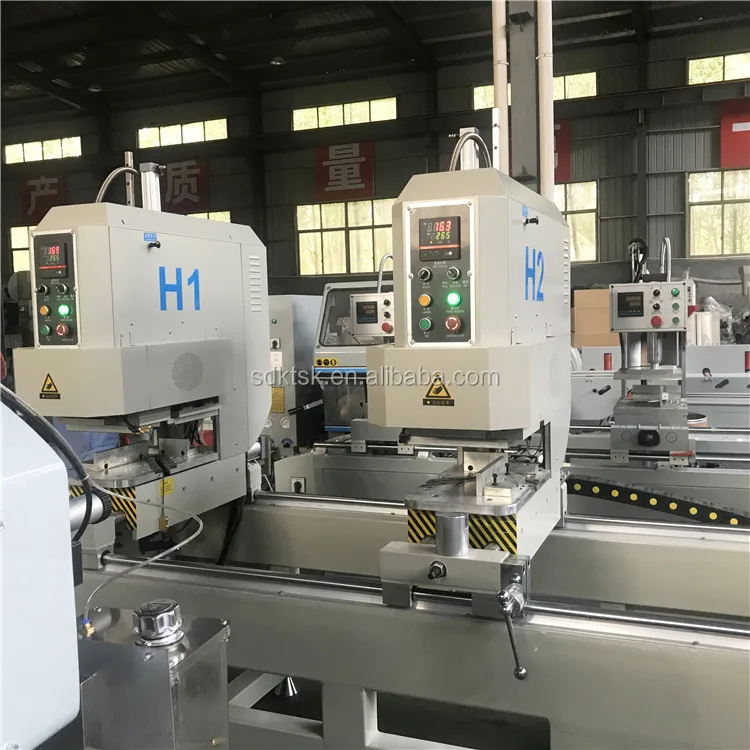

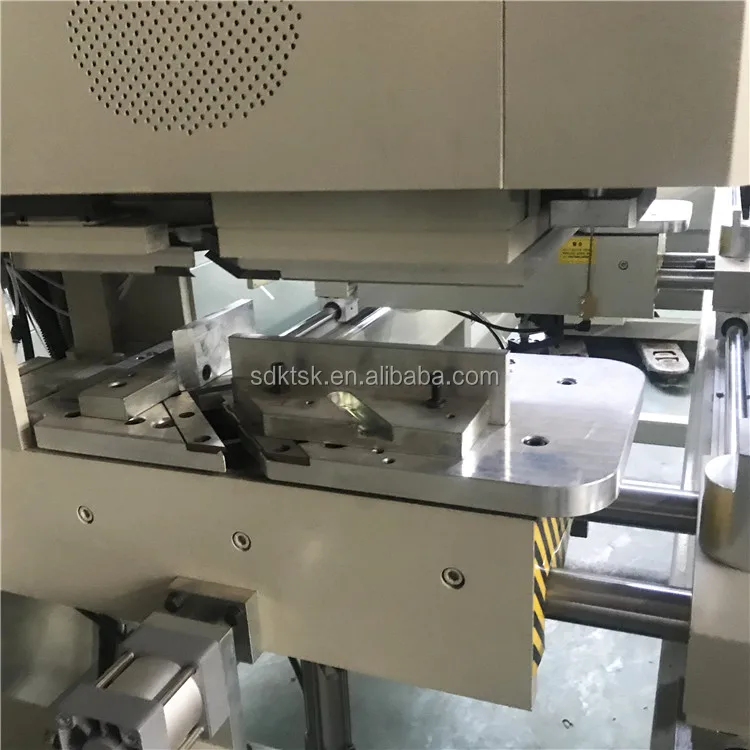

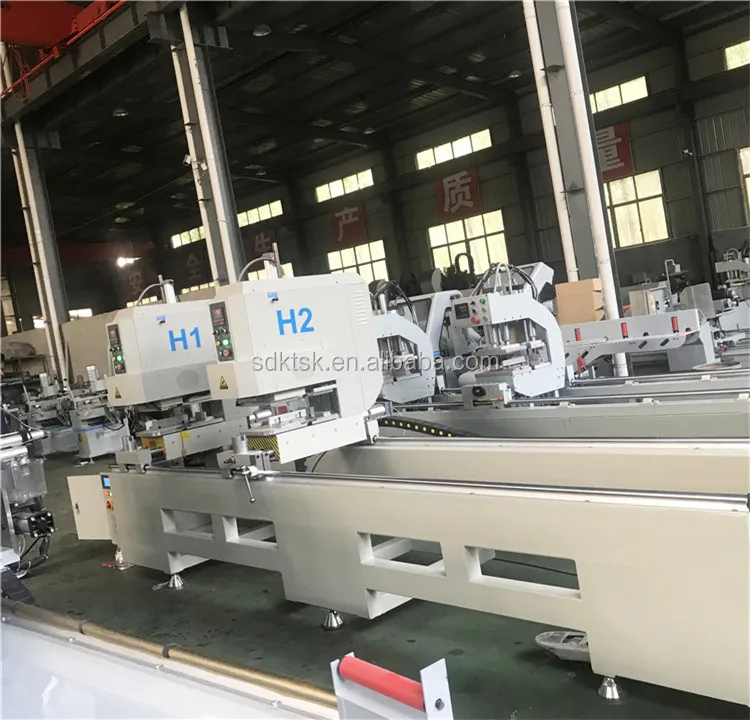

Detailed Images
Size Information
Length | 4350mm | 4350mm | 4350mm | 4350mm | 4350mm |
Width | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm |
height | 1700mm | 1700mm | 1700mm | 1700mm | 1700mm |
Related Products
Packing&Shipping
Ship by LCL, Package is with Standard export wooden case
Ship by full contaiber, will pack as clients' request
After Sales Service
Professional after-sale service
We have professional after-sale team
we provide best service quality
Company Introduction
Shandong Carter CNC Equipment Co., Ltd is a leading, professional and reliable manufacture, which is located in Jinan city, Shandong Province. Our main products include window door machinery and insulating glass machinery.
The company has own factory in Jinan, which has more than 13 years experience in production. With a wide range, good quality, reasonable prices and best service, our products are popular in both overseas and domestic market.
The products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success
The company has own factory in Jinan, which has more than 13 years experience in production. With a wide range, good quality, reasonable prices and best service, our products are popular in both overseas and domestic market.
The products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success
Our Services & Strength
Best pre sale service
Professional after sale service
FAQ
We are manufacturer for window door making machines
Payment Terms: 30% deposit by T/T and 70% balance before shipping
Delivery Time: usually within 10 working days from receiving payment
Warranty:24months/2yearsPort of loading: Qingdao
Payment Terms: 30% deposit by T/T and 70% balance before shipping
Delivery Time: usually within 10 working days from receiving payment
Warranty:24months/2yearsPort of loading: Qingdao
