Фабрики для продажи в Китае Высококачественная двухголовочная Точная режущая пила алюминия

Описание и отзывы

Трекер стоимости

Характеристики

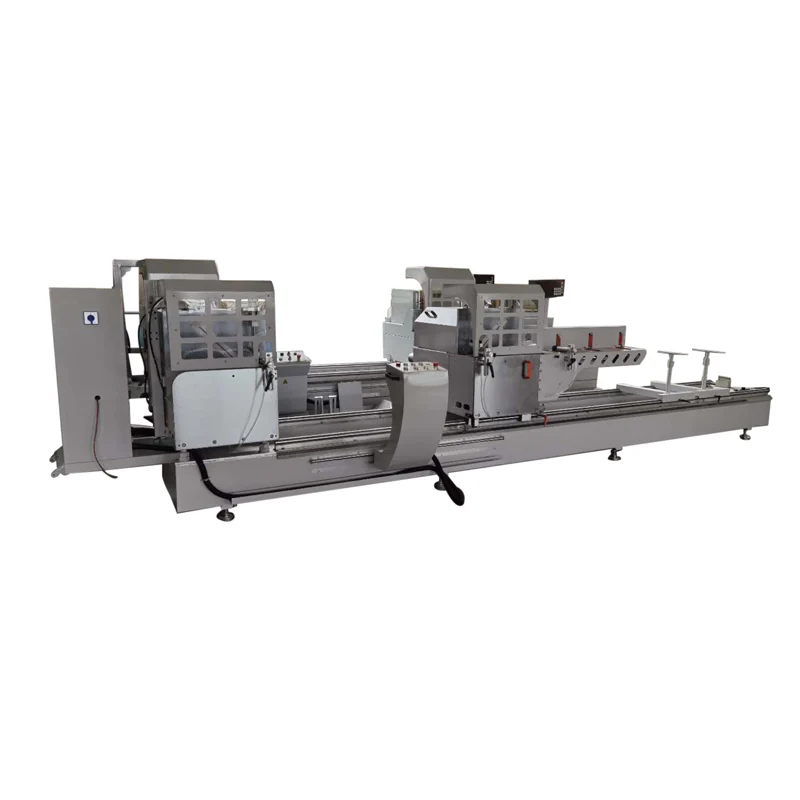

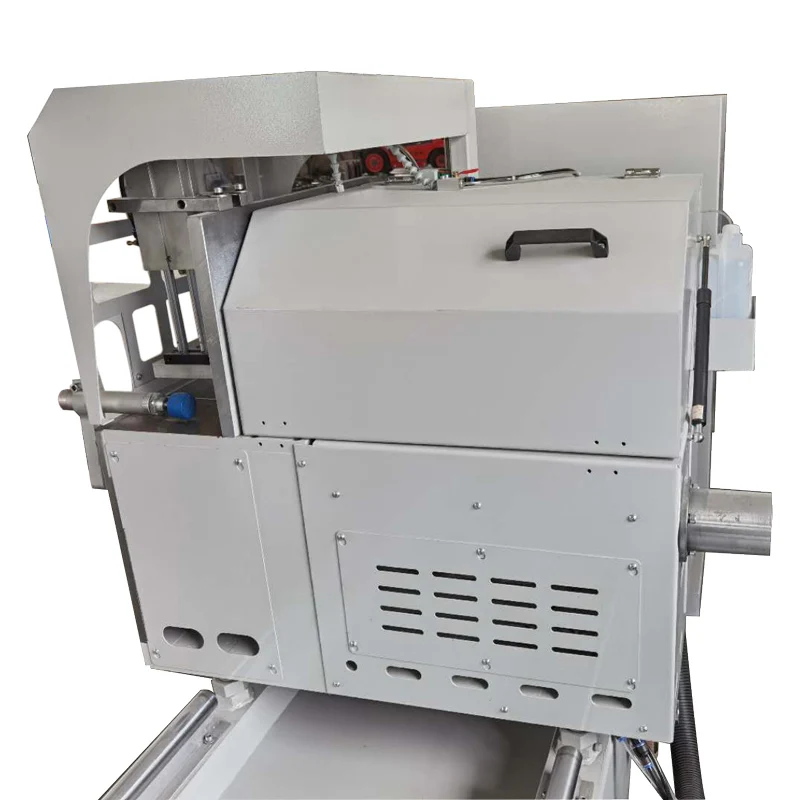

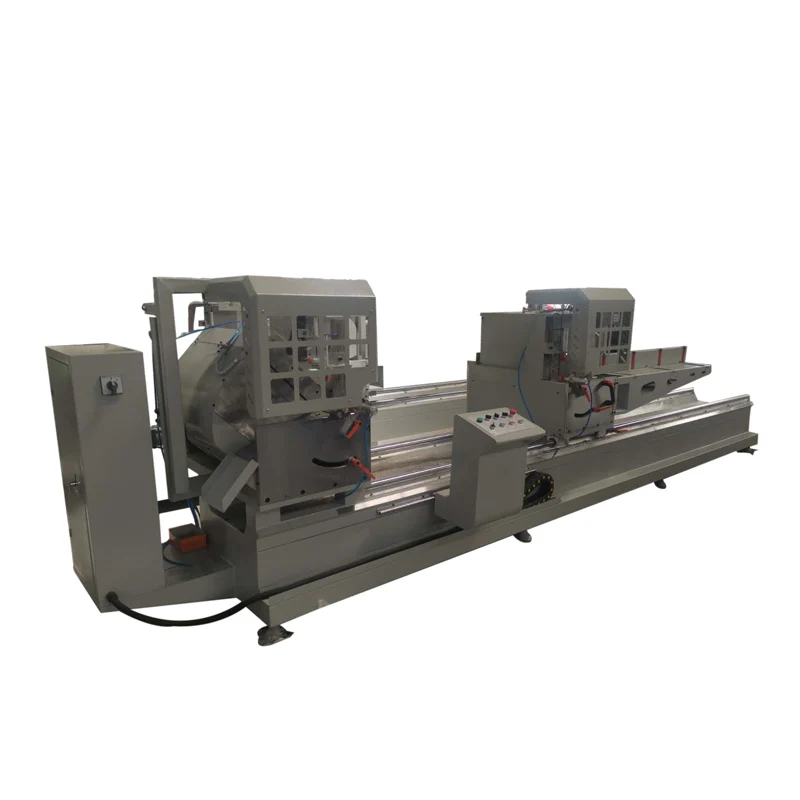

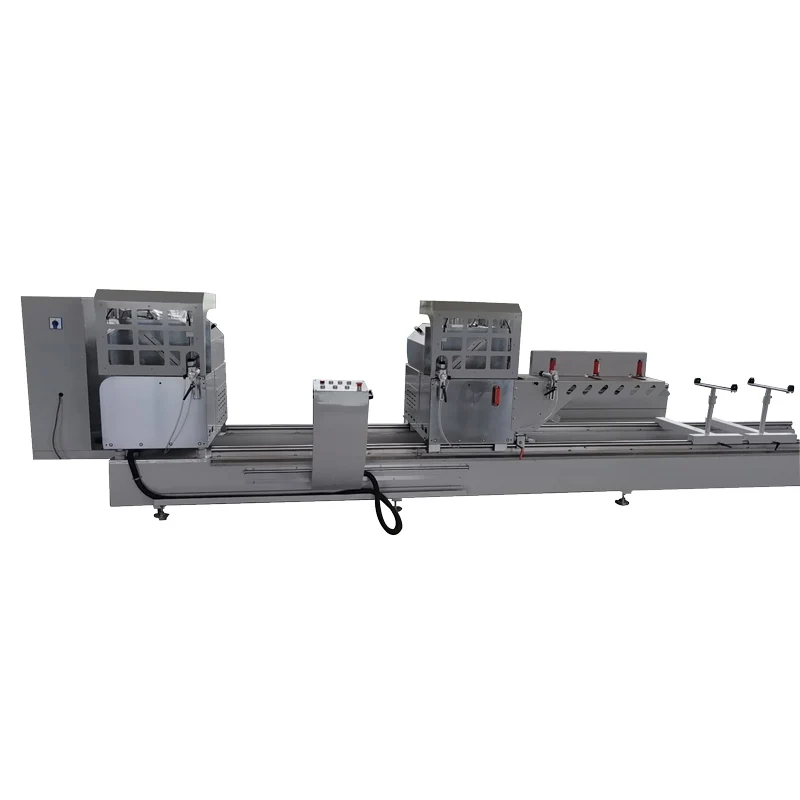

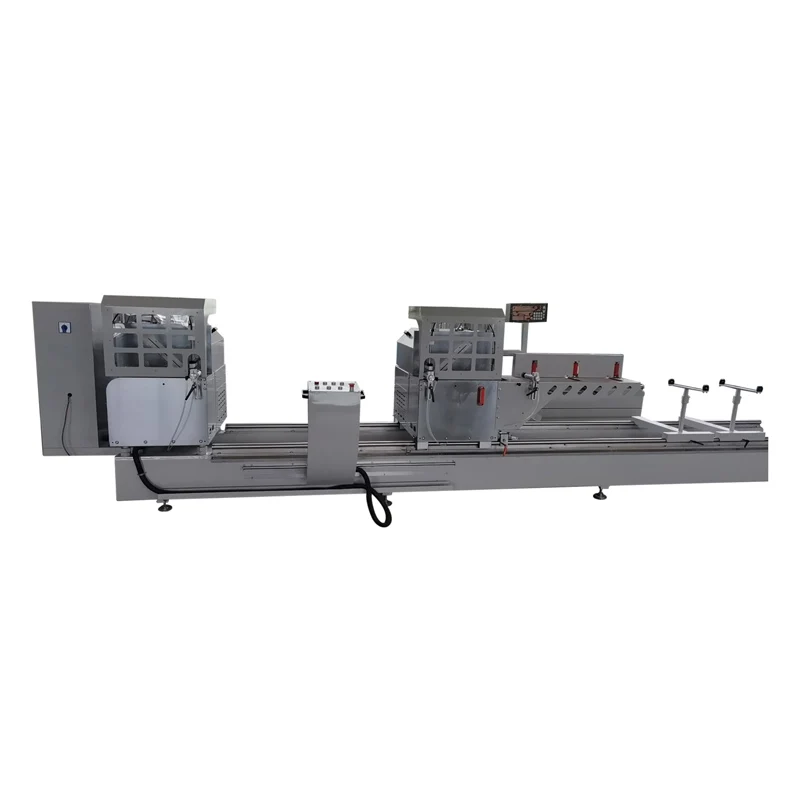

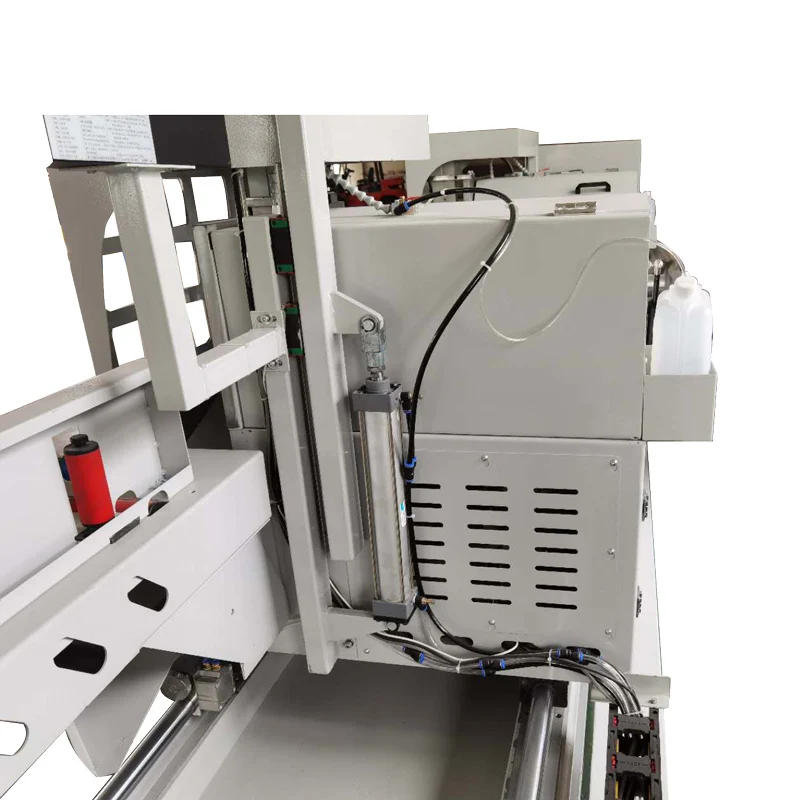

LJZ2-550*4200C Double-head precision cutting saw for aluminum/PVC

1.It has features of easy operation, reliable performance, advanced technique and convenient maintenance, etc.
2. The profile cutting size adopts and digital display technique to ensure high efficiency and accuracy.
3. Imported carbide saw blade gives accurate processing and high efficiency.
4. Two cutting head can work together or single.





Specifications:



Power supply	38V/50Hz
Cutting motor power	2.2*2KW
Cutting motor rotary speed	3200r/min
Operation air pressure	0.5~0.8MPa
Air consumption	60L/min
Blade specification	Ø550×ø30×4.4×Z120
Cutting speed	stepless speed regulation0~3m/min
Max. cutting length	4200 mm
Min. cutting length	400 mm
Cutting width	max 135mm
Cutting height	200mm
Cutting angle	90°,45°
Repeat locating length tolerance	≤0.2mm
Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	±5′
Cutting profile surface roughness	Ra12.5µm
Contour dimension	5500 mm*1750mm*1950mm
Weight	1800g


Payment terms:
1.LC at sight;
2.TT(30% in advance,the balance before delivery)



Trade terms:
EXW or FOB or others by request.



Package:
Wooden box



Delivery:
Regular standard items delivery will be 10 days after deposit;
Customized items delivery will be depended on negotiation.



After-service:
7*24 hotline:+8615866605088;
Video solutions;
Technicians provided.



Guarantee:
12 months guarantee after items recieved,damaged parts changed for free within one year;
Service provided for whole servcie life,just pay the parts cost;
