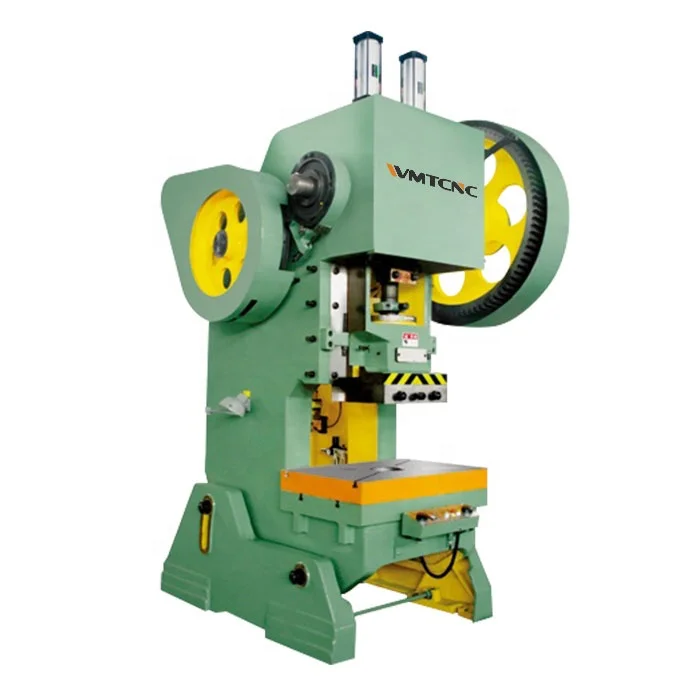

J23-80 80 тонн C рама силовой пресс пробивая машина для металлических

J23-80 80 тонн C рама силовой пресс пробивая машина для металлических

Категория: Punching Machines >>>
Поставщик: WMT,CNC,Industrial,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.25 $*	0.8 $*
Aug-19-2025	0.60 $*	0.38 $*
Jul-19-2025	0.7 $*	0.13 $*
Jun-19-2025	0.57 $*	0.6 $*
May-19-2025	0.35 $*	0.6 $*
Apr-19-2025	0.74 $*	0.82 $*
Mar-19-2025	0.27 $*	0.92 $*
Feb-19-2025	0.8 $*	0.85 $*
Jan-19-2025	0.27 $*	0.9 $*

Характеристики

Product Description

Features:
This series of press adopts rotating key positive clutch,which has a simple structure and is convenient to operate and maintain,achieving smooth operation, low impact and low noise.
J23-25 open type inclinable press machine is the first to adopt rolling bearing rather than the commonly used sliding bearing(copper bearing) for the transmission gear, making the transmission gear more wear-resistant and avoiding loud noises of gears caused by the quickly worn copper bearing;
The 80T level and above press machine all adopt the structure of pneumatic dual balance cylinder,chich has small fluctuation of the balancec force and it balances the slider and the upper die, chich can cause the lathe unstable. And it can also avoide the clsah and noise caused by the converse force of gears in transmission, and avoid accidents cause by the falling of slider when the brake fails or the connecting rod ruptures.

Size Information

TEMS			UNIT	J23-40	J23-63	JB23-63	J23-80
Capacity			KN	400	630	630	800
Nominal stroke			mm	6	6	7	7
Slide stroke length			mm	90	110	110	120
Stroke times per minute			spm	45	50	40	38
Max. Die set height			mm	320	360	390	440
Die shut height adjustment			mm	65	80	80	90
Throat depth			mm	250	260	310	350
Distance between uprights			mm	340	350	420	450
Slide bottom size	L-R	mm	300	300	400	430
Slide bottom size		F-B	mm	260	260	360	360
Stemhole size	Diameter	mm	50	50	50	60
Stemhole size		Depth	mm	70	70	70	75
Bolster size	L-R	mm	700	760	860	950
		F-B	mm	460	480	570	650
		Thickness	mm	65	80	80	100
Table hole diameter			mm	150	180	180	200
Max. inclinable angle			°	30	20	20	20
Bolster surface height			mm	850	810	850	850
Over all dimensions	L-R	mm	1335	1350	1500	1715
		F-B	mm	1721	1810	1958	2060
		Height	mm	2488	2740	2868	3290
Distance between foundation bolts	L-R	mm	750	850	920	1010
Distance between foundation bolts		F-B	mm	1060	1180	1300	1360
Motor power			kw	5.5	5.5	7.5	7.5
Weight			kg	3540	4550	5500	7390
