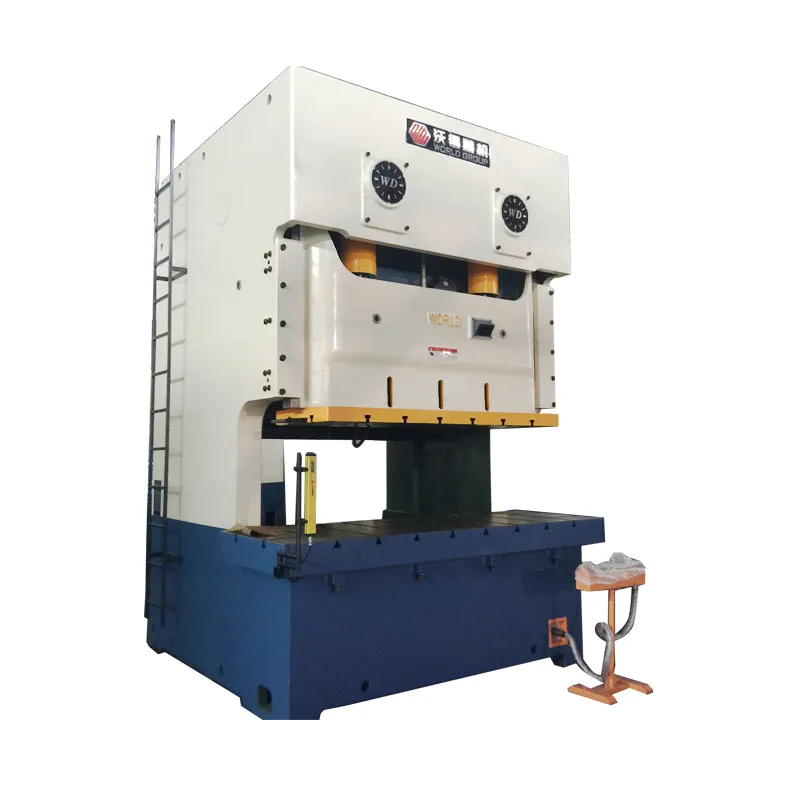

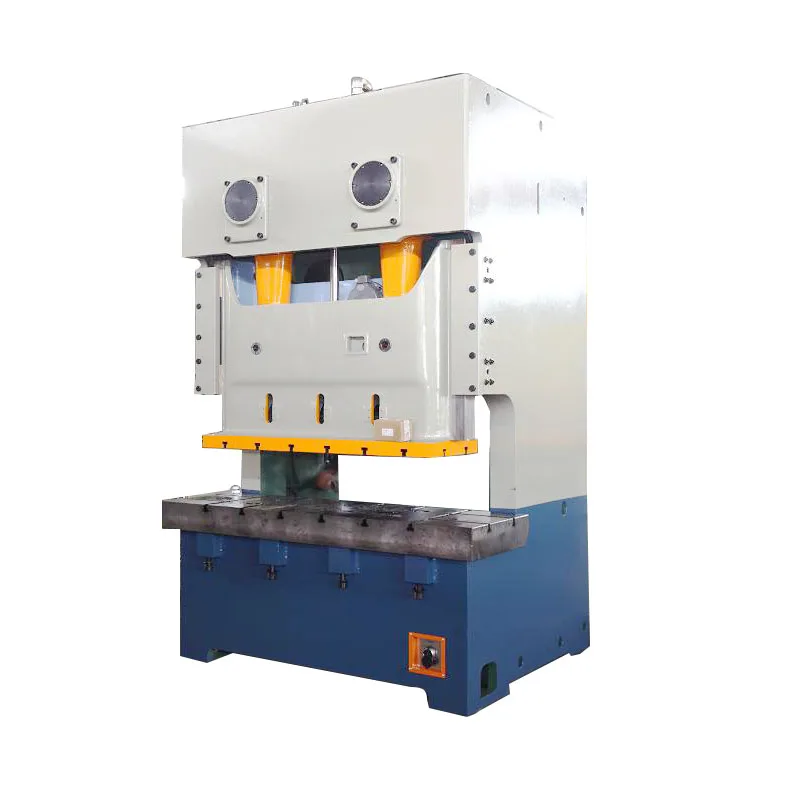

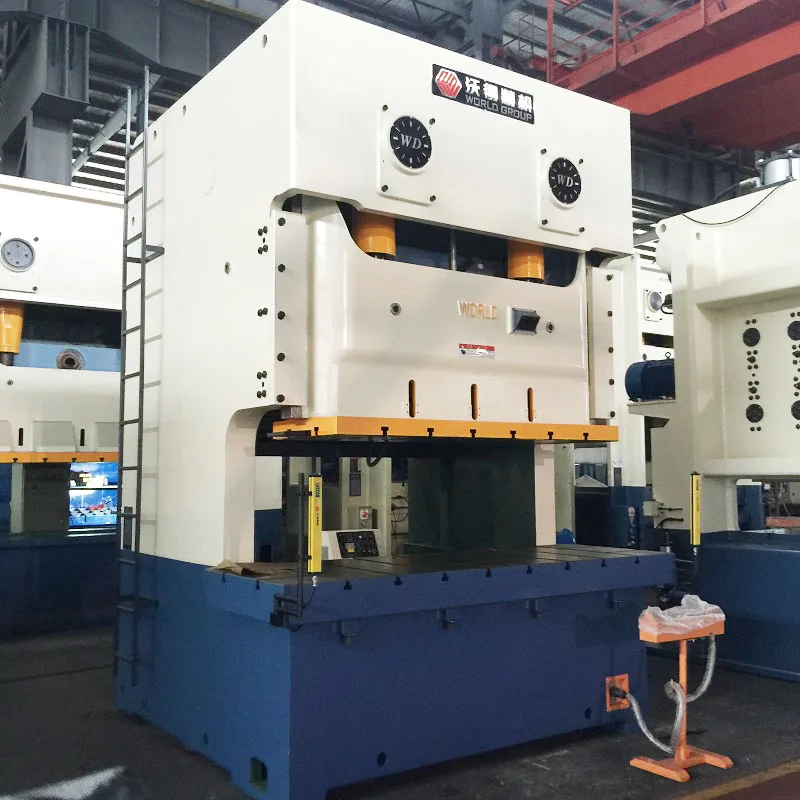

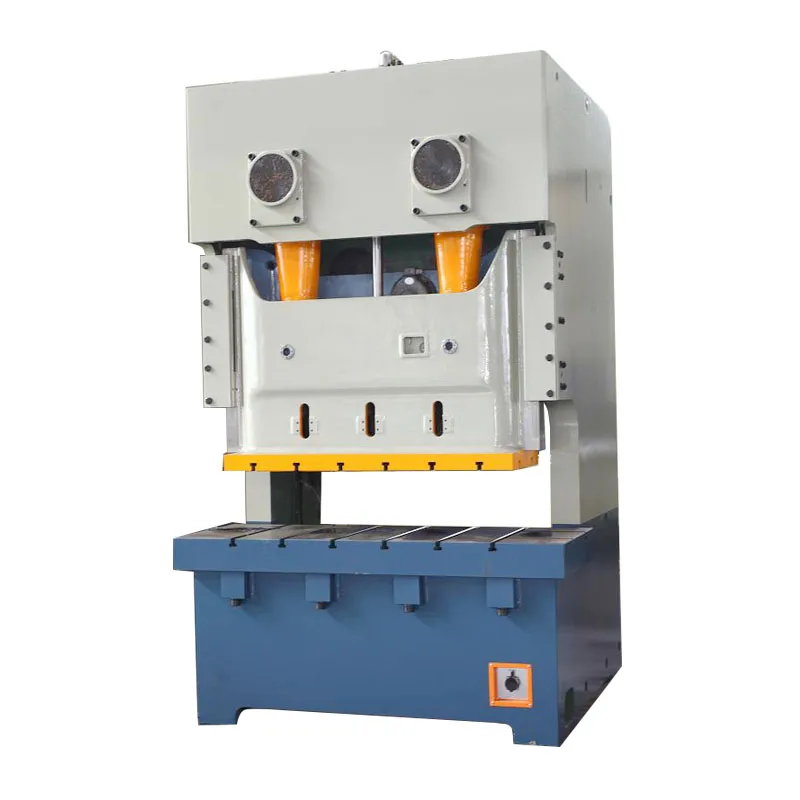

В Шанхае Китай (материк) JH25-315 тонн Автоматическая идентификация металлических
- Категория: Punching Machines >>>
- Поставщик: Shanghai,Yingxin,World,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 110075.49 $* | 115579.69 $* |
| Aug-15-2025 | 109150.39 $* | 114608.68 $* |
| Jul-15-2025 | 91575.63 $* | 96154.37 $* |
| Jun-15-2025 | 107300.88 $* | 112665.59 $* |
| May-15-2025 | 93425.3 $* | 98096.83 $* |
| Apr-15-2025 | 105450.40 $* | 110723.82 $* |
| Mar-15-2025 | 104525.24 $* | 109751.73 $* |
| Feb-15-2025 | 103600.6 $* | 108780.36 $* |
| Jan-15-2025 | 102675.62 $* | 107809.33 $* |
Характеристики
Item | Code | Unit | JH25-110 | JH25-160 | JH25-200 | JH25-250 | JH25-315 | ||
Nominal Capacity | Pe | kn | 1100 | 1600 | 2000 | 2500 | 3150 | ||
Stroke Length | S | mm | 180 | 200 | 250 | 280 | 280 | ||
Stroke Speed | Fixed | spm | 50 | 45 | 35 | 30 | 30 | ||
Variable (optional) | spm | 35-55 | 35-55 | 25-40 | 20-35 | 20-35 | |||
Max. Die Shut Height | H2 | mm | 400 | 450 | 500 | 550 | 550 | ||
Die Shut Height Adjustment | t | mm | 90 | 100 | 110 | 120 | 120 | ||
Throat Depth | G | mm | 350 | 390 | 430 | 470 | 480 | ||
Distance Between Uprights | N | mm | 1470 | 1600 | 1920 | 2190 | 2170 | ||
Table Size | F-B | D | mm | 680 | 760 | 840 | 920 | 940 | |
L-R | C | mm | 1880 | 2040 | 2420 | 2700 | 2800 | ||
Thickness | H3 | mm | 155 | 165 | 170 | 180 | 190 | ||
Slide Bottom Size | F-B | b | mm | 520 | 580 | 650 | 700 | 700 | |
L-R | a | mm | 1400 | 1500 | 1850 | 2100 | 2100 | ||
Table Surface Height | H1 | mm | 900 | 900 | 1000 | 1100 | 1090 | ||
Overall Dimension | F-B | A | mm | 1820 | 2080 | 2370 | 2700 | 2730 | |
L-R | B | mm | 1970 | 2150 | 2550 | 2850 | 2840 | ||
Height | H | mm | 3200 | 3380 | 3820 | 4180 | 4180 | ||
Motor Power | kw | 11 | 18.5 | 22 | 30 | 37 | |||
Weight (approximate) | kg | 14000 | 19000 | 2650 | 35000 | 36000 | |||
Description:
Warranty Policy:
Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers.) We can send the parts by courier if urgently needed while the buyer should pay the freight.
