BTCP-297A A4 копировальная бумага полосная упаковочная машина
US $19000-$43000
Хорошее качество полностью автоматическая машина для обмотки пленки
- Категория: Оберточные машины >>>
- Поставщик: Suzhou,Jiajun,Packing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 5079.48 $* | 5181.11 $* |
| Jul-16-2025 | 4119.66 $* | 4201.15 $* |
| Jun-16-2025 | 4999.28 $* | 5099.81 $* |
| May-16-2025 | 4959.23 $* | 5058.50 $* |
| Apr-16-2025 | 3959.78 $* | 4038.34 $* |
| Mar-16-2025 | 4879.67 $* | 4977.70 $* |
| Feb-16-2025 | 4839.63 $* | 4936.70 $* |
| Jan-16-2025 | 4799.45 $* | 4895.57 $* |
Характеристики

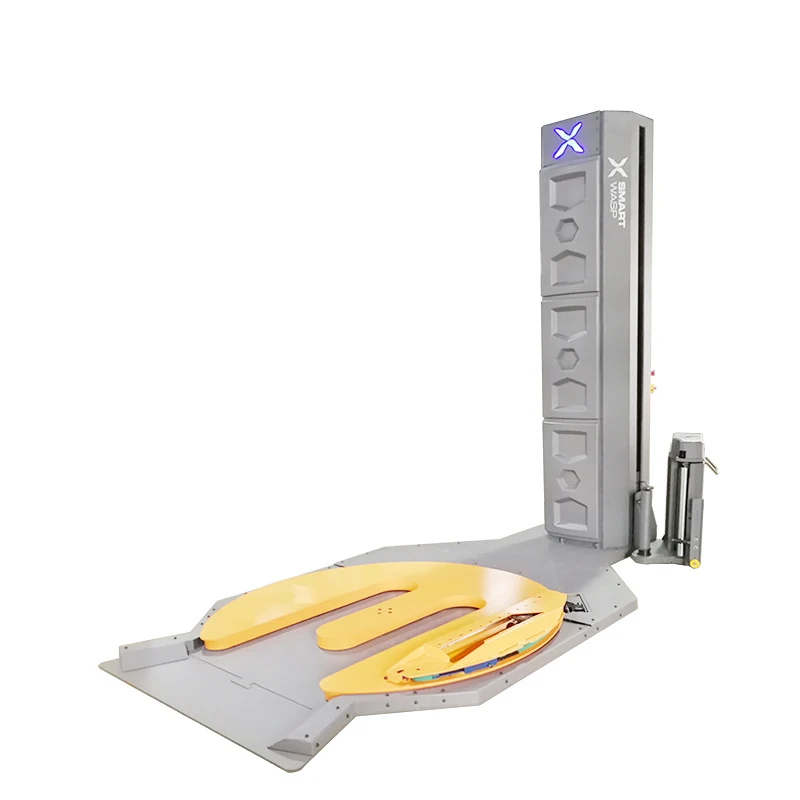

Product Description
Model | Smart Wasp X500 | Spare Parts | Brand | |
Maximum wrapping speed | 30-40 loads/hour (1x1.2x1.8 m 2 layer NOT include loading and Unload time) | Inverter | X-LINE | |
Max Load Weight | 800KG | Position sensor | SICK(Germany) | |
Maximum Wrapping Height | 2400mm(for pallet height:2300mm +100mm over top) | PLC | SIEMENS | |
Pallet Lifted Height | Minmum 70mm | Travel Switch | OMRON(Japan) | |
Turntable Size | 1650mm(1500mm/1800mm/2000mm optional) | Motor | GPG Taiwan | |
Machine Power | 1.5KW | Relay | OMRON(Japan) | |
Film Cut and Clamp | Fully Automatic (Mechanical type) | Touch screen | SIEMENS Touch screen | |
Fork Overall Width | Maximum 695mm | Switch | Schneider | |
Standard Film Width | 500mm | Photoelectric sensor | Autonics | |
Constant Film Delivery Force | Standard | Terminal block | Weidmuller(Germany) | |
Standard Pre-Stretch | 250% | 24V power supply | OMRON | |
Film Capacity | 250mm Diameter | |||
Up&down Drive system | Up&down Drive system | |||
Fix Film on Pallet | Auto | OPTIONAL FUNCTION | ||
Roping system | Have | Ramp | Optional | |
Muti-layer function | Have | weighing scale | Optional | |
Machine Size | 2.8*1.65*2.74m | Top pressure function | Optional | |
Machine weight | 750KG | |||
Voltage | 110-240V/50HZ/60 HZ 3P | |||
Detailed Images

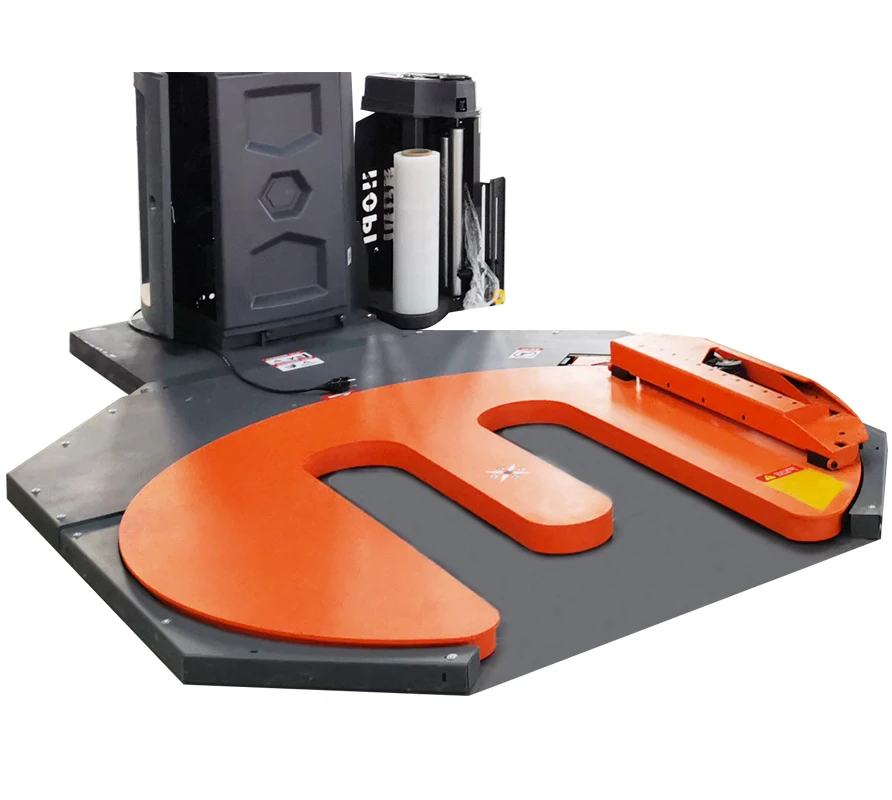

1. M Type Turntable & Auto Cut and Clamp Film
M type turntable suit for jack load pallet on machine
No need manually cut film and put film on pallet any more, cut &clamp fim system will do it automatically, helps save great time.
No need manually cut film and put film on pallet any more, cut &clamp fim system will do it automatically, helps save great time.
2.Pallet Grip system
* Pallet grip system: film bottom narrowed to become film rope, film rope grip to pallet & products during wrapping.
1.During transport, no need worry the products fall down when the pallets get violent vibration
2.If the forklift damage the film on the bottom of pallet, the film do not breach.
3.Pallet bottom grip and whole journey grip can be instead of the horizontal strapping machine
1.During transport, no need worry the products fall down when the pallets get violent vibration
2.If the forklift damage the film on the bottom of pallet, the film do not breach.
3.Pallet bottom grip and whole journey grip can be instead of the horizontal strapping machine
3.Saving Film Consumption
Maximum up to 380% pre-stretch rate
Maximize the value of each meter of stretch film Standard constant releasing film Fixed-point wrapping and quantitative use film
Intuitive
Easy to understand
Easy to operate
Require little language and skills
Manually change language
Easy to understand
Easy to operate
Require little language and skills
Manually change language
5.Better Spare Parts
SIEMENS PLC
SICK proximity switch
AUTONICS photoelectric switch
WEIDMULLER terminal block
X-LINE Inverter
OMRON 24DC supply

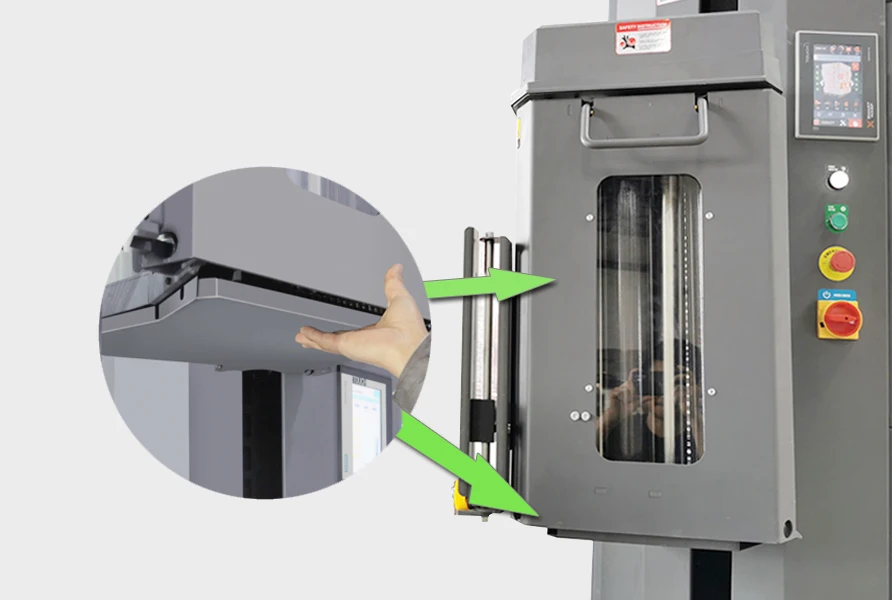

6. Advanced Safety Technology
1. Safety device under film carriage to protect the foot or head of the operator
2.Transparent board makes it easy to find problem without opening door.
3.Up and down belt deviation and damaged alarm system. Alarming in time to avoid carriage dropping down.
3.Up and down belt deviation and damaged alarm system. Alarming in time to avoid carriage dropping down.

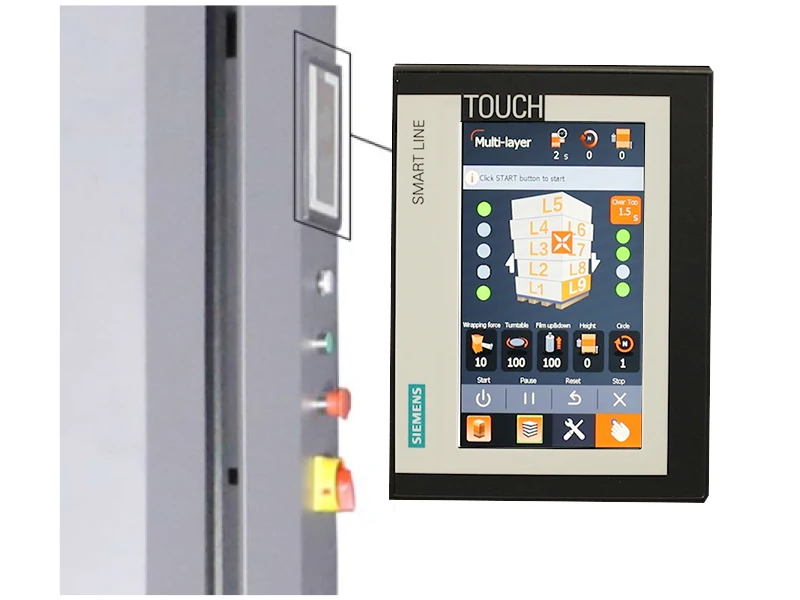

7.Intelligent operation Guiding system
1. X500 with LED indicator on machineReady for work--Blue color
During working--Green color
Alarm--Red color
2.Touch screen guide the user how to operate machine. If alarm appears, touch screen will show you how to solve problem .
2.Touch screen guide the user how to operate machine. If alarm appears, touch screen will show you how to solve problem .
Exhibition
WELCOME TO VISIT US
SMARTWASP Attend Exhibition in JAPAN UKRAINE THAILAND MALAYSIA GERMANY POLAND MEXICO..Over 10 countries And attend China Professional Exhibition Every Year
2021 SMARTWASP EXHIBITION LIST
The 27th China International Exhibition on Packaging Machinery & Materials ProPak China
Time： 2021/6/23-25
Address: National Exhibition Convention Center (Shanghai), China
Time： 2021/6/23-25
Address: National Exhibition Convention Center (Shanghai), China
The 17th China (Qingdao) International Packaging Industry Exhibition CIPI
Time： 2021/7/18-22
Address：Qingdao red island international convention and exhibition center
Time： 2021/7/18-22
Address：Qingdao red island international convention and exhibition center
The 22nd Asia International Logistics Technology and Transportation Systems Exhibition CeMAT
Time：2021/10/26-29
Address：Shanghai New International Expo Center
Time：2021/10/26-29
Address：Shanghai New International Expo Center
OUR TEAM
SMART WASP Team have 210 members. We have over 30 mechanical engineers and electric engineers. SMART WASP international team in Ukraine Thailand Mexico Malaysia USA Ireland Poland Panama ..for promoting and doing service for Smart wasp machine. We hope more and more partners can join us.
Smart Wasp Intelligent Technology (Suzhou) Co., Ltd., specializing in designing, researching and manufacturing intelligent pallet
wrapping equipment and providing packaging automation solutions.Smart Wasp has a professional design and development team. The new factory covers an area of 50 acres.Smart Wasp standard pallet wrapping machine series, fully automatic pallet wrapping machine, high speed ring pallet wrapping machine series popular in the United States, Germany, Canada, Mexico, Australia, South Korea, more than 60 countries and regions, and ZF, Kraft Foods, LG, Panasonic, etc. Well-known companies establish long-term cooperative relationships. Smart Wasp is committed to building products with Chinese brands and world-class quality and strives to become a respected company.
wrapping equipment and providing packaging automation solutions.Smart Wasp has a professional design and development team. The new factory covers an area of 50 acres.Smart Wasp standard pallet wrapping machine series, fully automatic pallet wrapping machine, high speed ring pallet wrapping machine series popular in the United States, Germany, Canada, Mexico, Australia, South Korea, more than 60 countries and regions, and ZF, Kraft Foods, LG, Panasonic, etc. Well-known companies establish long-term cooperative relationships. Smart Wasp is committed to building products with Chinese brands and world-class quality and strives to become a respected company.
