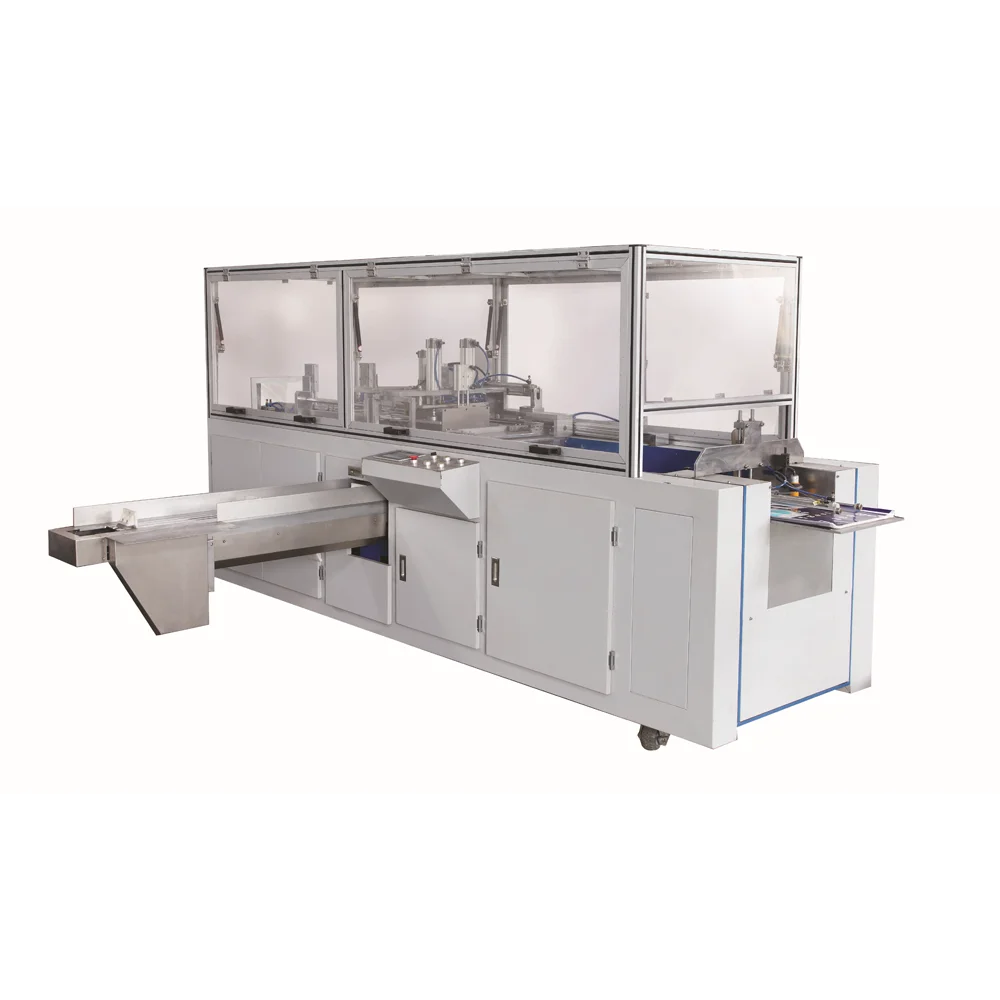

A4 Copy Paper Ream Packing Machine



Model: BTCP-297A



 1. Application:

The machine is designed by ourselves on basis of producing cellophane overwrapping machine for few years experience ,which working principle is driven by a series of mechanical structure and connecting pneumatic device , which can finish instantaneously multi-actions such as automatic feeding paper(film),falling paper (film),rectifying a deviation ,cutting paper (film),gluing and wrapping and so on during the process of packing .This machine integrated optics ,mechanics ,electricity ,pneumatics and instrumentation .Also reasonable structure ,advanced technique ,easy operation ,which is suitable for the package of global general official A4 format anti-static duplicating paper ,instead of hand packing so as to reduce the working intensity and then improve the working effectiveness.



1). Main structure is driven by a series of cams and connecting rods and working accessories to finish the packing. High stability , low noise

2). Applying frequency conversion with multi-function digital non-ploy speed , adopting Siemens PLC program controlled . Touch screen realizing human-machine interface.

4). For single paper package ,adopting feeding device system so as input paper accurately .

5). For roll paper package .it has automatic clutch controlled device to make the roll paper have the function of automatic elevation and subsidence photocell sensor ,cutting accuracy of color film.

6). If package material is PE laminated paper ,machine is connecting gluer and the spray adjustable .If package material is printed film photocell sensor will be provided so as to reduce the packing cost and also improve cutting accuracy of color film ,wrapping effect and sealing performance .

2. Main technical parameters

Production capacity                           13-15(packs/min)

A4 copy paper size(standard)           297mm×210mm×50mm (Baced on 500 pieces A4 copying paper)

Voltage                                             380V   50-60Hz

Power                                               5 kw

Compressed air                                0.6-0.7Mpa

Overall dimensions                           4200×1300×1450 without safety cover   4200×1300×1780 without safety cover

Weight                                             1700kg

Packge material                                Printed single paper

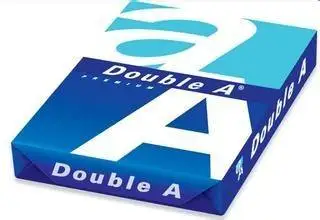

 3. Samples:
