Китайский производитель бетономешалка и мешалка цементный насос завод для

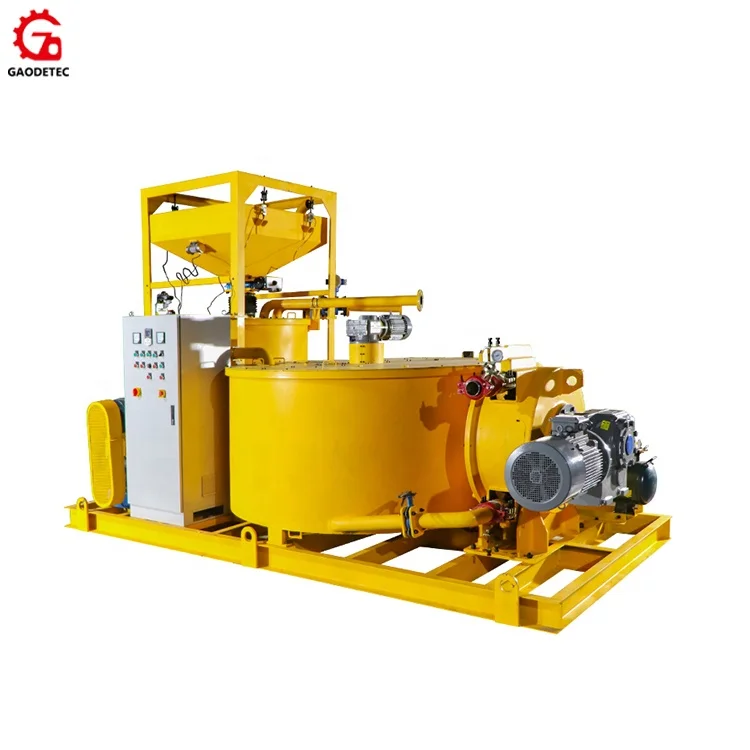

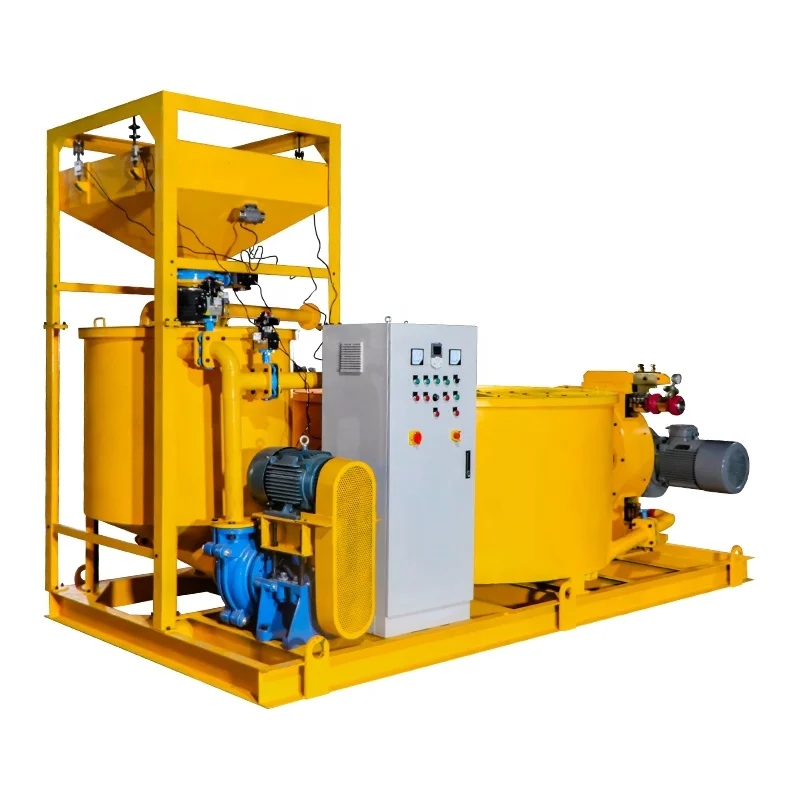

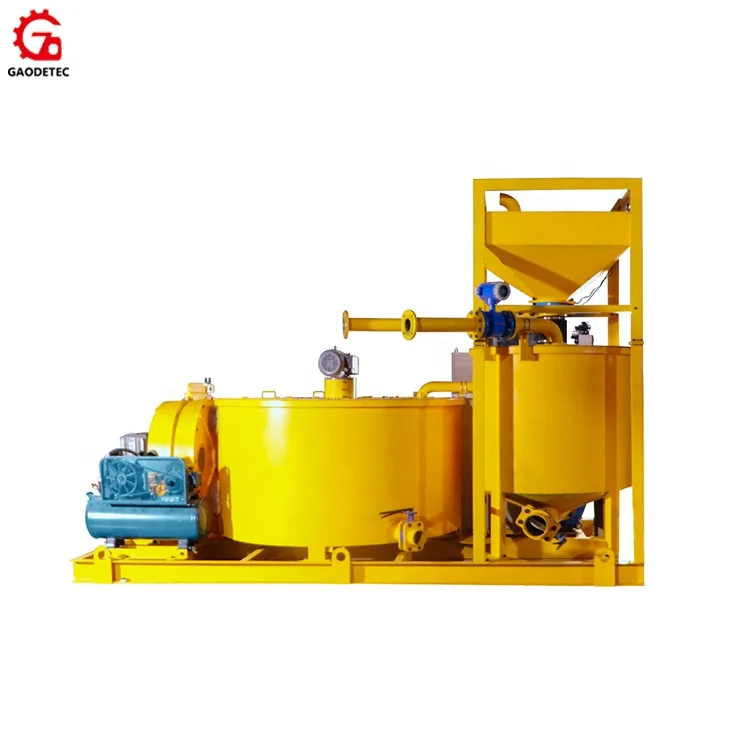

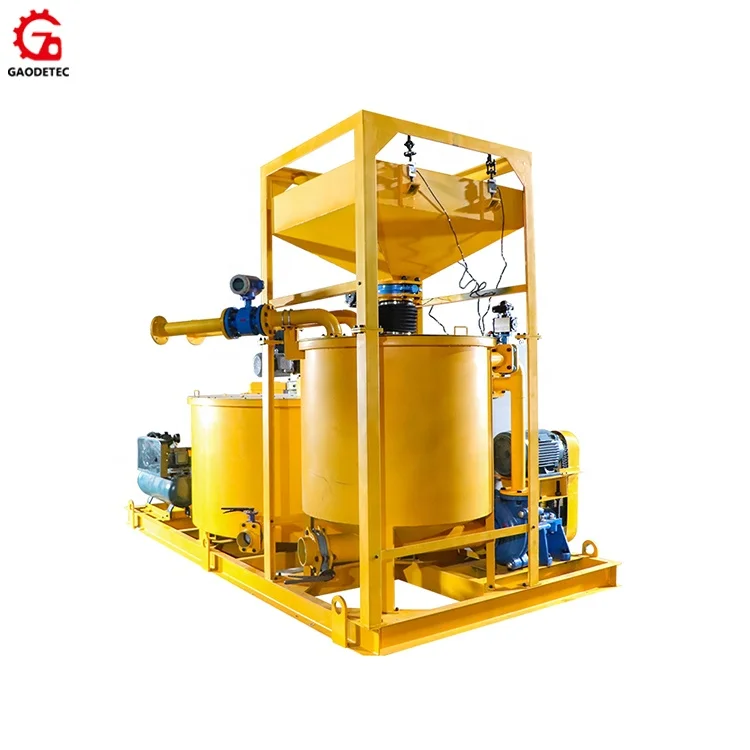

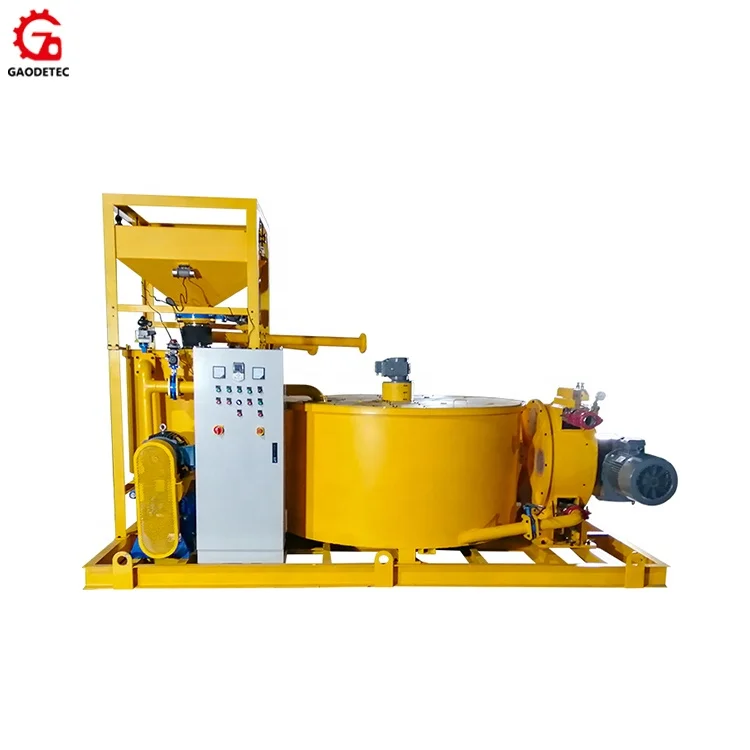

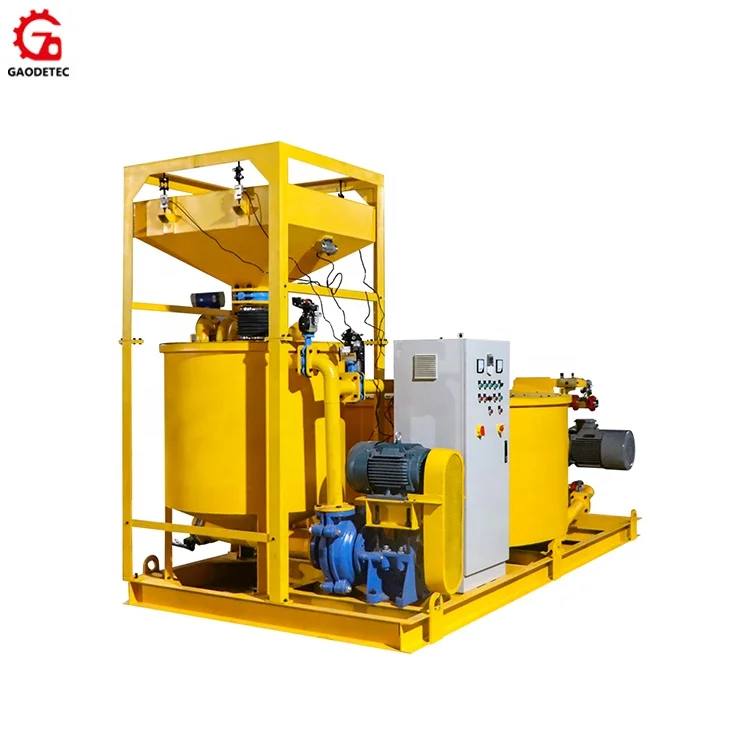

1. GGP1200/3000/300H-E grout station, mixer capacity is 1200L/min, agitator capacity is 3000L/min, pump output is 300L/min.
2. This station is equipped the automatically batching weight system and PLC control system to automate operations.
3. Mainly used to mix cement, bentonite slurry for grout and Backfill Grout Injection in ground/underground construction or TBM tunnel construction, such as highways, railways, water and electricity, construction, mining etc.

Working principle: High speed vortex mixer ensures mix quickly and evenly. Water, cement and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting pump is hydraulic drive. Grouting pressure and displacement is stepless adjustable. Compact size and it is easy to operate. It also takes up a small space.

Contact Supplier

It is mainly used in highway, railway, hydropower, construction, mining and other ground and underground construction.

Ø Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting

Ø Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting

Ø Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement

Ø Mine application - roadway reinforcement, backfill, waterproof grouting

Ø Acted as a grouting plant in the Pipe Jacking Machine

Now we have developed full series of grout plant and grout station, pump including piston type, plunger type, double plunger type and hose type. Mixer volume from 200L to 1200L, agitator volume from 300L to 3000L, pump flow from 1 to 300L/min and pressure from 1 to 100 bar. Electric power and diesel power are available for customization.
