Новинка низкая цена 2 4 3 5 6 м3 куб. М. кубических метров ярдов мобильная самозагружающаяся Бетономешалка для цемента с
- Категория: >>>
- Поставщик: Zhengzhou,Zhenheng,Construction,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.97 $* | 0.20 $* |
| Aug-15-2025 | 0.95 $* | 0.66 $* |
| Jul-15-2025 | 0.26 $* | 0.96 $* |
| Jun-15-2025 | 0.27 $* | 0.49 $* |
| May-15-2025 | 0.59 $* | 0.28 $* |
| Apr-15-2025 | 0.31 $* | 0.96 $* |
| Mar-15-2025 | 0.86 $* | 0.24 $* |
| Feb-15-2025 | 0.60 $* | 0.32 $* |
| Jan-15-2025 | 0.90 $* | 0.94 $* |
Характеристики

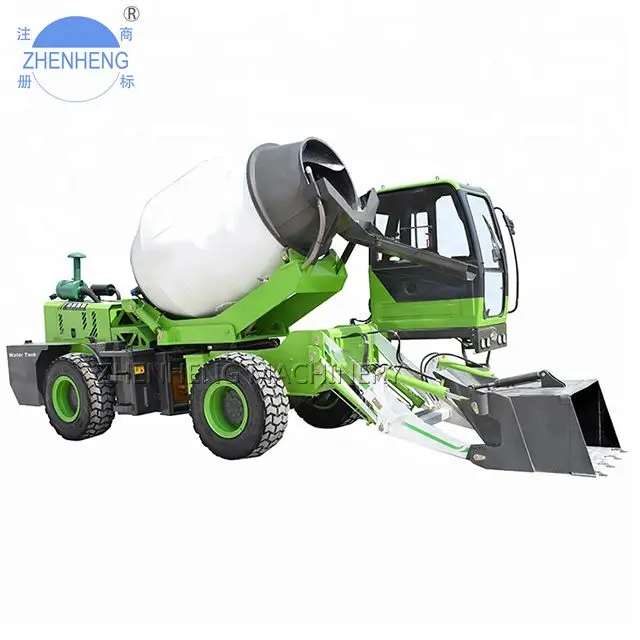

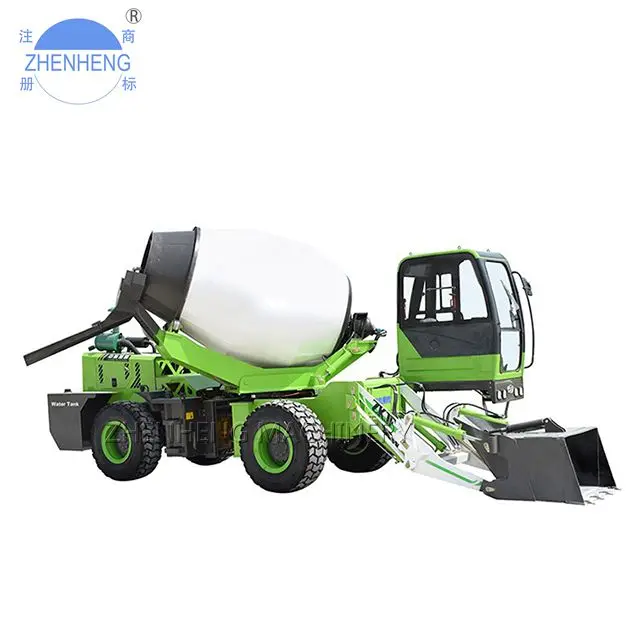

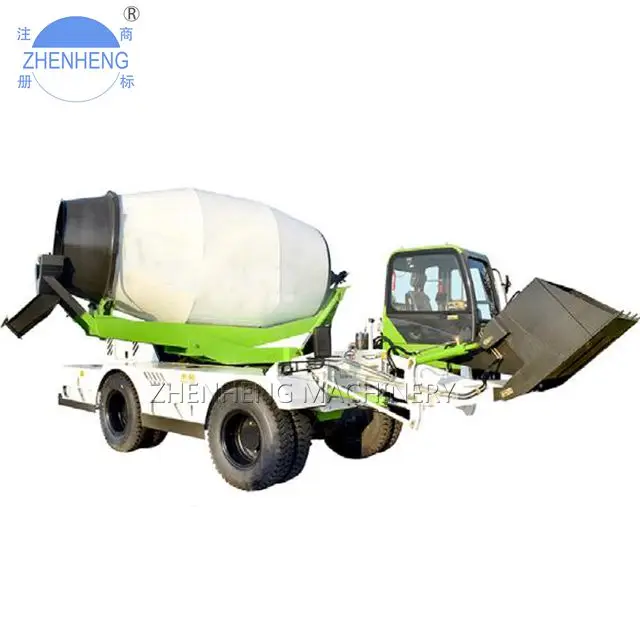

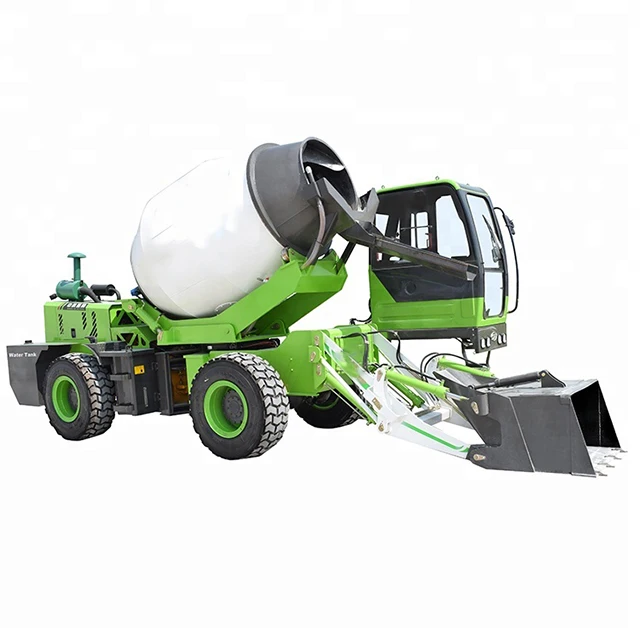

New Cheap Price 2 2.4 3 3.5 4 5 6 6.5 M3 Cbm Ton Cubic Meters Mobile Self-Loading Cement Concrete Mixer Machine With Truck
Products Description
Advantage
1. Save time, labor and cost
2. High motorization and high efficiency
3. Remote water supply.
4. Low maintenance
5. High reliability and durability
6. Simple operation and high intelligence
7.24-hour uninterrupted and stable operation.
Feature
The self-loading concrete mixer can automatically feed, meter, mix and discharge materials. Equipped with a powerful engine and four-wheel steering, it can quickly load cement, aggregate, stone and other materials for mixing.
Parameters
Model | CMT6500R | CMT4000R | CMT3500R | CMT2600R |
Mixing Volume | 6500 L | 4000 L | 3500 L | 2600 L |
Geometric Volume | 9700 L | 6100 L | 5200 L | 3600 L |
Concrete Output | 6500 L/ batch , 4 Batches/ hr | 4000 L/ batch , 4 Batches/ hr | 3500 L/ batch , 4 Batches/ hr | 2600 L/ batch , 4 Batches/ hr |
Inclination Angle | 16° | 16° | 16° | 16° |
Max. Slewing Angle | 290° | 290° | 270° | 270° |
Rotating Speed | 17 rpm | 0~21 rpm | 0~21 rpm | 0~13 rpm |
Body /Bottom Thickness | 5 mm/8 mm(Q345B) | 5 mm/8 mm(Q345B) | 4 mm/6 mm(Q345B) | 4 mm/6 mm(Q345B) |
Overall Size | Φ2050x4100 mm | Φ1920x 3206mm | Φ1700x 3210 | Φ1550x 2460 |
Chute Max. Slewing Angle | 180° | 180° | 90° | 90° |
Water Tank Volume | 2 x730 L | 2 x 330 L | 2 x 280 L | 2 x 250 L |
Vehicle Overall Size | 8450 x 3050x 3860mm | 7500 x 2850x 3600 mm | 7800 x 2700 x 3300 mm | 7800 x 2700 x 3300 mm |
Detailed Images
Working processing of self-loading mobile concrete mixer :
1.by charging scoop,small amount of sand and gravel is loaded into the mixing drum,
2.self-loading concrete mixer interior injected into water, when the supply water flow is completed, adding cement, self-loading concrete mixer will run to the designated place to unload concrete, at the same time, the mixing drum will keep rotating to ensure that the concrete dose not condense.
3.mixing drum is equipped with the screw type of blade,, the maximum savings in working time and raw material,
4.After working, the completion of the need for equipment to be cleaned to ensure that the normal work in the future.
2.self-loading concrete mixer interior injected into water, when the supply water flow is completed, adding cement, self-loading concrete mixer will run to the designated place to unload concrete, at the same time, the mixing drum will keep rotating to ensure that the concrete dose not condense.
3.mixing drum is equipped with the screw type of blade,, the maximum savings in working time and raw material,
4.After working, the completion of the need for equipment to be cleaned to ensure that the normal work in the future.
Product details
Manufacturing technique
Product packaging
Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight. (Automatic Concrete Batcher Plant)
Company Profile
Zhenheng was established in zhengzhou city in 1982,cover an area of 73370 square meters, have three production bases, have over 300 employees. we produce 3 series of nearly hundreds of varieties construction machines including concrete batching plant, concrete block production line and concrete pump etc. We have attained ISO9001 certificate, CE certificate, and more than 20 patents in the construction machinery line. Zhenheng is well equipped with facilities and strict quality control system. We have a variety of processing lathes and precision machining centers.Advanced laser cutting machines, laser welding machine, Robot welding machines CNC lathing,wire cutting machines and other equipment. leading technology and advanced manufacturing equipment have made zhenheng a leaving level in construction machines industry.
our team
Customer Photos
FAQ
Q1. Why Choose Us?
A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on.
4.Delivery ability
We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days
Q2. Which kind of concrete it can mix?
A:Heavy concrete, common concrete, light concrete. Light concrete we recommend our JSS series, it adds spiral blade and can mix more evenly.
Q3. What is the discharging mode of your concrete mixer?
A:Both hydraulic and pneumatic discharging modes are available. Hydraulic is more advanced and popular than pneumatic type. However we supply as per customer's requirement.
Q4. What is the material do you use for milling blades and lining board?
A:High chromium alloy wear resistant plate and high manganese alloy lining board.
A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the equipment and so on.
4.Delivery ability
We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be shipped as soon as possible when you confirm the order within 15 days
Q2. Which kind of concrete it can mix?
A:Heavy concrete, common concrete, light concrete. Light concrete we recommend our JSS series, it adds spiral blade and can mix more evenly.
Q3. What is the discharging mode of your concrete mixer?
A:Both hydraulic and pneumatic discharging modes are available. Hydraulic is more advanced and popular than pneumatic type. However we supply as per customer's requirement.
Q4. What is the material do you use for milling blades and lining board?
A:High chromium alloy wear resistant plate and high manganese alloy lining board.
