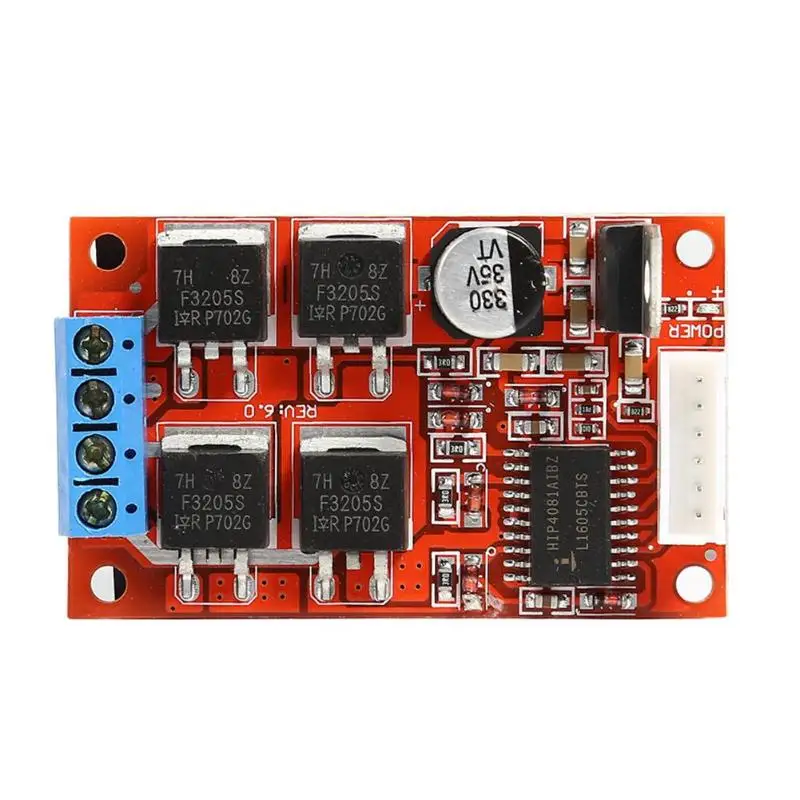

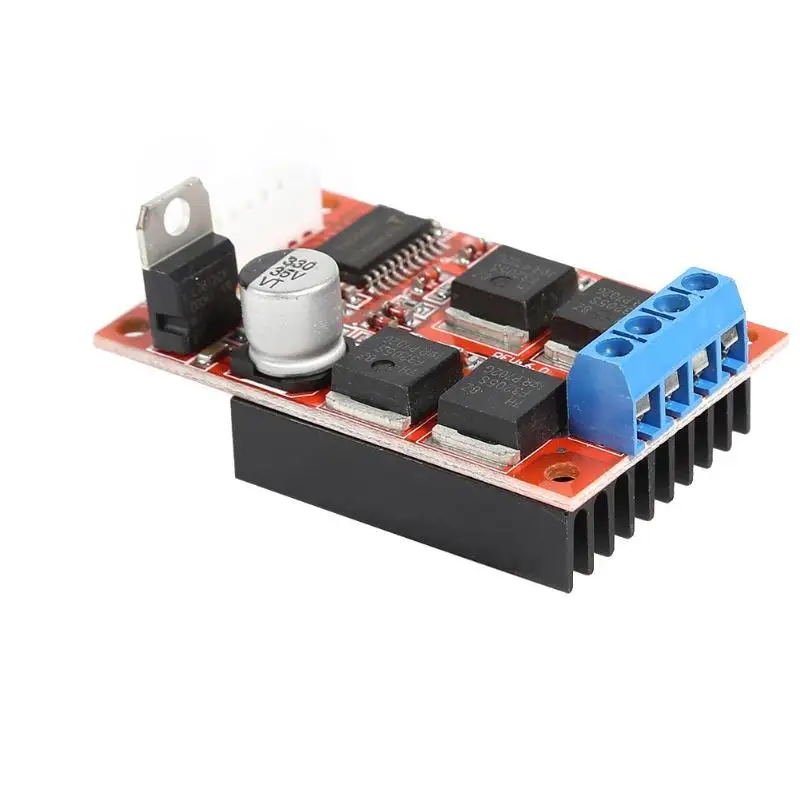

12 В/24 В/36 в 450 Вт H-Bridge Brushed PWM модуль драйвера двигателя постоянного тока Реверсивный
- Категория: Motor Driver >>>
- Поставщик: Shenzhen,Qinda,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.17 $* | 0.4 $* |
| Aug-20-2025 | 0.59 $* | 0.23 $* |
| Jul-20-2025 | 0.30 $* | 0.51 $* |
| Jun-20-2025 | 0.55 $* | 0.39 $* |
| May-20-2025 | 0.46 $* | 0.47 $* |
| Apr-20-2025 | 0.77 $* | 0.5 $* |
| Mar-20-2025 | 0.52 $* | 0.11 $* |
| Feb-20-2025 | 0.45 $* | 0.75 $* |
| Jan-20-2025 | 0.33 $* | 0.29 $* |
Характеристики
Product Description
Part number | Motor Driver |
Wechat/Tel | +8613534149774 |
Email/Skype | qindamodule@ 163.com |
1823232721 |
Features:
Motor drive module parameters
modular nature:H-bridge DC motor driver moduleSuitable for 11-36V DC Motor
Scope:High-power DC motor drive
Driving voltage: DC 11-36V
Output Current: 15AMaximum continuous load current 20A

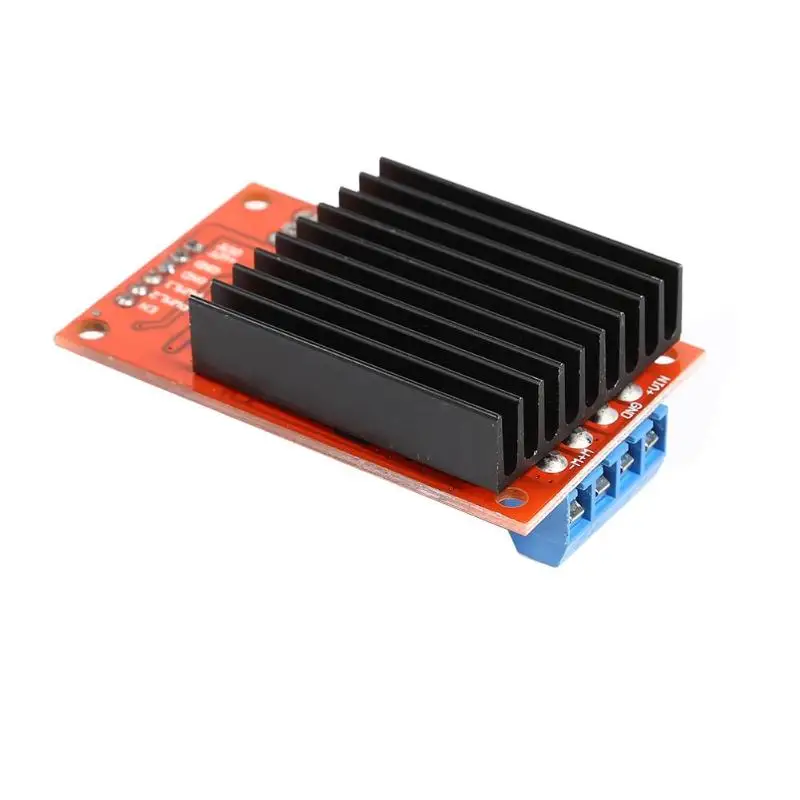

Output Power: max 450W (less than 360W do not need heat sink)
Working temperature: 40 to + 85
Full load temperature: 45
Dimensions: 6.6cm × 3.8cm x2.8cm
Driver module features:
(1) full-bridge driver chip + low-resistance 110A NMOS drive tube to achieve motor brake and reversing.
(2) chip operating frequency up to 1MHZ, solve VNH3SP30 MC33886 motor noise and heat problems Japan
(3) 2 way PWM inputs in 0-100% duty cycle,
(4) applies to lithium battery-powered directly drive
(5) built-in logic circuit isolation buffer.Support PLC, directly control of various types of 3V or 5V MCU IO ,By analog voltage input to control the motor brake and reversing.
(7) chip built-in hardware dead-time control,
(8) chip operating frequency up to 1MHZ, Suitable for Empty harbor motordriving
EN: enable terminal
PWML1: forward rotation Control
PWML2: inversion control
GND: power grounding cable
Outputs:
VIN +: driver board power supply input
Positive electrode
GND: driver board power supply input
Negative electrode
M +: connect motor wire
M-: connect motor wire
Control mode instructions:
Electricity Level Control:
EN = 0 PWML1 = 0 PWML2 = 1 motor forward running
EN = 0 PWML1 = 1 PWML2 = 0 motor reverse running
EN = 0 PWML1 = 1 PWML2 = 1 motor brake
EN = 1 PWML1 = 1 PWML2 = 1 Motor freedom
PWM control mode:
EN = 0 PWML1 = duty cycle Adjustable PWM signal PWML2 = 1 motor forward running (changing the duty cycle can speed regulation)
EN = 0 PWML1 = 1 PWML2 = duty cycle Adjustable PWM signa motor reverse running (changing the duty cycle can speed regulation)
EN = 0 PWML1 = 1 PWML2 = 1 motor brake
EN = 1 PWML1 = 1 PWML2 = 1 Motor freedom
modular nature:H-bridge DC motor driver moduleSuitable for 11-36V DC Motor
Scope:High-power DC motor drive
Driving voltage: DC 11-36V
Output Current: 15AMaximum continuous load current 20A
Output Power: max 450W (less than 360W do not need heat sink)
Working temperature: 40 to + 85
Full load temperature: 45
Dimensions: 6.6cm × 3.8cm x2.8cm
Driver module features:
(1) full-bridge driver chip + low-resistance 110A NMOS drive tube to achieve motor brake and reversing.
(2) chip operating frequency up to 1MHZ, solve VNH3SP30 MC33886 motor noise and heat problems Japan
(3) 2 way PWM inputs in 0-100% duty cycle,
(4) applies to lithium battery-powered directly drive
(5) built-in logic circuit isolation buffer.Support PLC, directly control of various types of 3V or 5V MCU IO ,By analog voltage input to control the motor brake and reversing.
(7) chip built-in hardware dead-time control,
(8) chip operating frequency up to 1MHZ, Suitable for Empty harbor motordriving
EN: enable terminal
PWML1: forward rotation Control
PWML2: inversion control
GND: power grounding cable
Outputs:
VIN +: driver board power supply input
Positive electrode
GND: driver board power supply input
Negative electrode
M +: connect motor wire
M-: connect motor wire
Control mode instructions:
Electricity Level Control:
EN = 0 PWML1 = 0 PWML2 = 1 motor forward running
EN = 0 PWML1 = 1 PWML2 = 0 motor reverse running
EN = 0 PWML1 = 1 PWML2 = 1 motor brake
EN = 1 PWML1 = 1 PWML2 = 1 Motor freedom
PWM control mode:
EN = 0 PWML1 = duty cycle Adjustable PWM signal PWML2 = 1 motor forward running (changing the duty cycle can speed regulation)
EN = 0 PWML1 = 1 PWML2 = duty cycle Adjustable PWM signa motor reverse running (changing the duty cycle can speed regulation)
EN = 0 PWML1 = 1 PWML2 = 1 motor brake
EN = 1 PWML1 = 1 PWML2 = 1 Motor freedom
Package Contents
1 x H-bridge DC motor driver module
