Product Overview

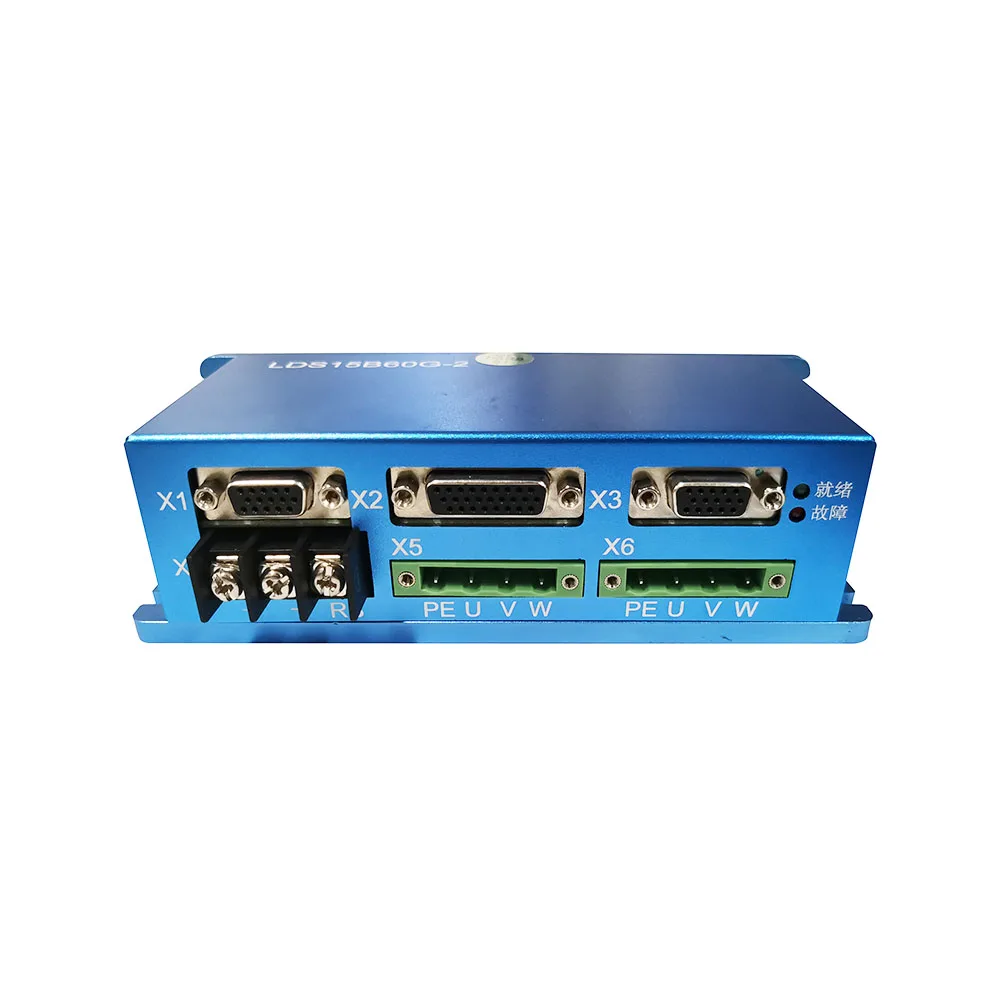

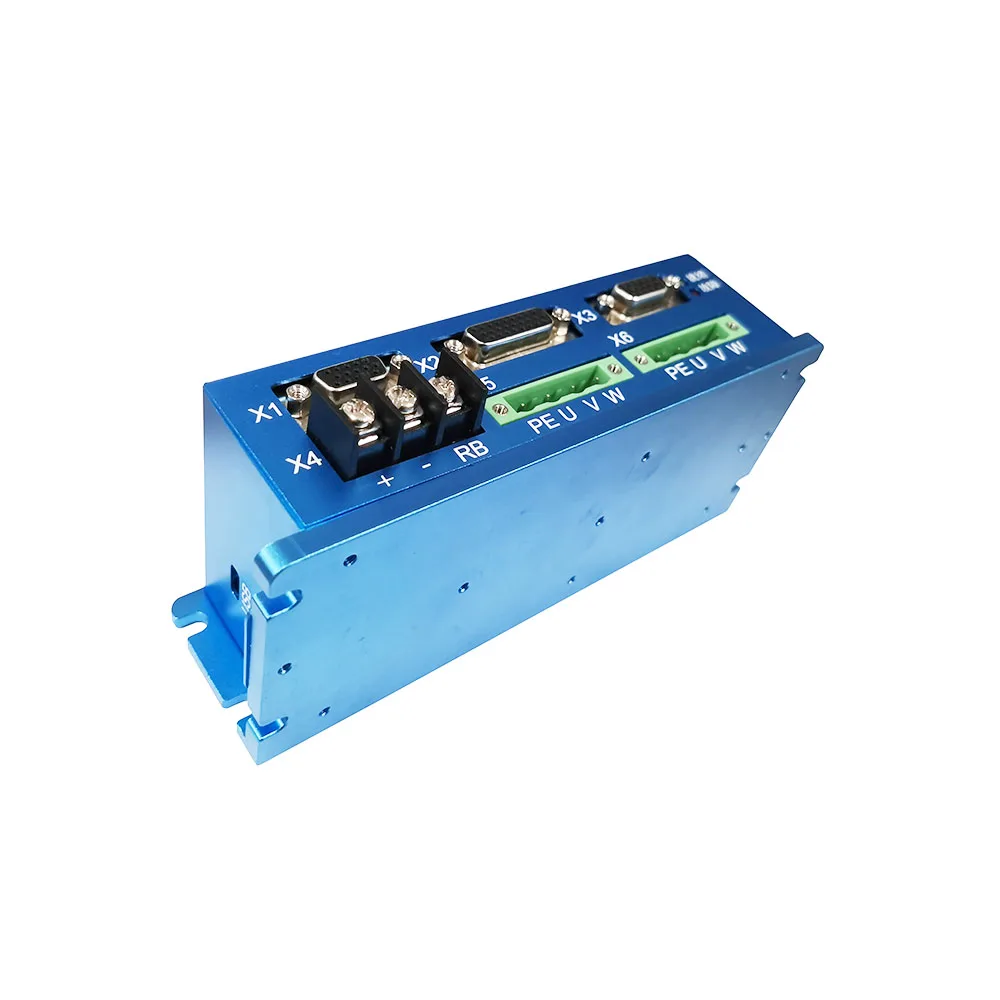

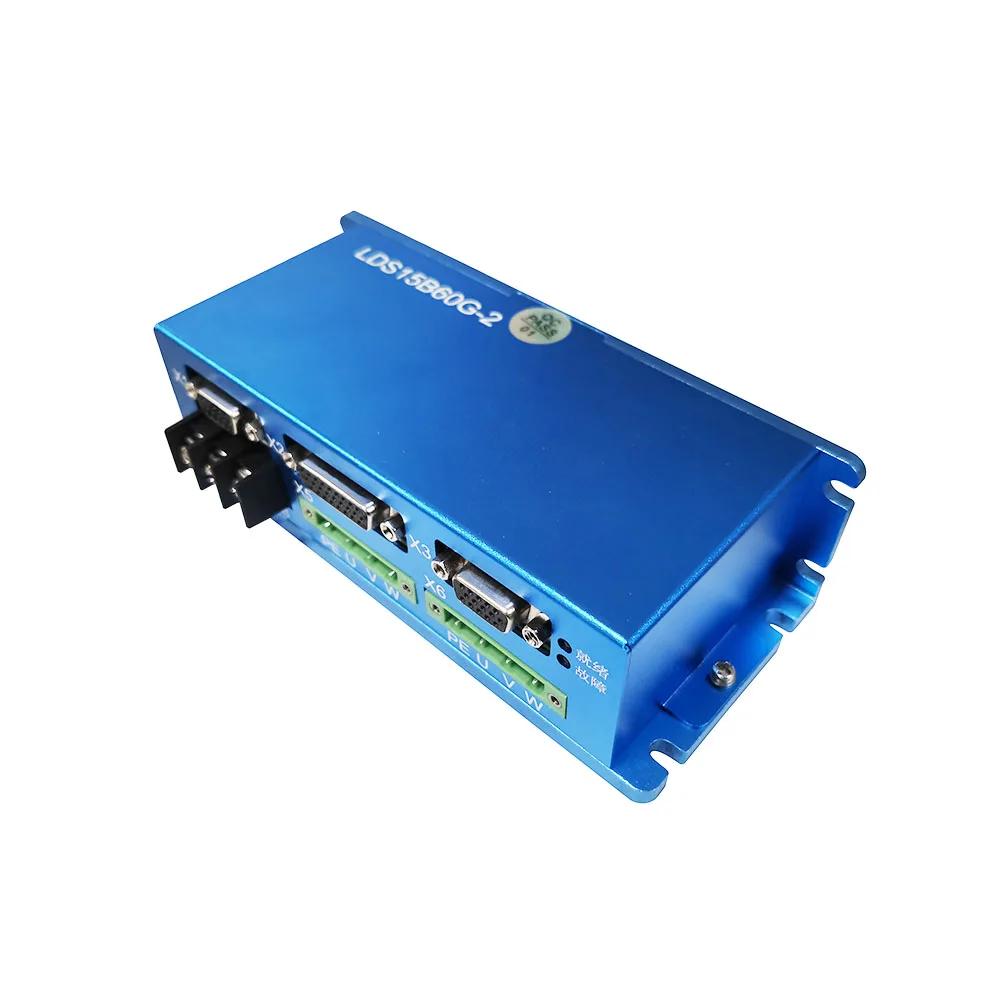

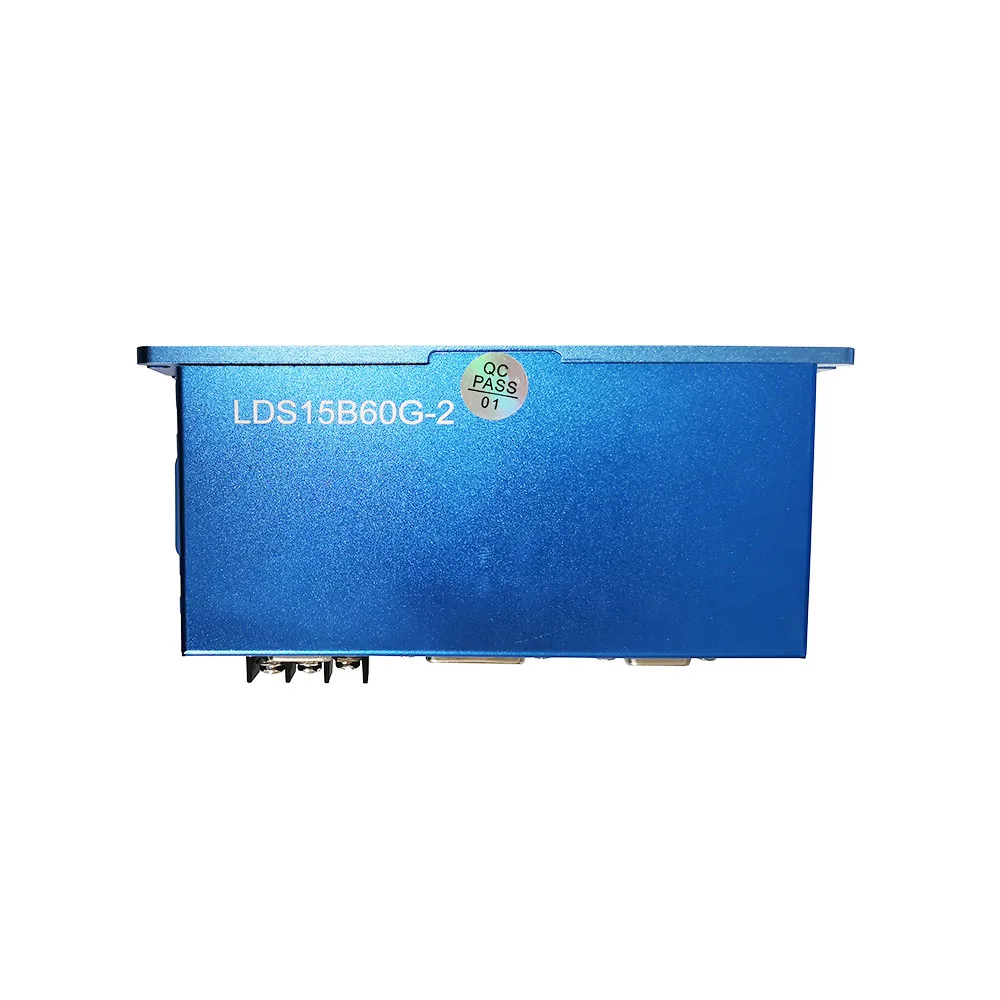

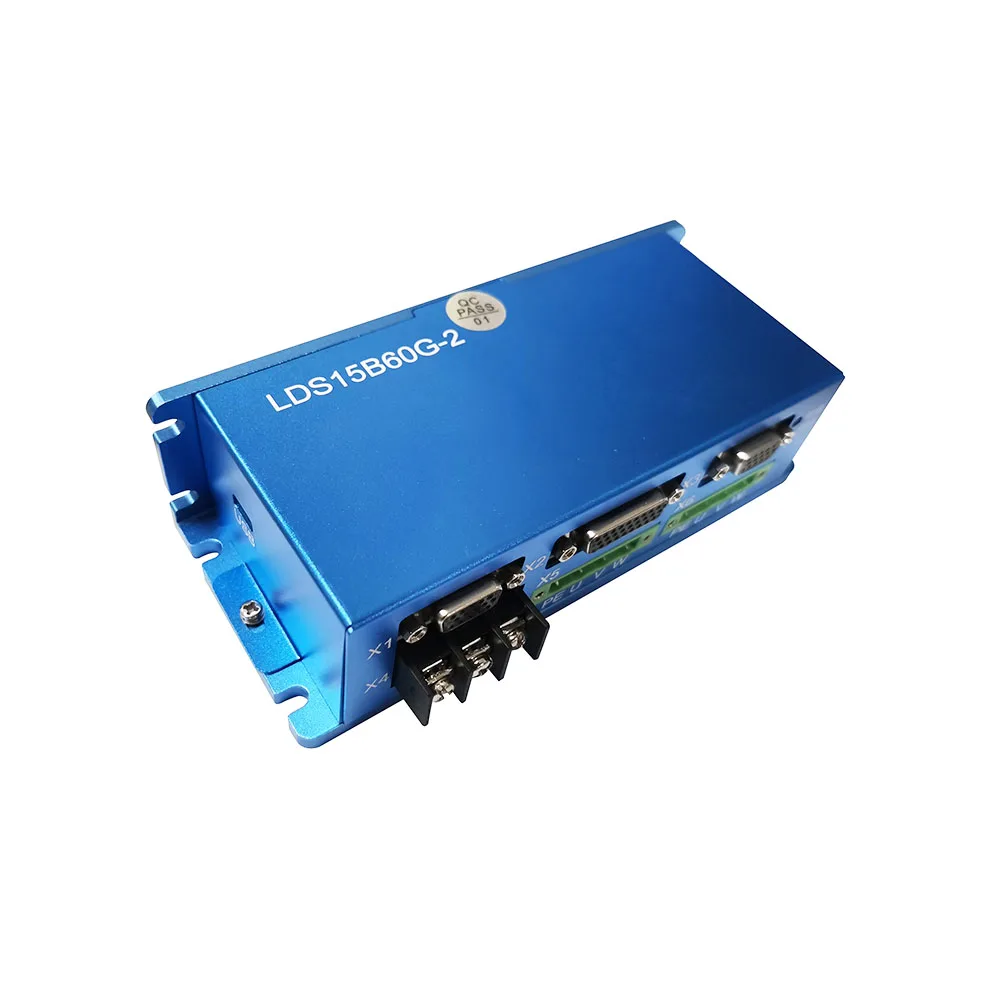

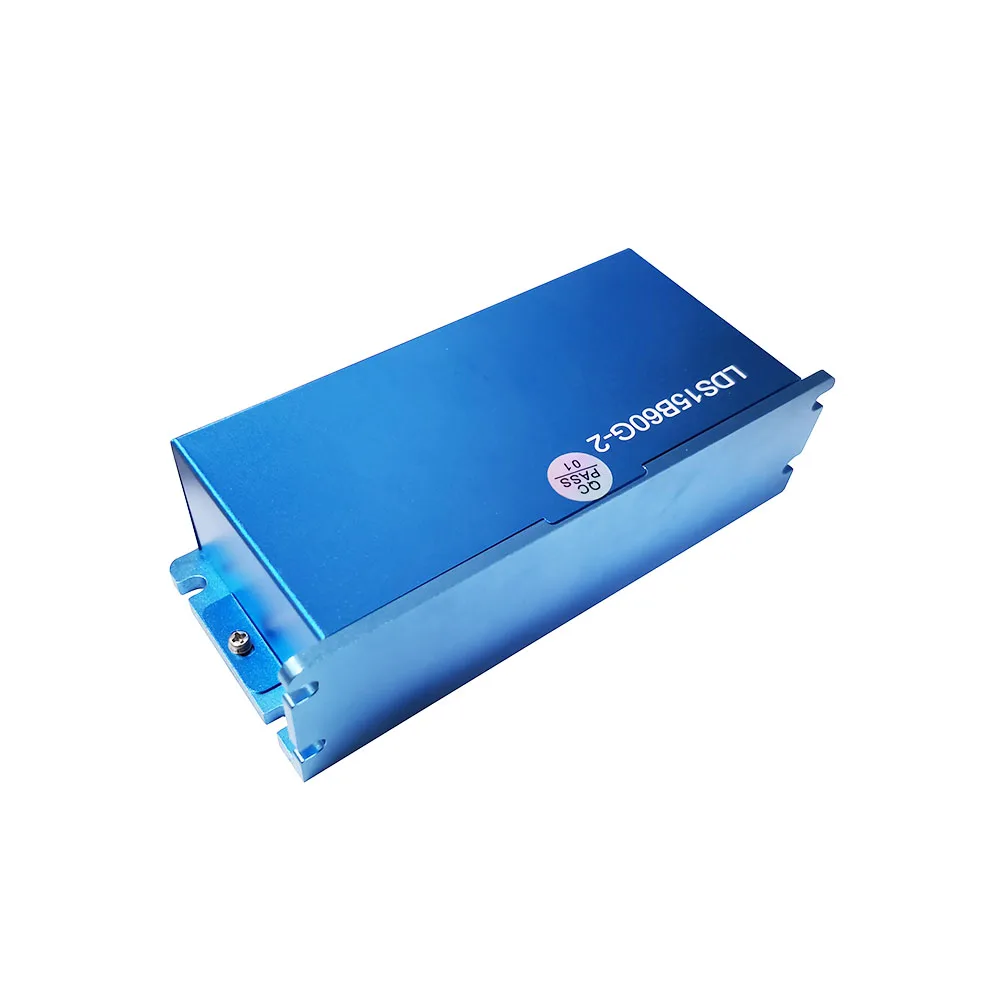

Motor Driver LDS15B60G-2
LD series DC servo motor driver is a high-performance DC motor driver which has been introduced by senior experts after more than ten years of application experience in the robot industry, combined with leading motor control and current accurate detection technology. The powerful PID adjustment technology can perfectly control the motor's smooth forward and reverse rotation, commutation and braking. The output current can be adjusted in real time to prevent overcurrent. The motor speed and rotation position can be accurately controlled. The motor has a short response time and low recoil.
PRODUCT SPECIFICATIONS
Model | LDS15B60G-2 |
Rated Current | 15Arms±2% |
Maximum Current | 30Arms±2% |
Maximum Overload Time | 20S |
Overload Recovery Time | 90S (without external heat dissipation) |
Limit Power Supply Range | 16 VDC～60 VDC |
Temperature Rise | Rated current operation 30min≤40K (refer to cooling mode) |
Drive Frequency | 6 ～ 21KHz±0.1KHz |
Rated Insulation Withstand Voltage | The leakage current of input and output to chassis DC 500V is less than 3mA, |
Mean Time Between Failures (MTBF) | ≥5000 hours |
Feedback Method | Hall |
Advantages
* Flat, small size, wide voltage, light weight, high power density.
* Acceleration and acceleration mode control, fast positioning without shaking.
* Multiple hardware and software to protect the motor.
* Real-time reading current, speed, position.
* Real-time reading current, speed, position.
RS485 Communication
The above figure shows the schematic diagram of Rs485 communication wiring.The communication line of Rs485 communication should not be run together with the high-voltage line or high-current power line.
CAN Communication
The above figure shows the schematic diagram of CAN communication wiring.It is recommended to use shielded twisted pair connection. Connect two 120Ω terminal matching resistors at both ends of the bus to prevent signal reflection.
Structure Diagram
Company Profile
Zhejiang Tongzhu Technology Co., Ltd founded 2015, in ZHEJIANG designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, reducer, controller, caster wheel, gear, Pu wheel, motor in wheel units and all over the world.
TZBOT continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.
The factory, is 1000 sq. feet, and employs 50 people. The company is certified to ISO9001:2015.
The core to TZBOT's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. TZBOT has come to be recognized as one of the biggest suppliers of electric drive.
Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.
Today, TZBOT can quickly design and produce engines and special parts request from customers.
TZBOT's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
